CATALOGUE Kdf-166
Make order in accordance with our numbering - numbers in yellow and green lines! The prices are excl. VAT 21%!

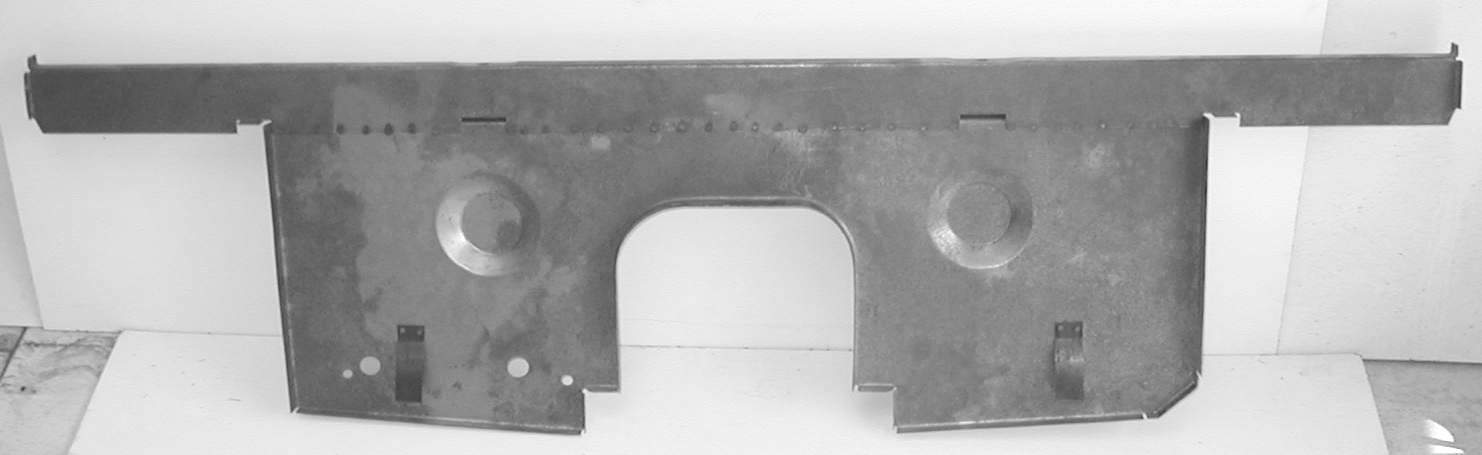

| Cat. Nr. | 600 | 601 | 602 | 603 | 604 |
| photo |  |
 |
 |
 |
 |

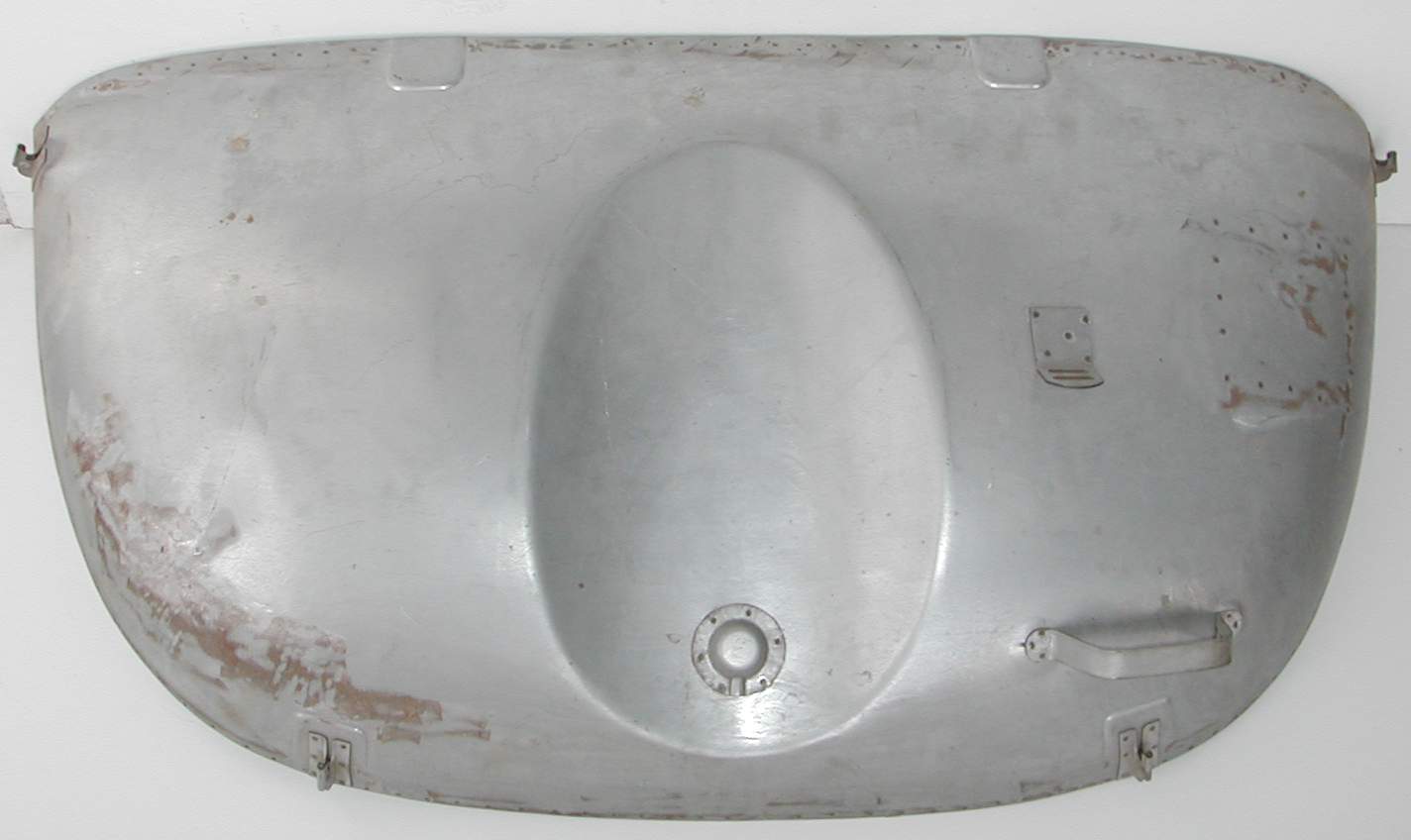

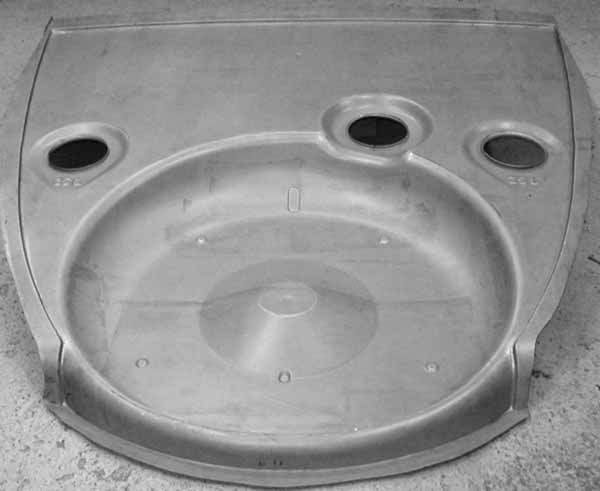

| item | skin, scuttle | partition between rear seats and engine | engine lid | partition, under rear seats | shelf, near gearbox |
| Price | 20 000 CZK | 2 200 CZK | inquire | 2 800 CZK | 250 CZK |

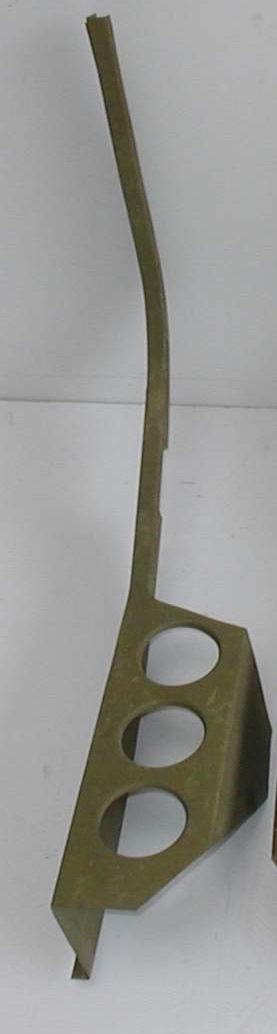

| Cat. Nr. | 605 | 606 | 607 | 608 | 609 |
| photo |  |
 |
 |
 |
 |

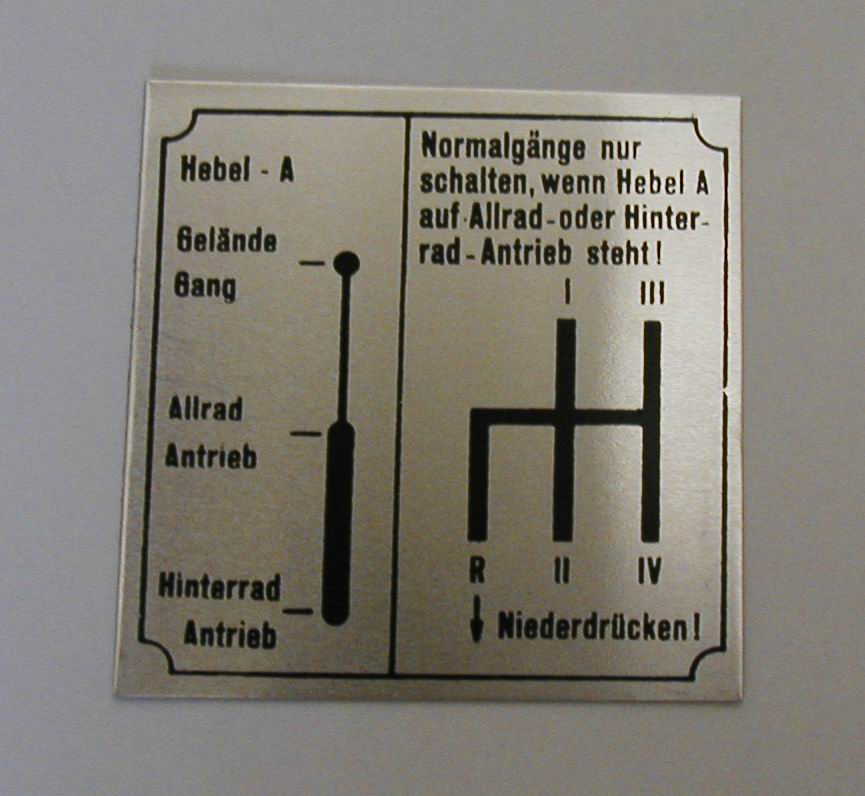

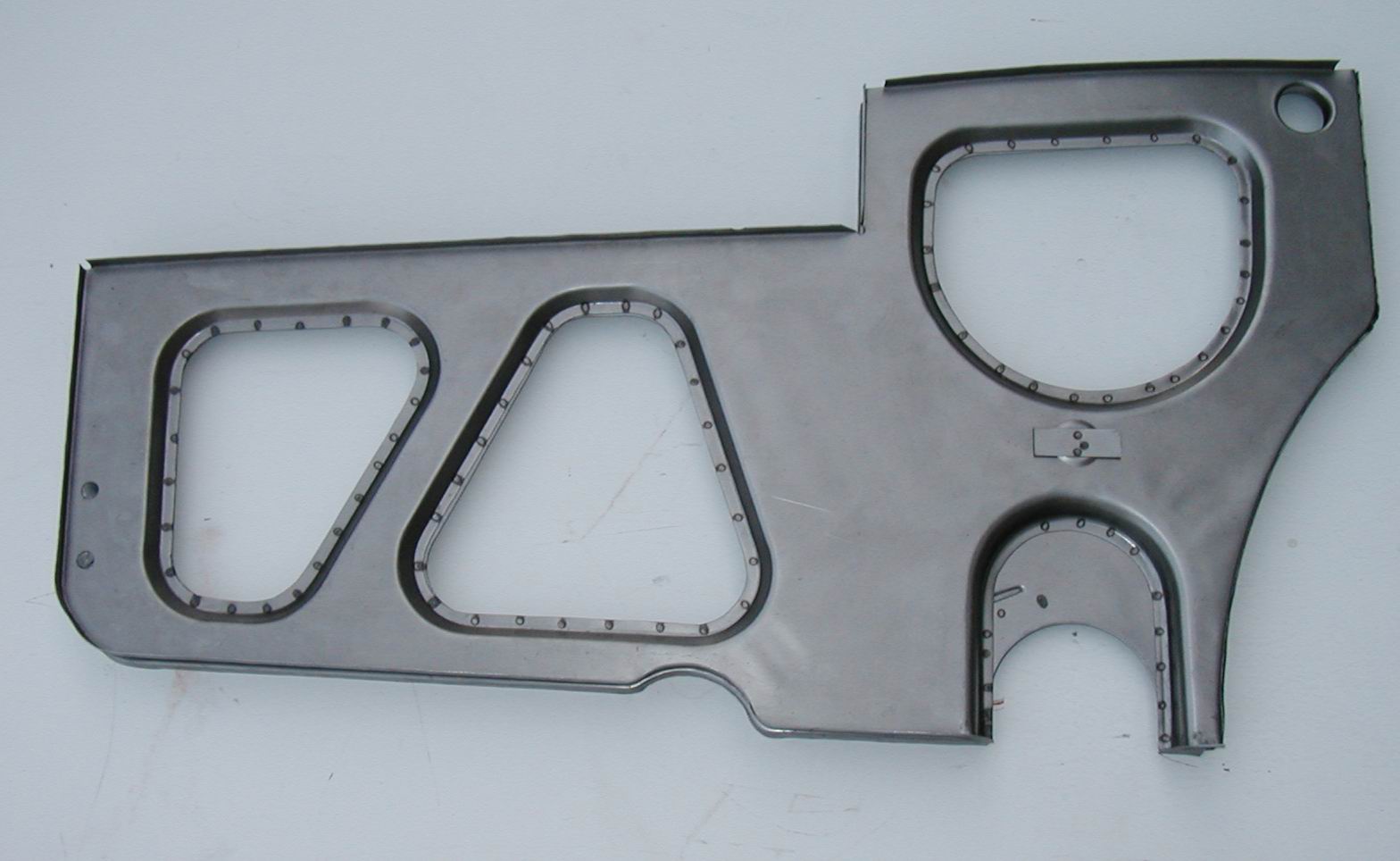

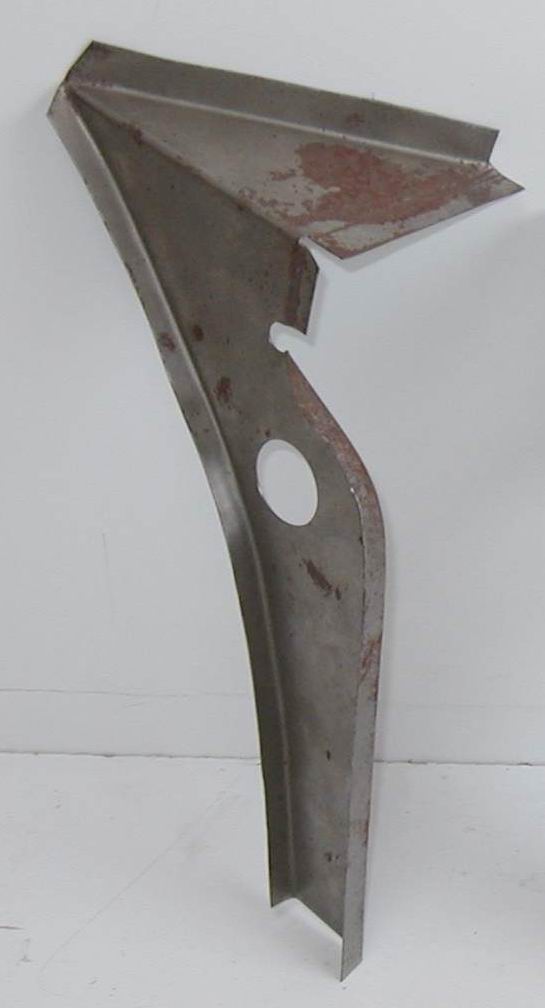

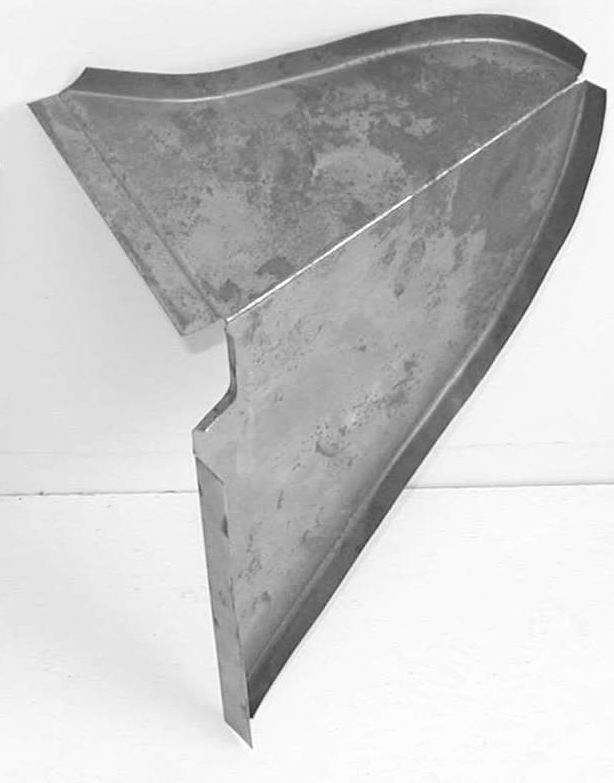

| item | partition between tanks, under scuttle | holder, steer. shaft, with shift scheme | reinforcement, between side and longitudinal partition, rear | reinforcement, between side and longit. partition, front | reinforcement, bottom of engine compartment |
| Price | 7 200 CZK | 2 100 CZK | 500 CZK | 500 CZK | 1 100 CZK |

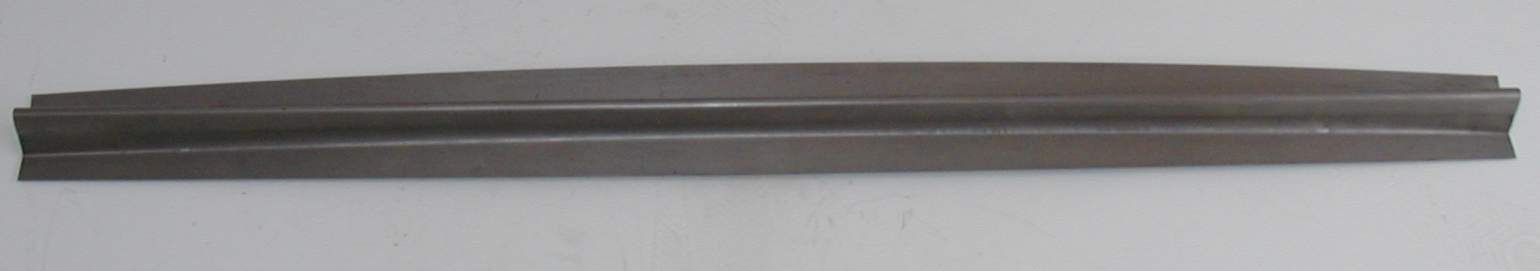

| Cat. Nr. | 610 | 611 | 612 | 613 | 614 |
| photo |  |
 |
 |
 |
 |

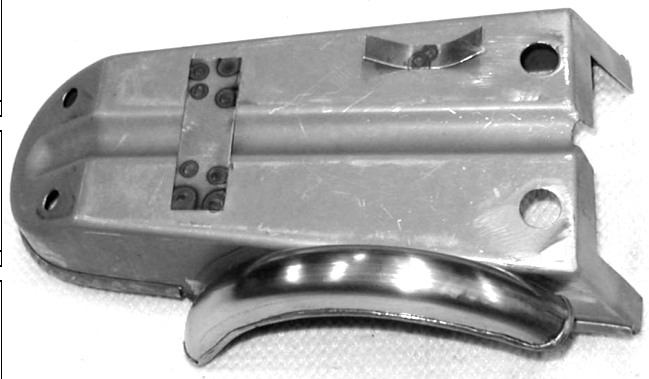

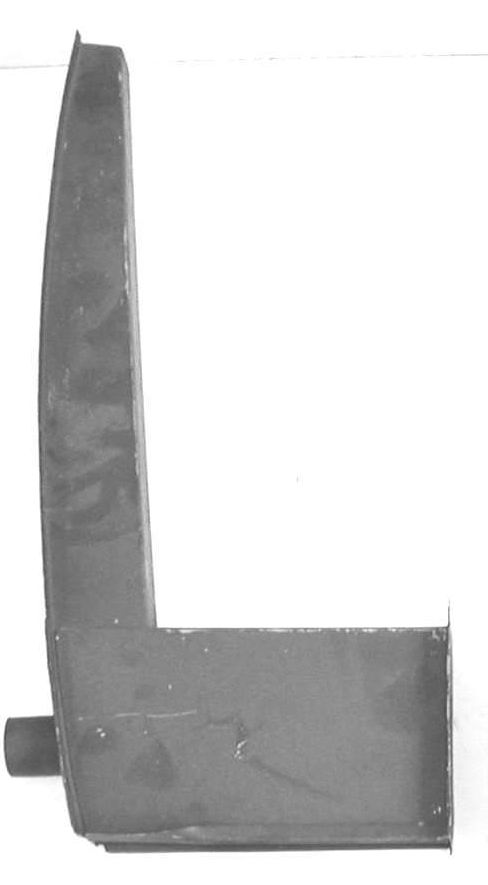

| item | reinforcement, for car jacking point | reinforcement, for MG magazines holder | sump cover, under engine | drainage profile, scuttle under windscreen | taillight holder, for mudguard with paddle holder |
| Price | 1 200 CZK | 600 CZK | 1 700 CZK | 800 CZK | 2 100 CZK |
| Cat. Nr. | 614-A | 615 | 616 | 617 | 618 |
| photo |  |
 |
 |
|
 |

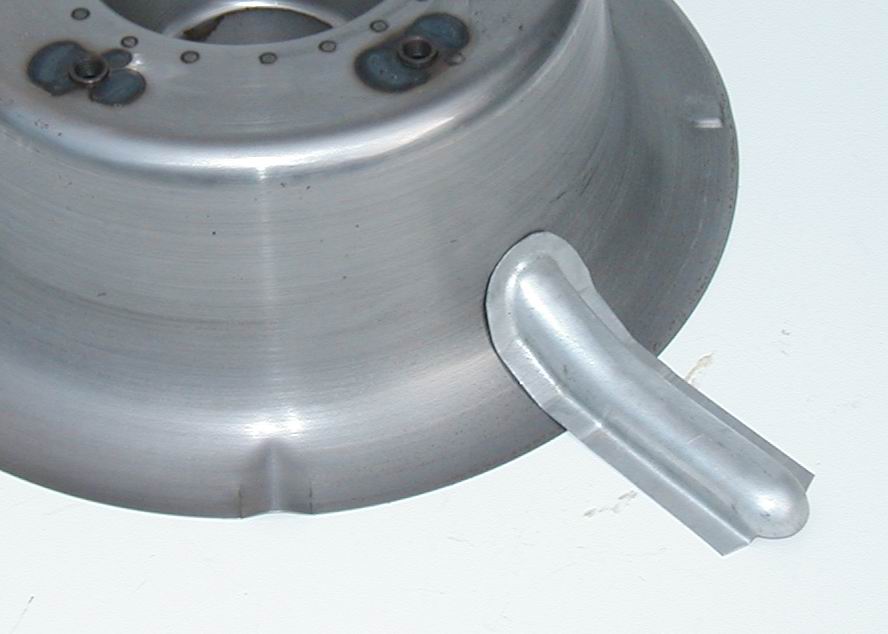

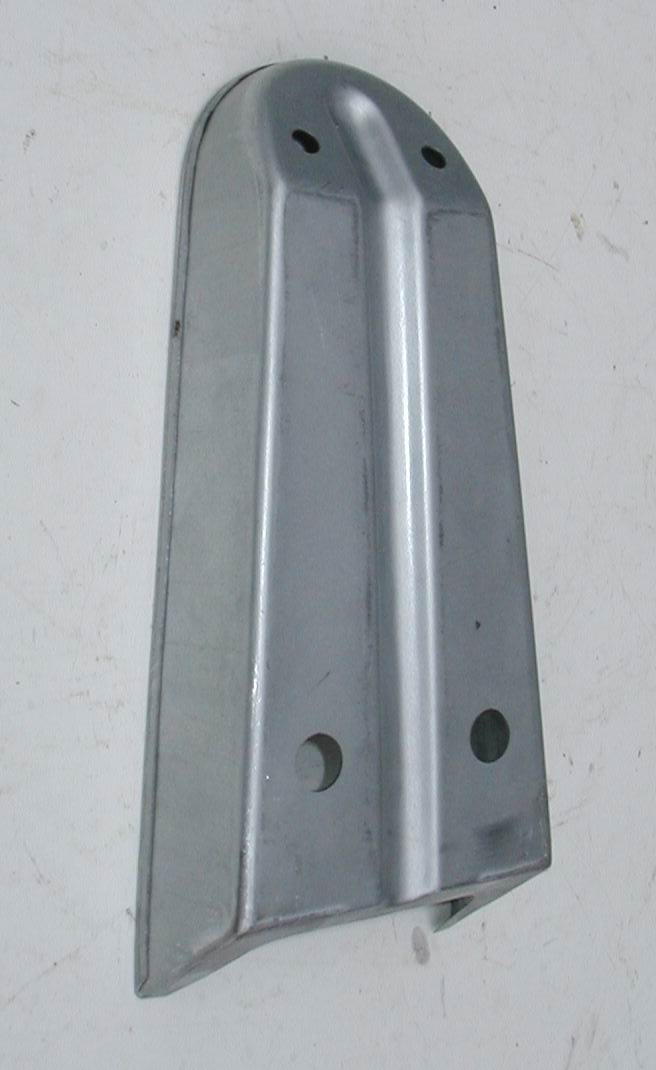

| item | taillight holder, for mudguard | rectangular dashboard | partition, rear 'bridge' | reinforcement for spare tyre holder | spare tyre holder |
| Price | 1 600 CZK | 1 600 CZK | 1 100 CZK | 150 CZK | 2 200 CZK |

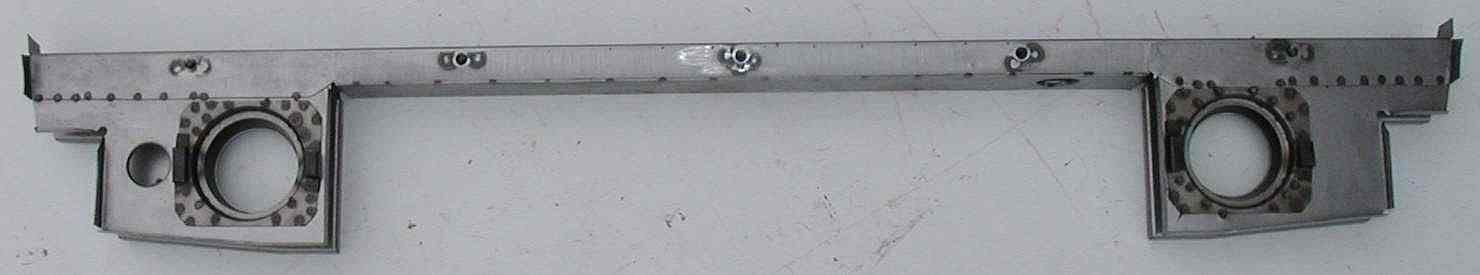

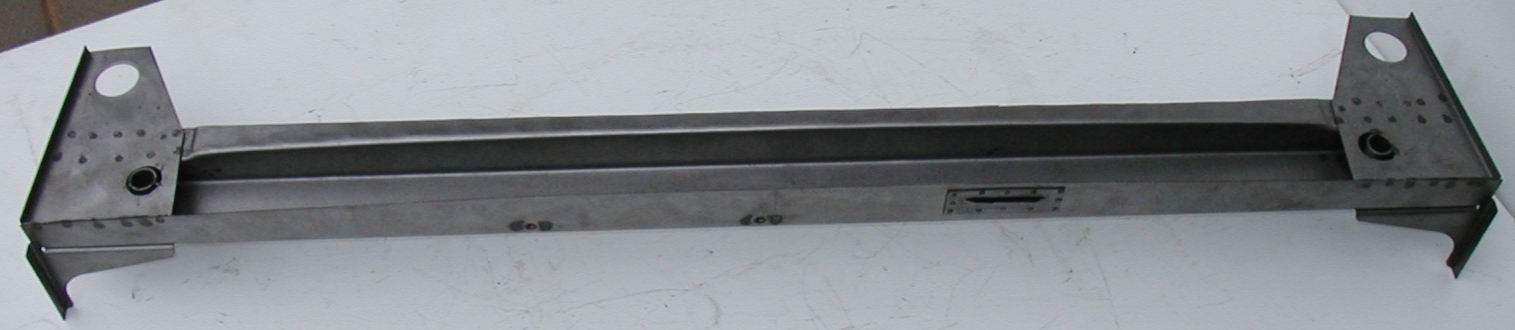

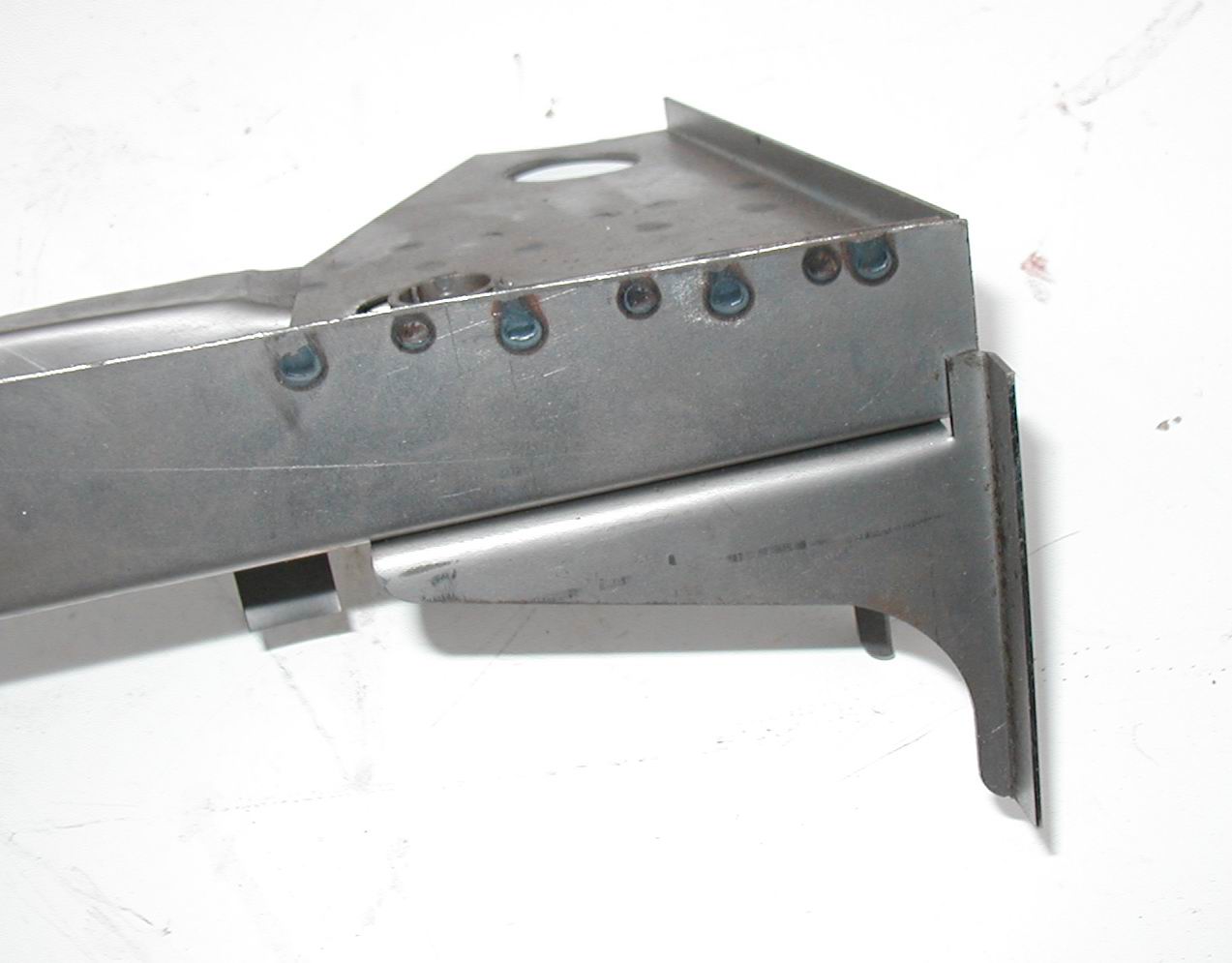

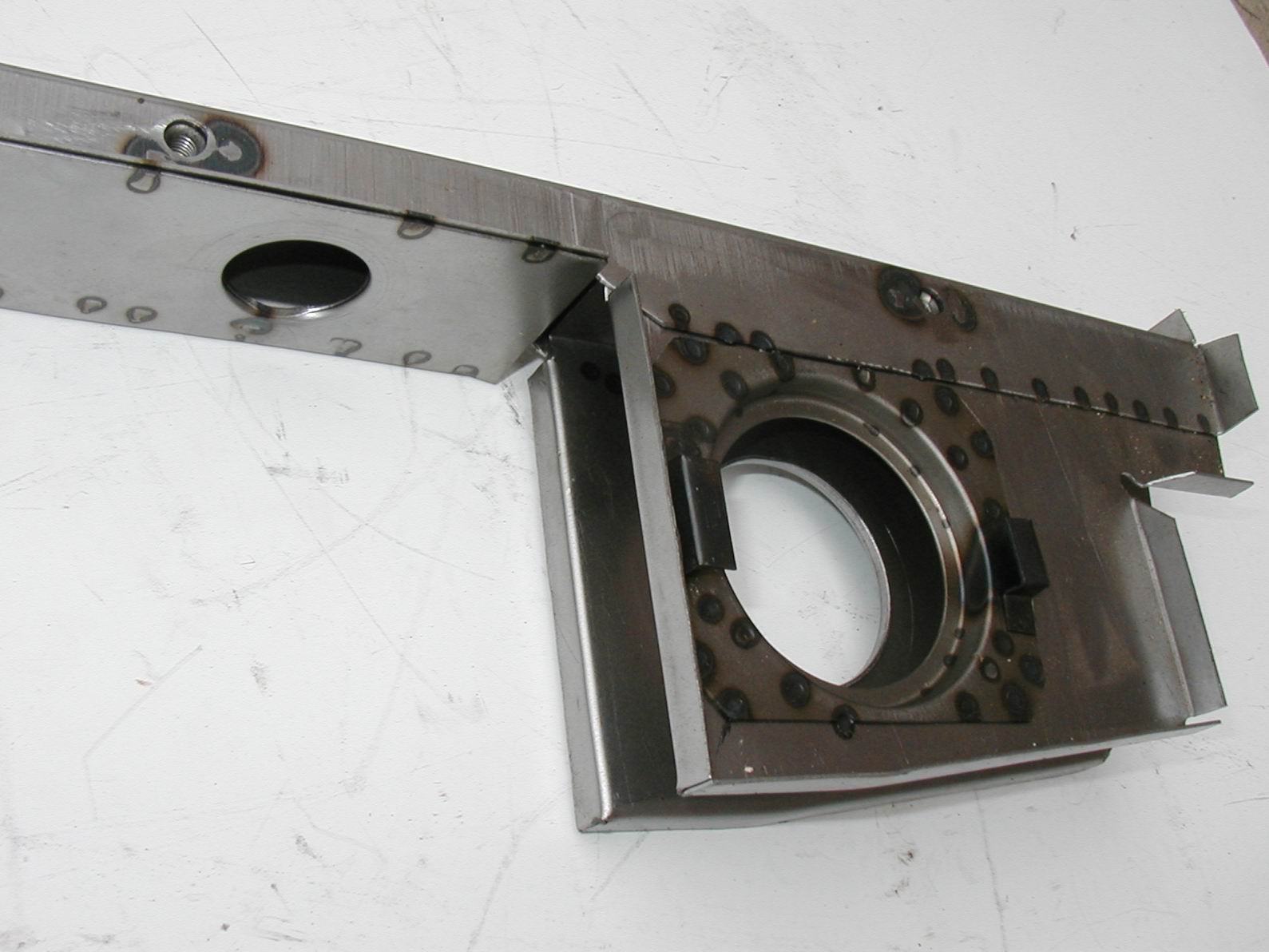

| Cat. Nr. | 619 | 620 | 621 | 622 | 623 |
| photo |
|
|
 |
 |
 |

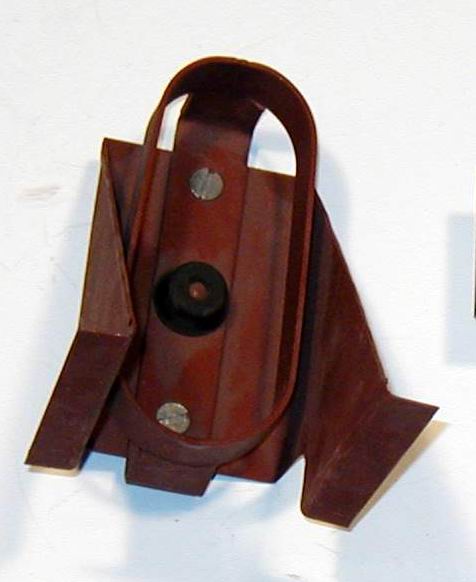

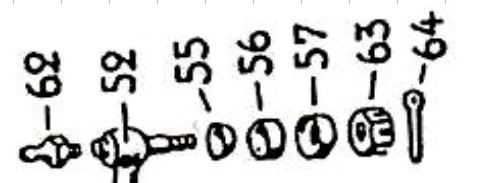

| item | cross-brace under scuttle, for dash | panel at foot of engine wall | panel for front 'bridge' | Mauser clamp and base | Mauser butt holder with its brace |
| Price | 2 500 CZK | 4 800 CZK | 1 300 CZK | 1 150 CZK | 500 CZK |
| Cat. Nr. | 624 | 625 | 626 | 627 | 628 |
| photo |  |
 |
 |
|
 |

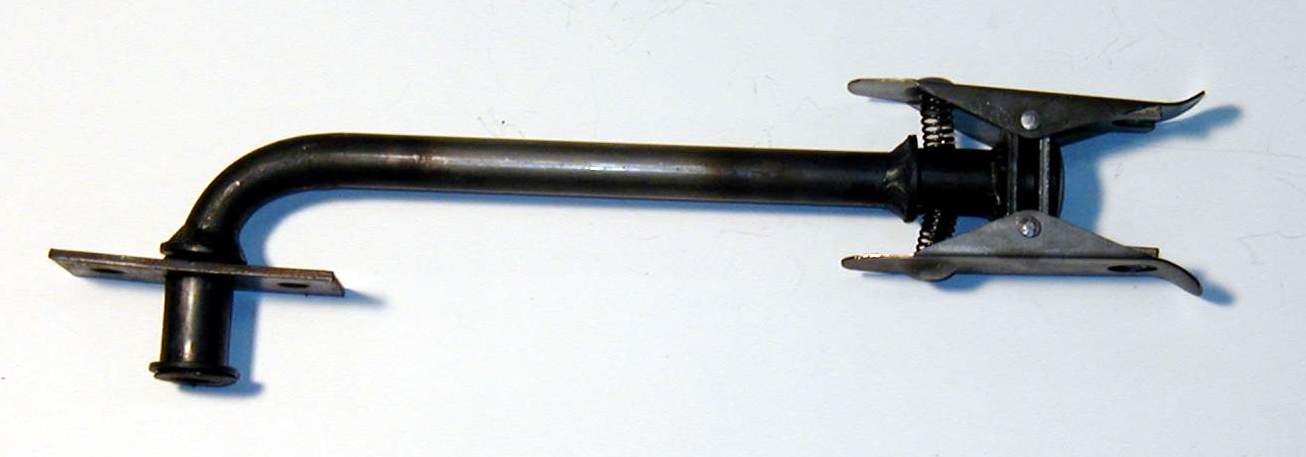

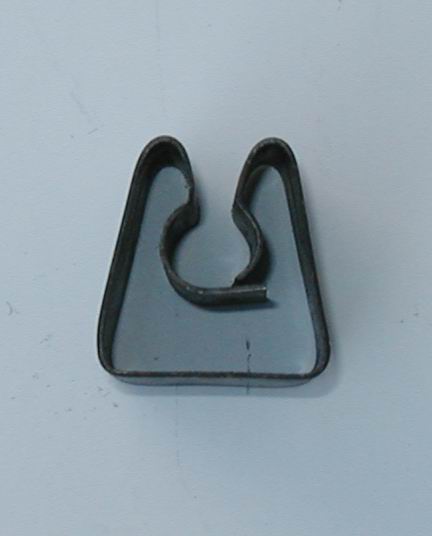

| item | holder and spring lock for MG stand | spring lock for MG stand | MG stand | windscreen frame, lower part | set of complete exhaust and muffler assembly |
| Price | 700 CZK | 200 CZK | 1 900 CZK | 1 600 CZK | 11 000 CZK / set |

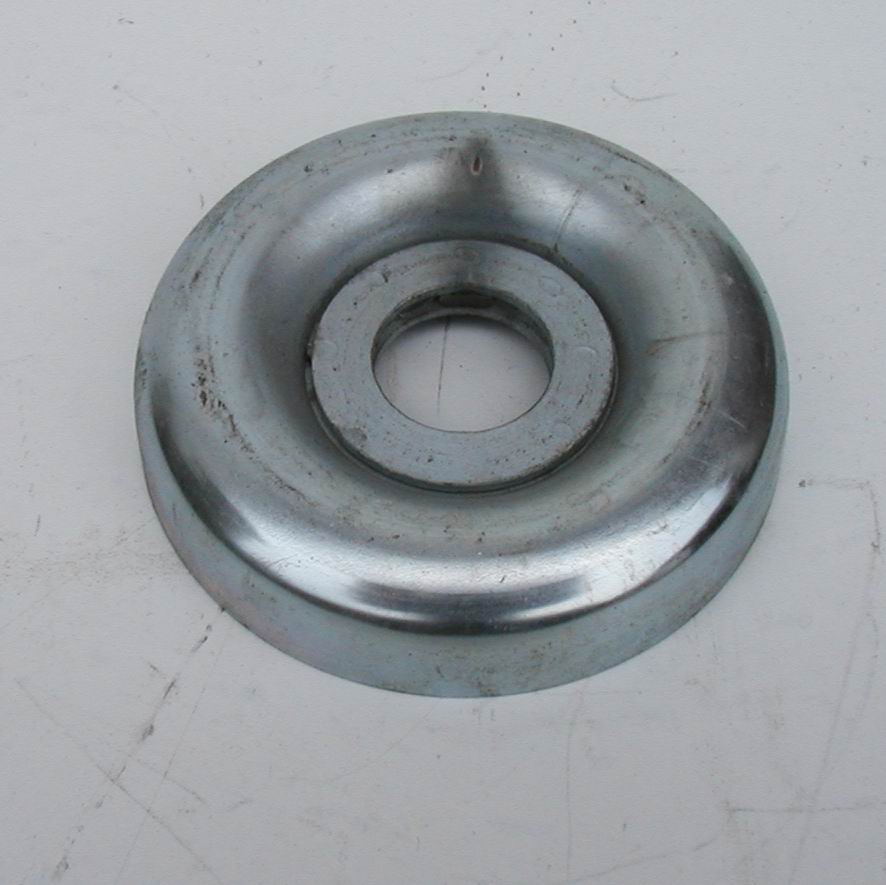

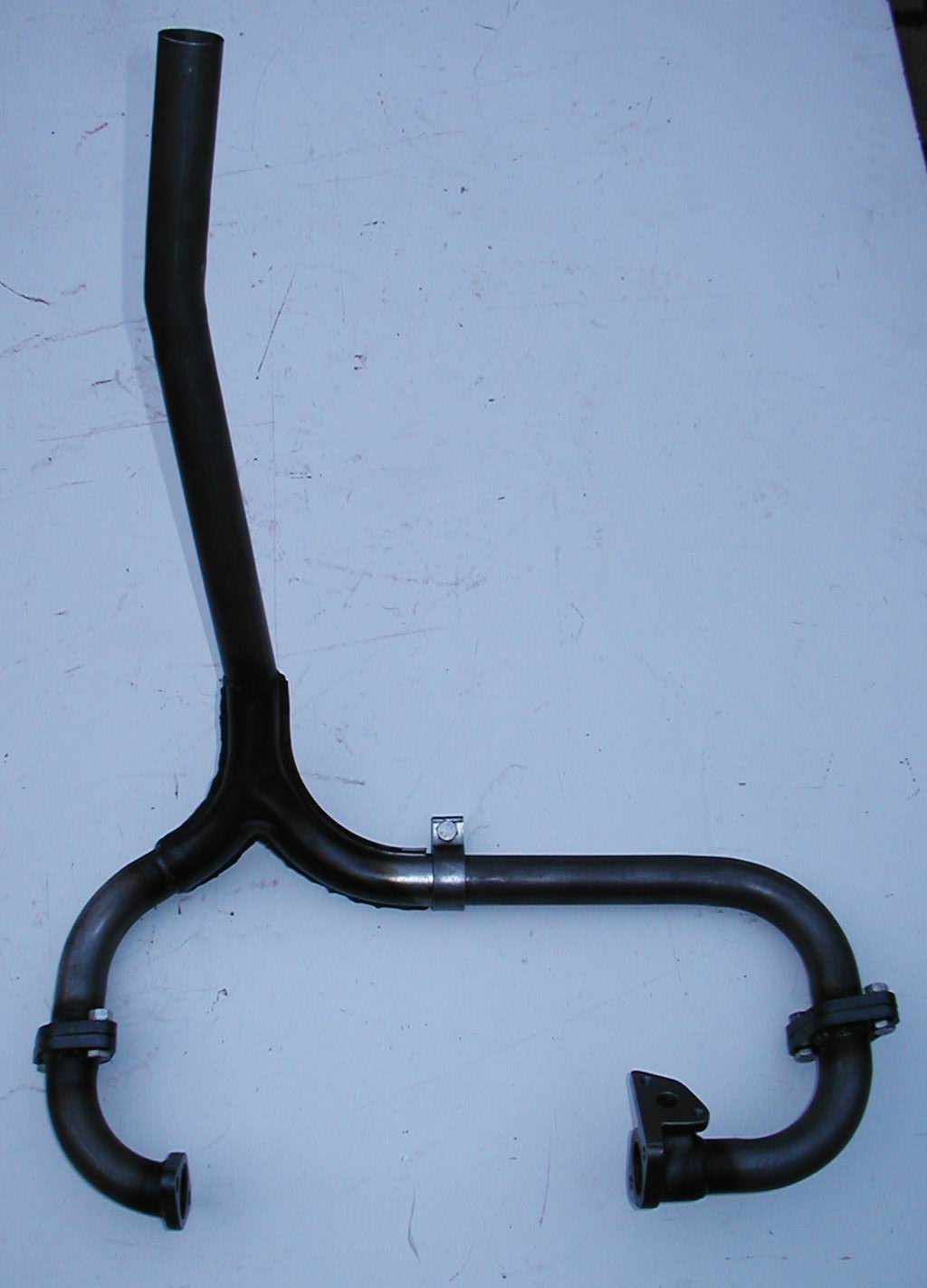

| Cat. Nr. | 628-A | 628-B (now 659) | 629 | 630 | 631 |
| photo |  |
 |
 |
 |
|

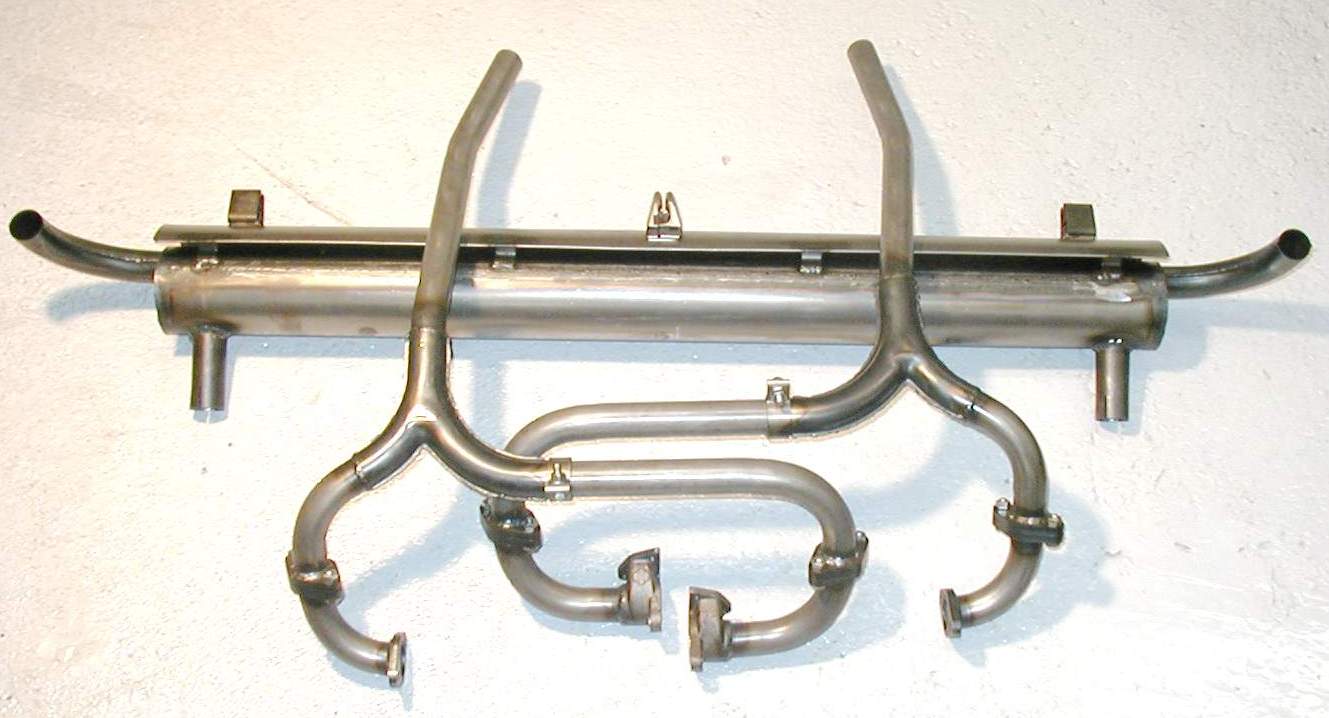

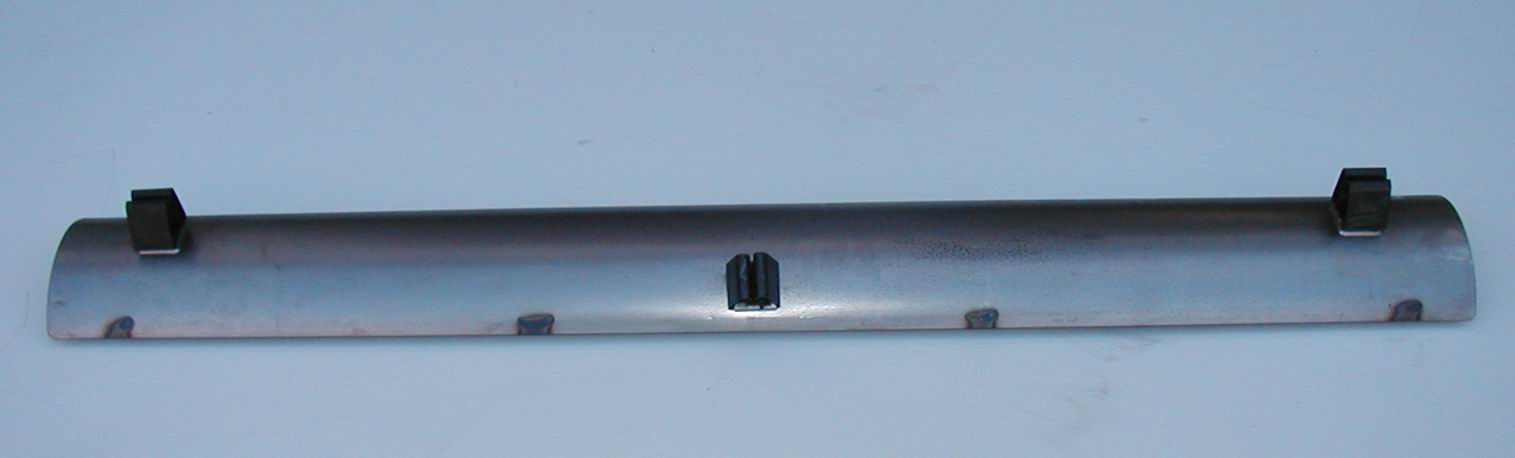

| item | exhaust manifold, one side only, 4-piece | ----------- | spring lock, stand, holder for [rear] MG | seal cover for speedo drive, see ill. 5 | strip to hold MG magazine case |
| Price | 3 200 CZK | ---------- | 900 CZK | 600 CZK | 950 CZK |

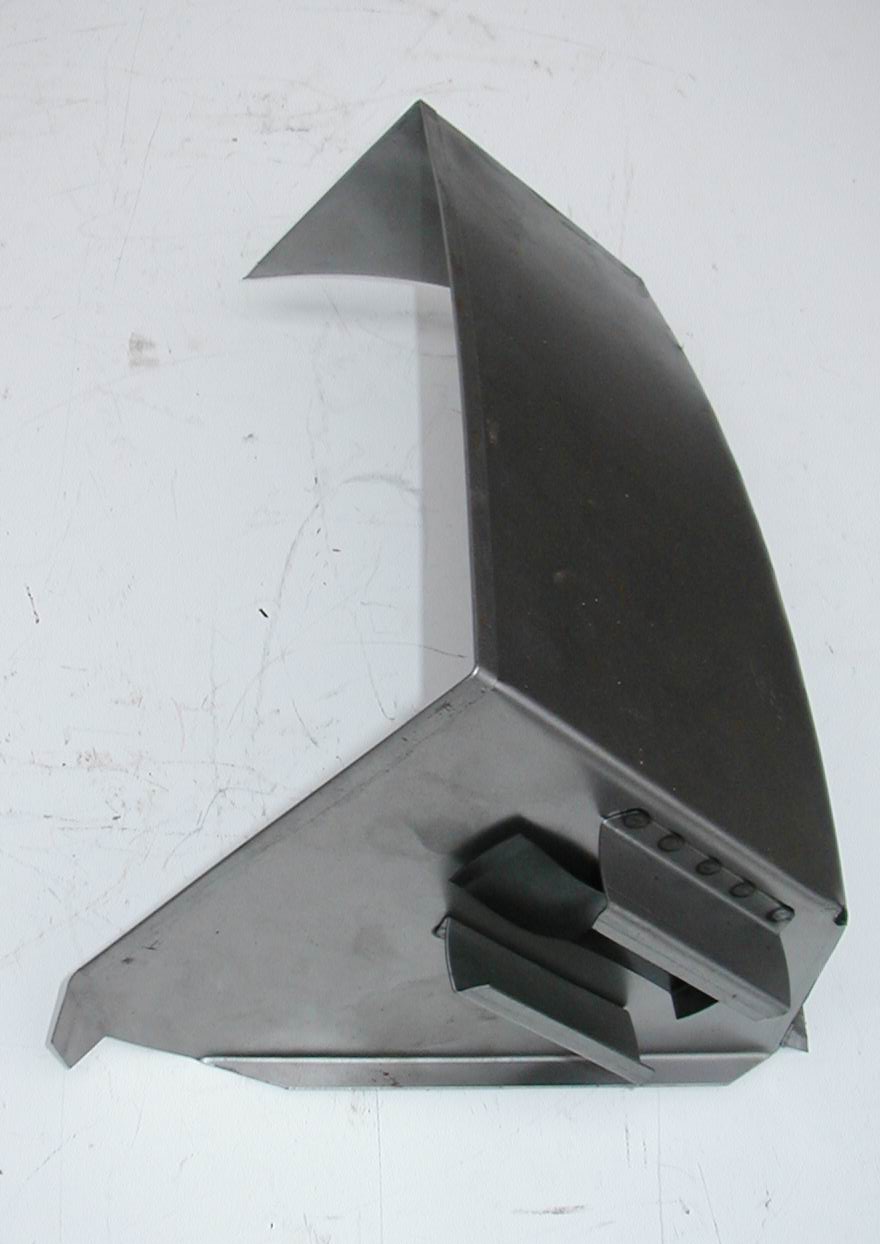

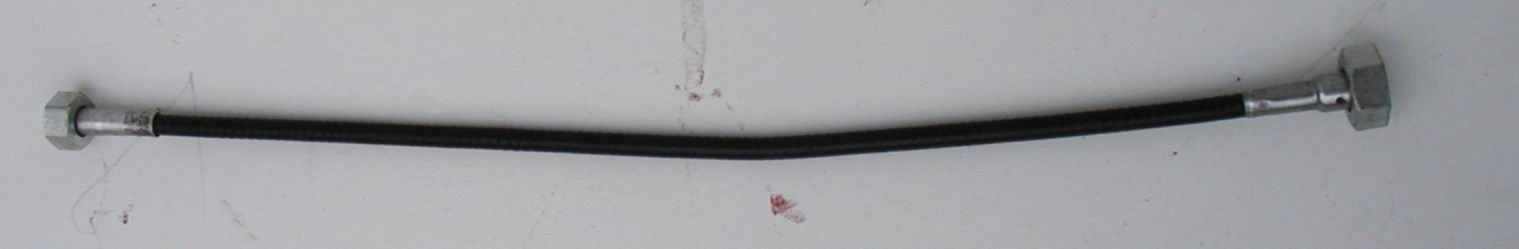

| Cat. Nr. | 632 | 632-A | 633 | 634 | 635 |
| photo |  |
 |
|
 |
|

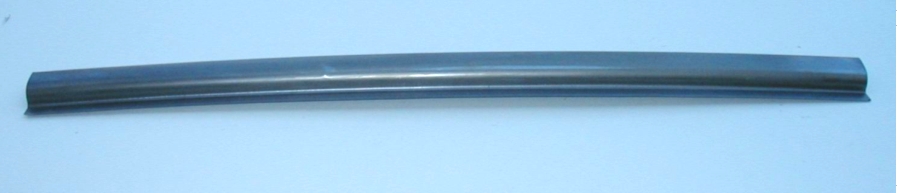

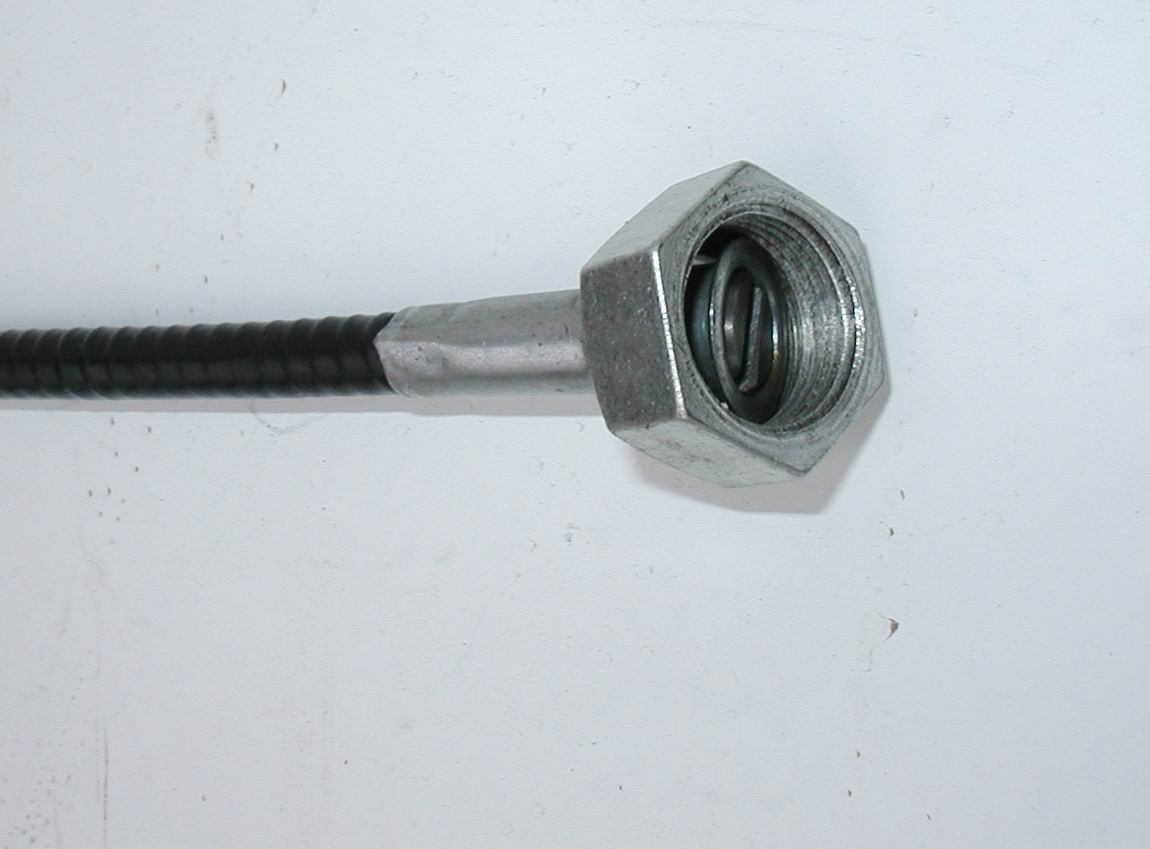

| item | flexible disc, tailshaft 8mm | flexible disc, tailshaft 10mm | speedo cable | document box, with fuel drip can holder | Running board ('middle mudguard'; pressed to fit exactly the curve of body side) |
| Price | 340 CZK | 340 CZK | 460 CZK | 1 700 CZK | 900 CZK |

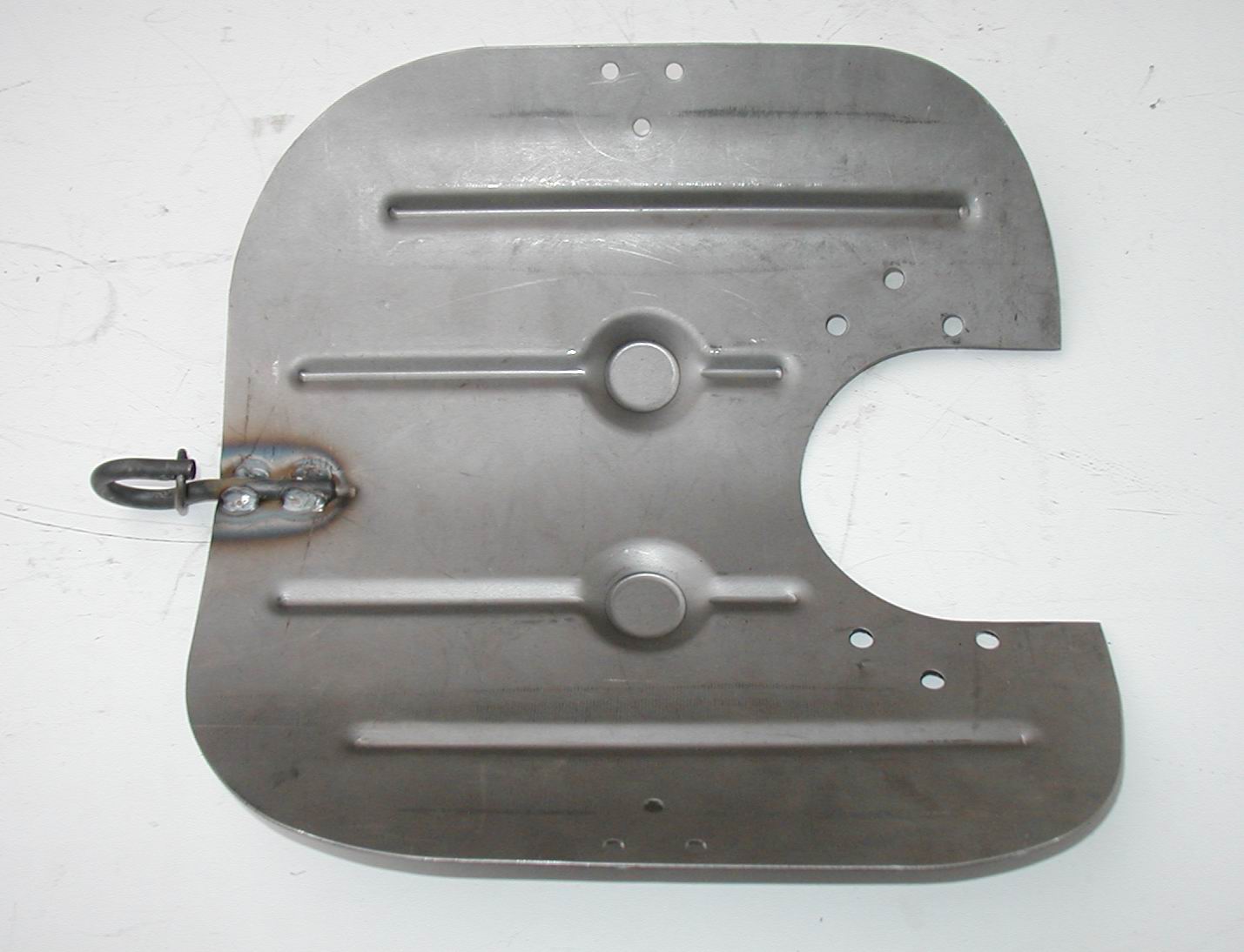

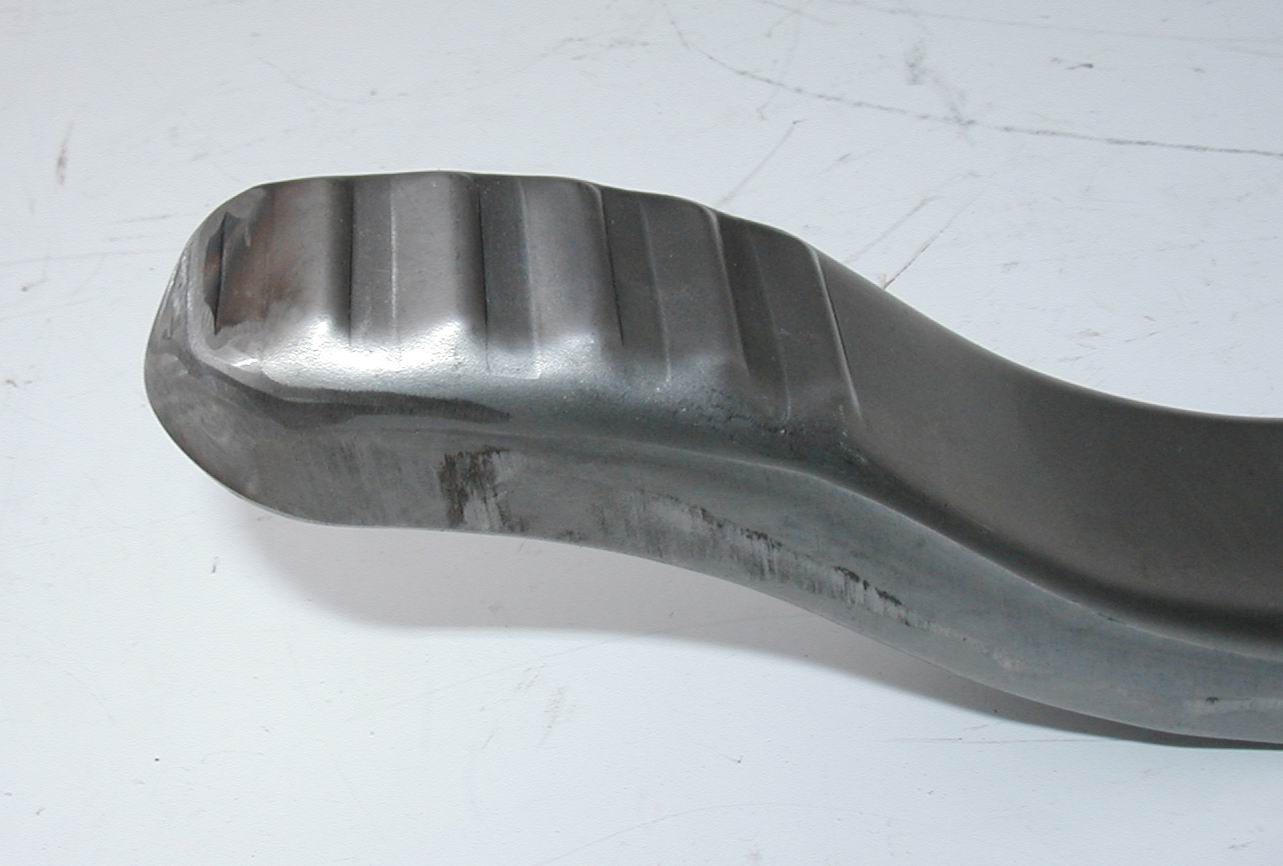

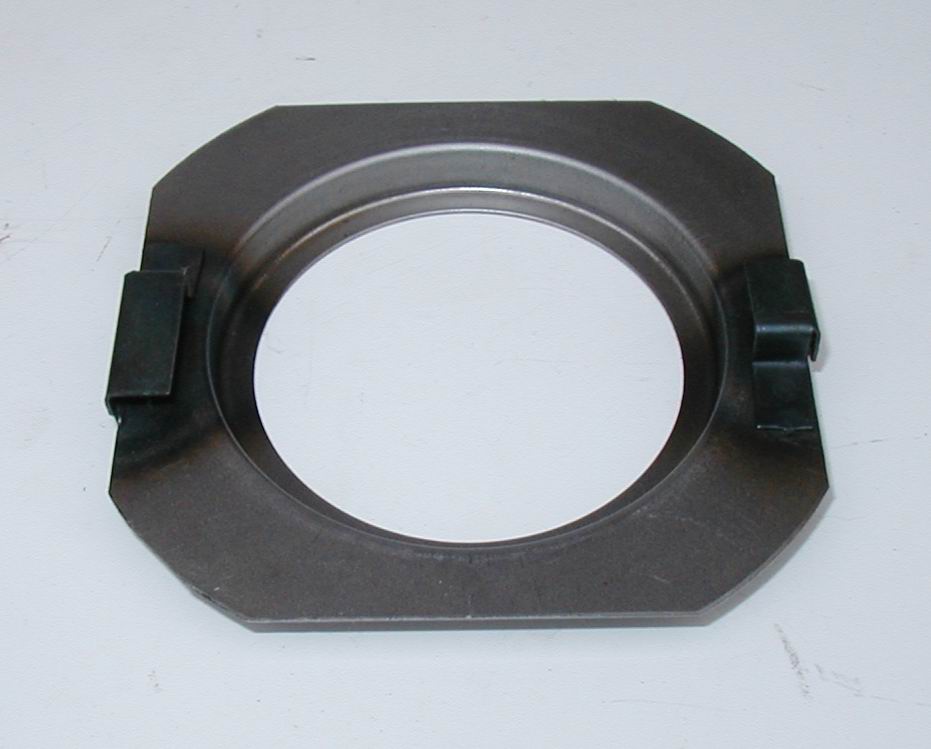

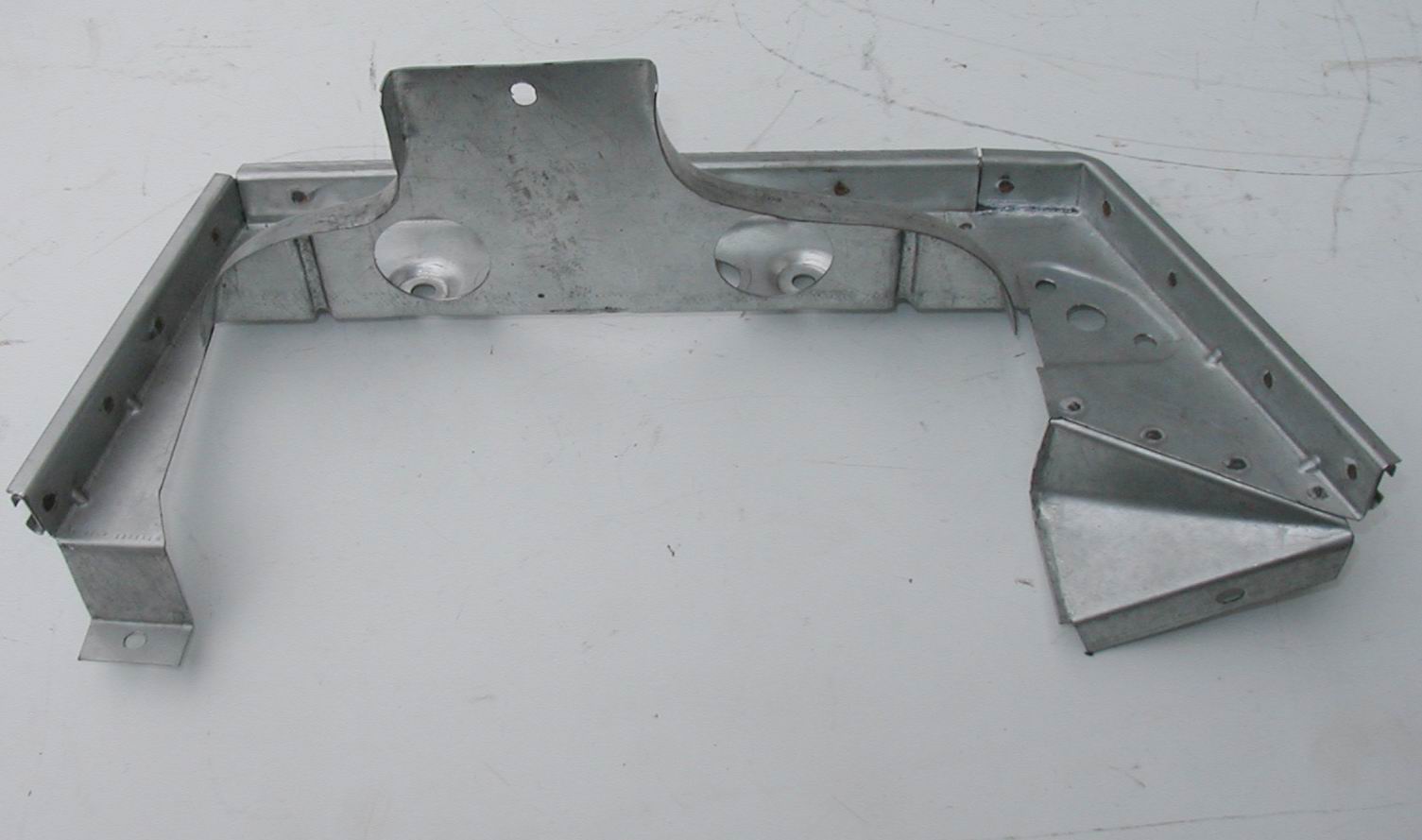

| Cat. Nr. | 636 | 637 | 638 | 639 | 640 |
| photo |  |
|
 |
 |
 |

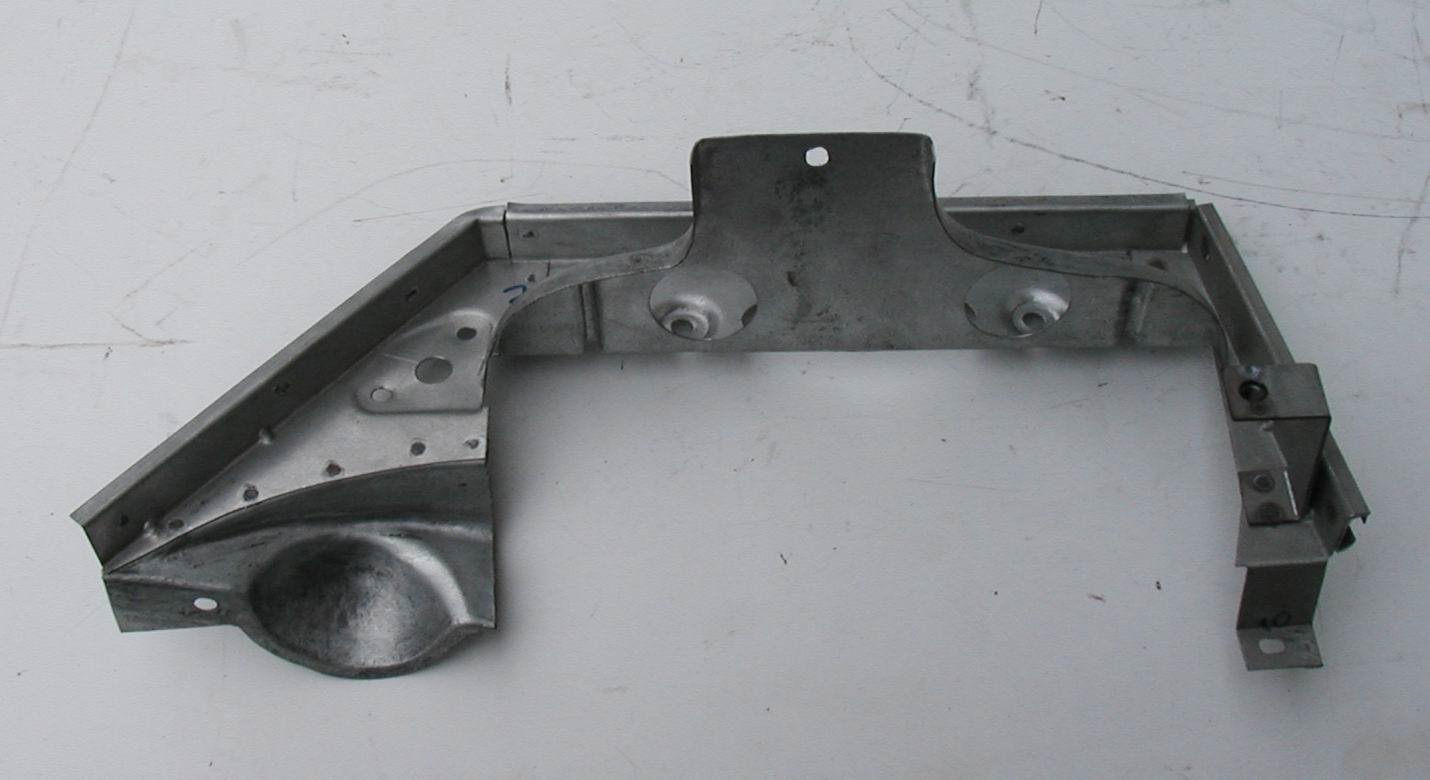

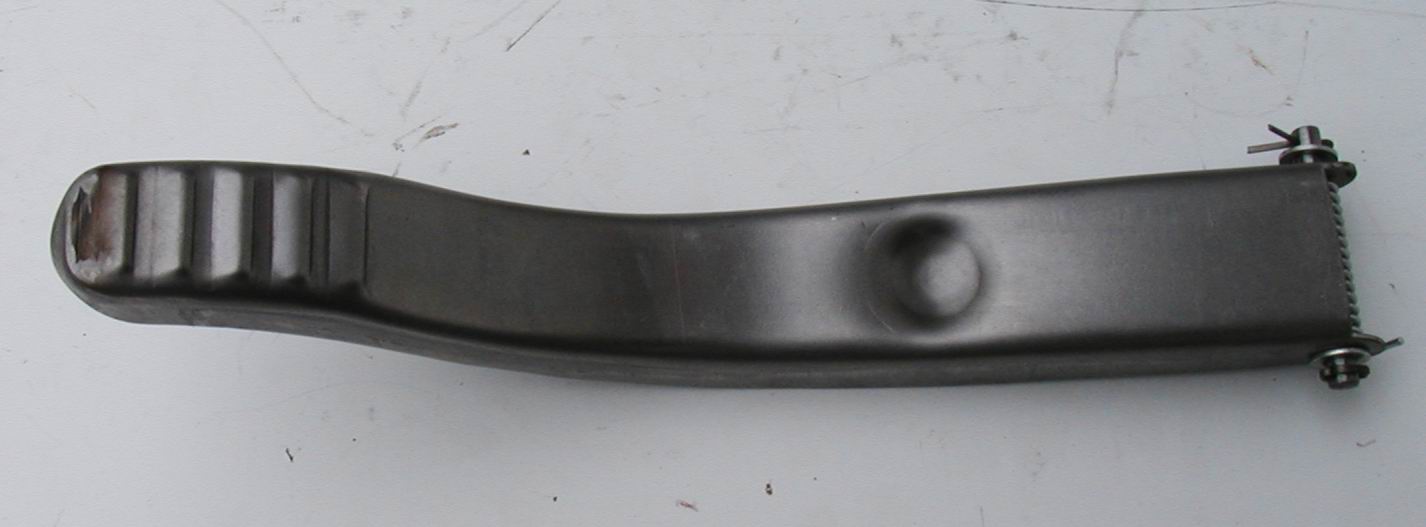

| item | engine compartment drains | pedal of central lubrication | engine tinware, upper, for head, right | engine tinware, upper, for head, left | propeller cover |
| Price | 400 CZK | 1 850 CZK | 1 800 CZK | 1 800 CZK | 1 850 CZK |

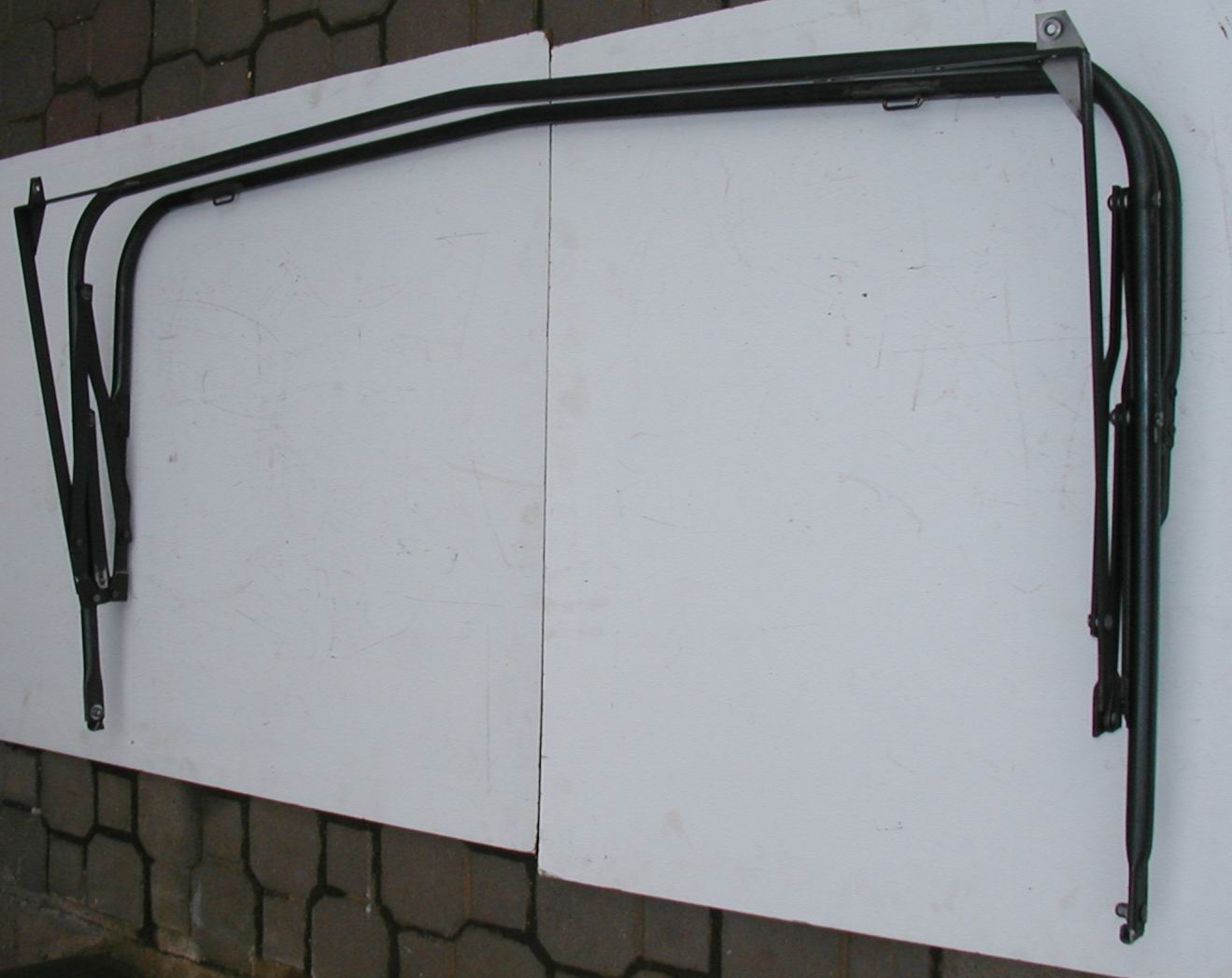

| Cat. Nr. | 641 | 642 | 643 | 644 | 645 |
| photo |  |
 |
 |
 |
 |

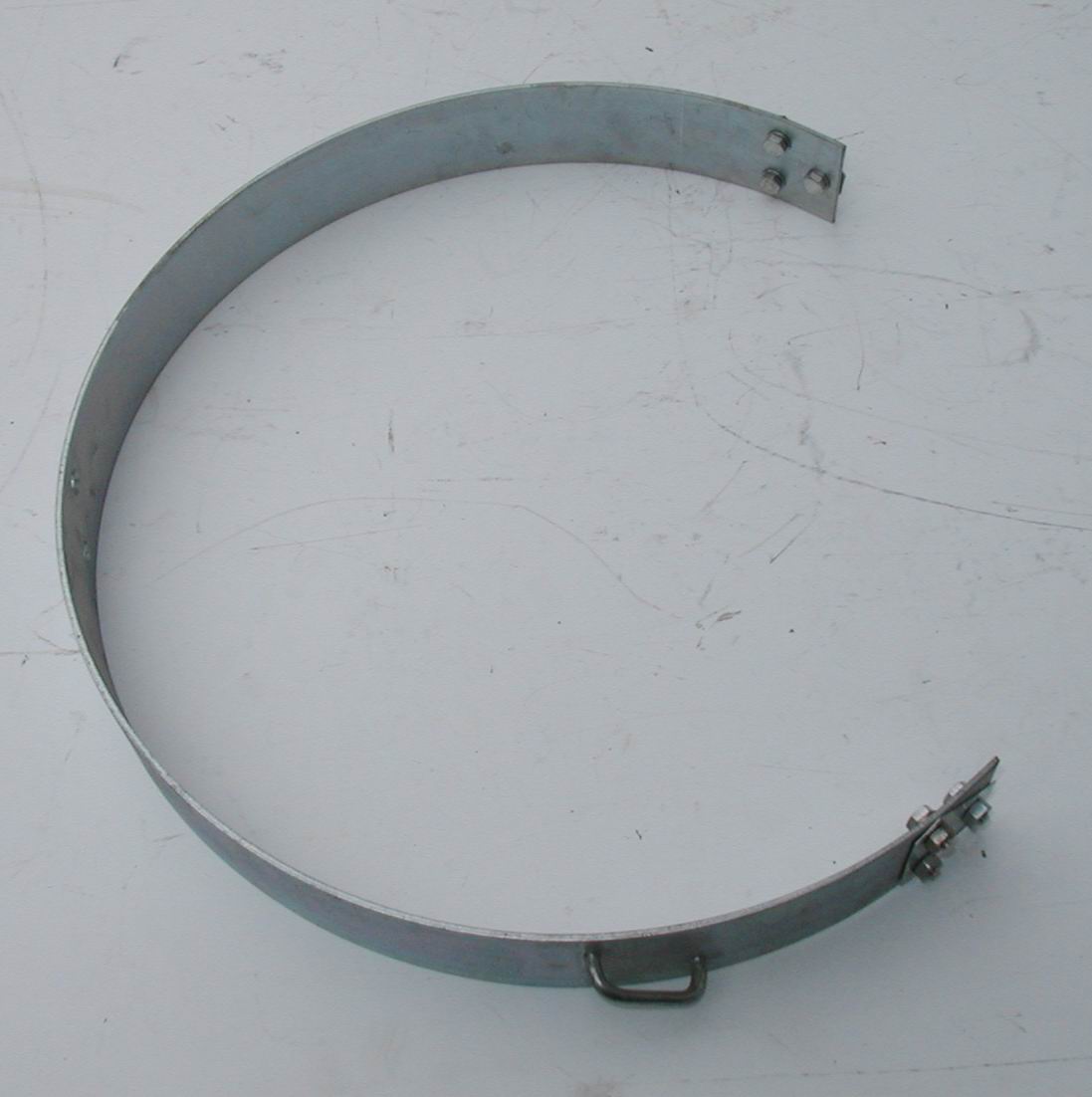

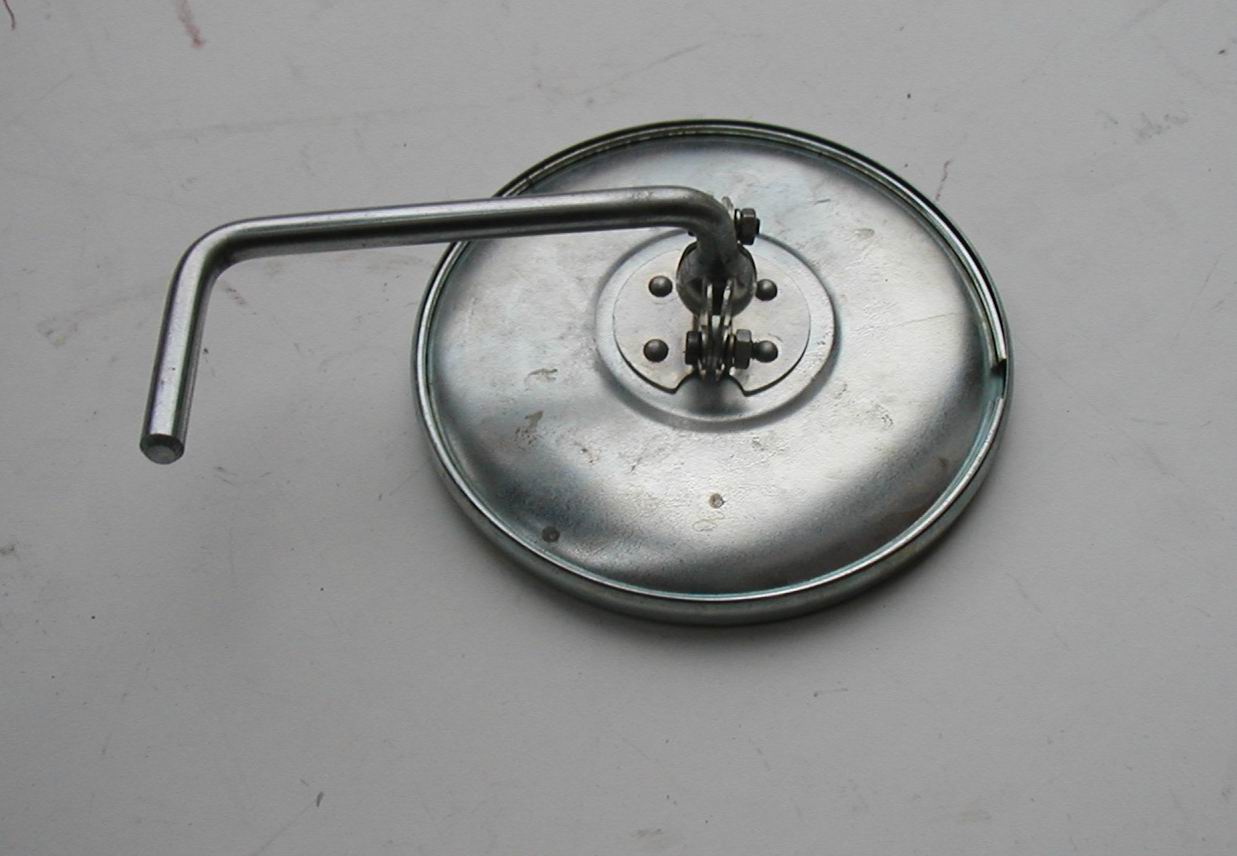

| item | prop guard and its captive fastening | folding roof mechanism, tubular construction | rear vision mirror and arm | windscreen holder (with square opening) incl. mirror holder | windscreen holder (with square opening) |
| Price | 400 CZK | 7 500 CZK | 900 CZK | 1 300 CZK | 1 100 CZK |

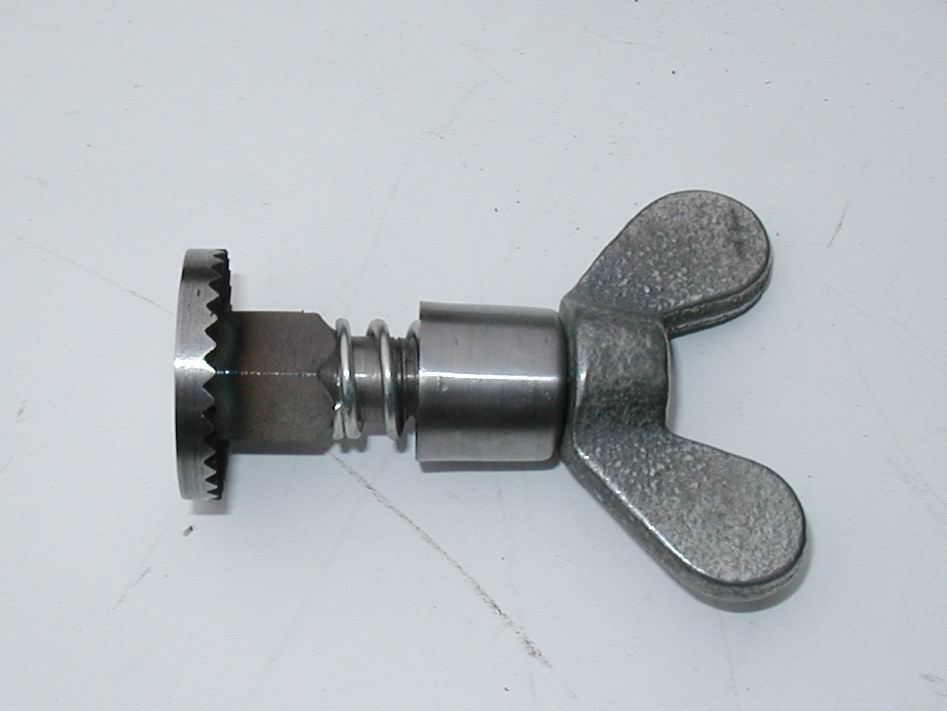

| Cat. Nr. | 646 | 647 | 648 | 649 | 650 |
| photo |  |
 |
 |
 |
 |

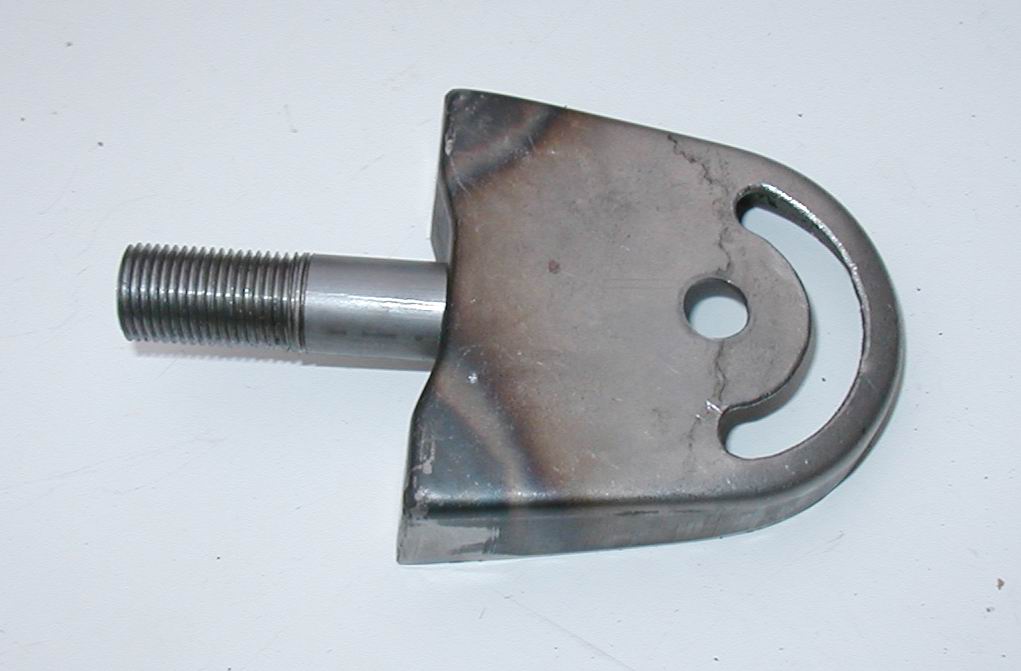

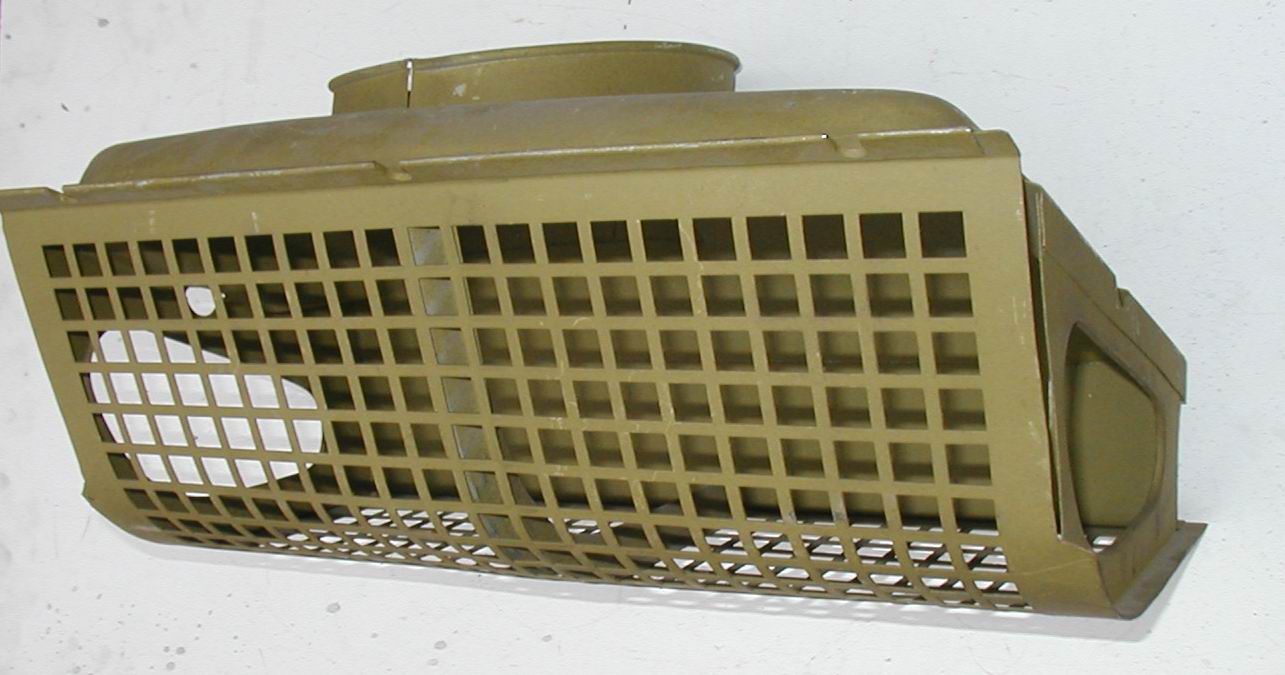

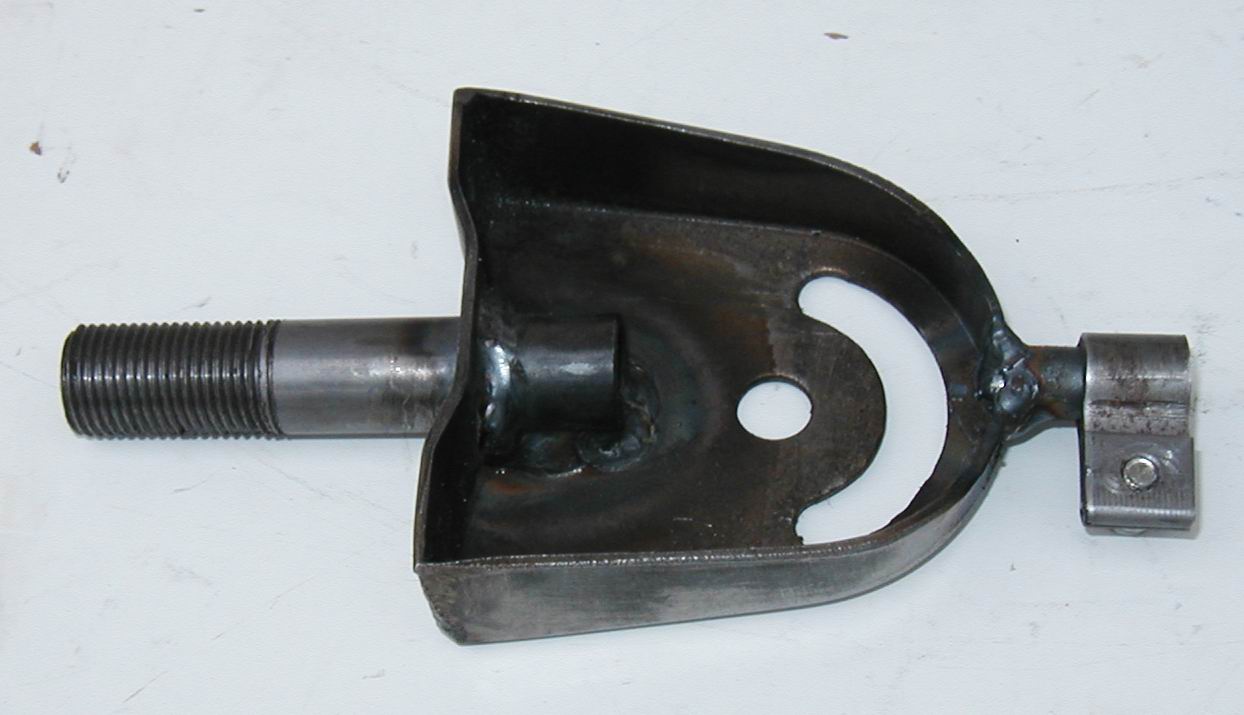

| item | set for windscreen pivot pin | windscreen holder with slot | windscreen holder with slot and mirror holder | 'basket' cover for engine air intake at rear seats | holder assembly for cold start tank |
| Price | 1 100 CZK / set | 1 100 CZK | 1 000 CZK | 5 800 CZK | 1 000 CZK |

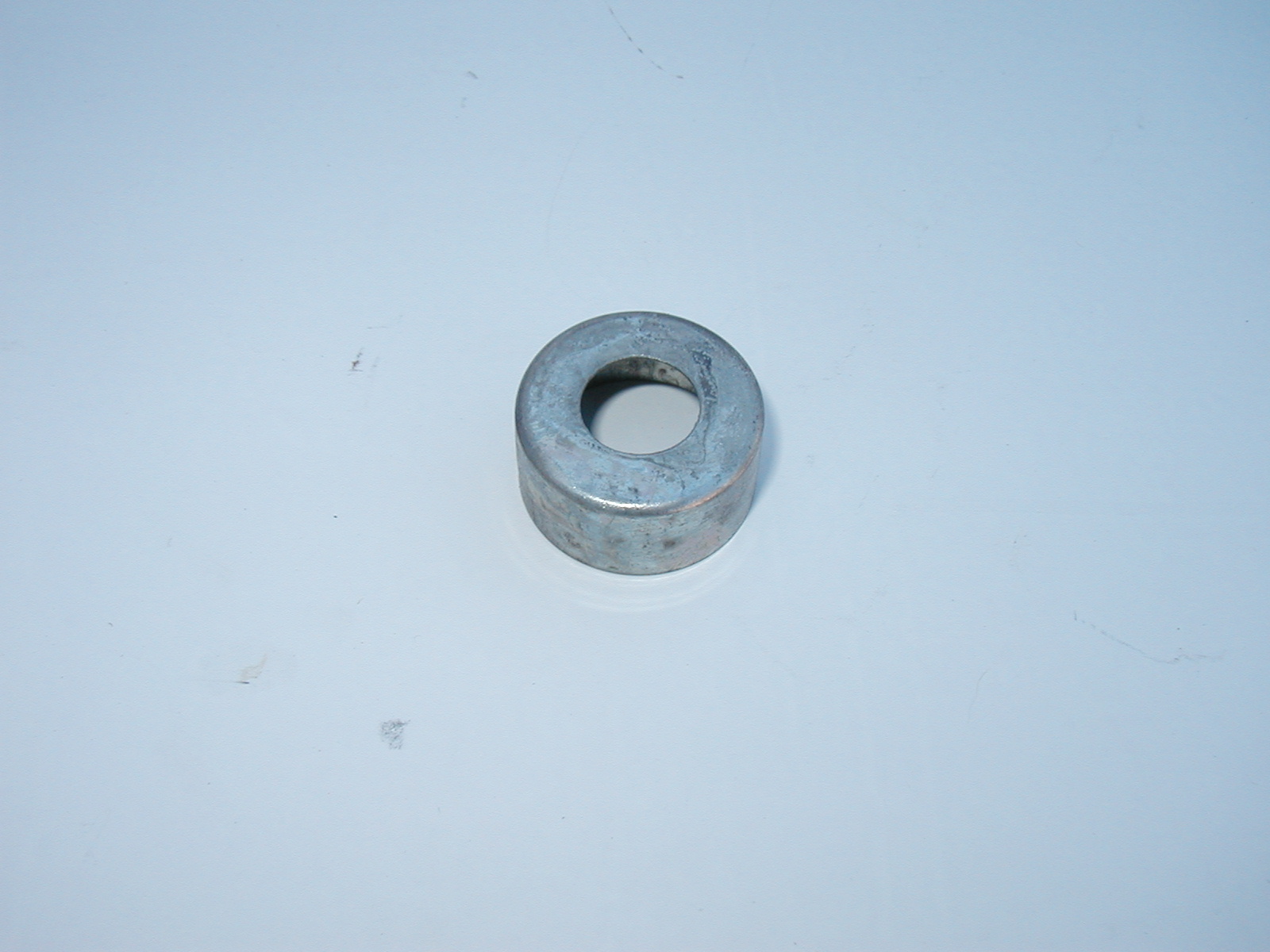

| Cat. Nr. | 651 | 652 | 653 | 654 | 655 |
| photo |  |
 |
 |
 |
 |

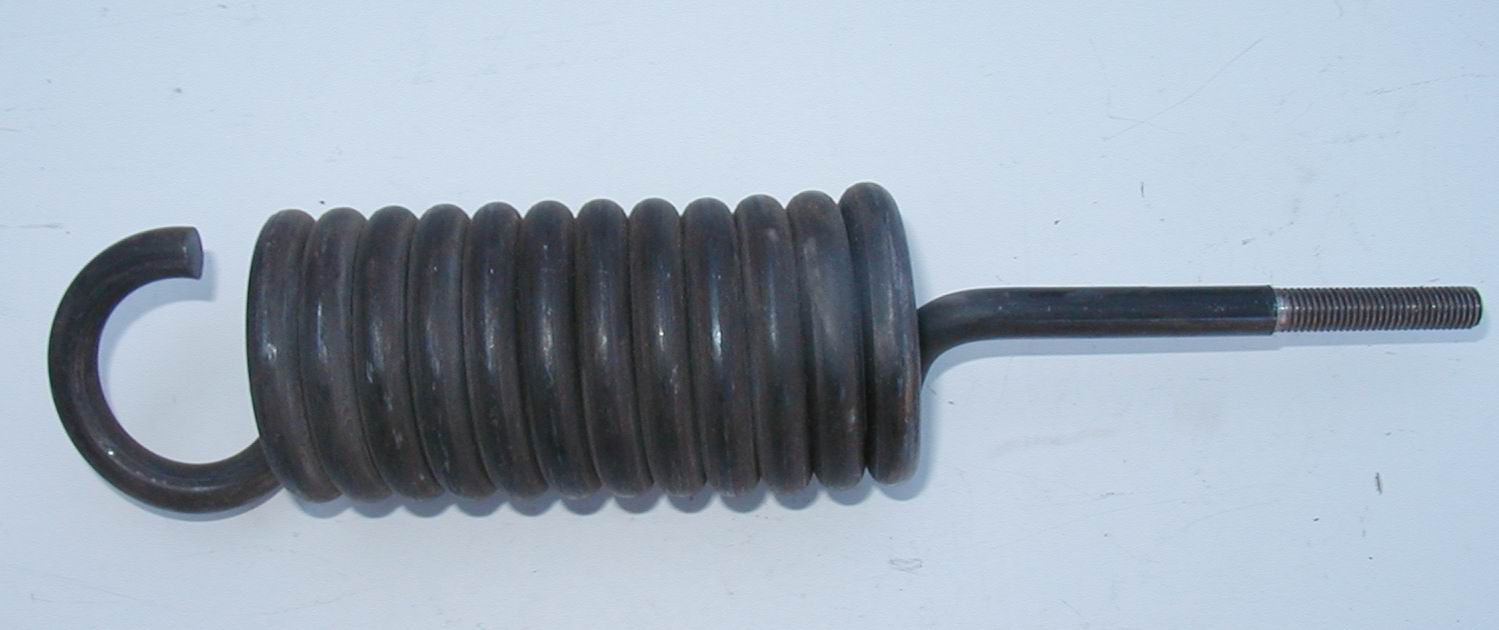

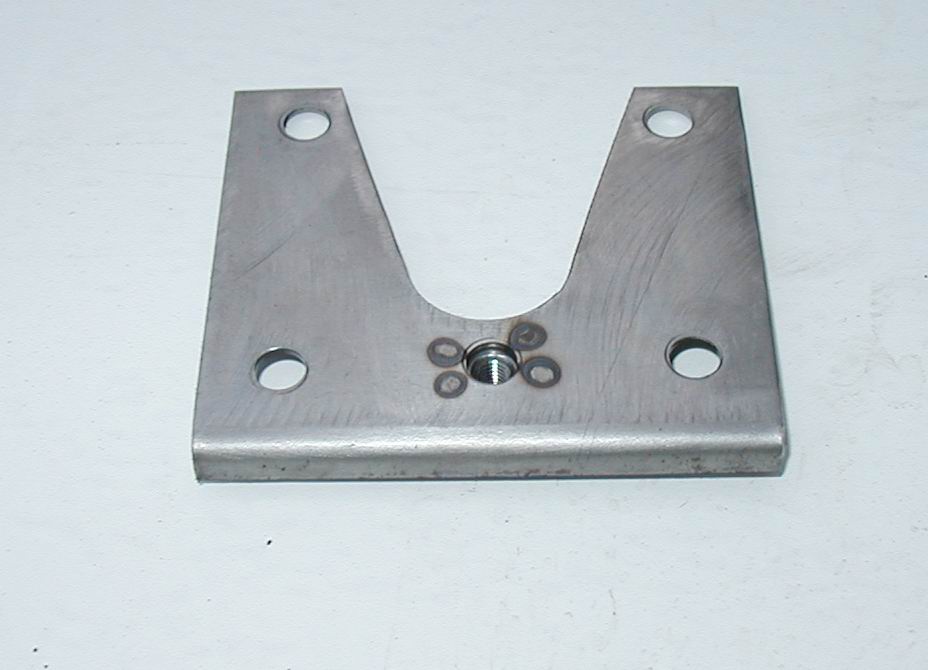

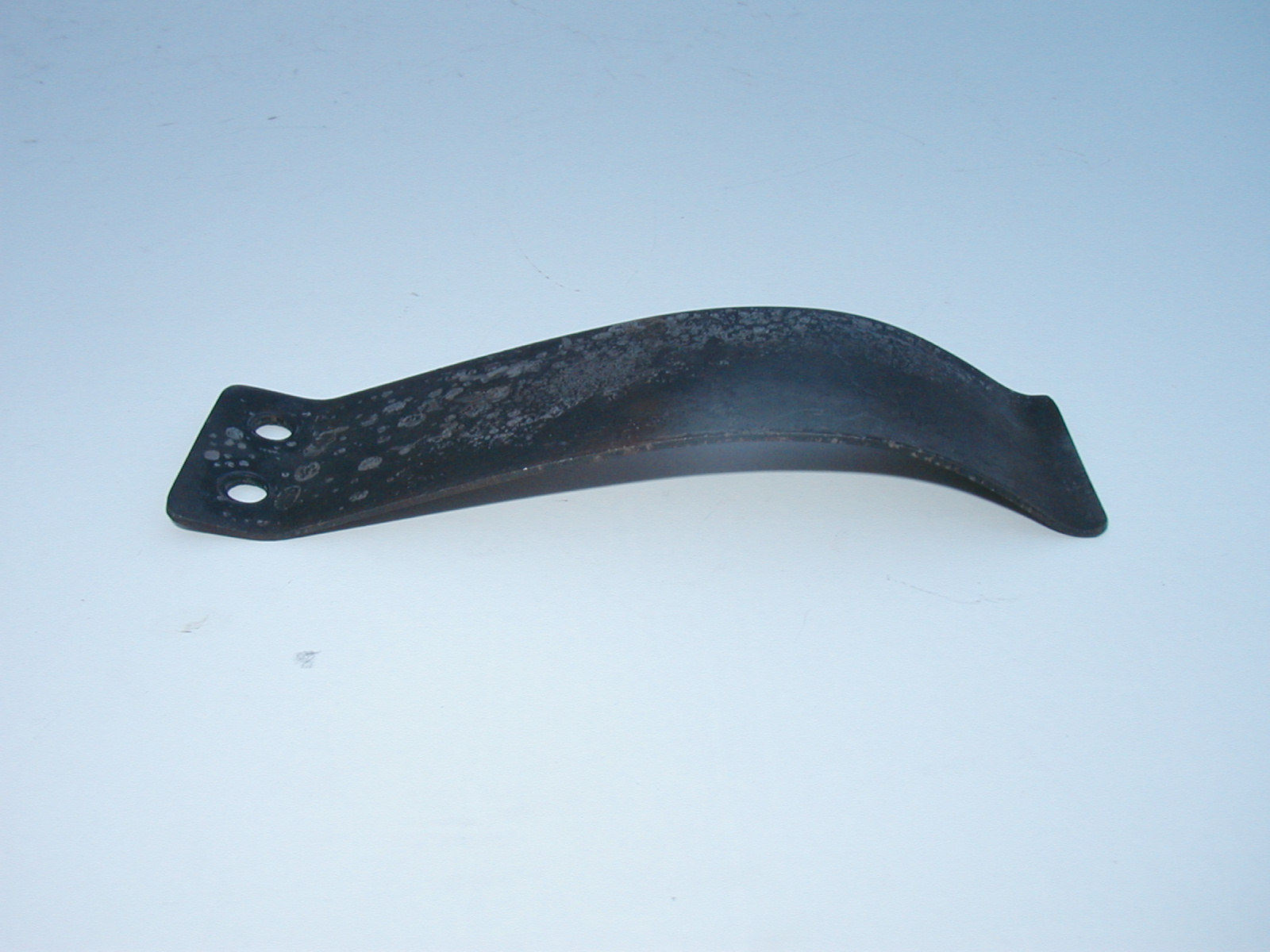

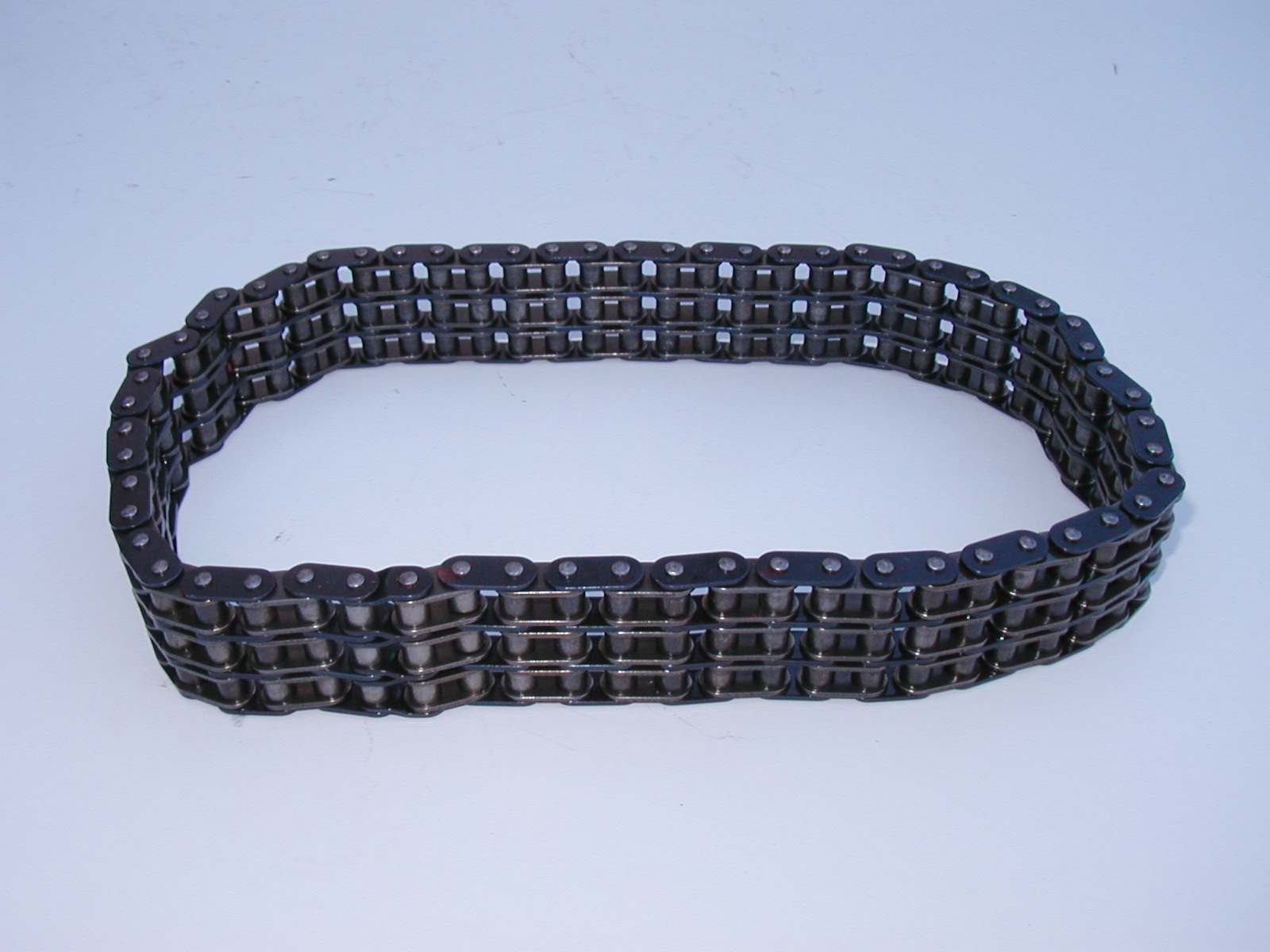

| item | mount for central lube pump | cover for bearing of flexible shaft, see ill. 33 | tensioner, for triplex chain | triplex chain, for propeller | spring, propeller drive |
| Price | 280 CZK | 250 CZK | 350 CZK | 950 CZK | 550 CZK |

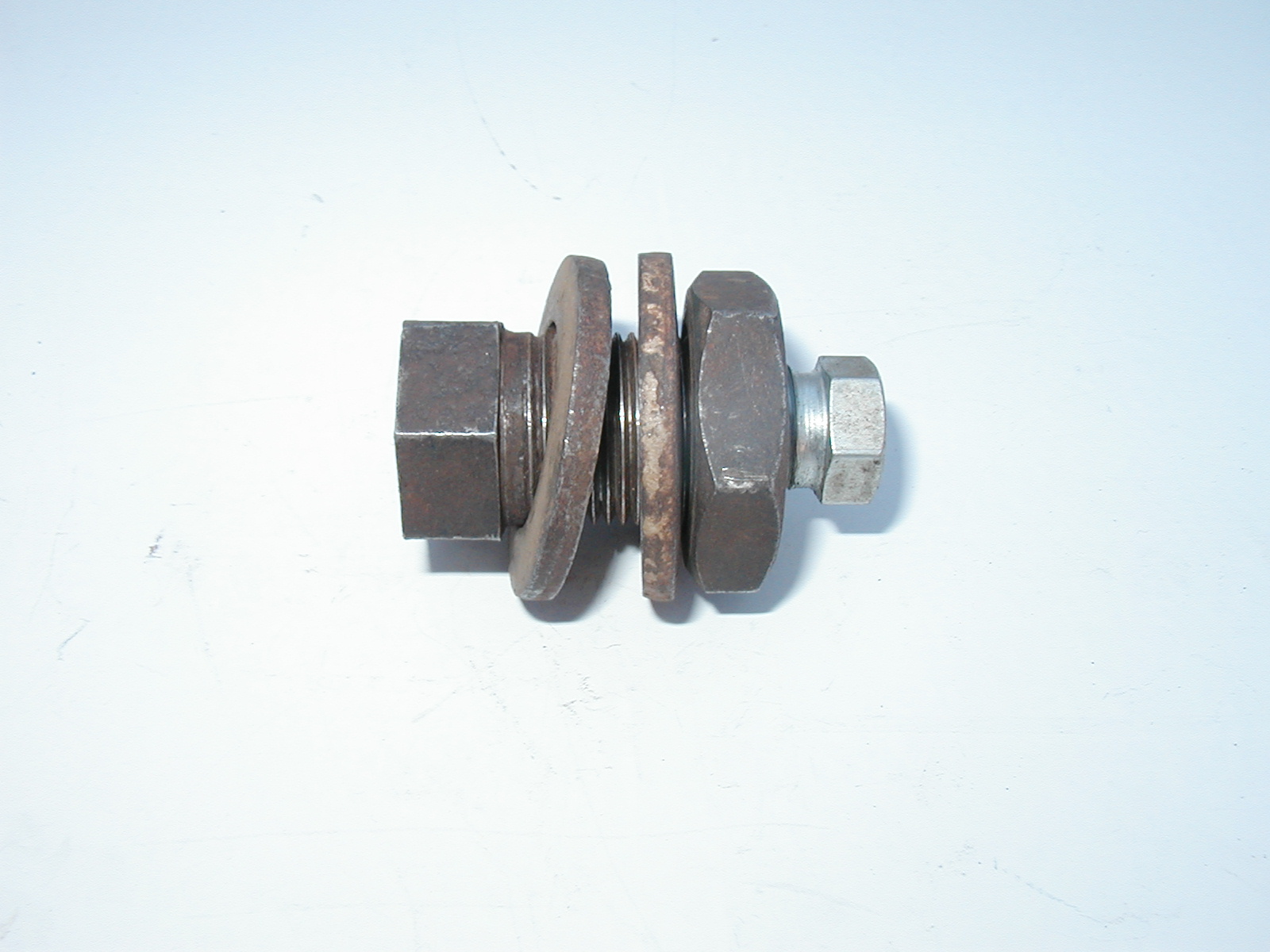

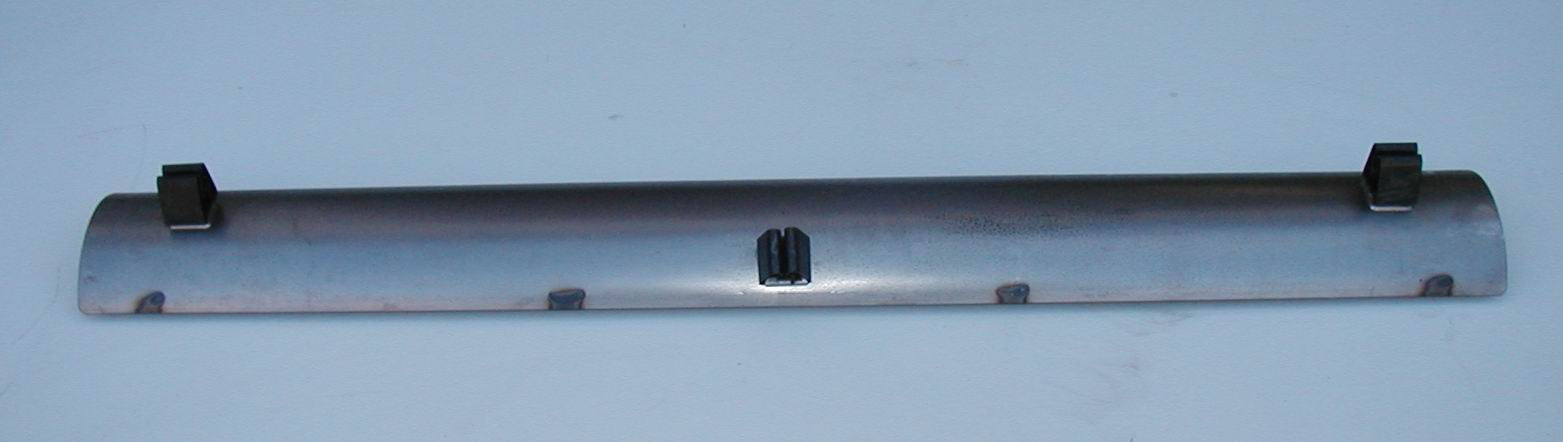

| Cat. Nr. | 656 | 657 | 658 | 659 | 660 |
| photo |  |
 |
 |
|
 |

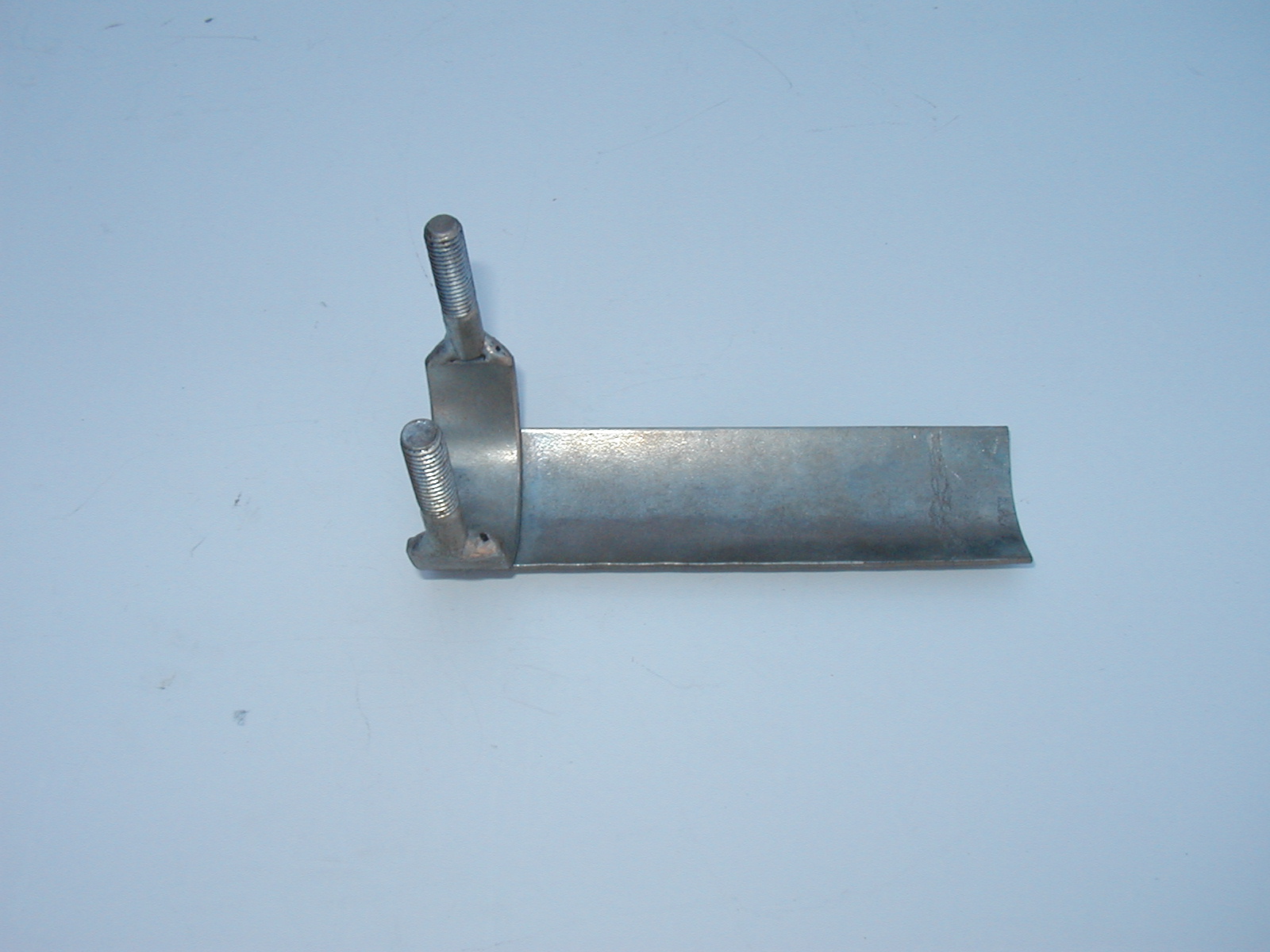

| item | brace for holder of aux. fuel pump | gearlever, FWD and 5 speeds | set, union for central lubrication | muffler guard with spring locks for prop rod. | swinging cat-eye reflector |
| Price | 460 CZK | 800 CZK | 500 CZK / set | 1 100 CZK | 900 ZK |

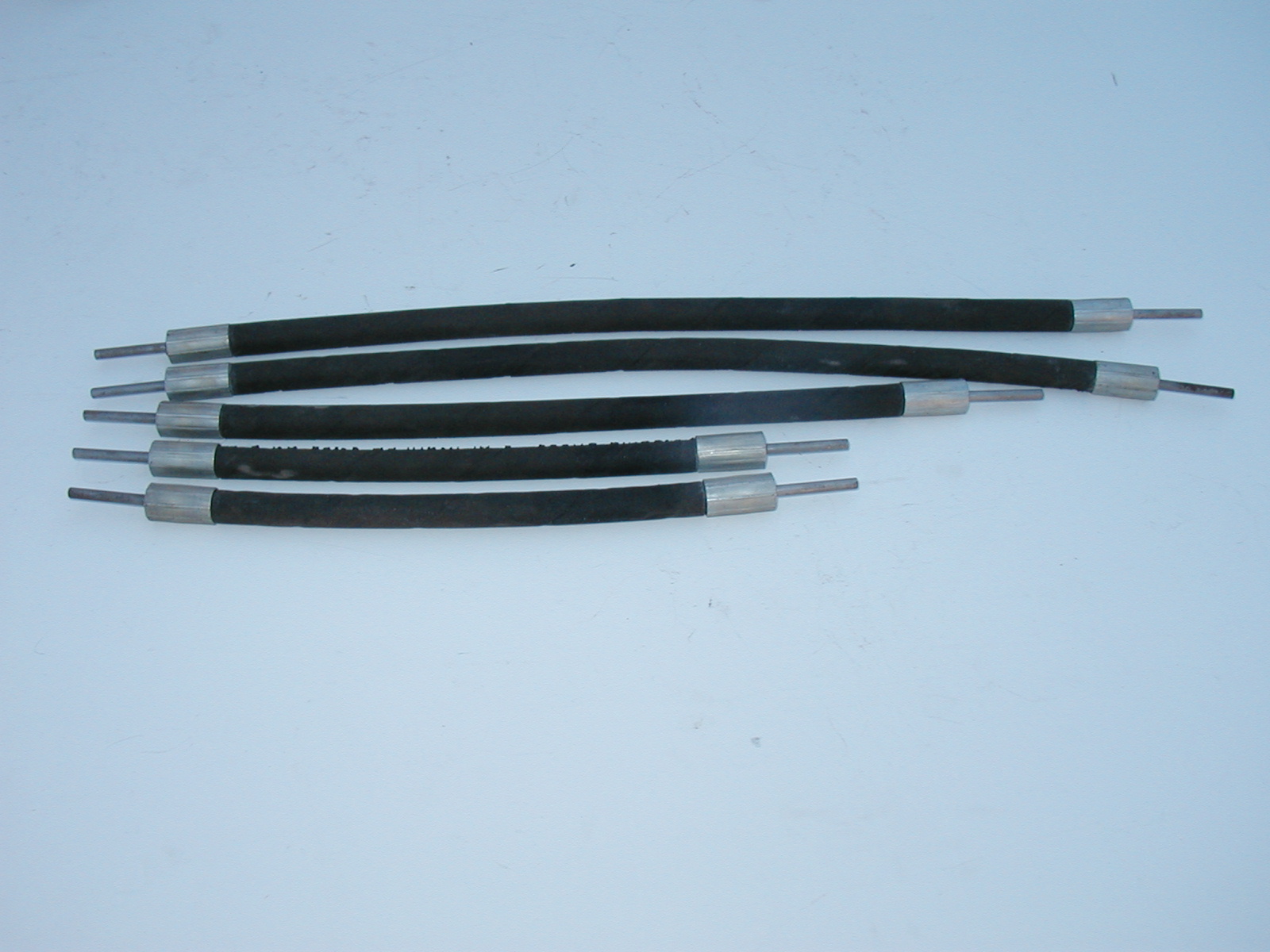

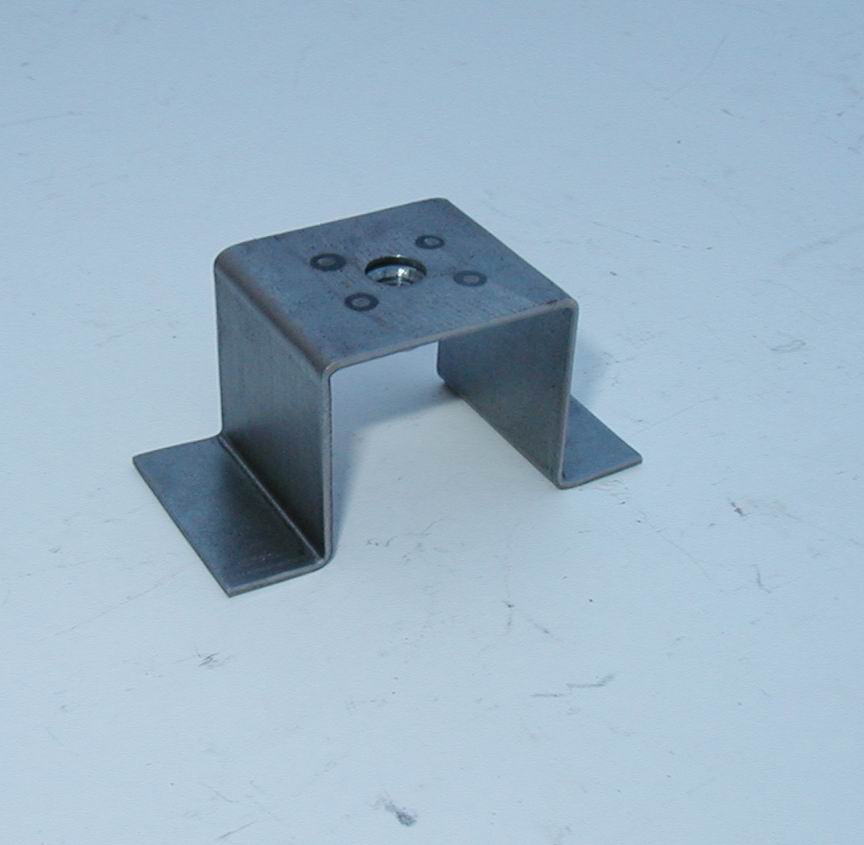

| Cat. Nr. | 661 | 662 | 663 | 664 | 665 |
| photo |  |
 |
 |
 |
 |

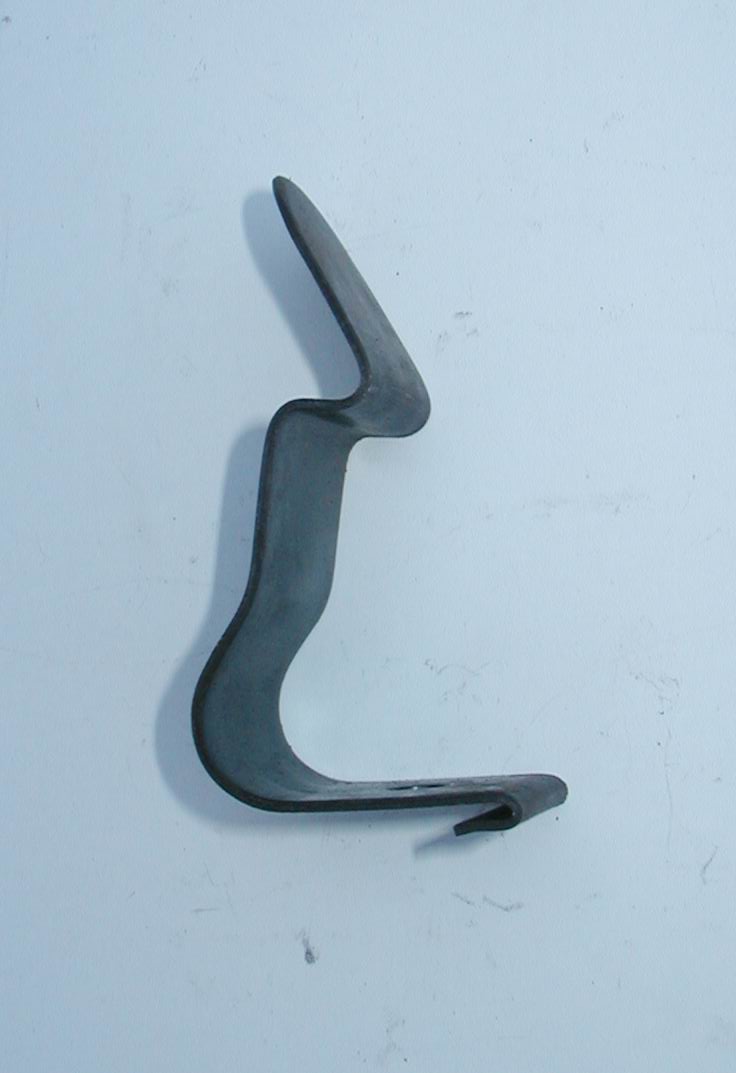

| item | set of central lubrication hoses | triangle holder for metal toolbox | holder, rear stand and tripod retainer for MG | holder of windscreen lock clip | windscreen clip |
| Price | 2 400 CZK / set | 1 050 CZK | 1 900 CZK | 200 CZK | 200 CZK |
| Cat. Nr. | 666 | 667 | 668 | 669 | 670 |
| photo |  |
 |
 |
 |
 |

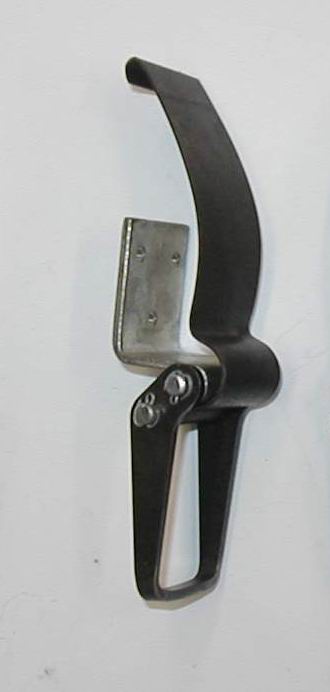

| item | blade holder for shovel | holder, for blade of paddle | shovel clamp | paddle clamp | rear seat clamp |
| Price | 400 CZK | 500 CZK | 750 CZK | 750 CZK | 700 CZK |

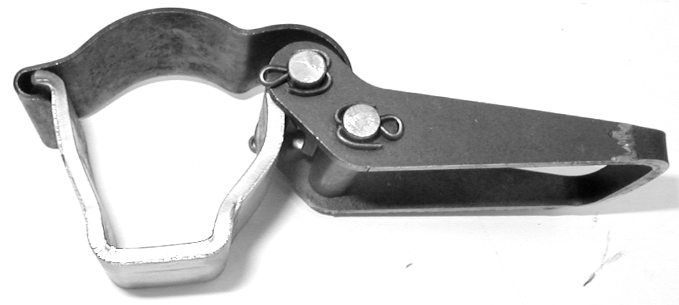

| Cat. Nr. | 671 | 672 | 673 | 674 | 675 |
| photo |  |
 |
 |
 |
 |
| item | jack clamp | crank handle spring clip | spring clip to hold prop rod, at top of muffler guard | bracket for Mauser holder | bracket to hold Mauser butt holder |
| Price | 750 CZK | 200 CZK | 250 CZK | 480 CZK | 250 CZK |

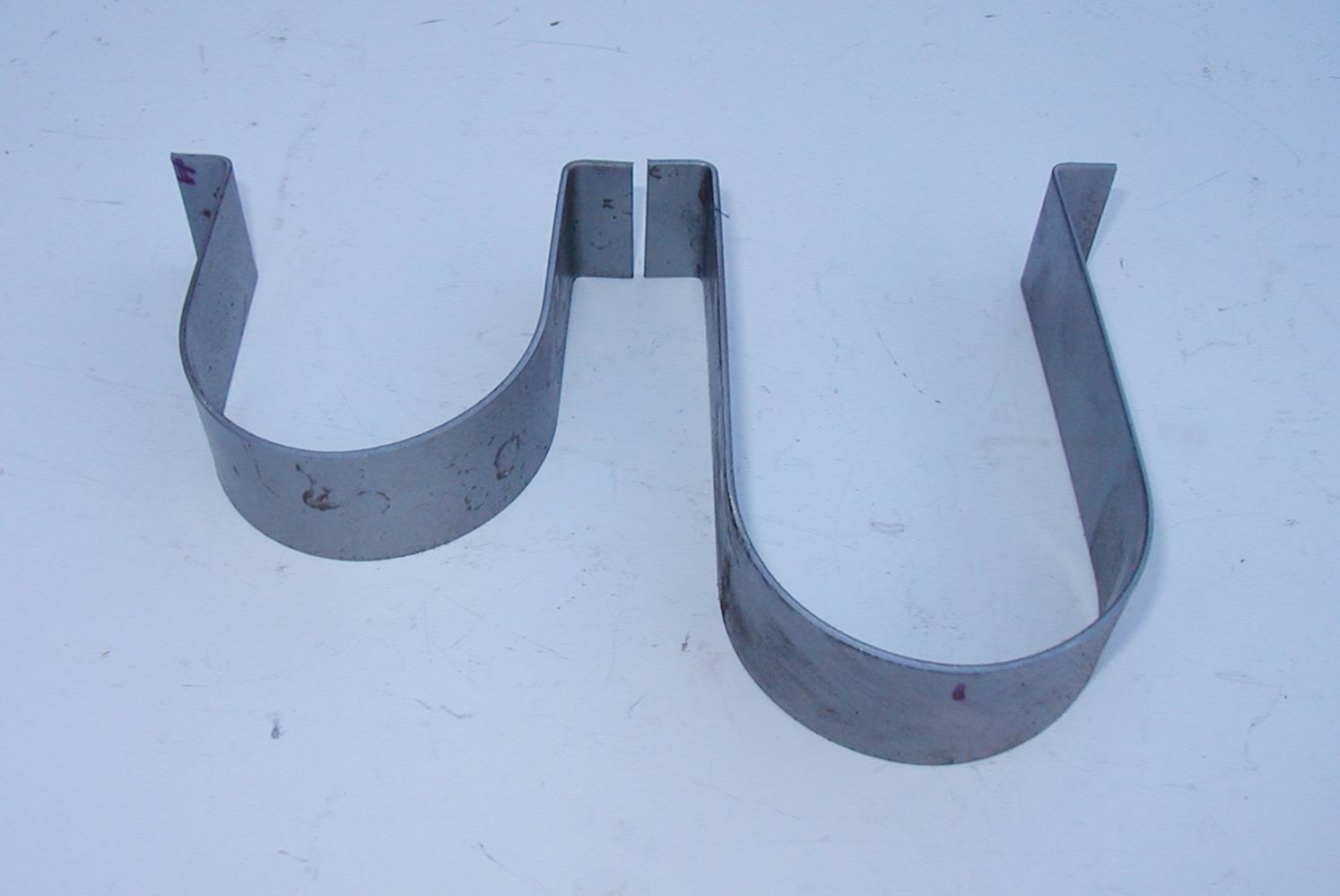

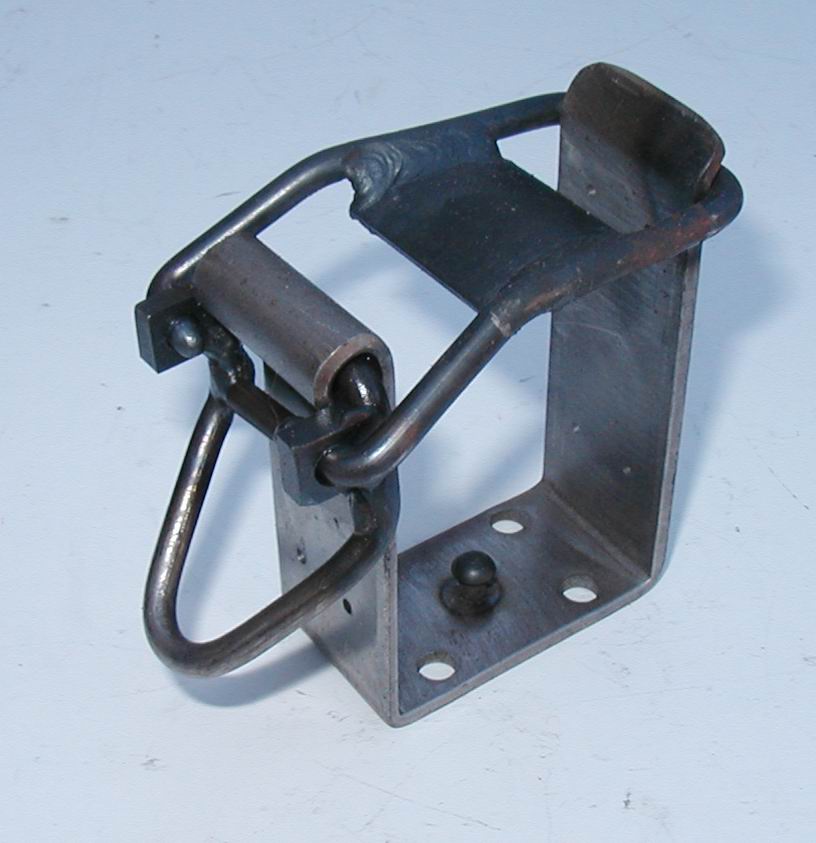

| Cat. Nr. | 676 | 677 | 678 | 679 | 680 |
| photo |  |
 |
 |
 |
 |
| item | Mauser clamp | Mauser butt holder | bracket for strips for MG magazines' hold | lower support for case of MG barells | retaining strips for MG magazines' hold |
| Price | 800 CZK | 300 CZK | 350 CZK / set | 250 CZK | 150 CZK / set |

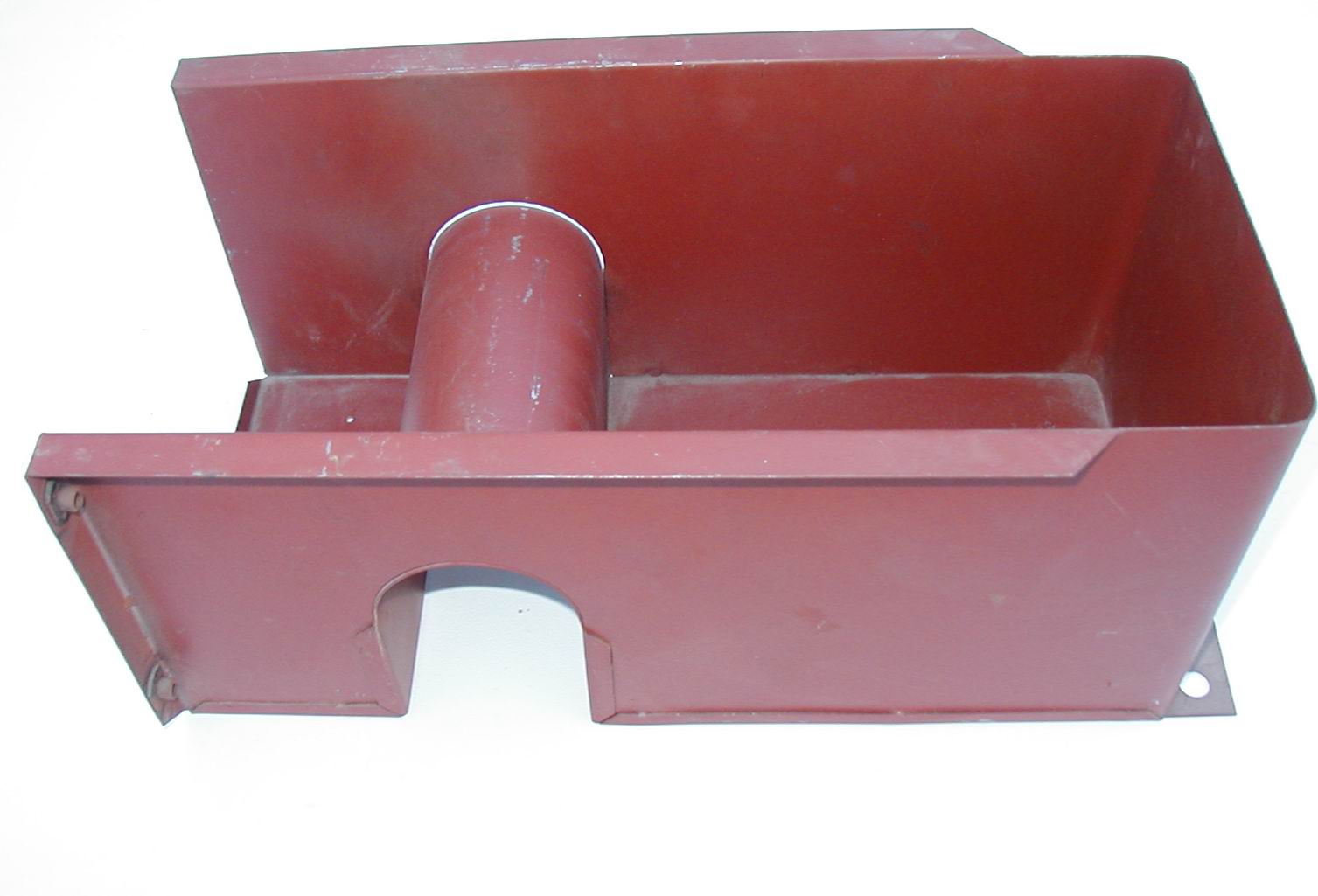

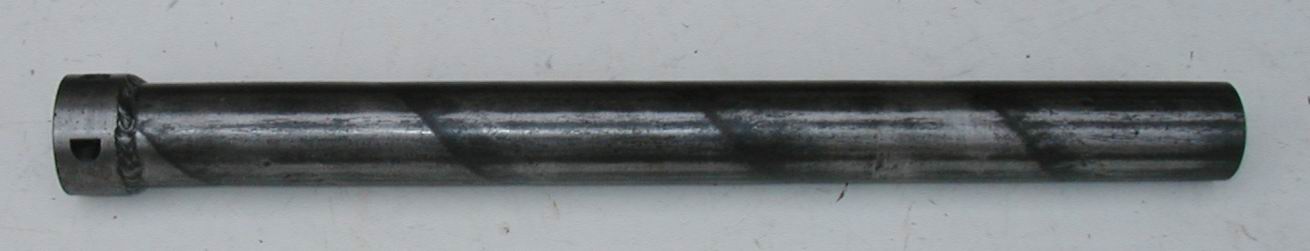

| Cat. Nr. | 681 | 681-A | 682 | 683 | 684 |
| photo |  |
 |
 |
 |
 |

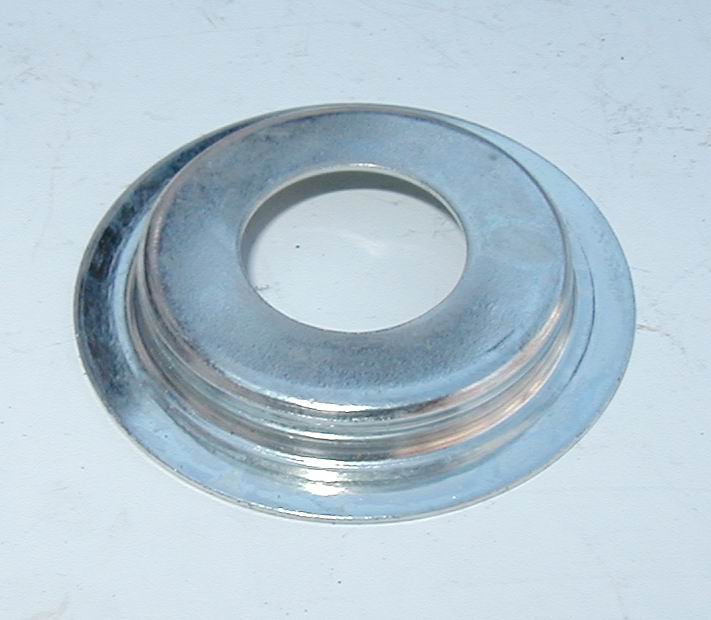

| item | holder for MG stand | intermediate piece for front MG stand | battery box | gate for FWD and 5 gear selection | over for bearing seal, see ill 42 |
| Price | 750 CZK | 450 CZK | 1 500 CZK | 350 CZK | 200 CZK |

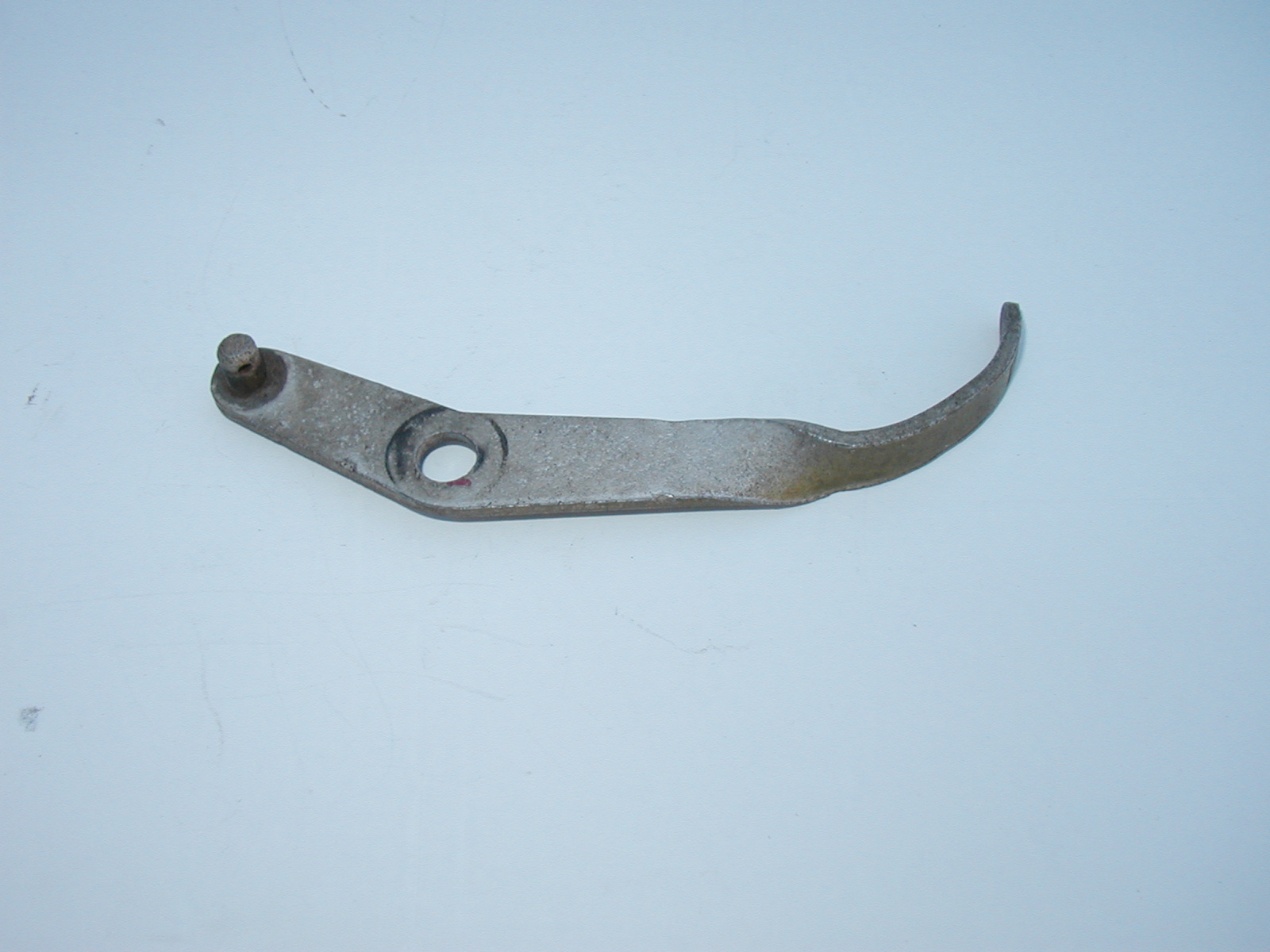

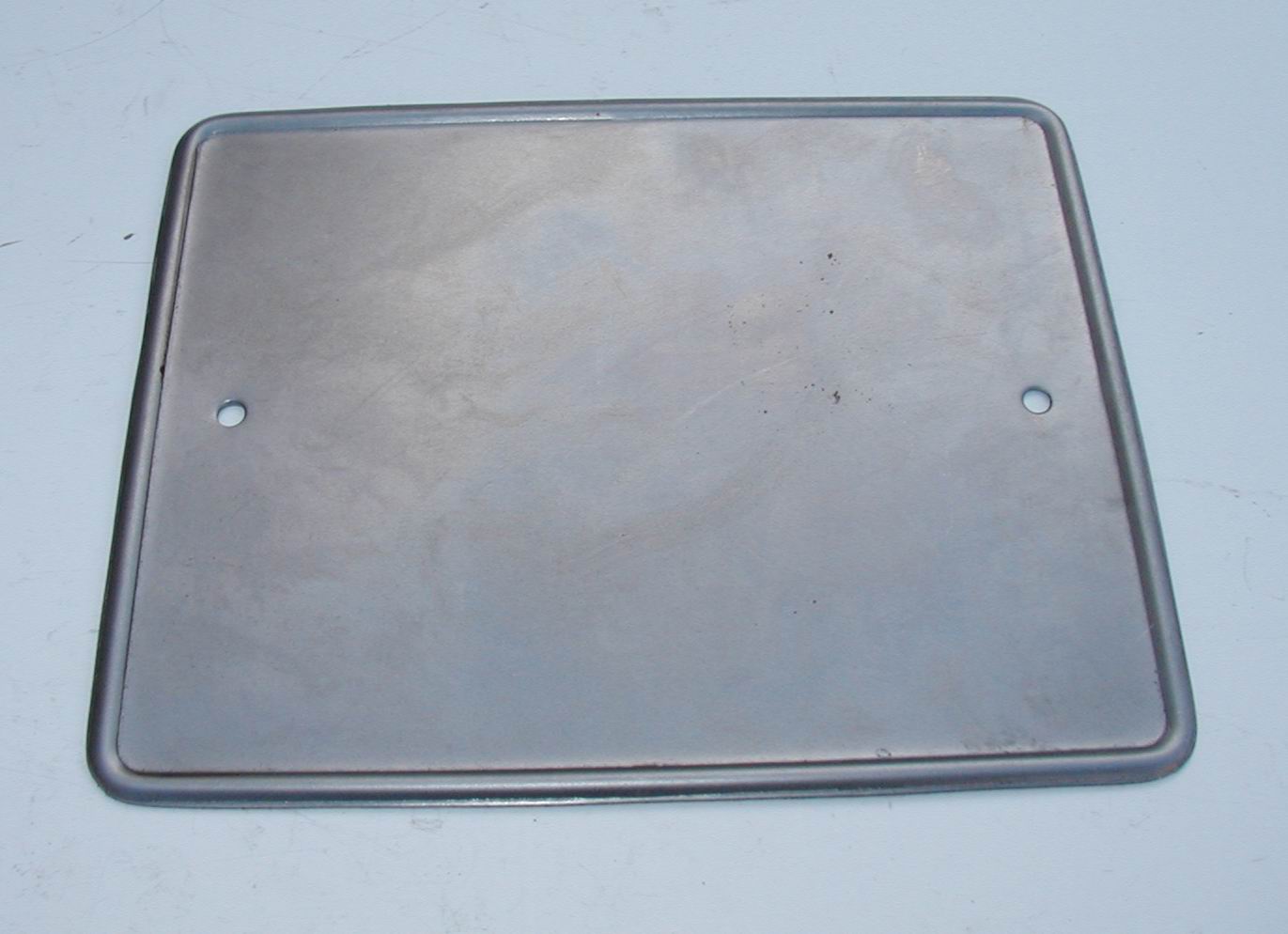

| Cat. Nr. | 685 | 686 | 687 | 688 | 689 |
| photo |  |
 |
 |
 |
 |

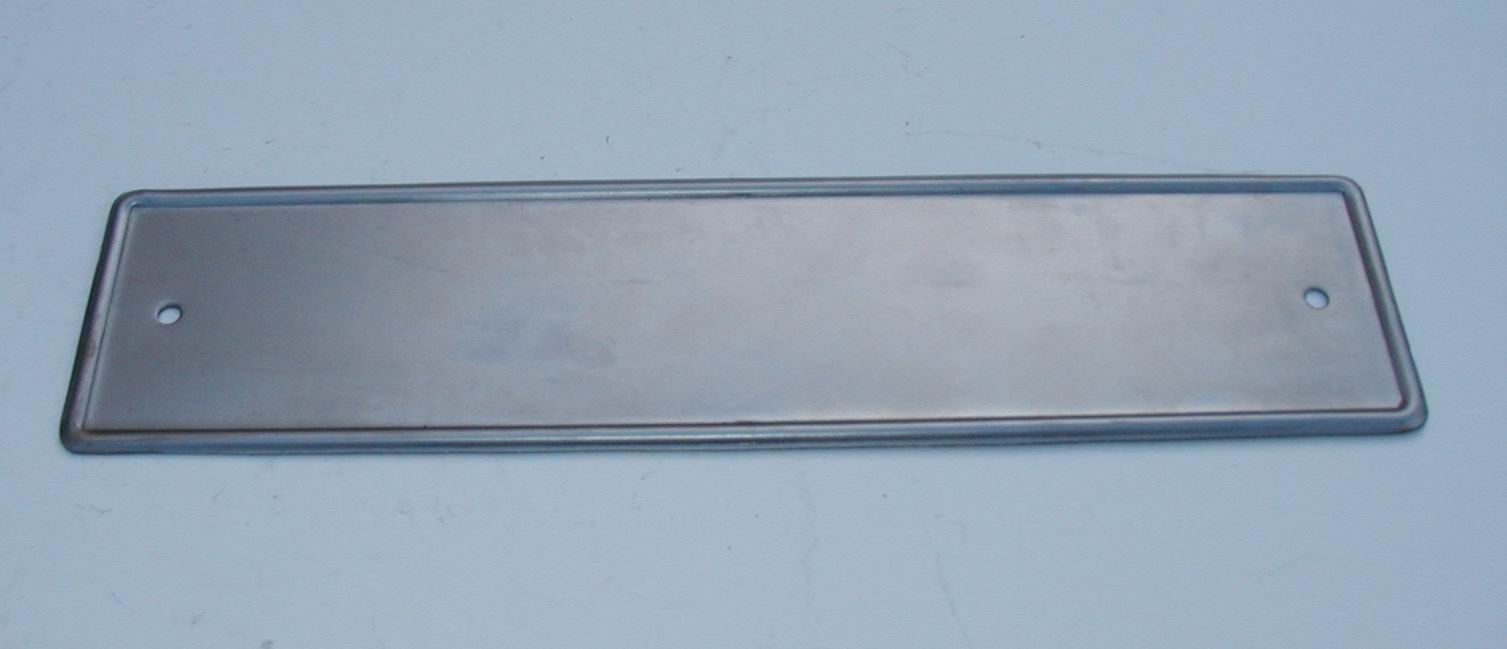

| item | rod to lower the propeller | front number-plate | rear number-plate | choke lever | panel in engine compartment, left or right |
| Price |
500 CZK |
400 CZK | 400 CZK | 500 CZK | 450 CZK |

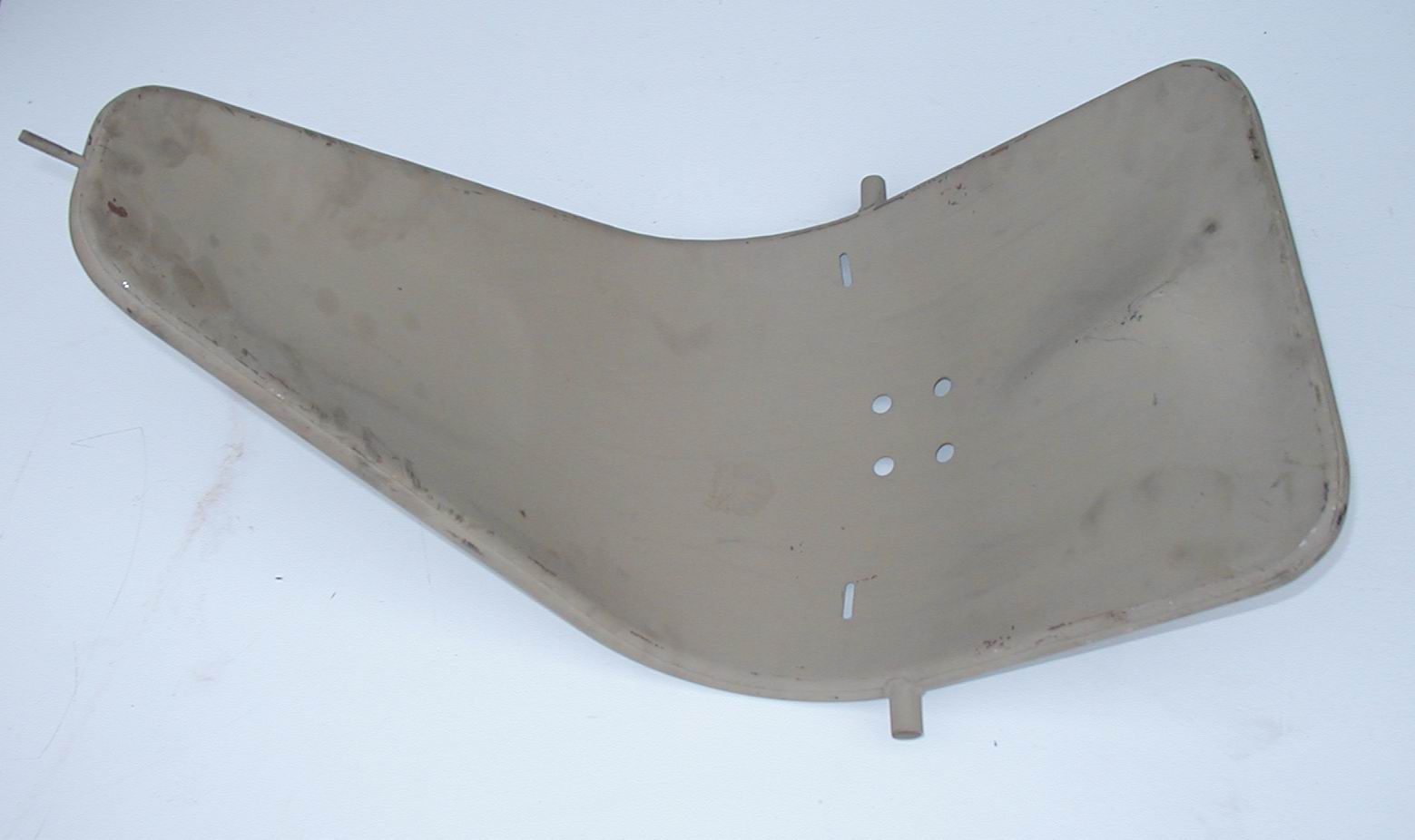

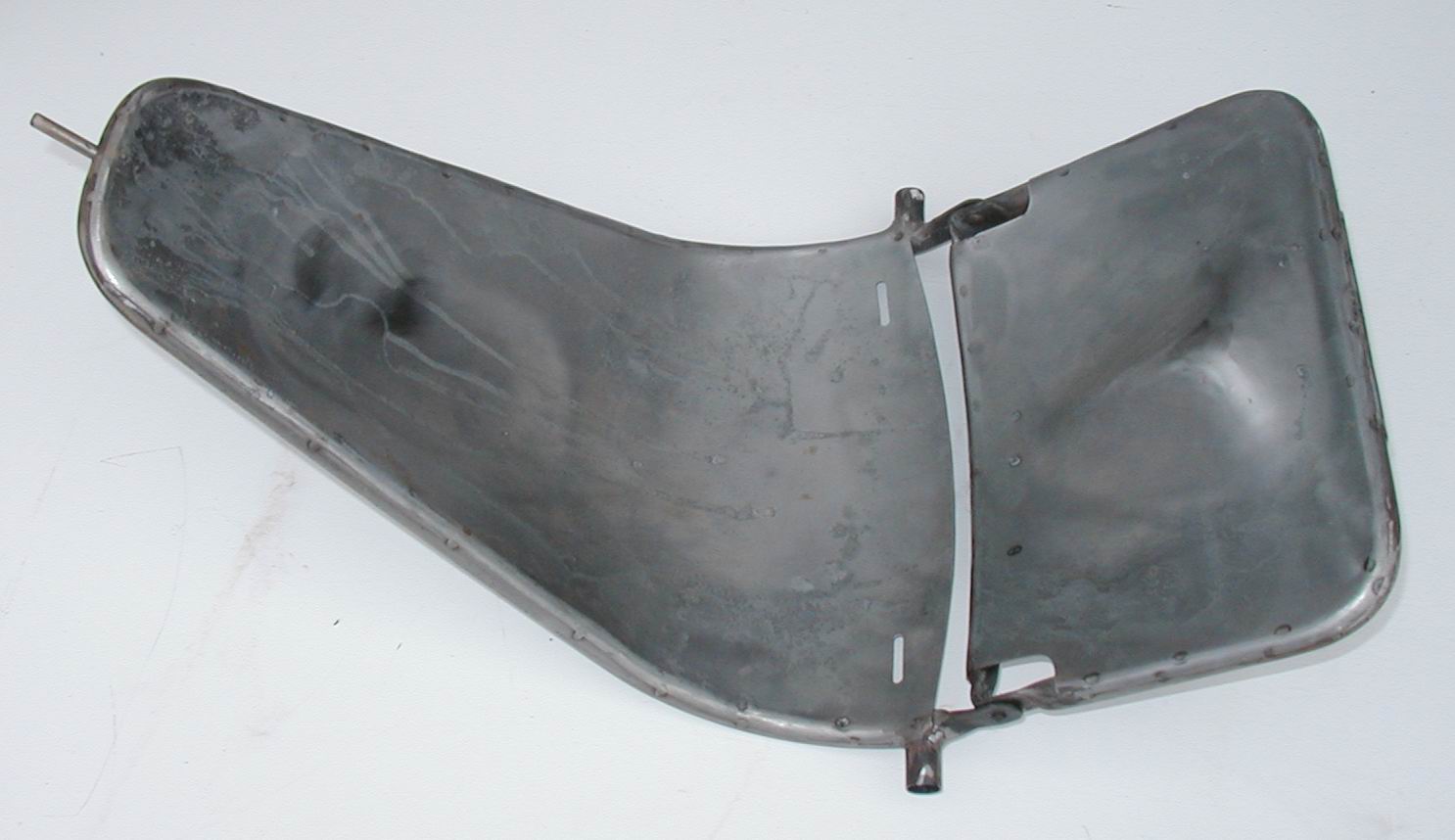

| Cat. Nr. | 690 | 691 | 692 | 693 | 694 |
| photo |  |
 |
 |
 |
 |
| item | return spring for central lube pedal | stand for front Notek | front seat | rear seat | front seat, folding, for MG gunner |
| Price | 120 CZK | 1 600 CZK | 3 500 CZK | 3 600 CZK | 4 500 CZK |

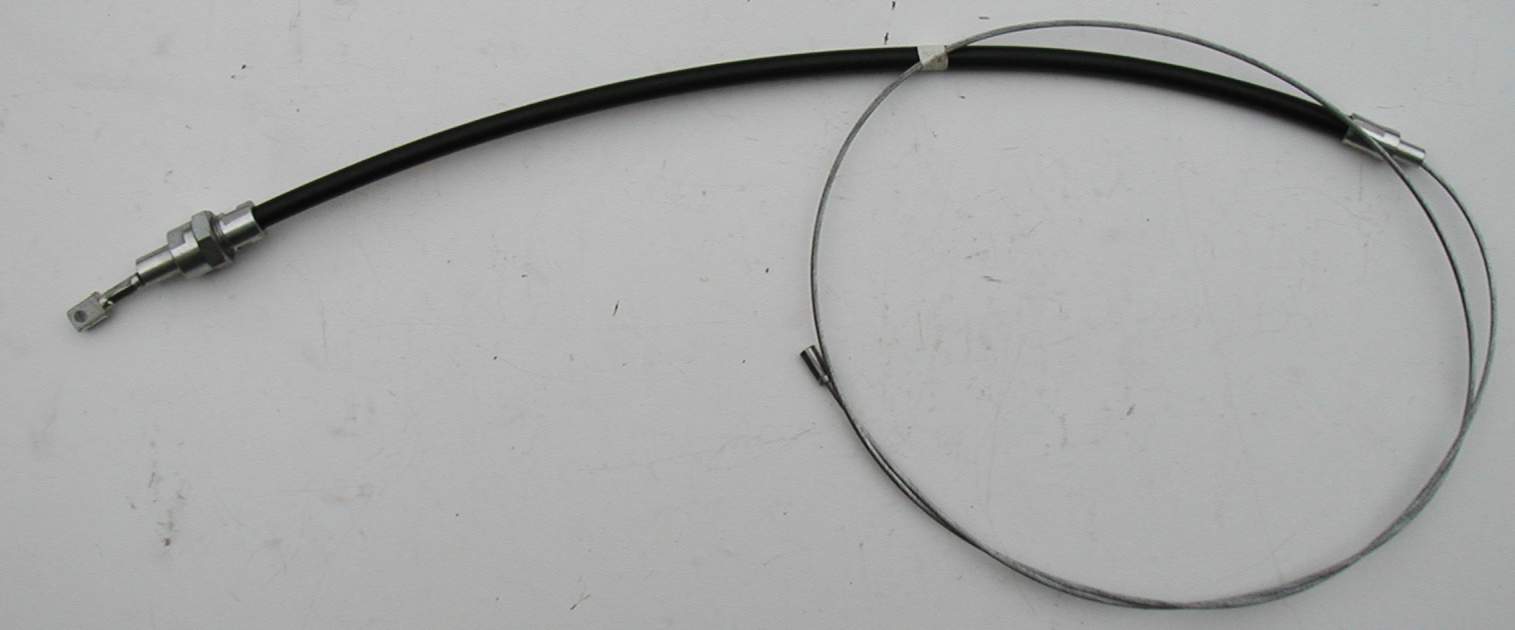

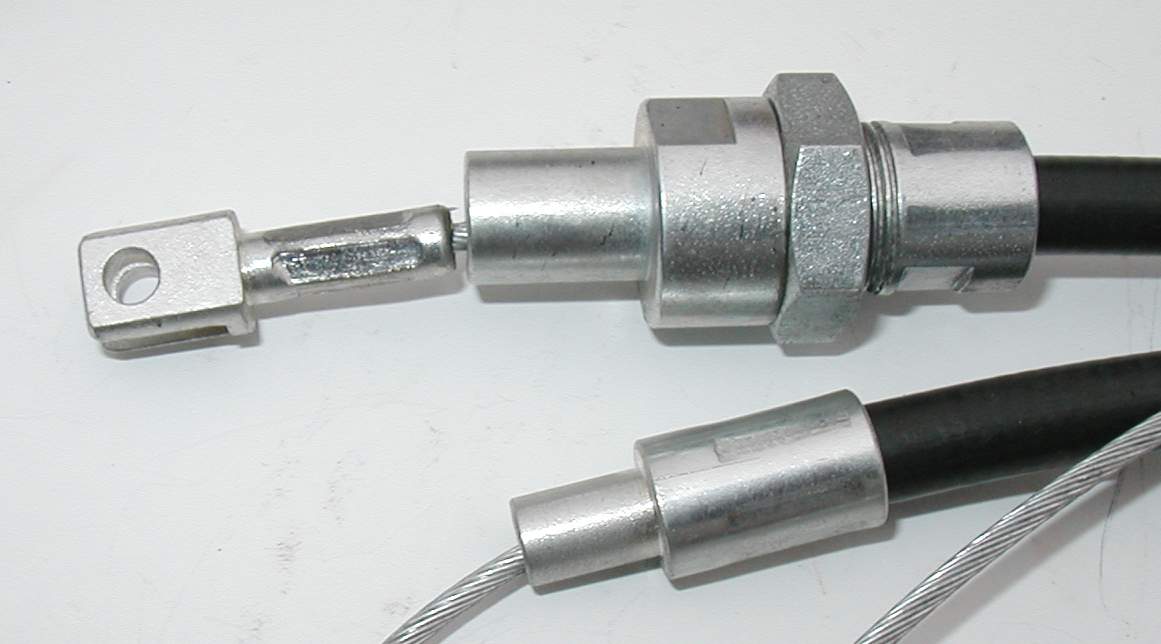

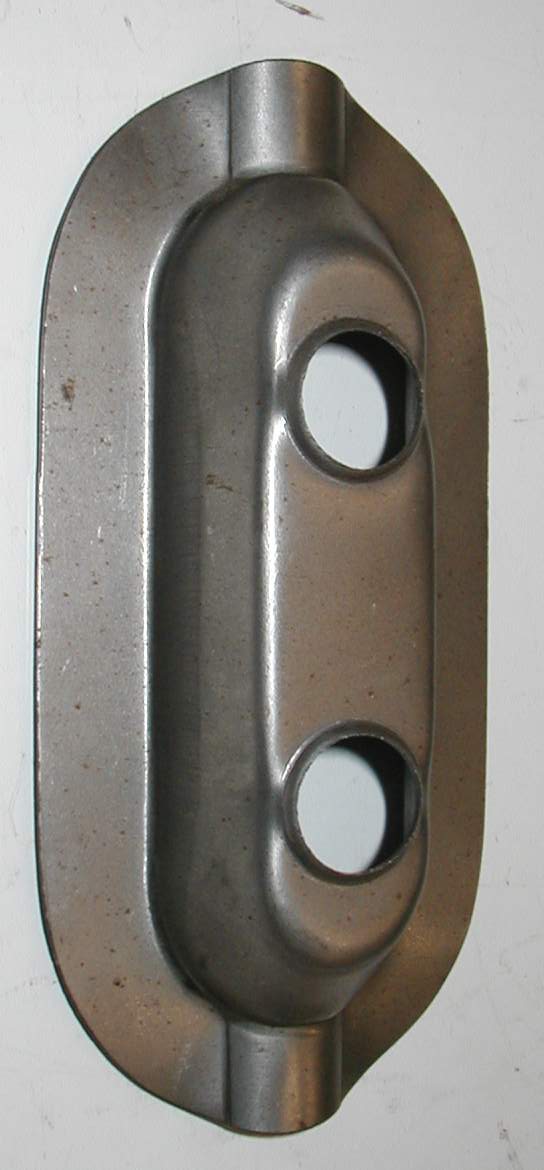

| Cat. Nr. | 695 | 696 | 697 | 698 | 699 |
| photo |  |
 |
|
|
 |

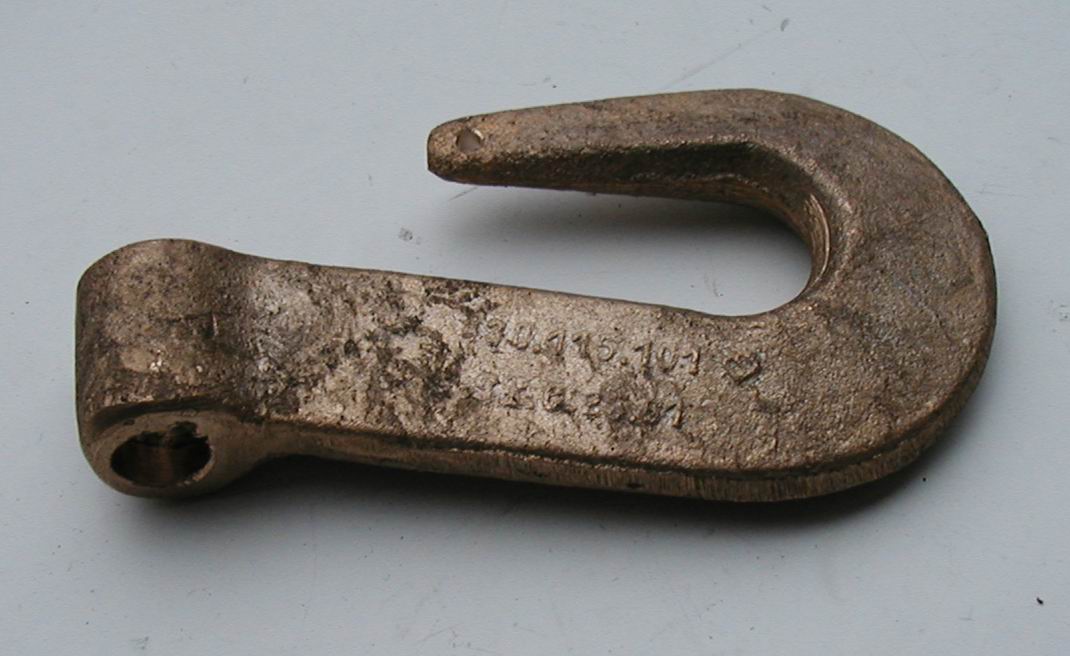

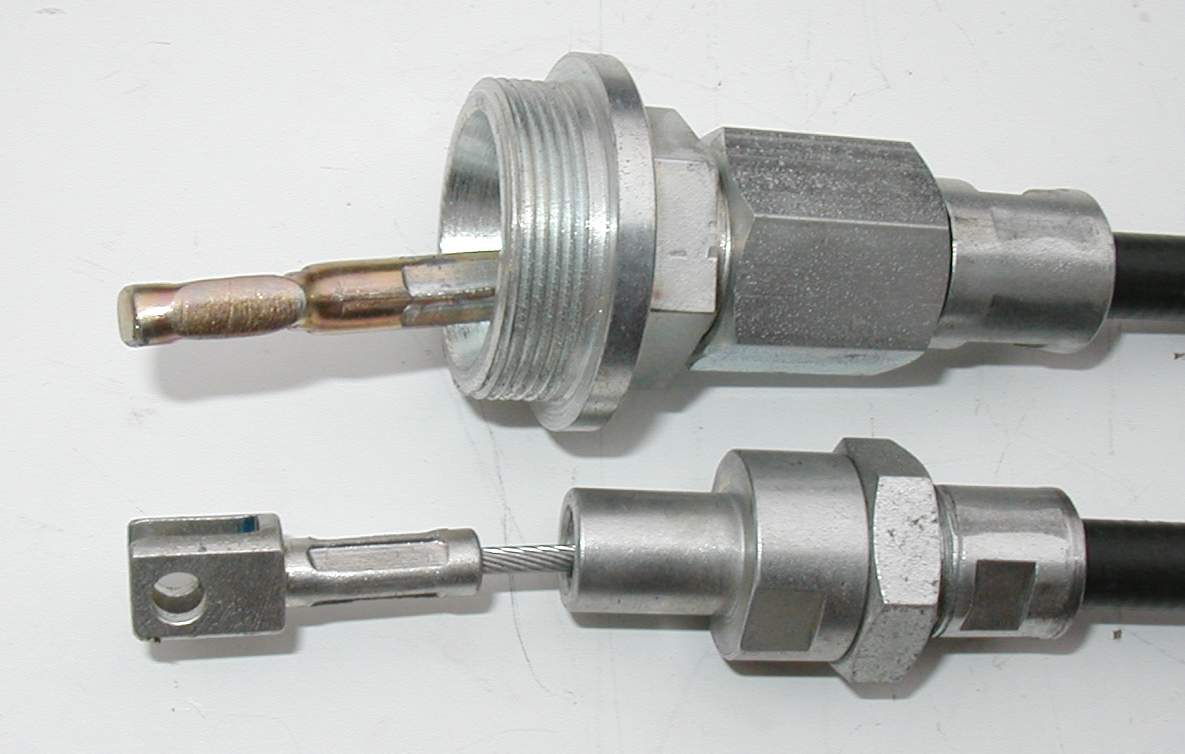

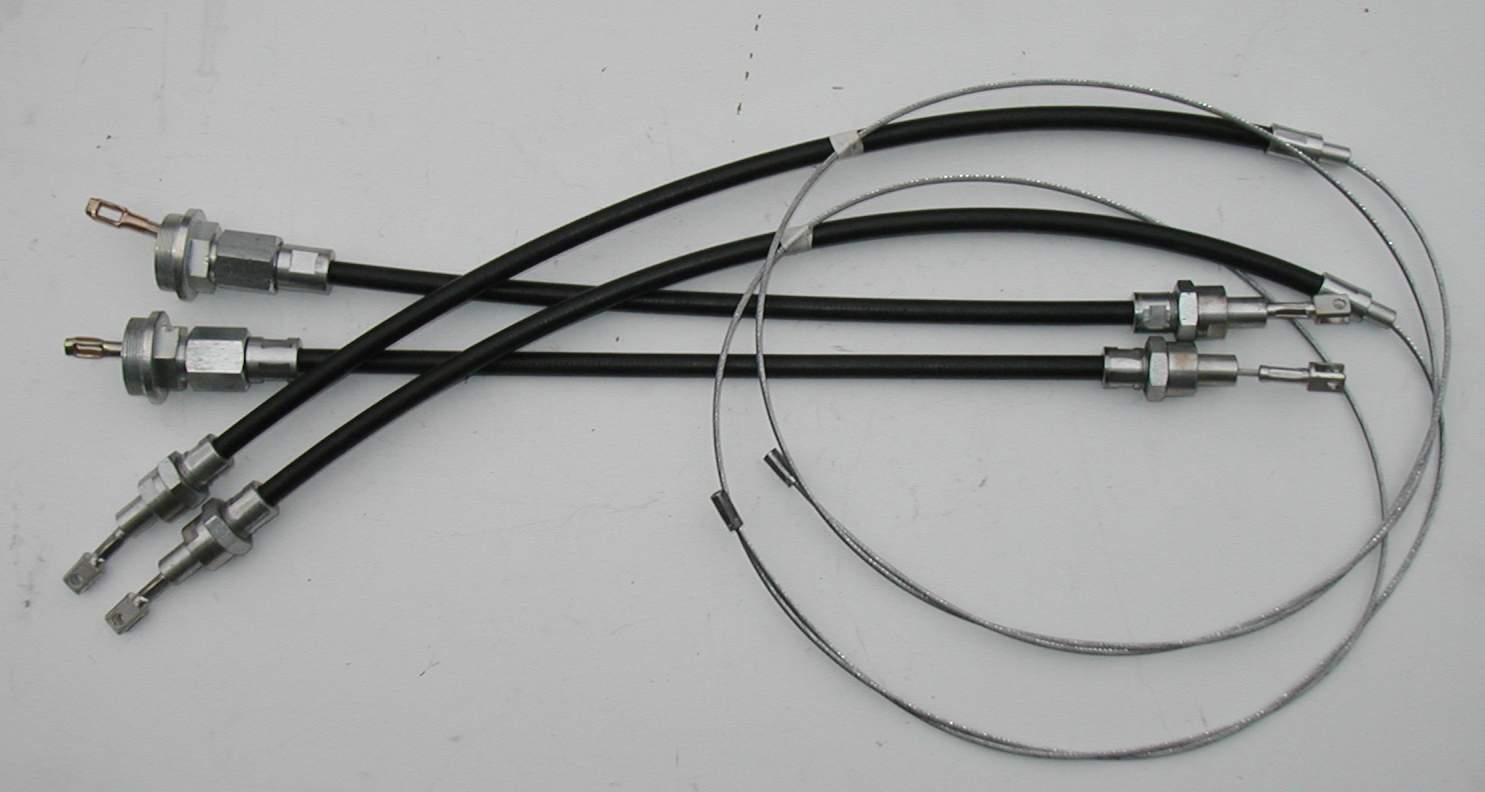

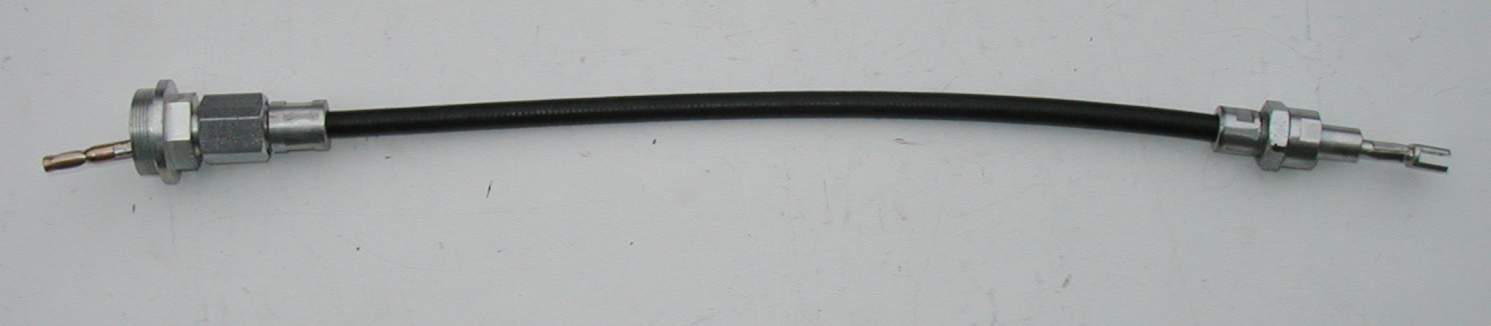

| item | swivelling tow-hook | set of four brake cables | front brake cable, per piece | rear brake cable, per piece | housing for rear tow-hook, 'empty' |
| Price | 750 CZK | 5 500 CZK / set | 1 800 CZK | 1 200 CZK | 500 CZK |

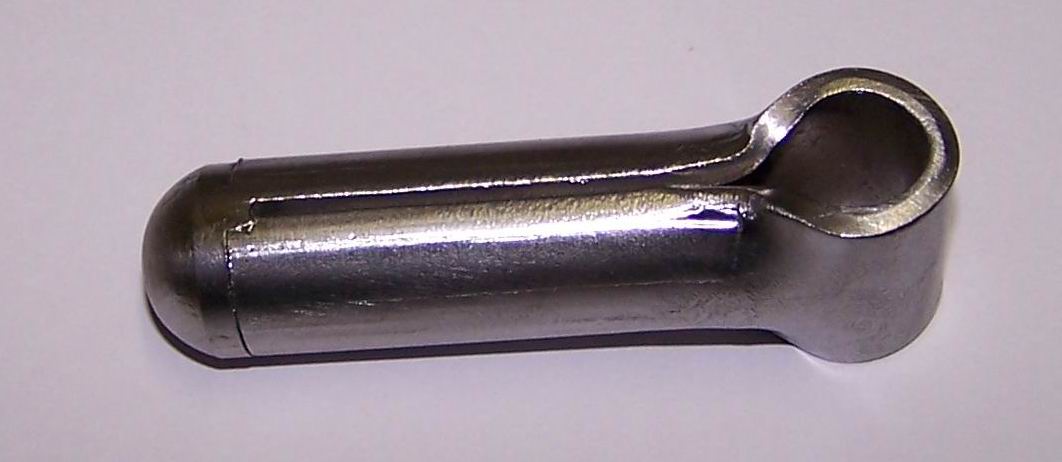

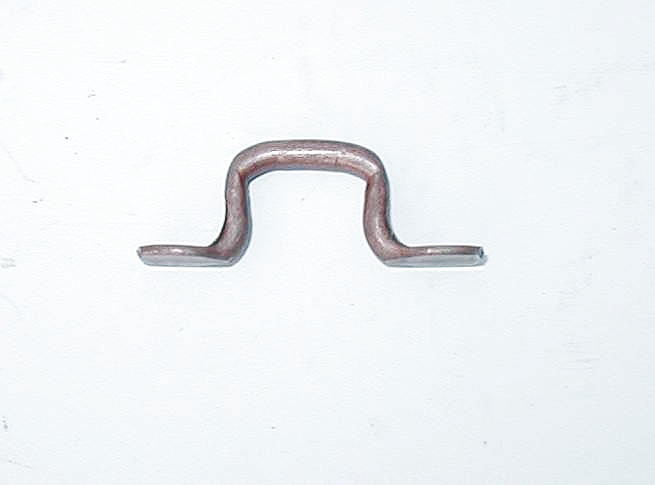

| Cat. Nr. | 700 | 701 | 702 | 703 | 704 |
| photo |  |
 |
 |
 |
 |

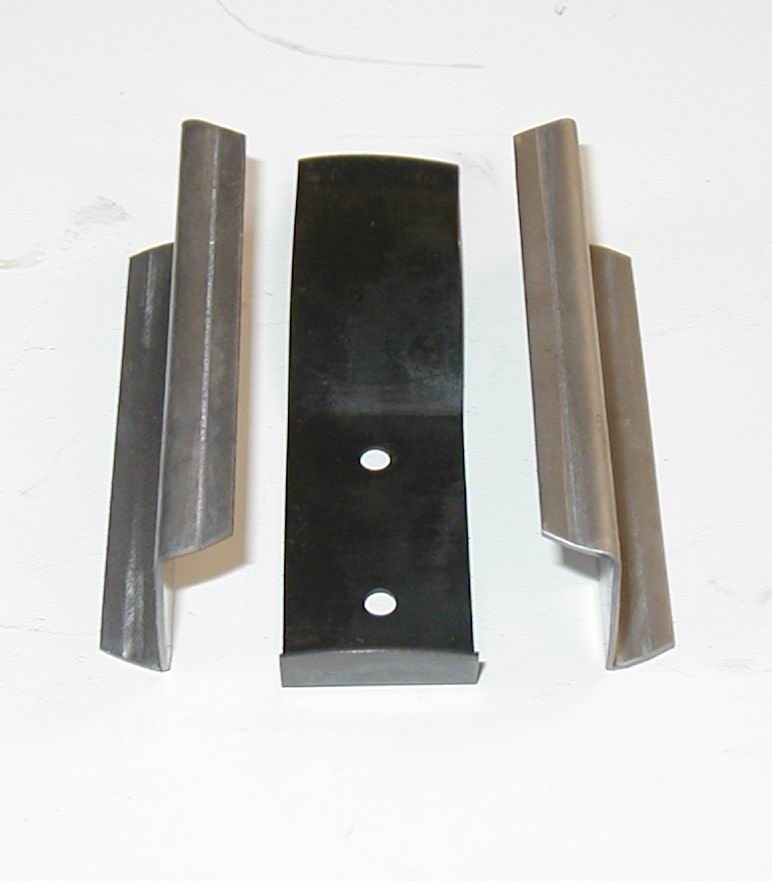

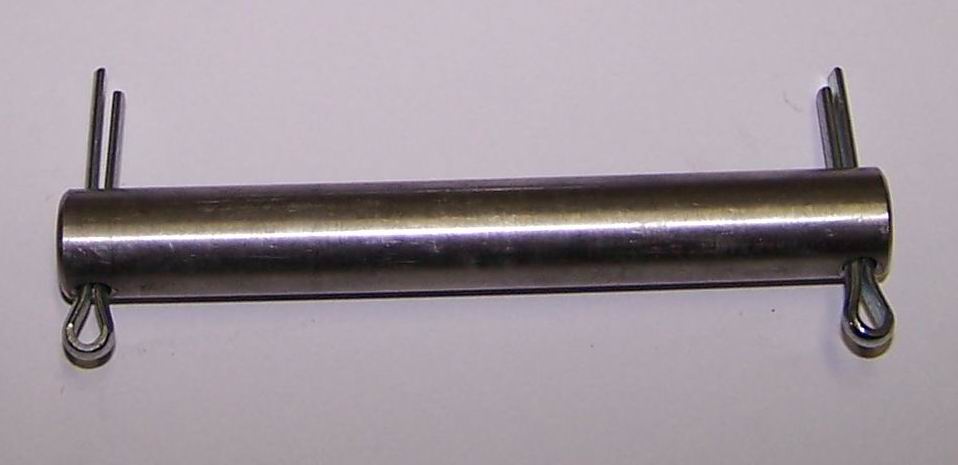

| item | holder for the hook pin | hook pin - stainless | fuel drip can holder, for top of document box | canvas top strap eyelet, for rear | drain hole cover, engine compartment |
| Price | 280 CZK | 60 CZK | 300 CZK | 20 CZK | 320 CZK |

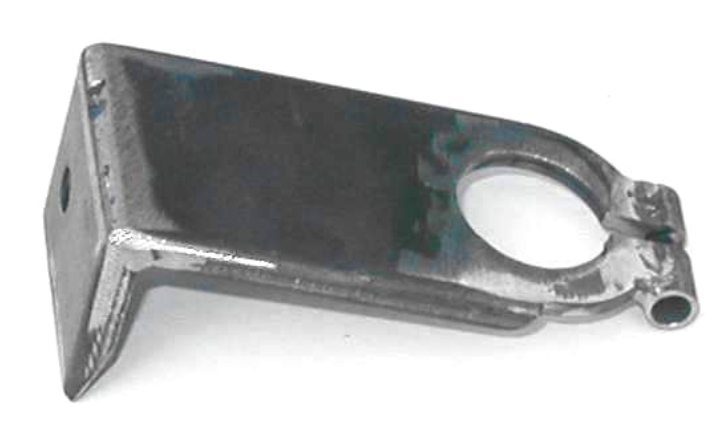

| Cat. Nr. | 705 | 706 | 707 | 708 | 709 |
| photo |  |
 |
 |
 |
 |
| item | bakelite fuse-box lid [long] | dust band for brake drums | bracket to hold oil-bath air-filter to fan housing | 'pocket' for STOP hand signal paddle | flexible disc 'Hardy' for steering shaft |
| Price | 400 CZK | 400 CZK | 550 CZK | 460 CZK | 300 CZK |
| Cat. Nr. | 710 | 711 | 712 | 713 | 714 |
| photo |  |
 |
 |
 |
  |

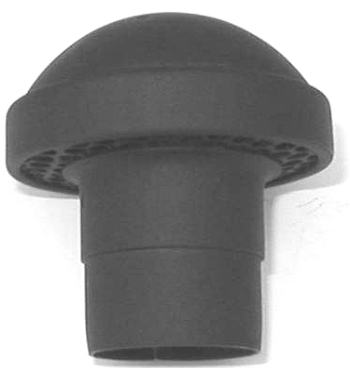

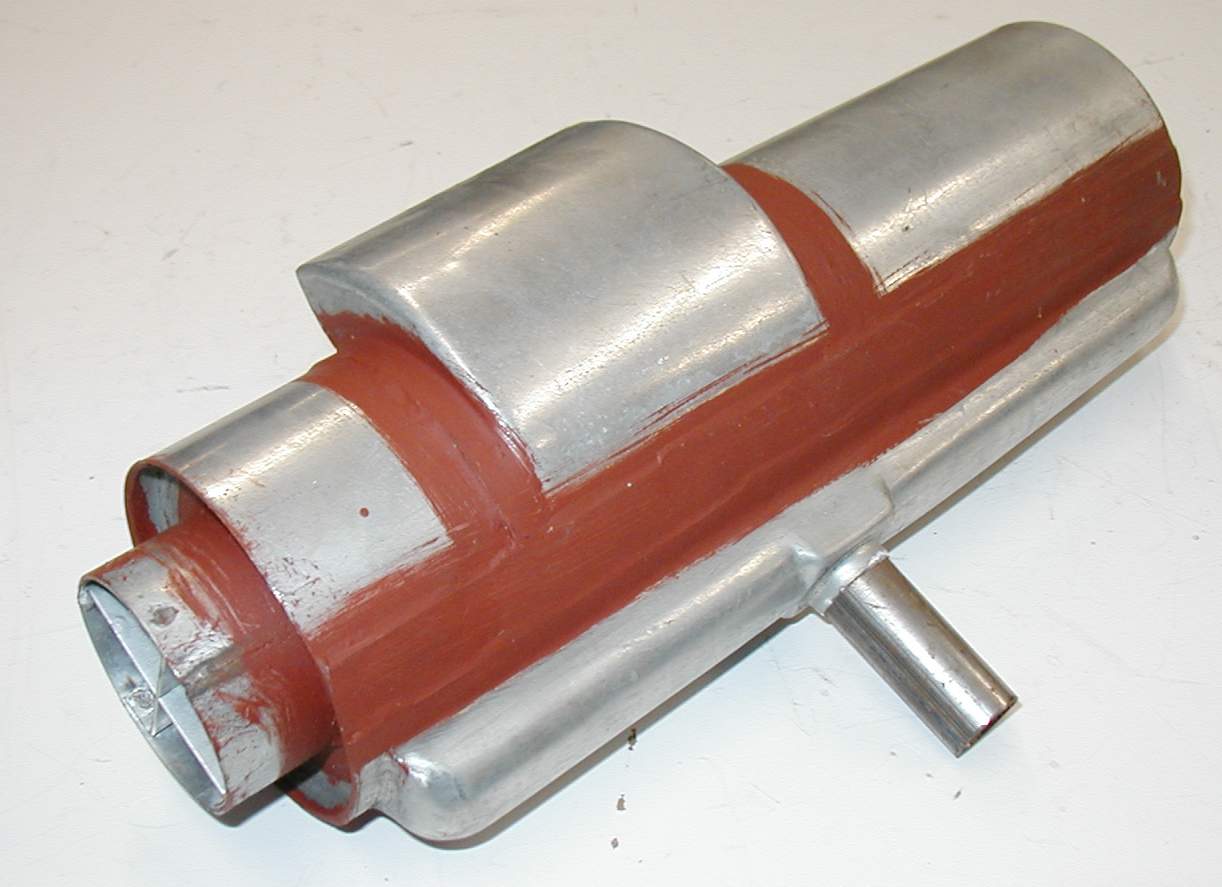

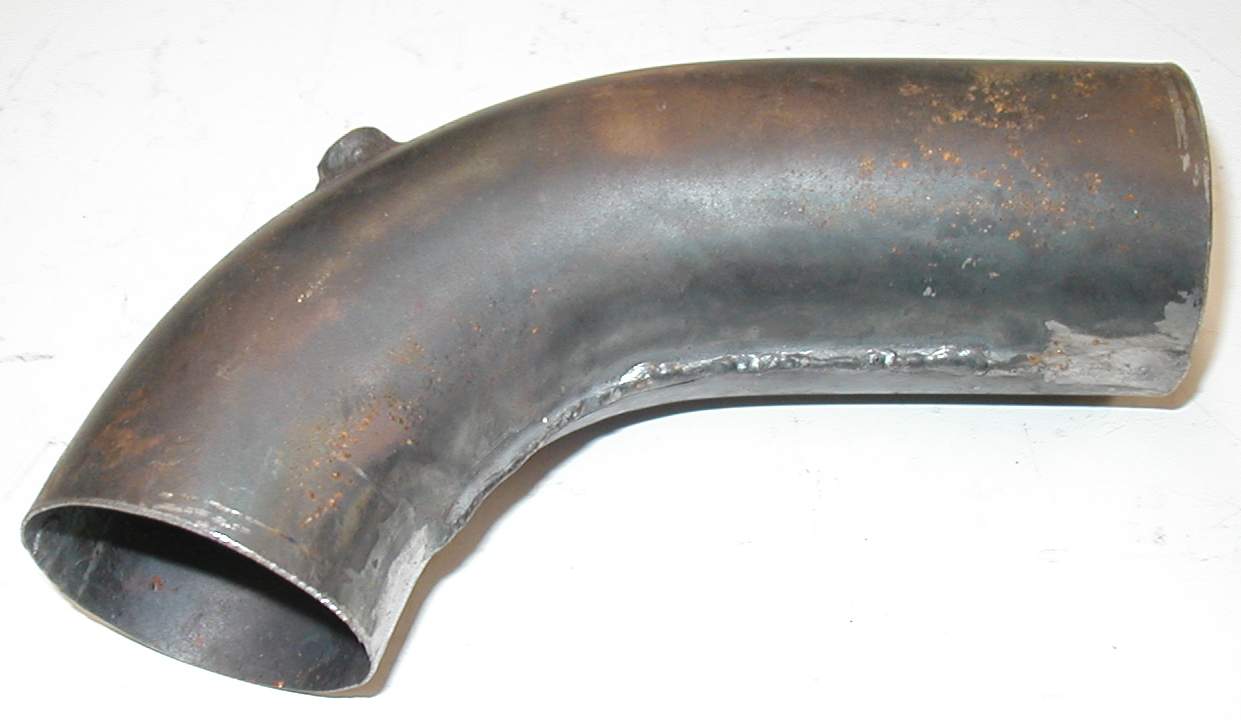

| item | oil-bath air filter | 'knee-bend' for oil-bath filter | air filter, 'Cyklon' Sahara style | 'knee bend' for Cyklon air-filter | stopper / crankcase ventillation Knecht |
| Price | 4 200 CZK | 1 000 CZK | 3 200 CZK | 900 CZK | 1 300 CZK |

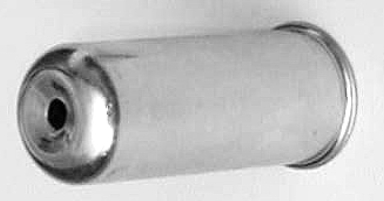

| Cat. Nr. | 715 | 716 | 717 | 718 | 719 |
| photo |  |
 |
  |
 |
|
| item | Hella tell-tale light for dash (green or red) | bowl for aux. fuel filter | bowl for fuel tap | hubcap, with KdF cogwheel logo - welded from two parts | repair set for tie-rod end ball joints, see ill. 55, 56, 57 |
| Price | 350 CZK | 480 CZK | 480 CZK | 1 000 CZK | 450 CZK / set |

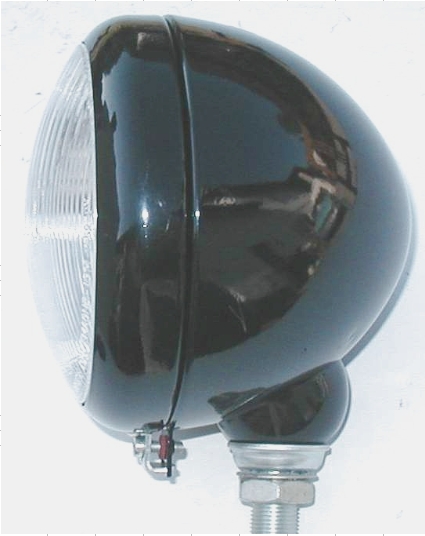

| Cat. Nr. | 720 | 721 | 722-A | 722-B | 723 |
| photo |  |
 |
 |
 |
 |

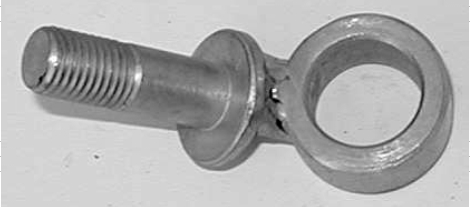

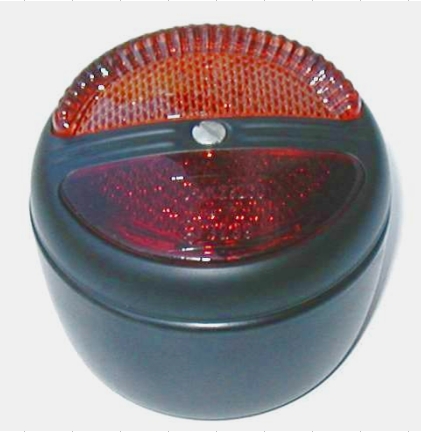

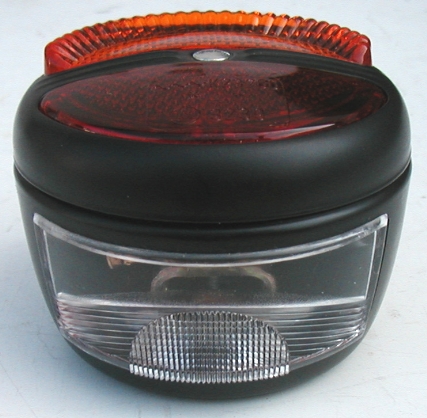

| item | metal toolbox | eye bolt, for rear shock-absorber | Hella taillight | Hella taillight - with number plate light | headlight Hella
( diameter 130mm ! ) |
| Price | 3 800 CZK | 400 CZK | 1 100 CZK | 1 100 CZK | not available |

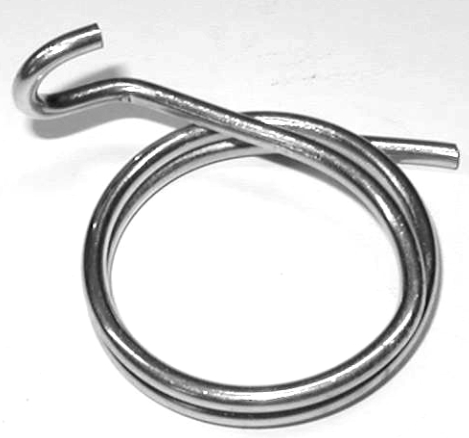

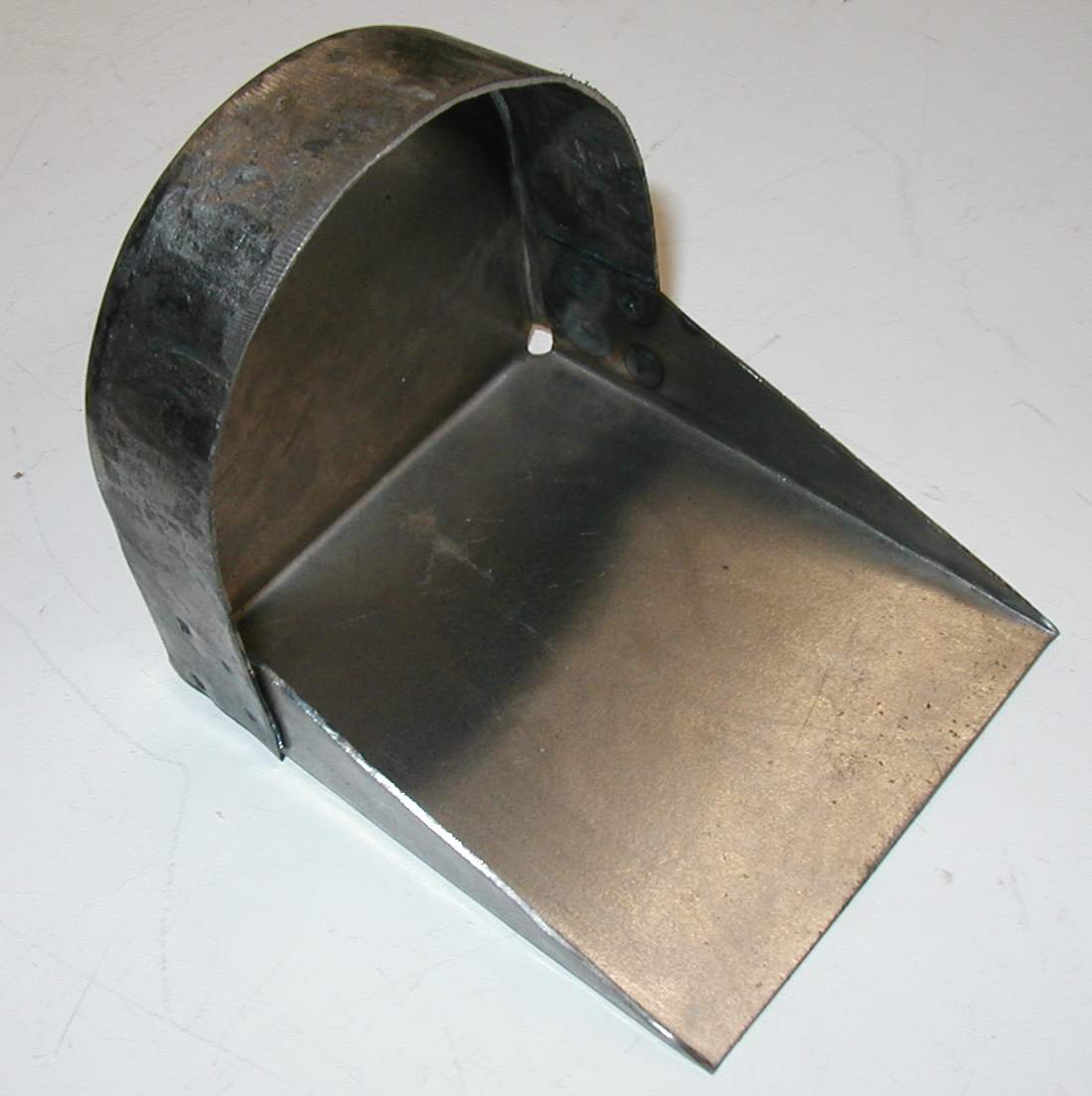

| Cat. Nr. | 724 | 725 | 726 | 727 | 728 |
| photo |  |
 |
|
 |
 |

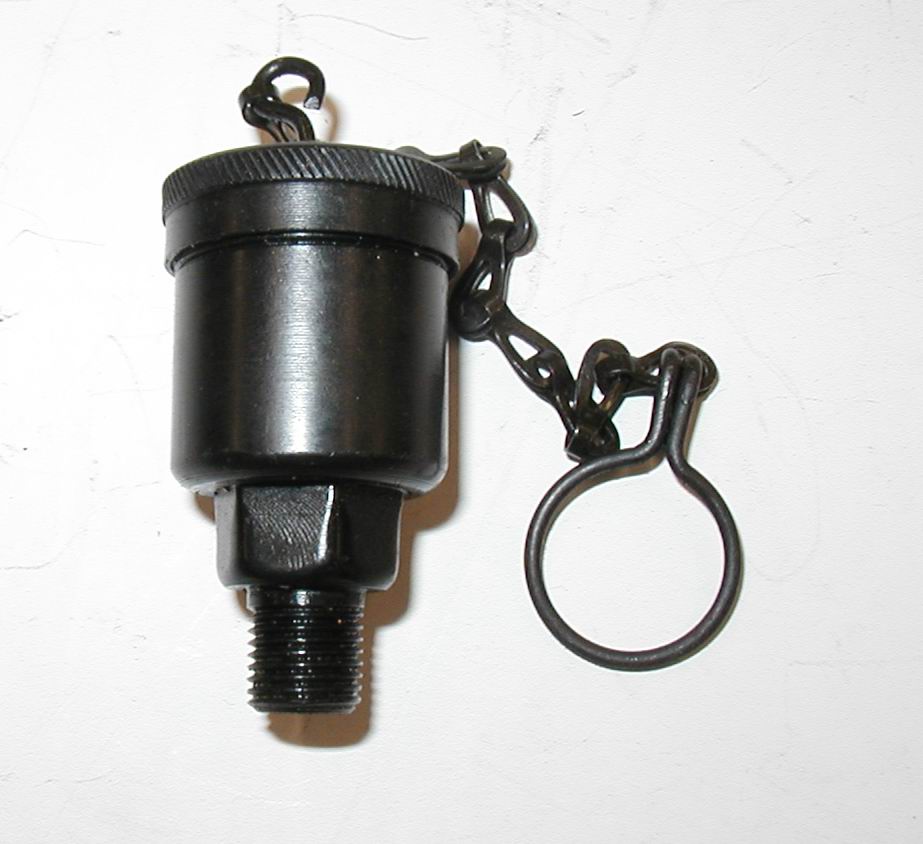

| item | Veigel speedometer 60 mm diam. | clutch lever return spring, see ill. 27 | shovel, Wosnitz, with 1100mm long handle | fuel 'pot' to drip into; at air inlet bend | jack (foot) holder |
| Price | 3 000 CZK | 250 CZK | 1 600 CZK | 1 200 CZK | 500 CZK |

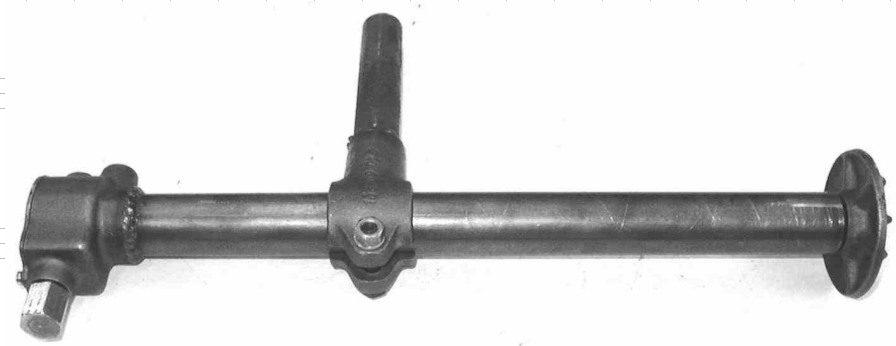

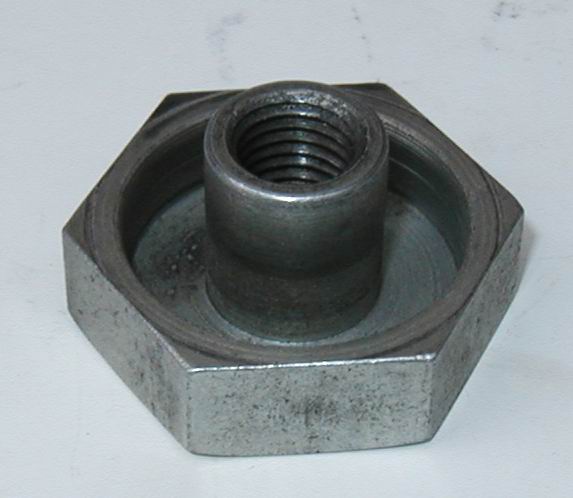

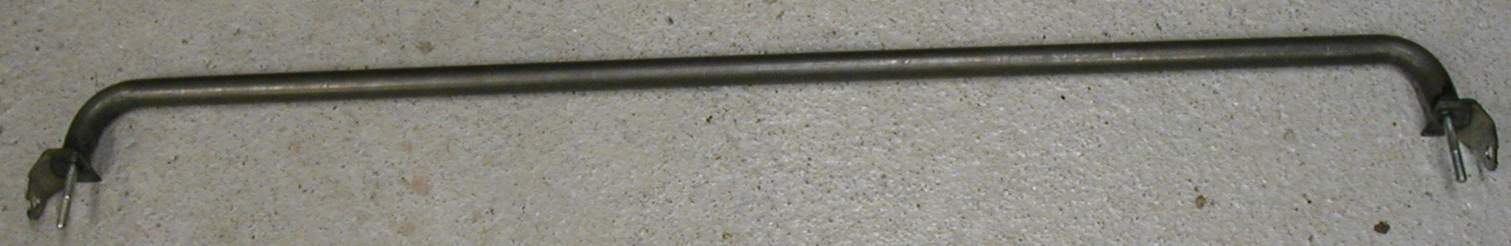

| Cat. Nr. | 729 | 730 | 731 | 732 | 733 |
| photo |  |
|
 |
 |
 |

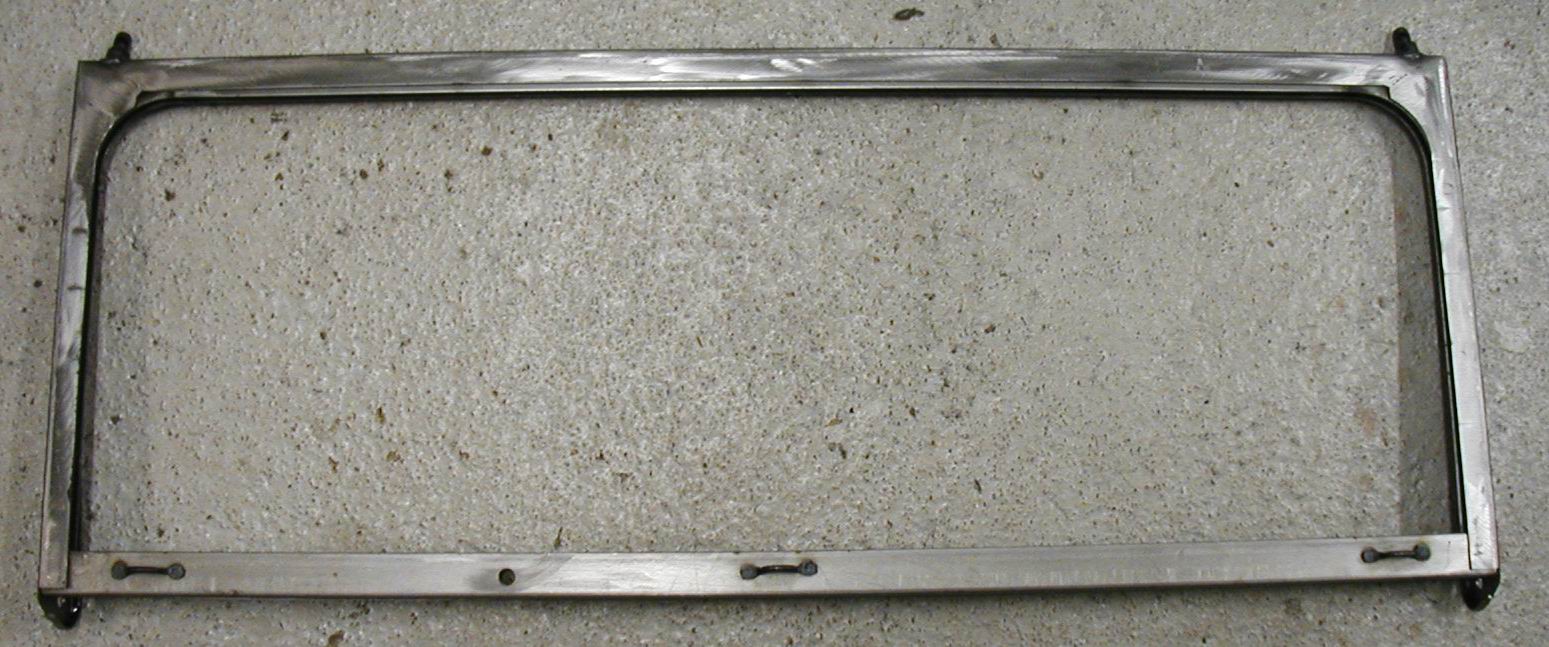

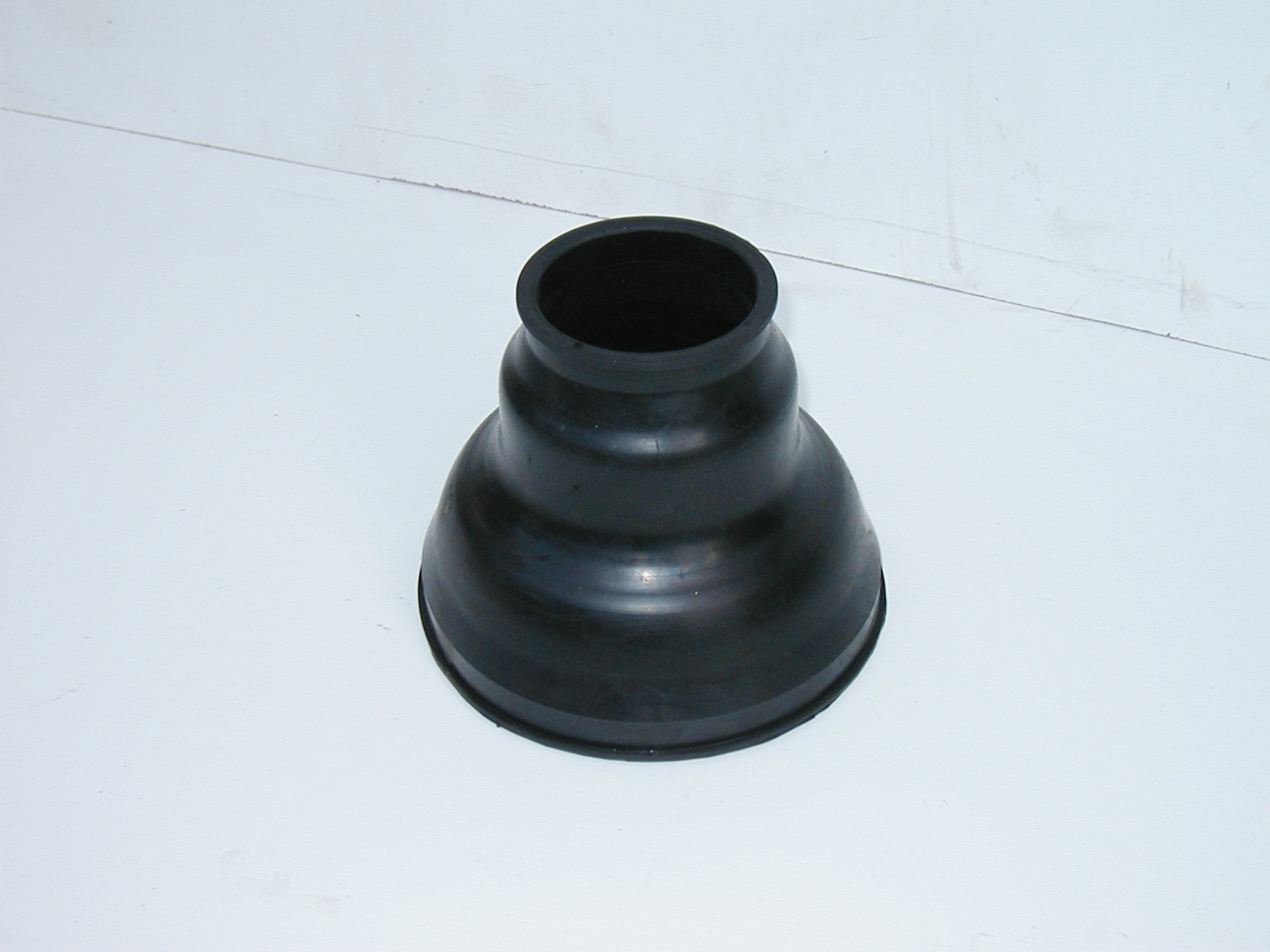

| item | generator nut | cross-bracing pipe above front seats | windscreen frame, whole | axle boot, rear | jack |
| Price | 250 CZK | 1 600 CZK | 6 000 CZK | 1 200 CZK | 5 600 CZK |

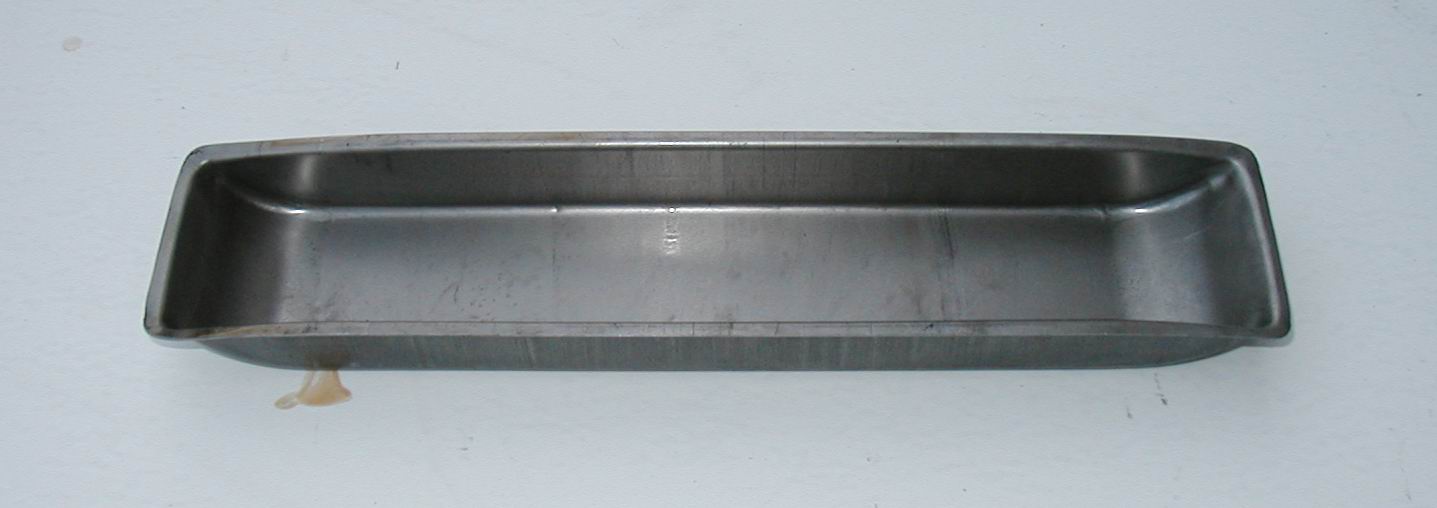

| Cat. Nr. | 734 | 735 | 736 | 737 | 738 |
| photo |  |
 |
 |
 |
 |

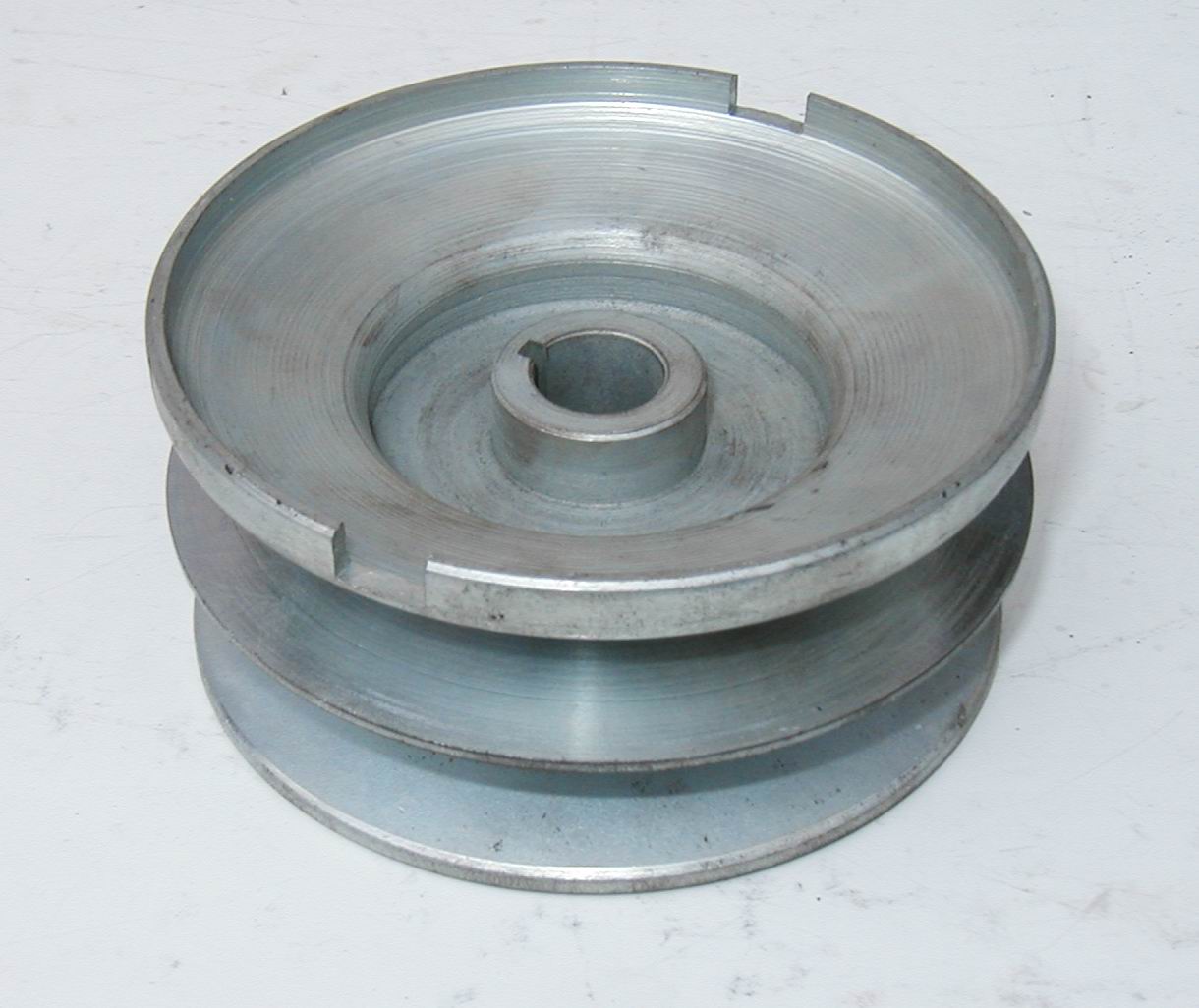

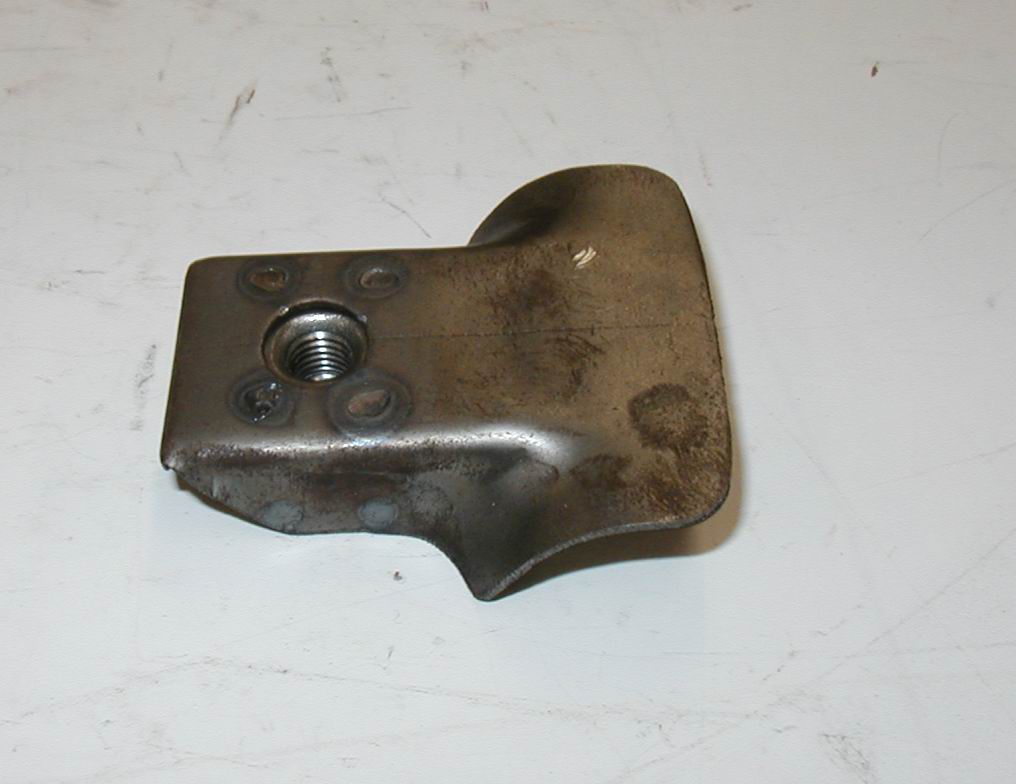

| item | bracket for front skid guard; incl. captive nut | base to hold toolbox | accellerator pedal | bracket to hold fuel tap and filter | twin generator pulley |
| Price | 280 CZK | 400 CZK | 700 CZK | 950 CZK | 1 900 CZK |

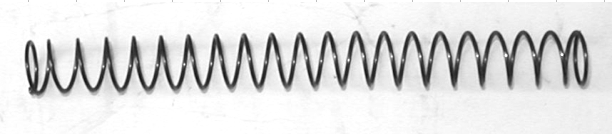

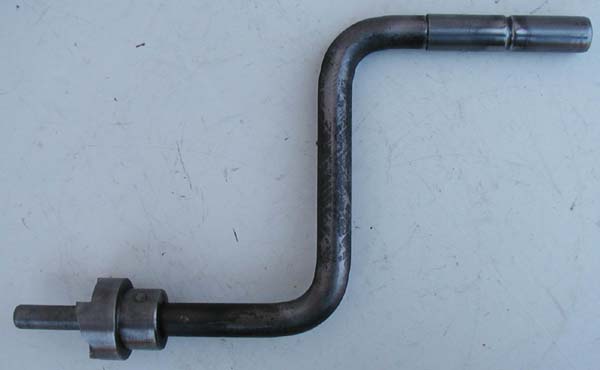

| Cat. Nr. | 739 | 740 | 741 | 742 | 743 |
| photo |
|
 |
 |
 |
 |

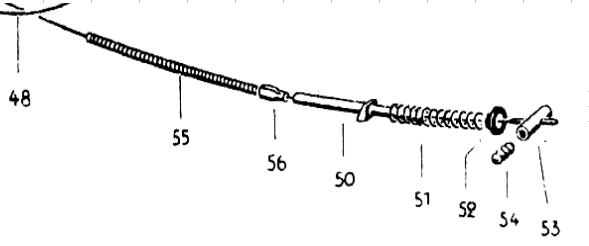

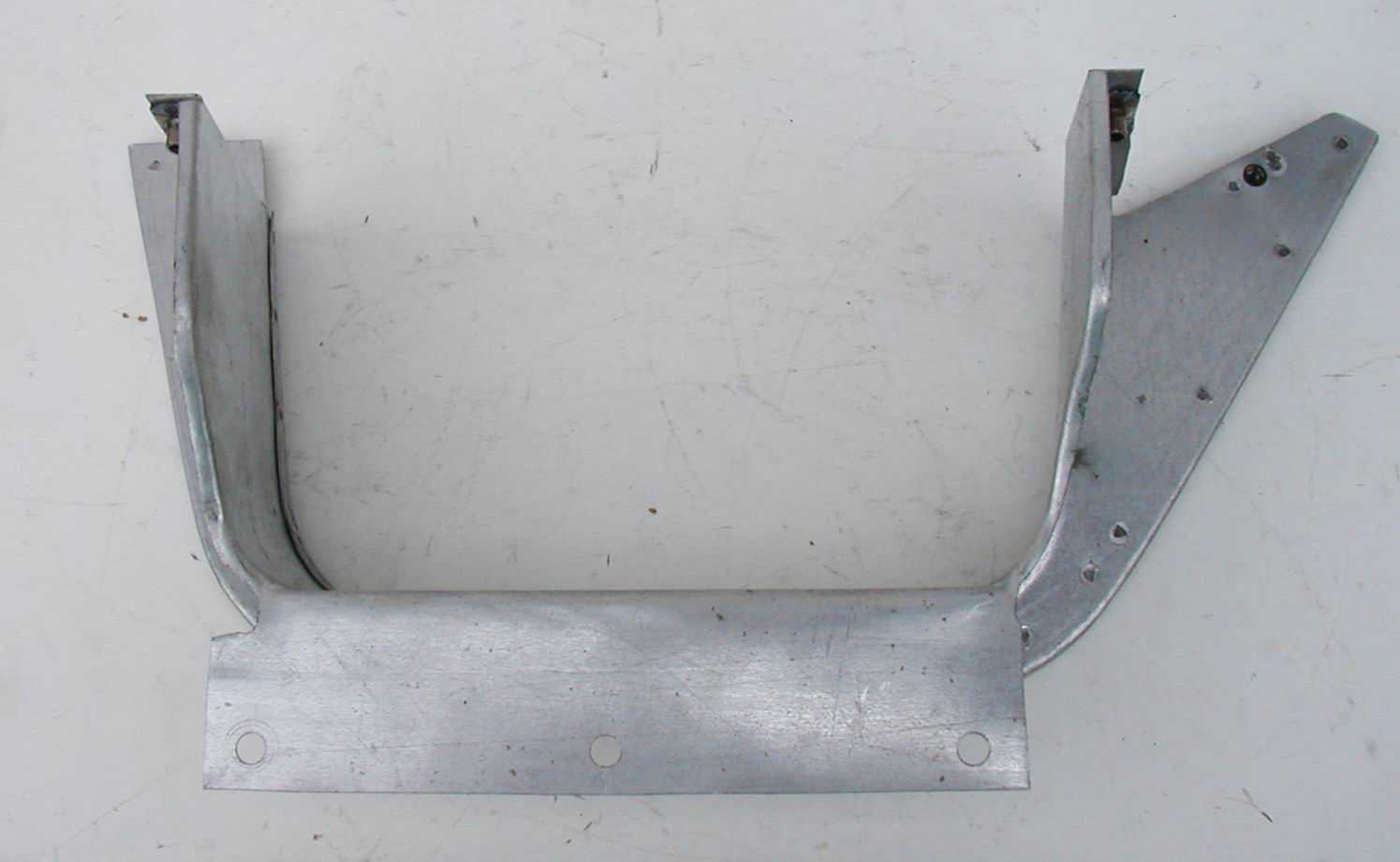

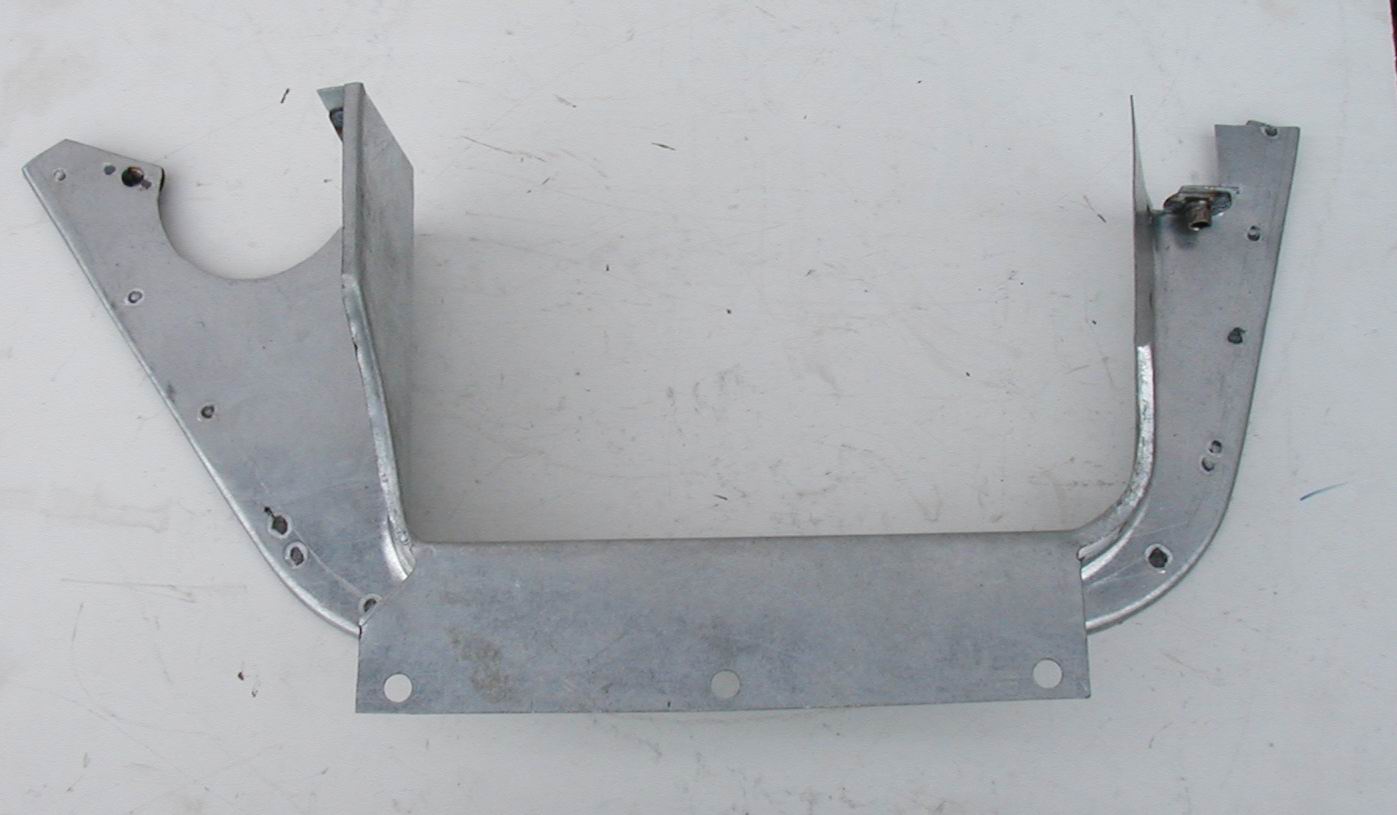

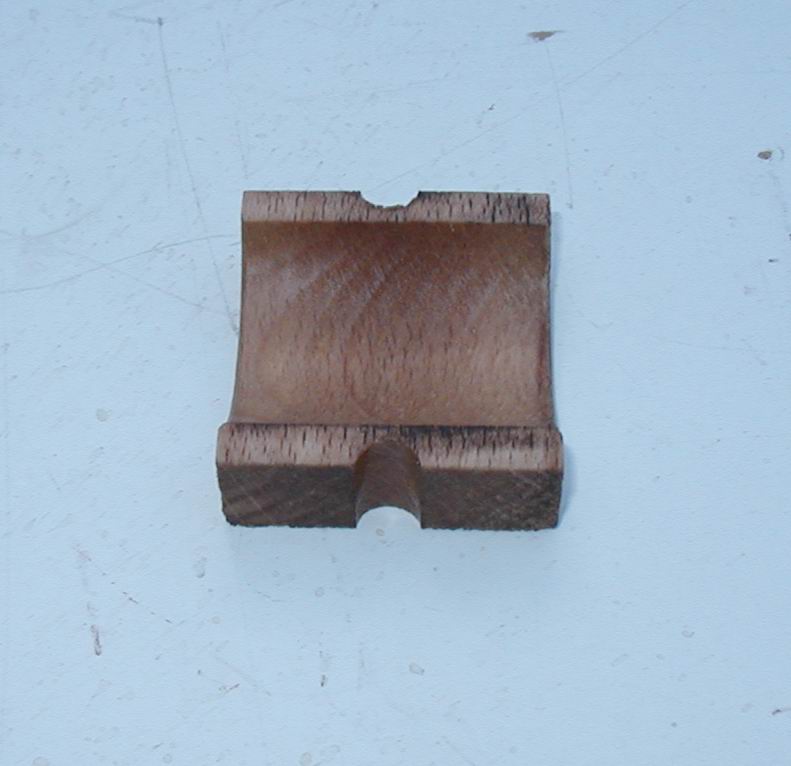

| item | return spring for accellerator cable, see ill. 51 | left side of engine tinware, bottom | right side of engine tinware, bottom | crank handle | wooden insert for aux. fuel pump holder, see ill.35 |
| Price | 50 CZK | 1 700 CZK | 1 700 CZK | 2 200 CZK | 160 CZK |

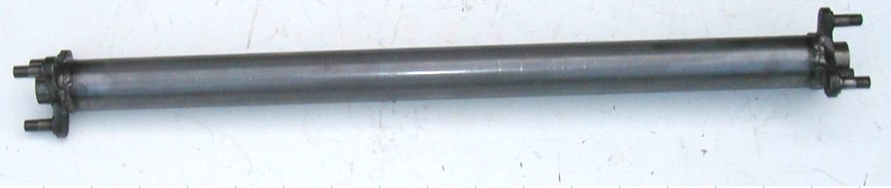

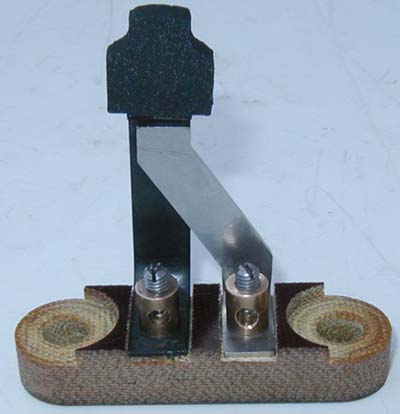

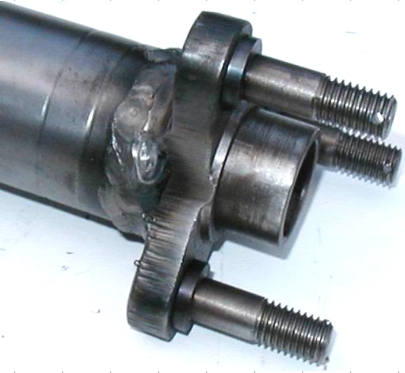

| Cat. Nr. | 745 | 746 | 747 | 748 | 749 |
| photo |  |
 |
 |
|
 |

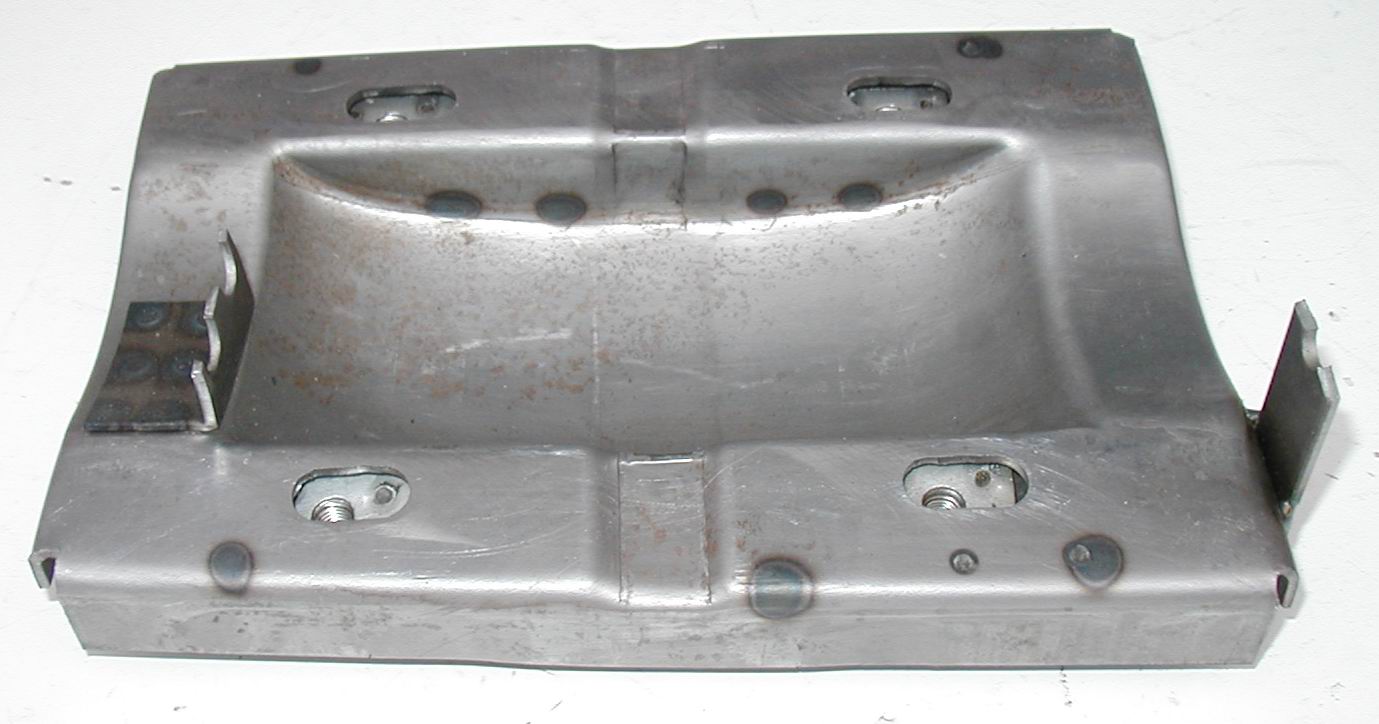

| item | cover under rear seats | brake light switch | holder for shift housing | tailshaft, long | cliplock, roof mech. to windscreen |
| Price |
3 600 CZK |
950 CZK | 4 200 CZK | 3 000 CZK | 1 200 CZK |

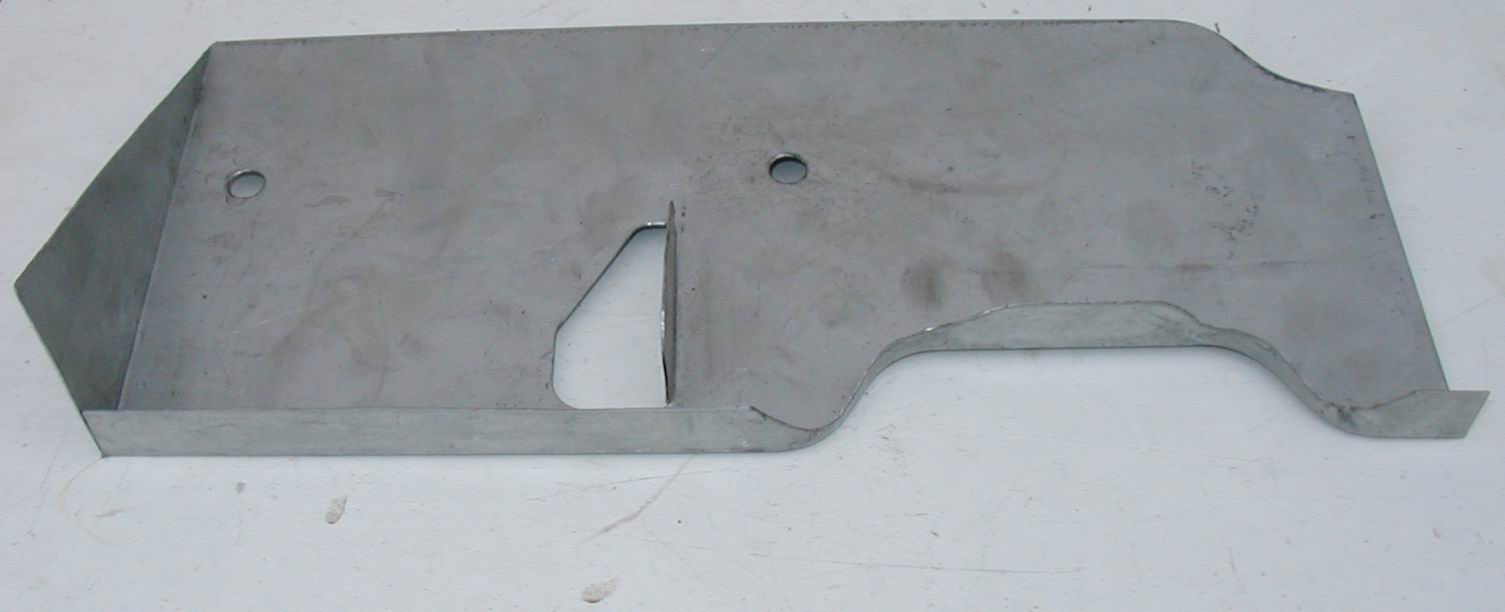

| Cat. Nr. | 750 | 751 | 752 | 753 | 755 |
| photo |  |
 |
 |
|
 |

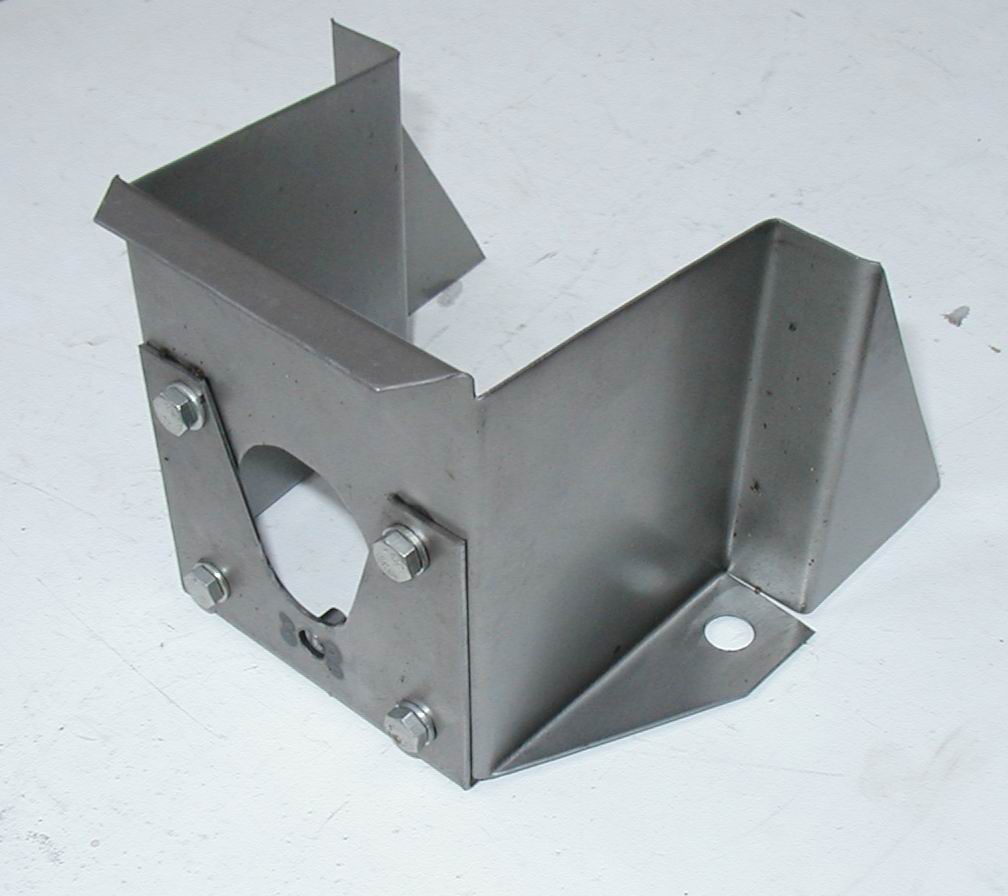

| item | engine lid prop | partition panel, at fuel tanks | bracket for central lubrication pump | 'U' profile, under scuttle, for fuel tanks | gearchange diagram |
| Price | 950 CZK | 750 CZK | 800 CZK | 200 CZK | 350 CZK |
| Cat. Nr. | 756 | 757 | 758 | 759 | 760 |
| photo |  |
 |
 |
 |
 |

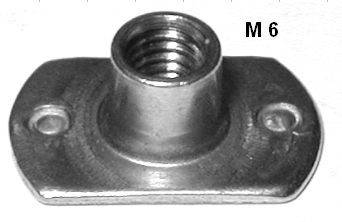

| item | captive nut, M6 | captive nut, M8 | MG stand | splash guard (pressed from 1,5 mm. thick sheet metal) | stop-plate (no.30/tafel 22) |
| Price | 12 CZK | 17 CZK | 2 000 CZK | 7 500 CZK | 800 CZK |

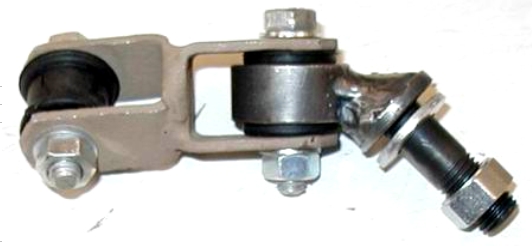

| Cat. Nr. | 761 | 762 | 763 | 764 | 765 |
| photo |  |
 |
 |
 |
 |

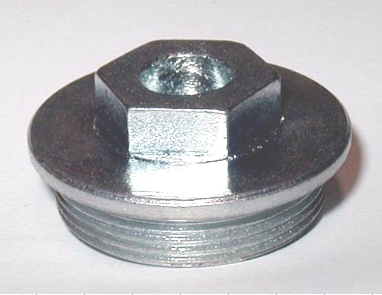

| item | windshield wiper | screw plug | tyres 16 x 200 | Replacement set (one side) of linkage for rear shock absorber, incl. 2 rubber | Stirrup linkage for rear shock absorber |

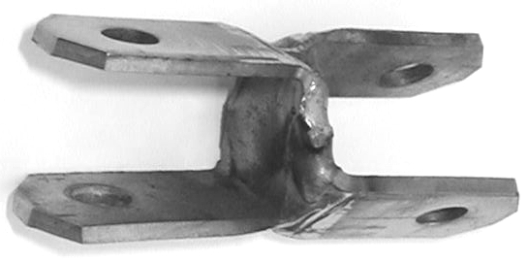

| Price | 950 CZK | 650 CZK | 3 800 CZK | 1 250 CZK | 200 CZK |
| Cat. Nr. | 766 | 767 | 768 | 769 | 770 |
| photo |  |
 |
 |
 |
 |

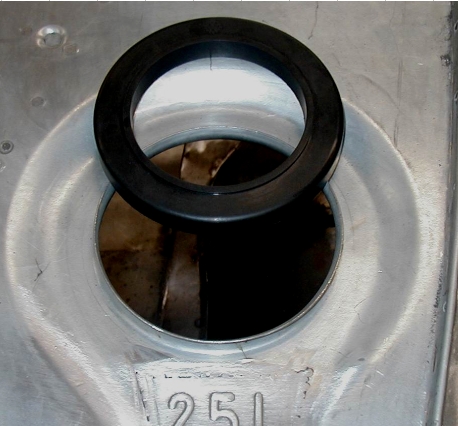

| item | crankshaft bolt | ruber for rear shock lefer | rubber bushings for REAR shock-absorber | rubber bushings for FRONT shock-absorber | rubber for fuel tank neck |
| Price | 750 CZK | 350 CZK | 260 CZK | 260 CZK | 550 CZK |

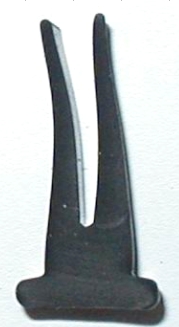

| Cat. Nr. | 771 | 772 | 773 | 774 | 775 |
| photo |  |
 |
 |
 |
 |
| item | ruber for engine-compartment | ruber for bottom of windscreen frame(No.627) | ruber for windshield - glass to car | fuel cap | ID-plate -pressed iron-plate |
| Price | 450 CZK | 180 CZK | 320 CZK | 1 200 CZK | 1 150 CZK |
| Cat. Nr. | 776 | 777 | 778 | 779 | 780 |
| photo |  |
 |
 |
 |
|

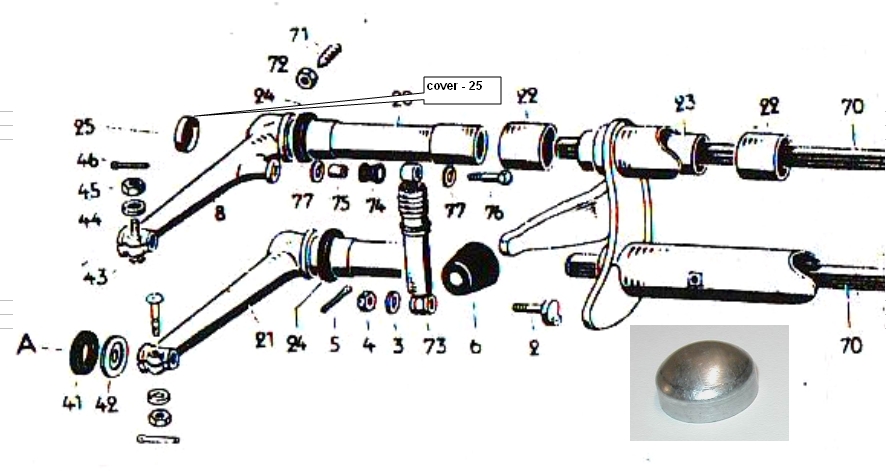

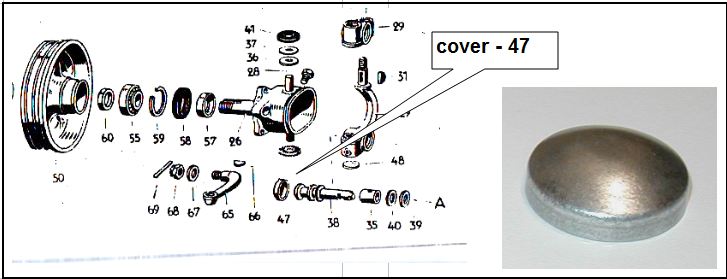

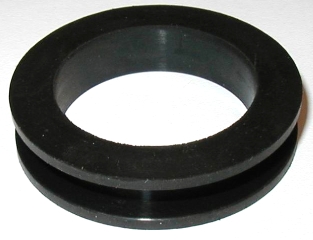

| item | front torsion bar for Schwimm - 20 x 20 mm. (4 x 5mm) | cover for pin - diameter 38 mm | cover form arm - diameter 30 mm | covering sheet metal - welded from three sections left or right | rubber for steering tube tafel 18 no.64 |
| Price | 3 800 CZK | 150 CZK | 150 CZK | 2 000 CZK | 450 CZK |

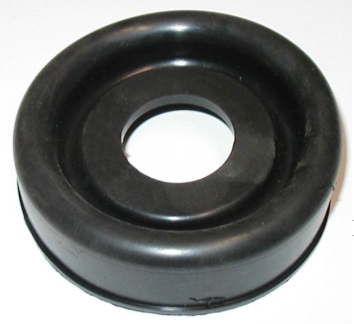

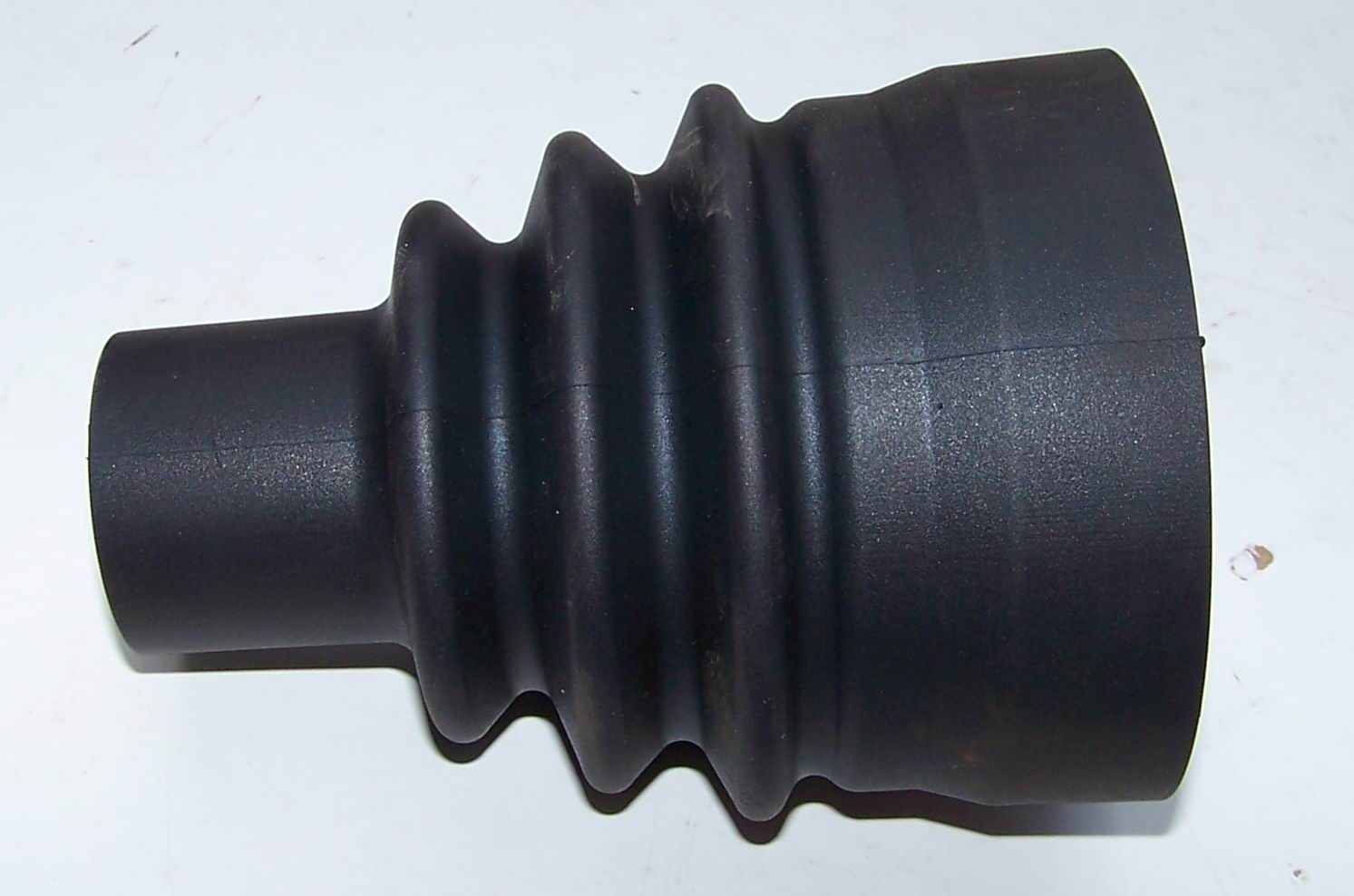

| Cat. Nr. | 781 | 782 | 783 | 784 | 785 |
| photo |  |
    |
|
 |
 |

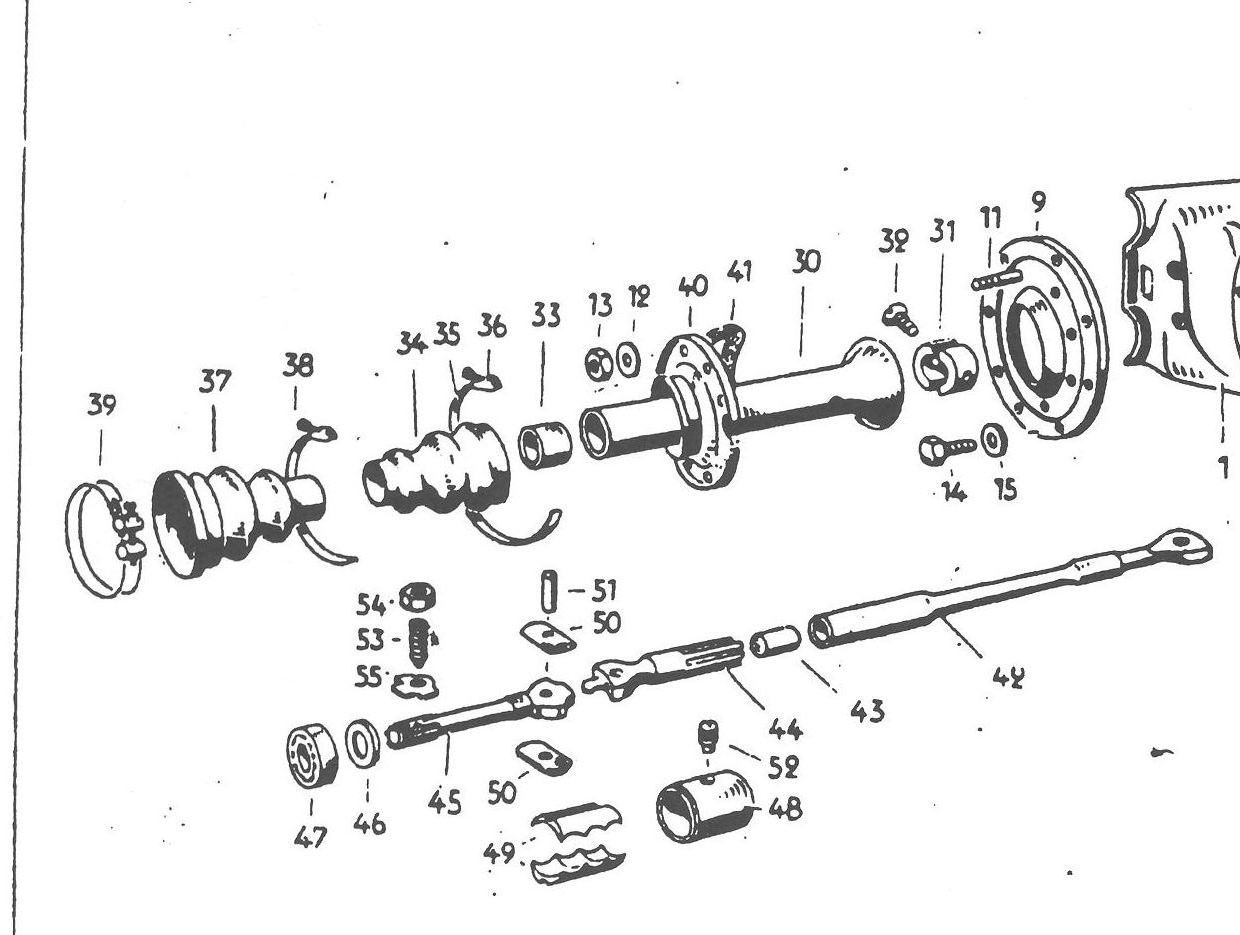

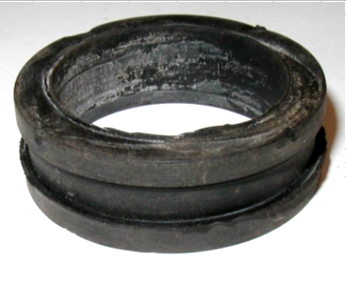

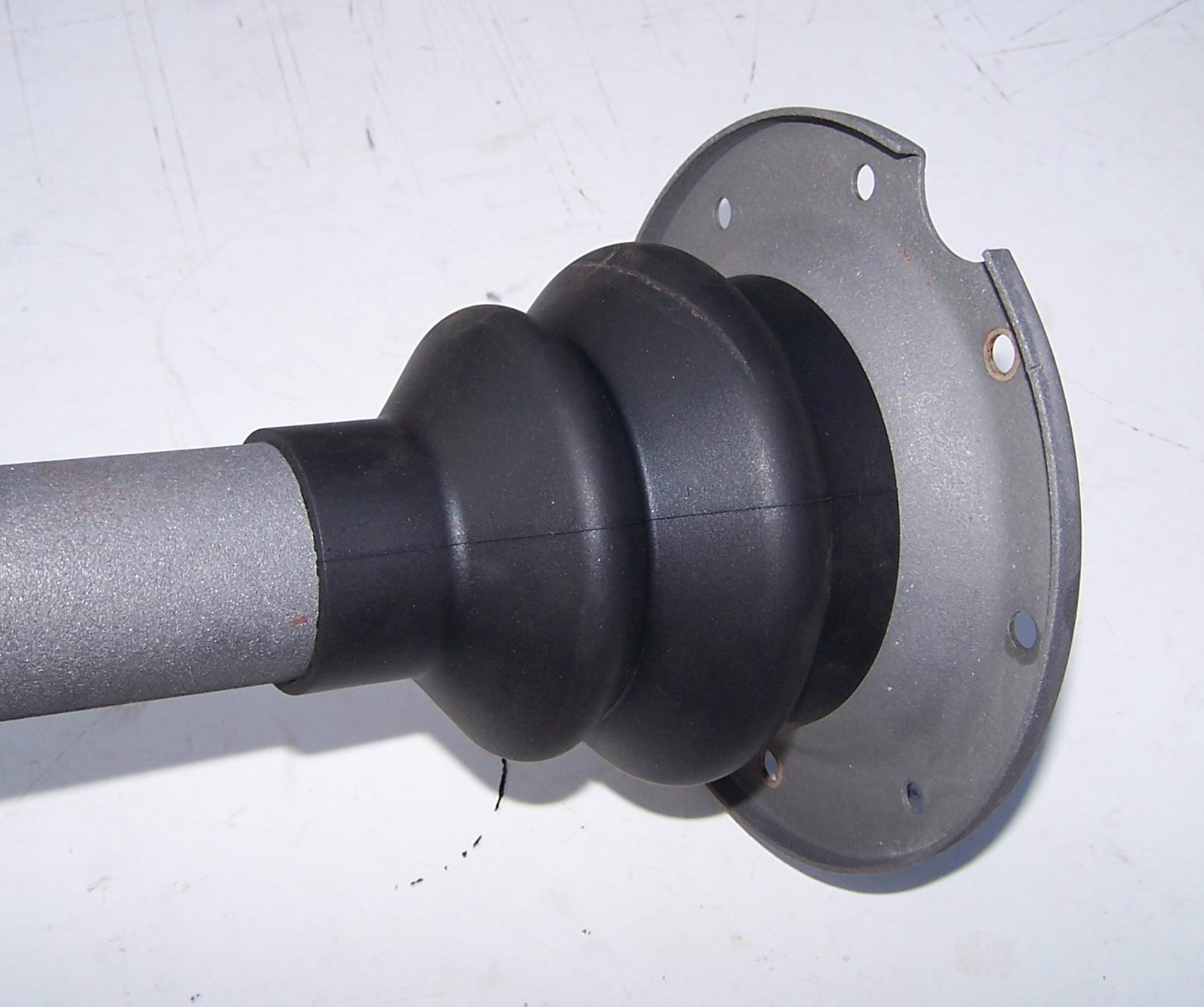

| item | rubber for steering tube tafel 18 no.60 | rubber boot - outer joint
(Taf 16.-no.37) |
rubber boot - inner
(Taf 16.-no.34) |
rubber for speedometer drive - tafel 32 no. 6 | stop rubber |
| Price | 450 CZK | 860 CZK | 860 CZK | 650 CZK | 120 CZK |

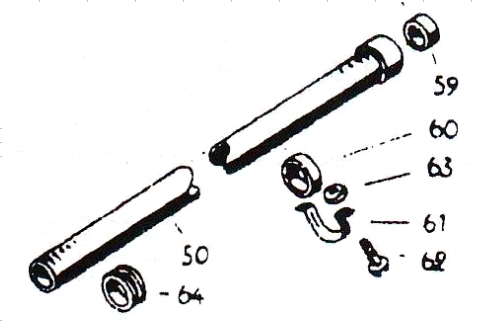

| Cat. Nr. | 786 | 787 | 788 | 789 | 790 |
| photo |   |
 |
 |
 |
  |

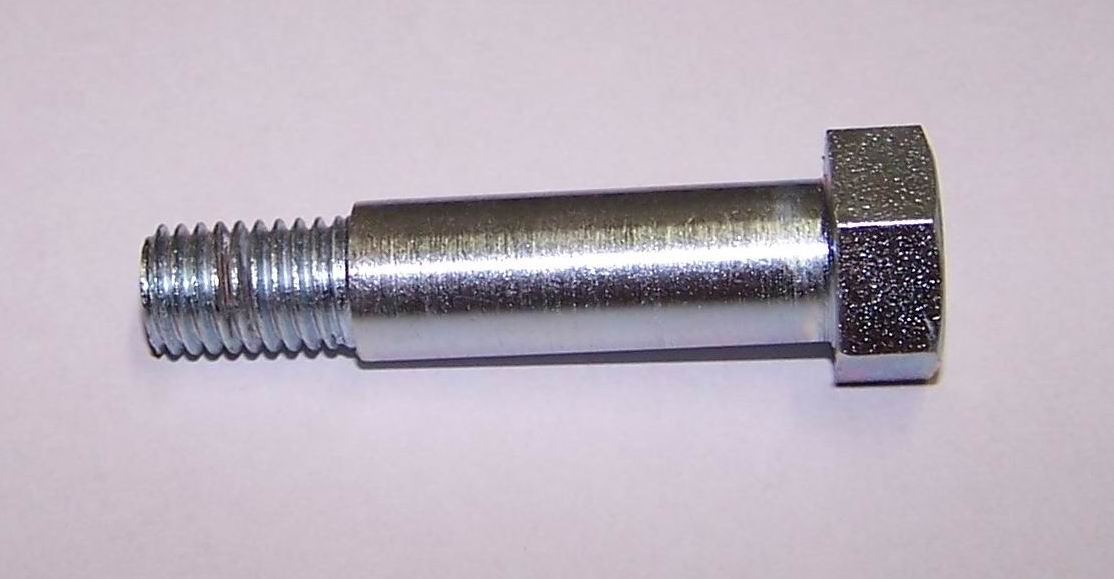

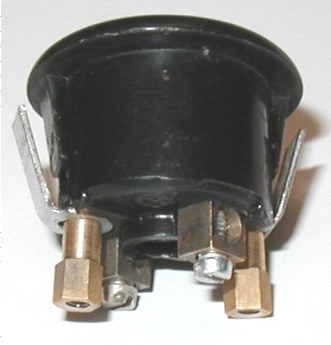

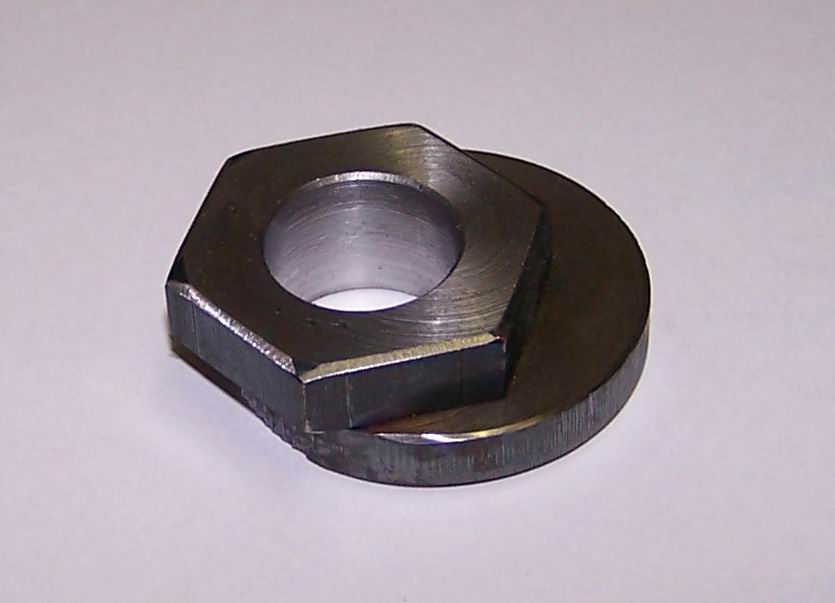

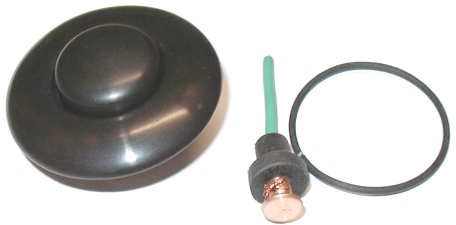

| item | strarter button | horn button | bolt for the front shock-absorber | handle holder | cam for a silent block
(Nr.60 in scheme) |
| Price | 1 500 CZ | 1 500 CZ | 120 CZK | 450 CZK | 450 CZK |
| Cat. Nr. | 791 | 792 | 793 | 794 | 795 |
| photo |    |
  |
  |
  |
  |

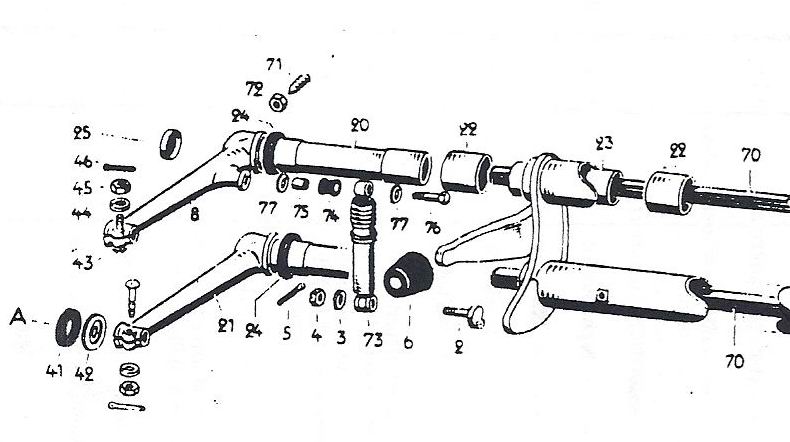

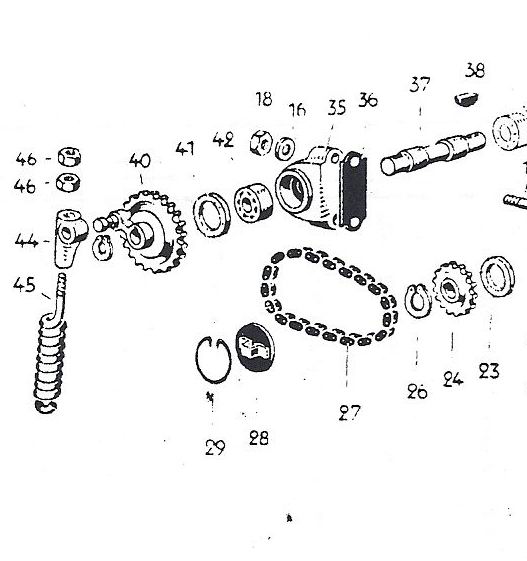

| item | rubber - gasket ring
(Nr.41 in scheme) |

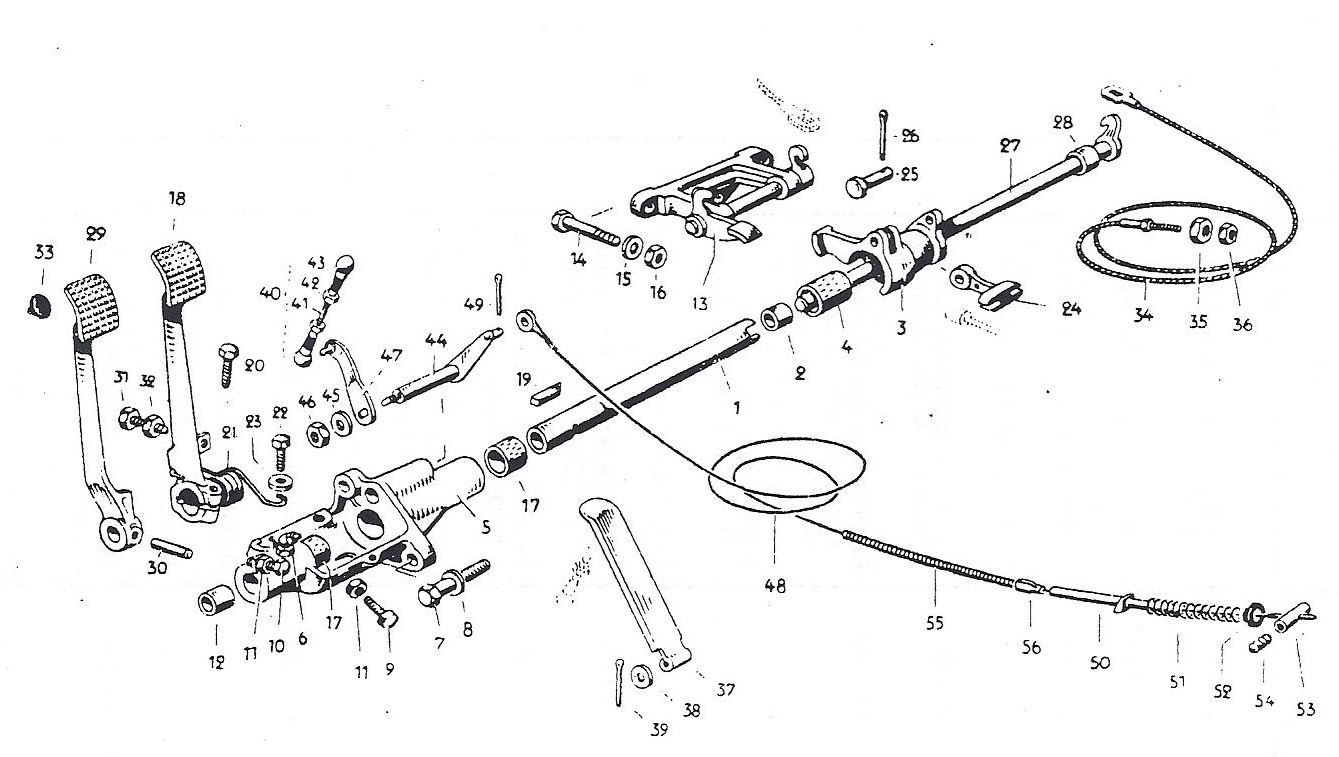

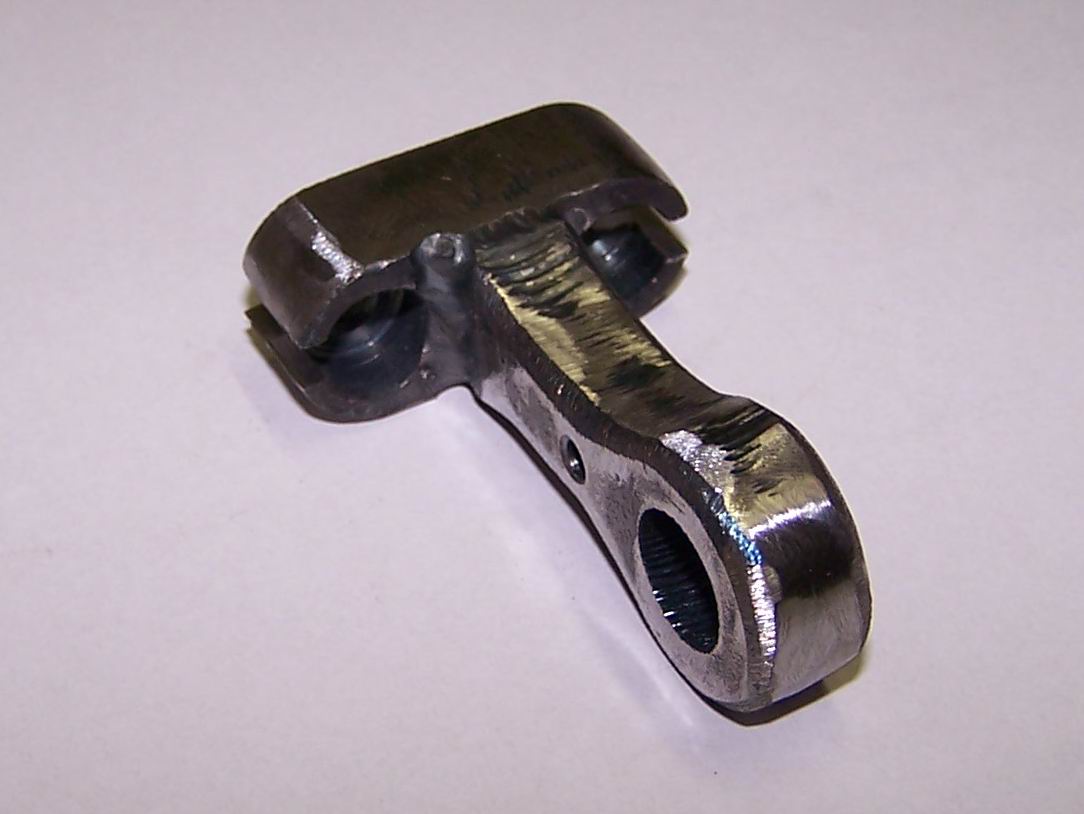

rod for brake-cable
(Nr.24 in scheme) |
spring catch for screw-prop dumping
(Nr.44 in scheme) |

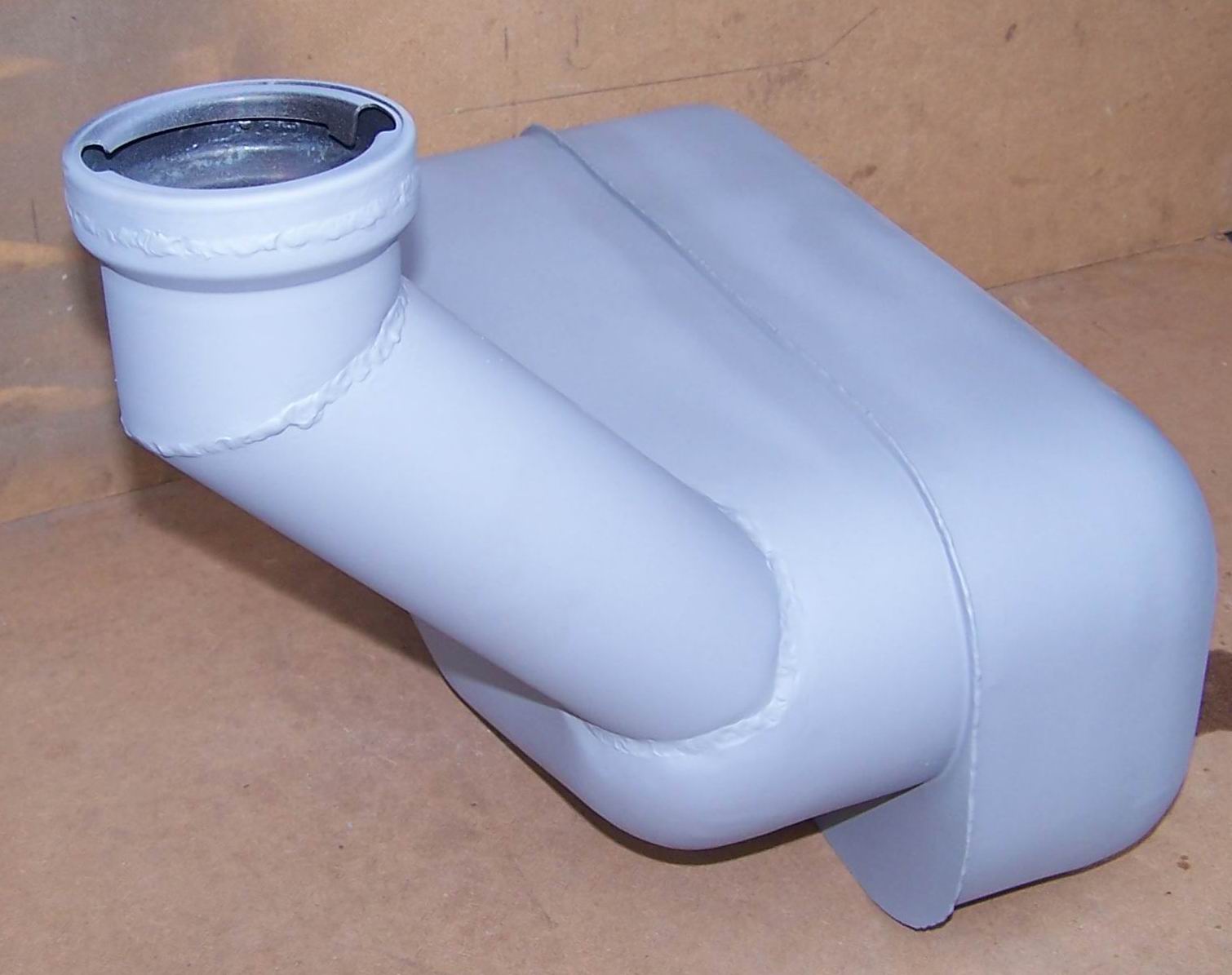

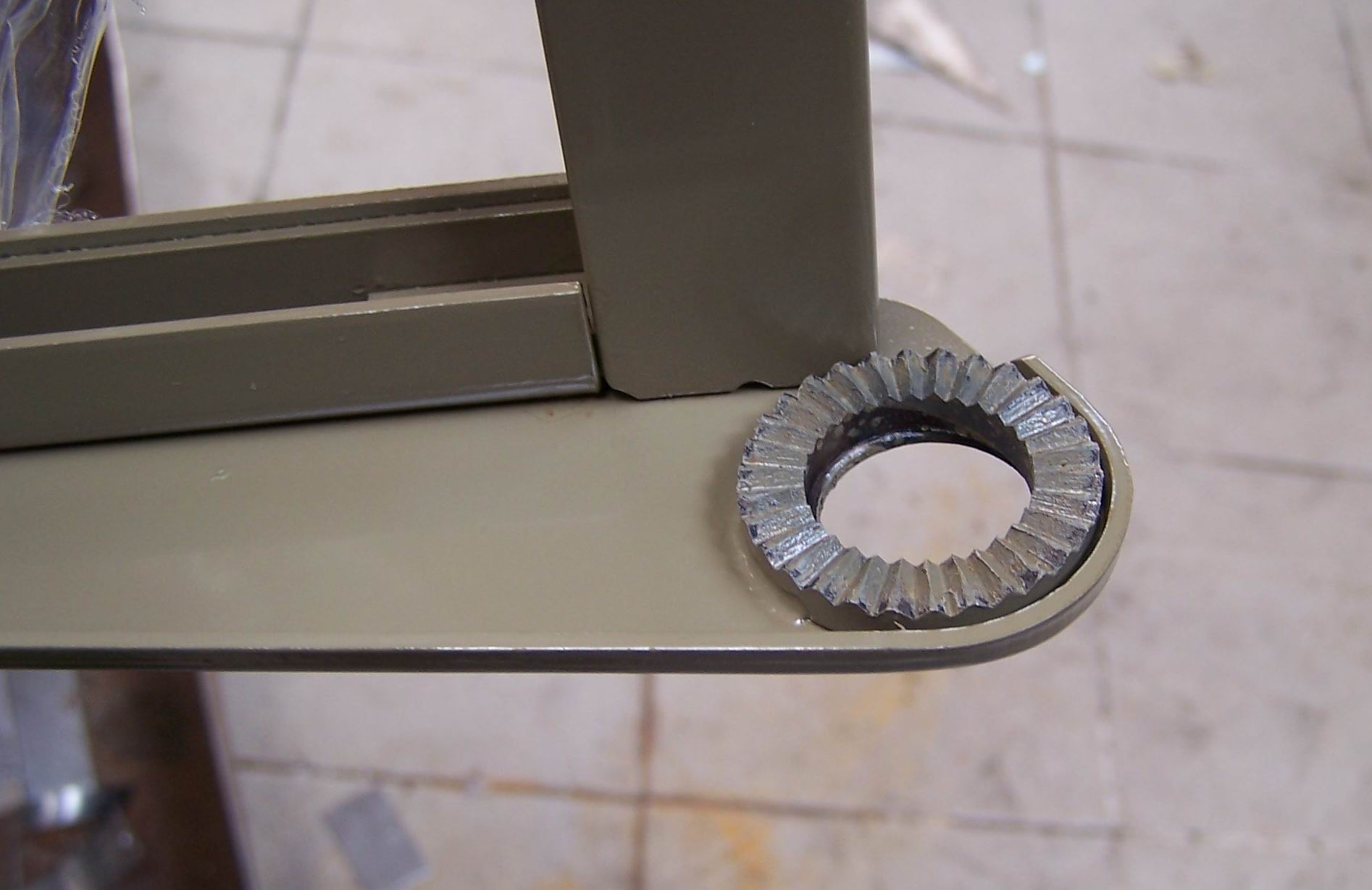

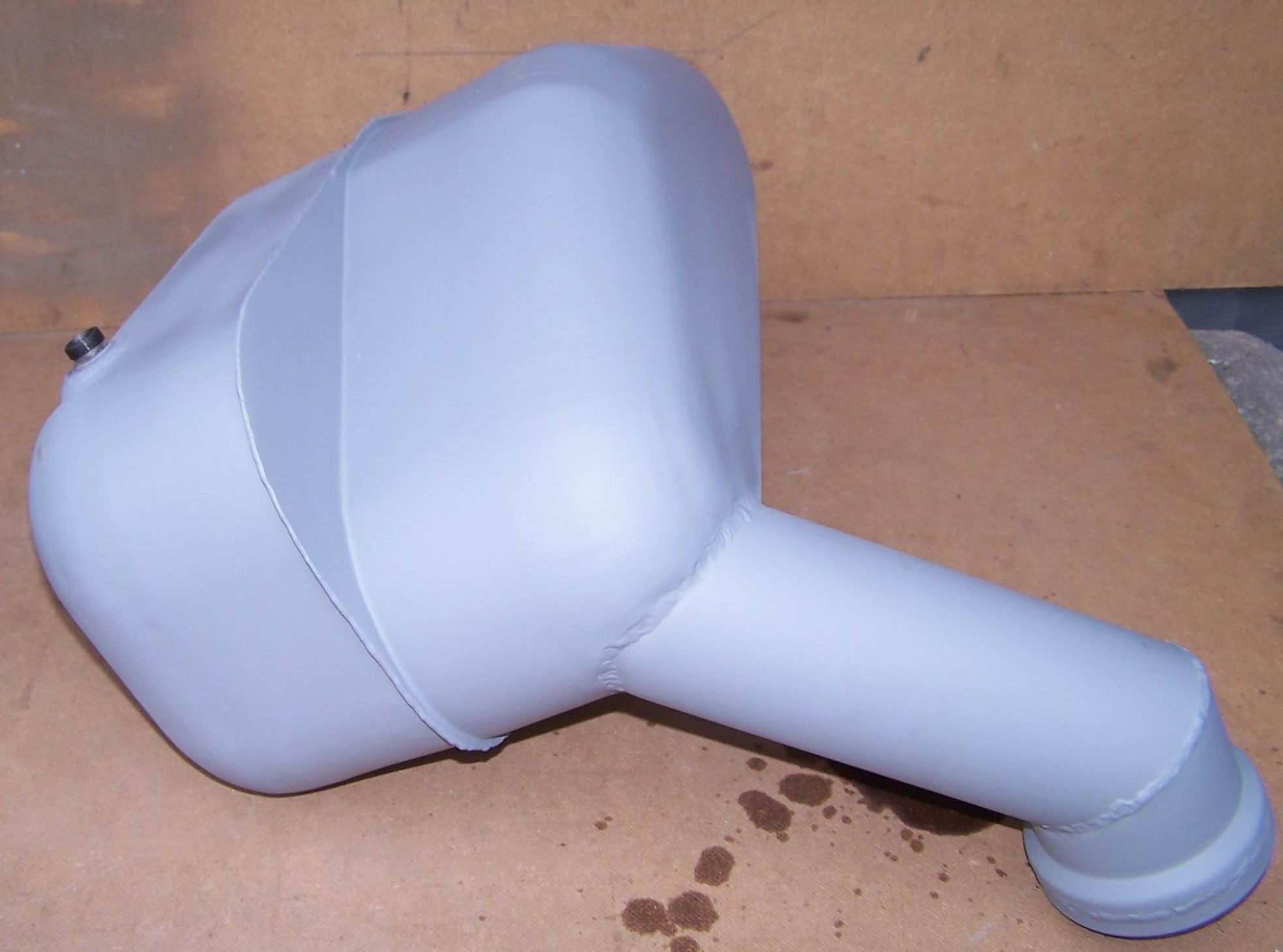

window arresting claw | fuel tank LEFT (driver side) |
| Price | 140 CZK | 950 CZK | 850 CZK | 450 CZK | 7200 CZK |

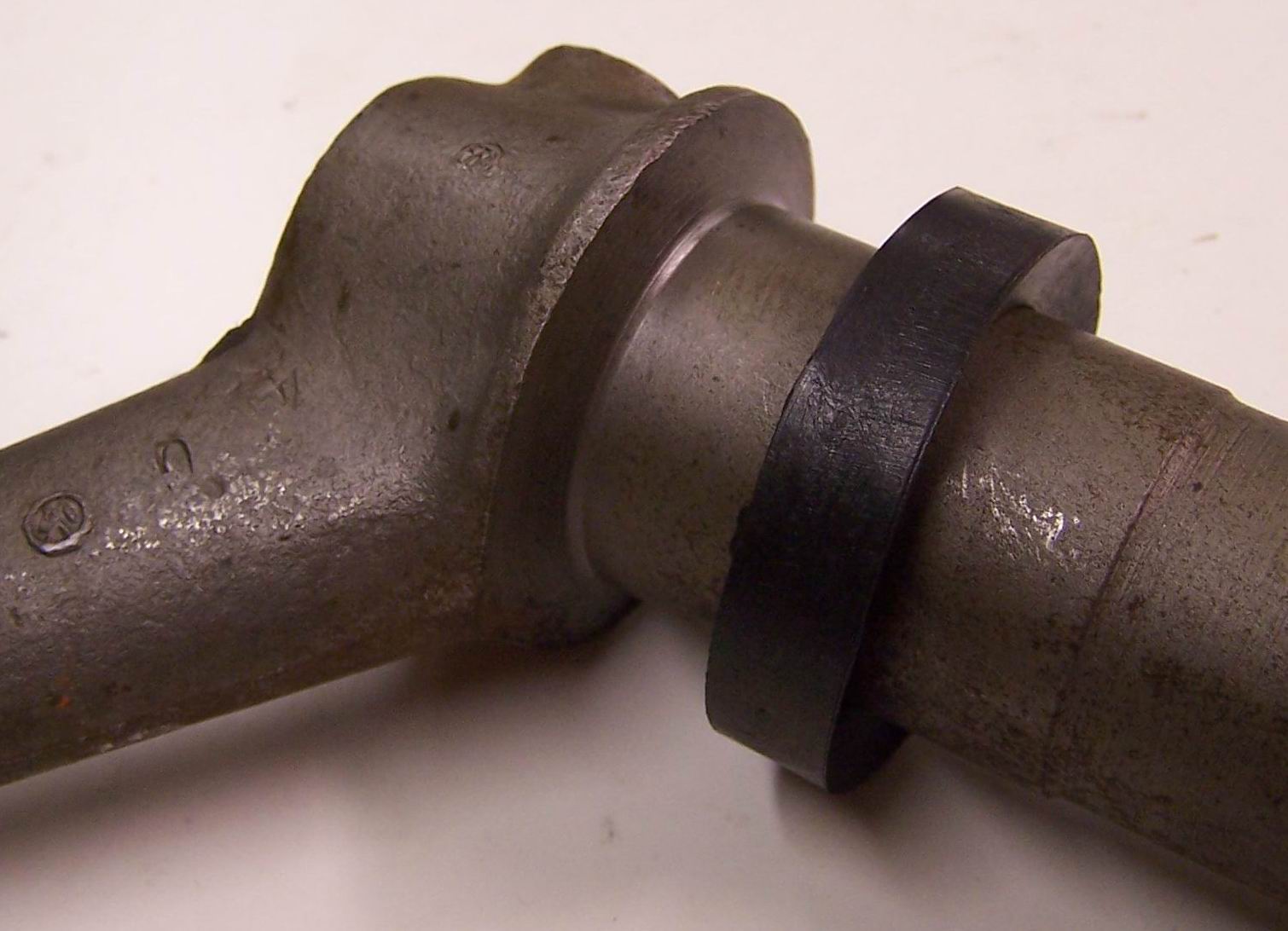

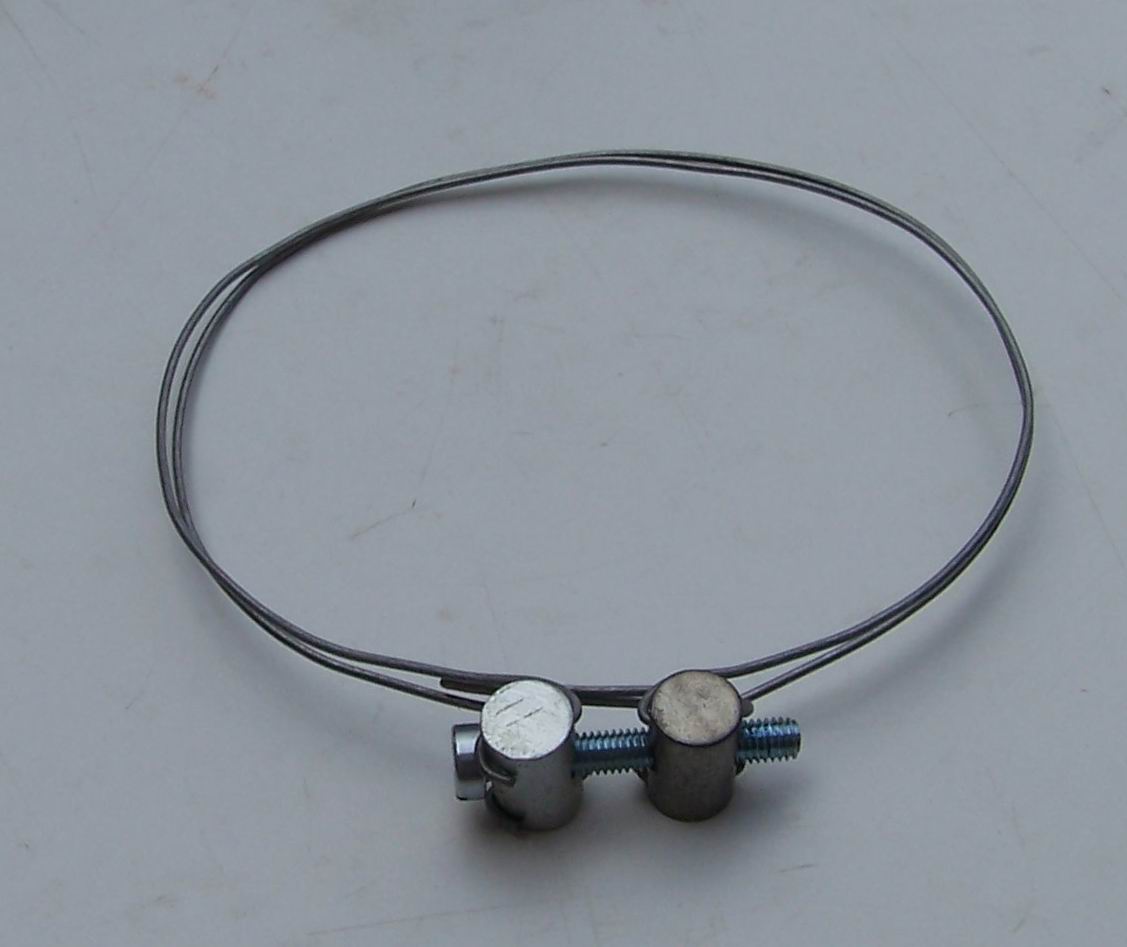

| Cat. Nr. | 796 | 797 | 798 | 799 | 800 |
| photo |   |
 |
   |
 |
|

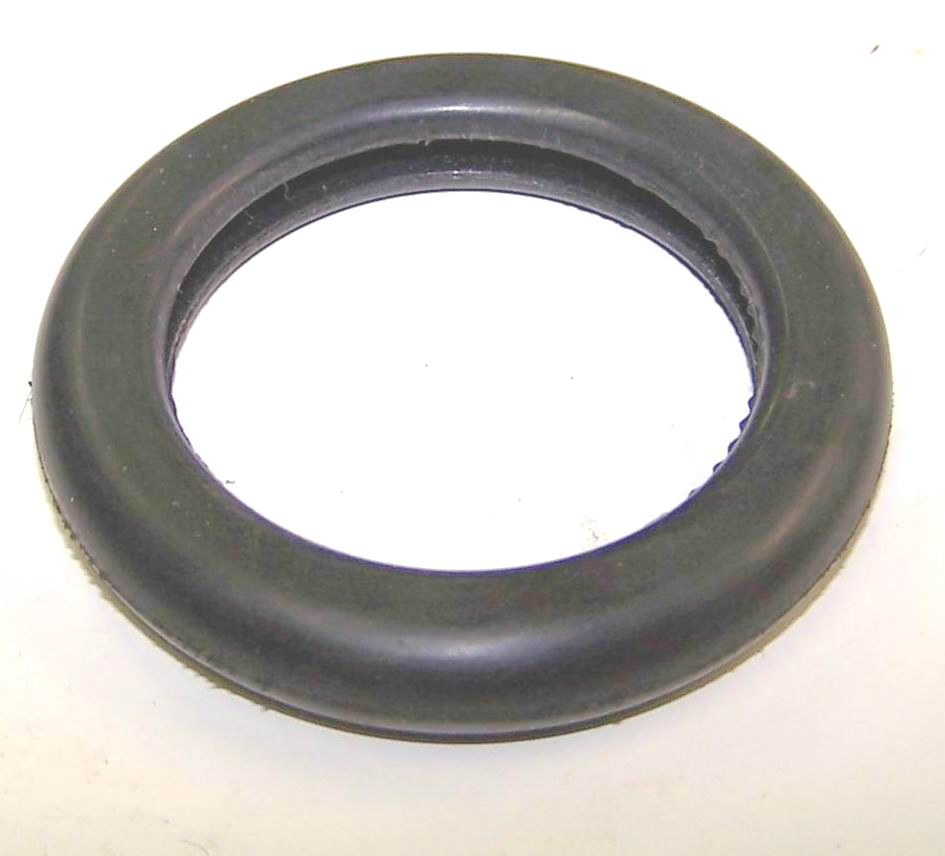

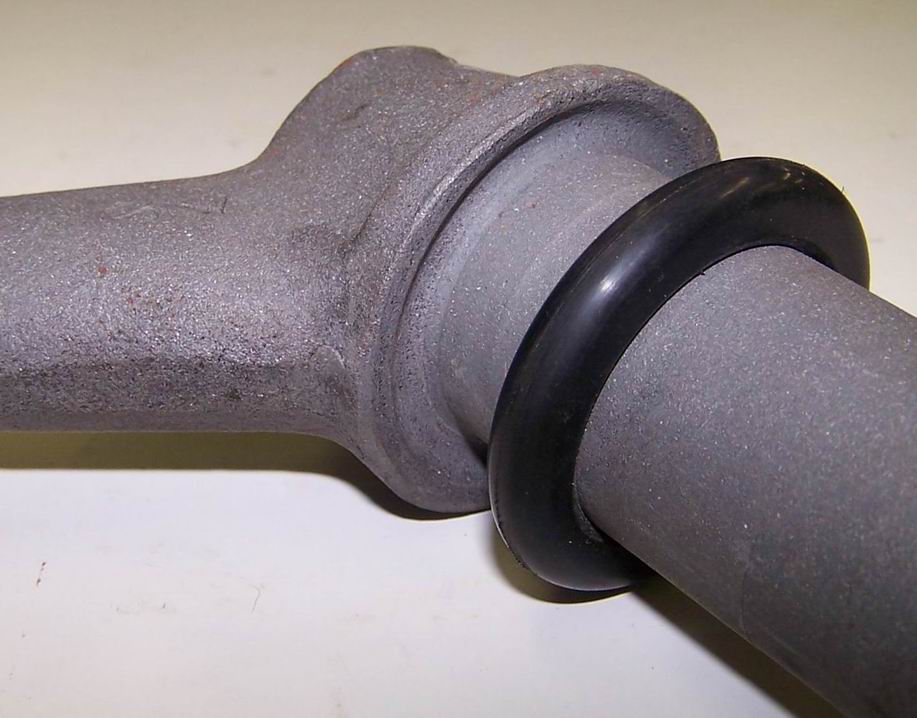

| item | fuel tank RIGHT | fuel tank NECK | ruber for arms - ROUND
(Nr.24 in the scheme) |
ruber for arms - SQUARE
(Nr.24 in the scheme) |
clamp for rubber boot 782
(Taf 16.-no.39) |
| Price | 7200 CZK | 800 CZK | 160 CZK | 160 CZK | 360 CZK |

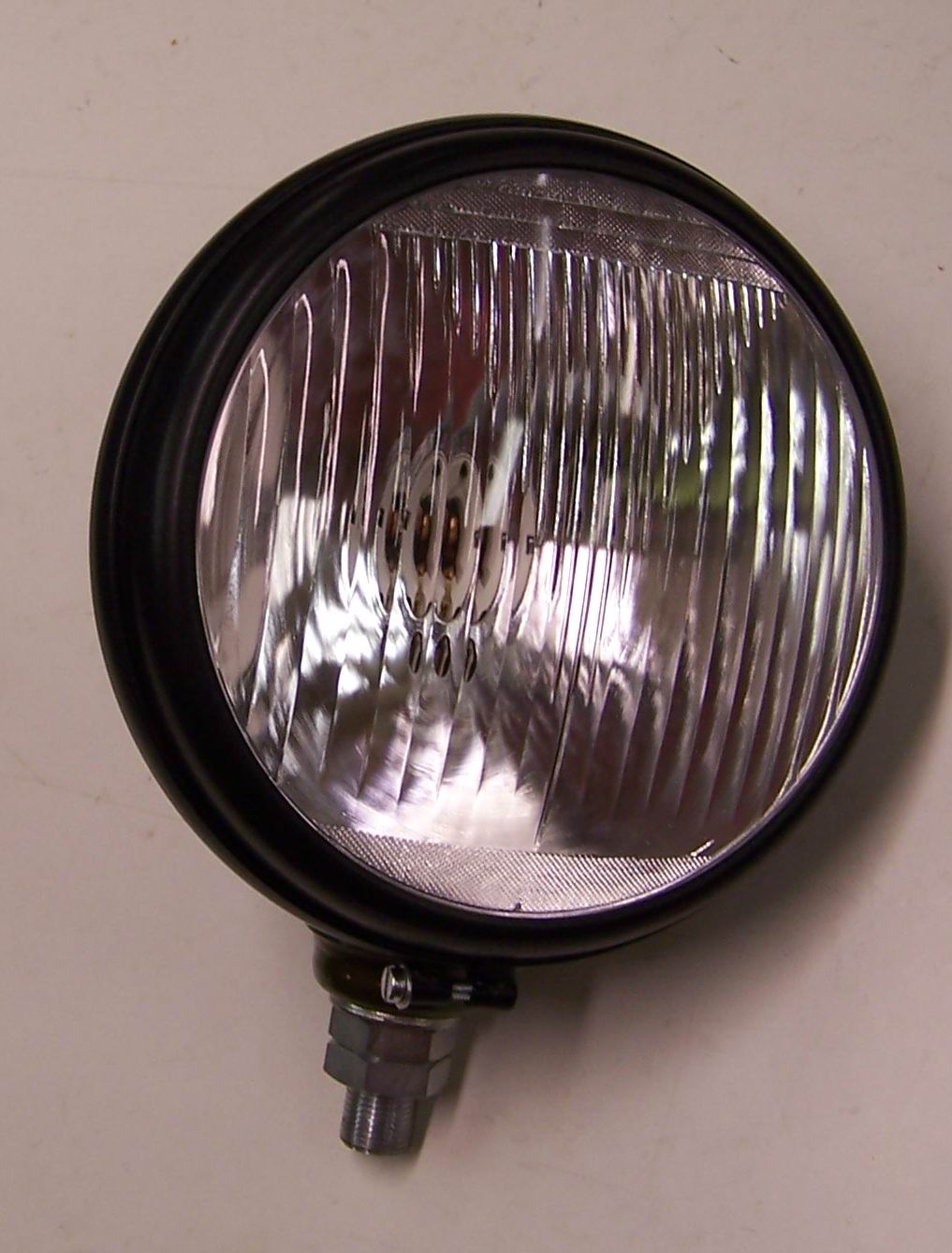

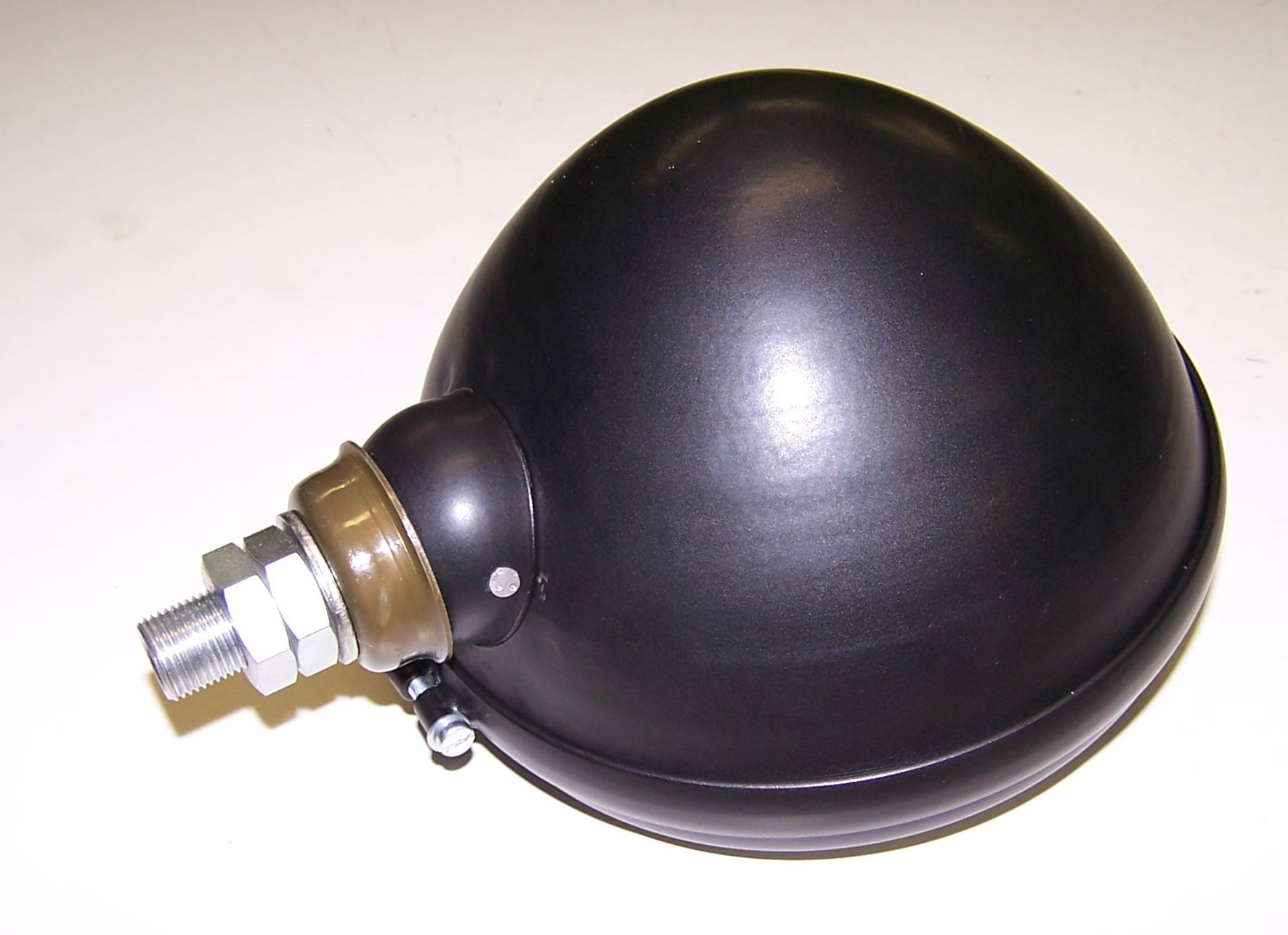

| Cat. Nr. | 801 | 802 | 803 | 804 | 805 |
| photo |  |
 |
 |
 |
|

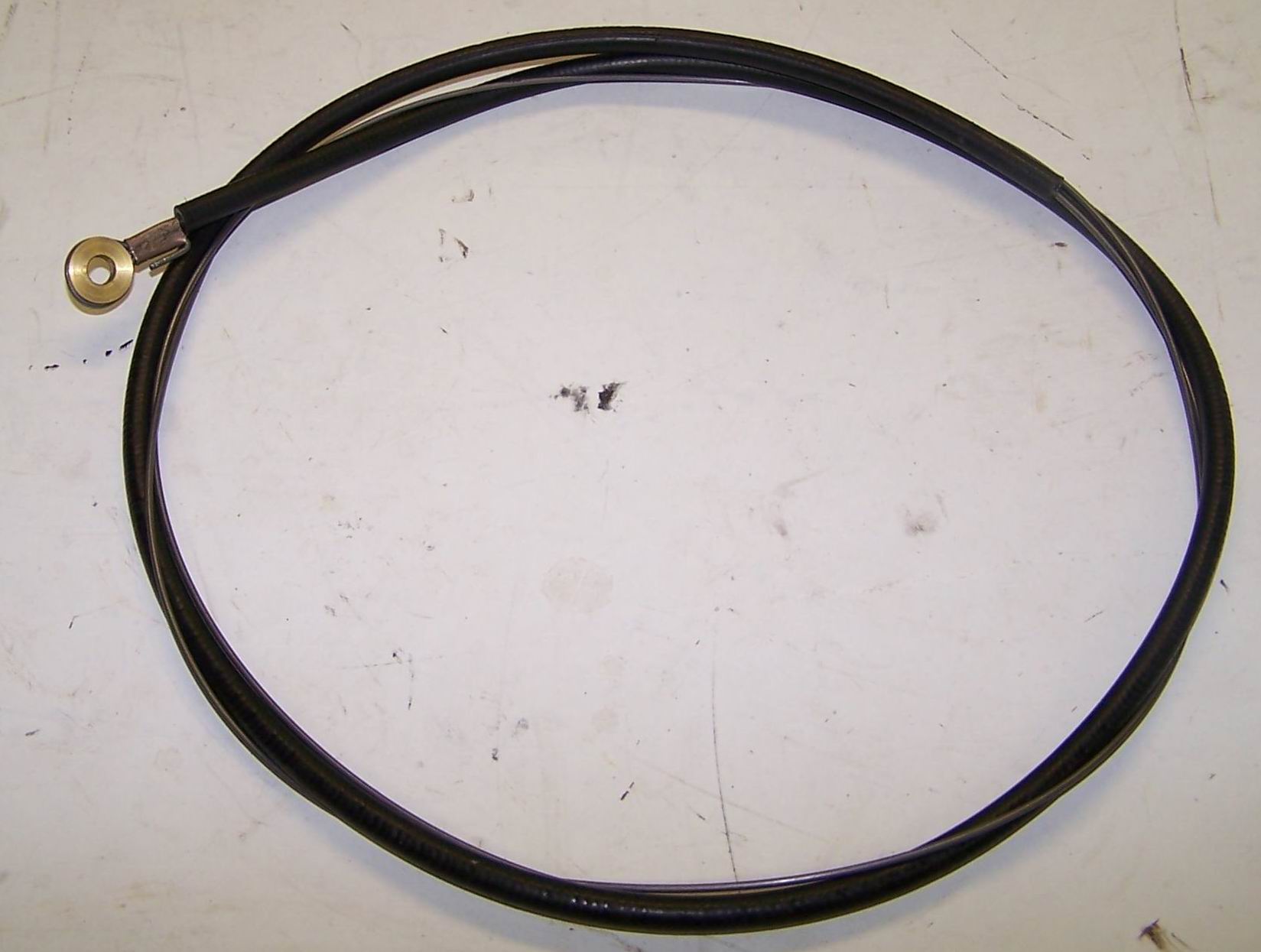

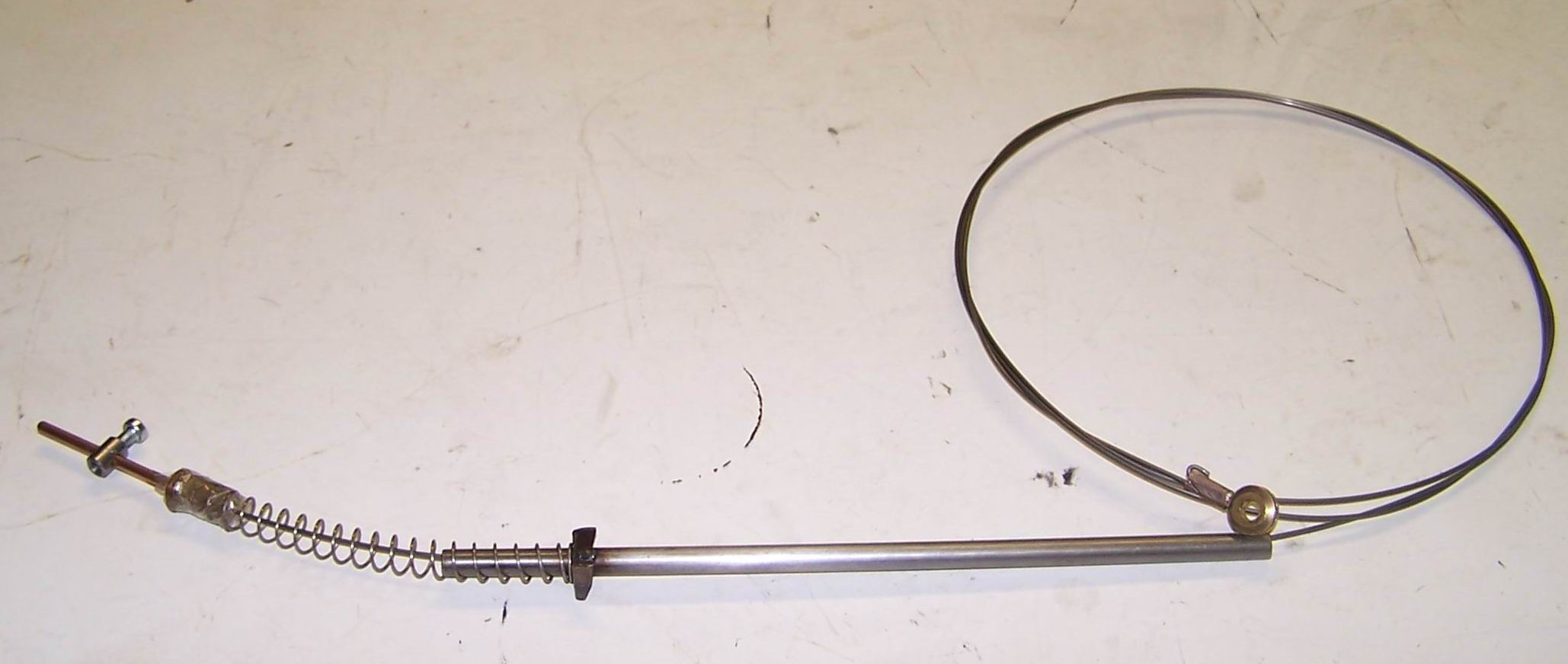

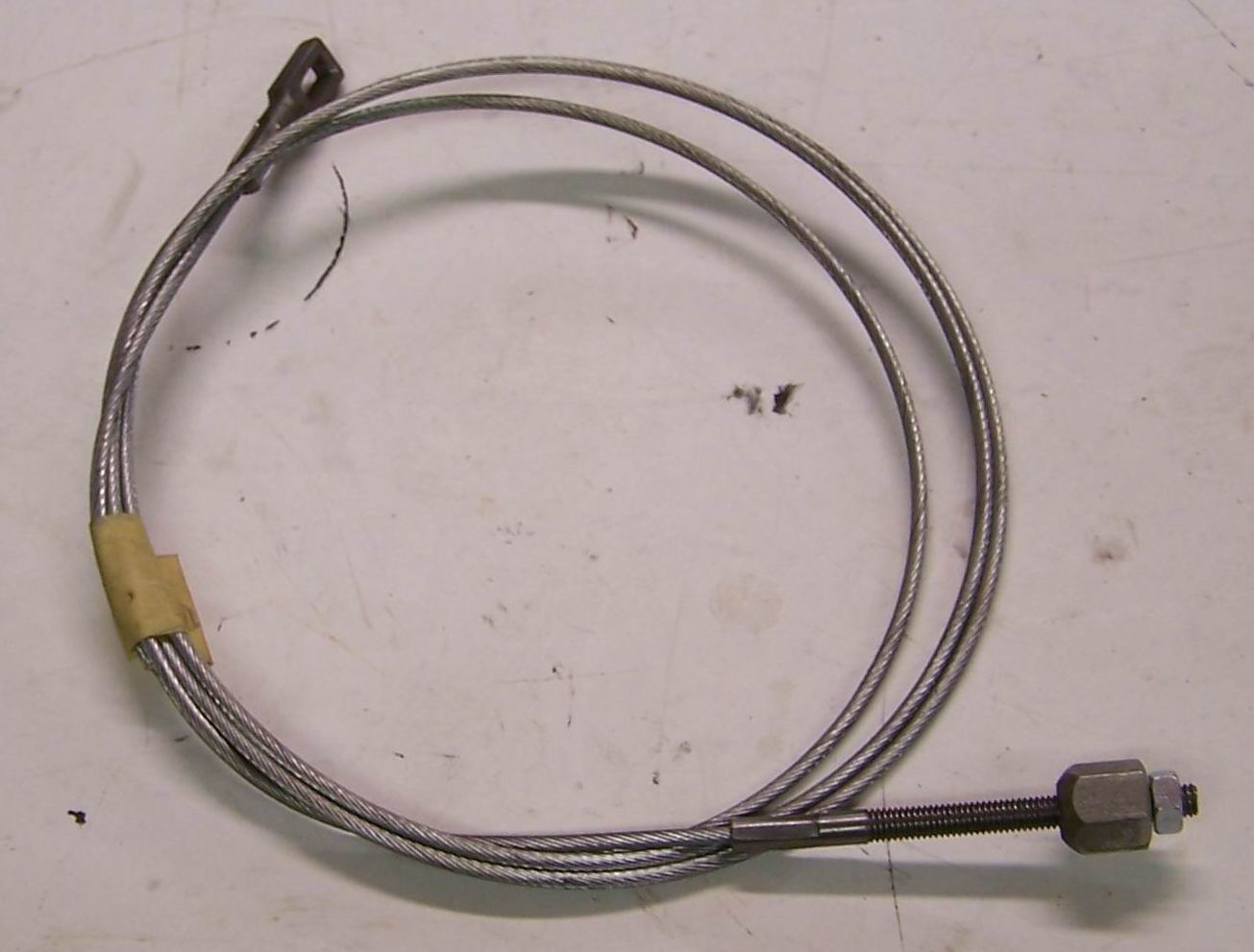

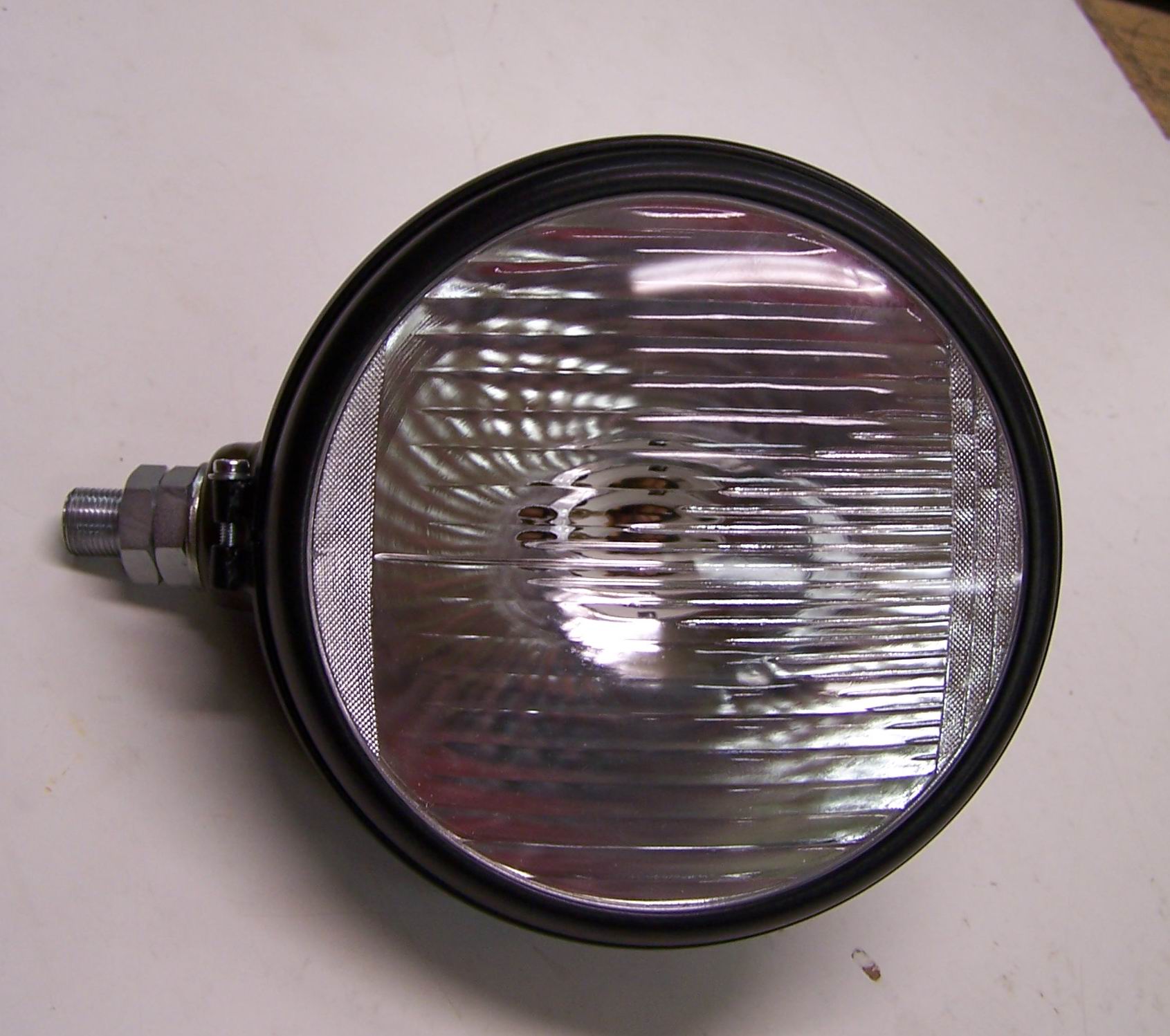

| item | rubber boot for front shock absorber | clutch cable | accelerator cable - string | choke cable - string | headlight diameter 160 mm !
WATERPROOF !!! |
| Price | 680 CZK | 500 CZK | 520 CZK | 300 CZK | 8000 CZK |

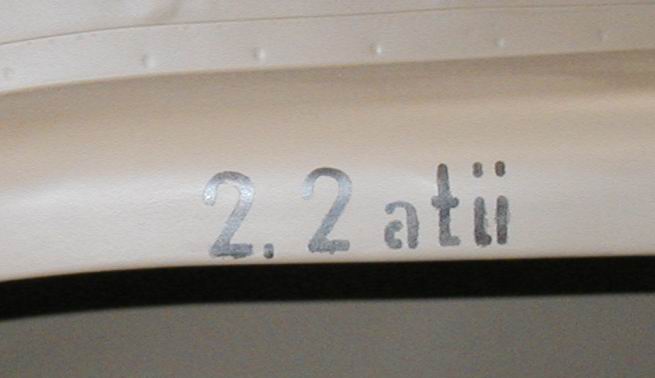

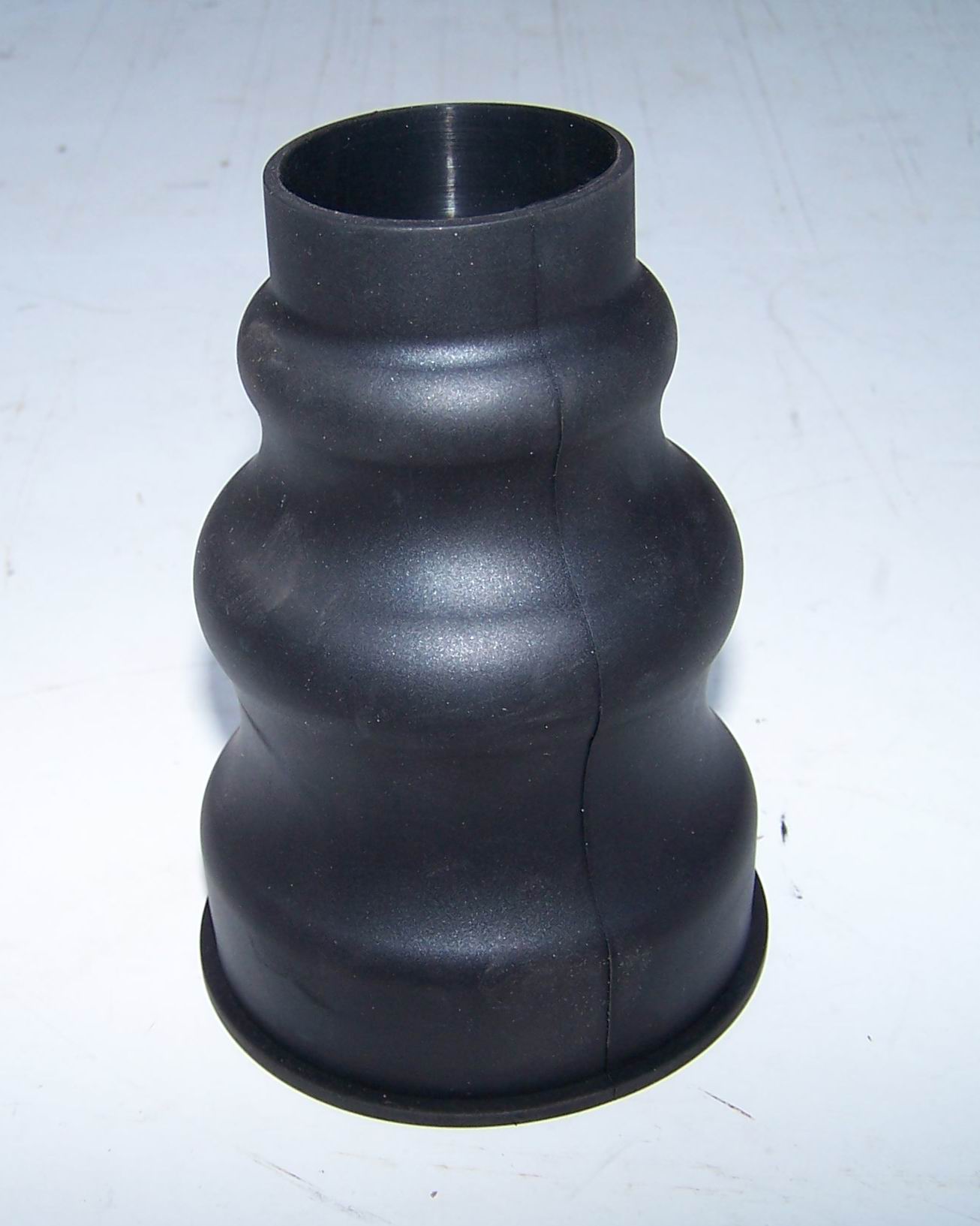

| Cat. Nr. | 806 | N 166-1 | N 166-2 | N 166-3 | N 166-4 |
| photo |   |
 |
 |
 |
 |

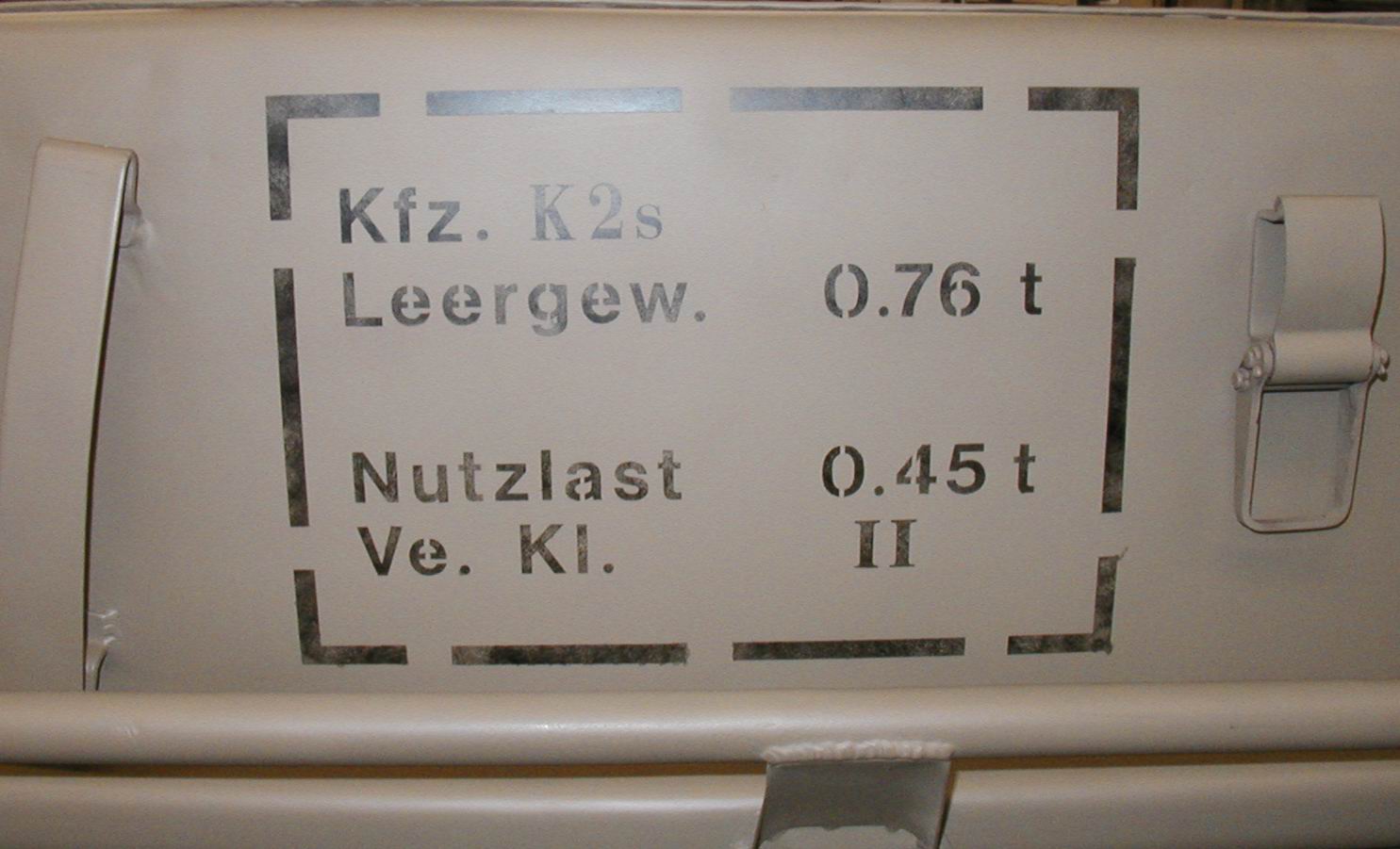

| item | gearbox gaiter | stencil, 1,8 Atü | stencil, rear wheel pressure 2,2Atü | stencil, loading class data K2s | stencil, class of radio-interference shielding |
| Price | 650 CZK | 50 CZK | 50 CZK | 160 CZK | 50 CZK |

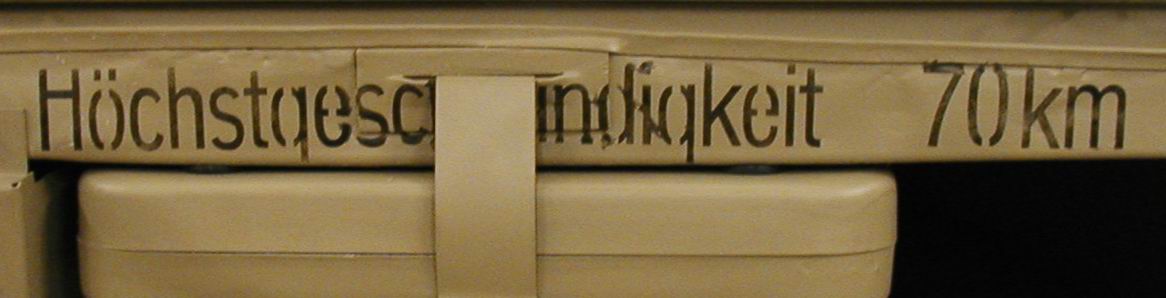

| Cat. Nr. | N 166-5 | N 166-6 | --- | --- | --- |
| photo |  |
 |
BLANK | BLANK | BLANK |

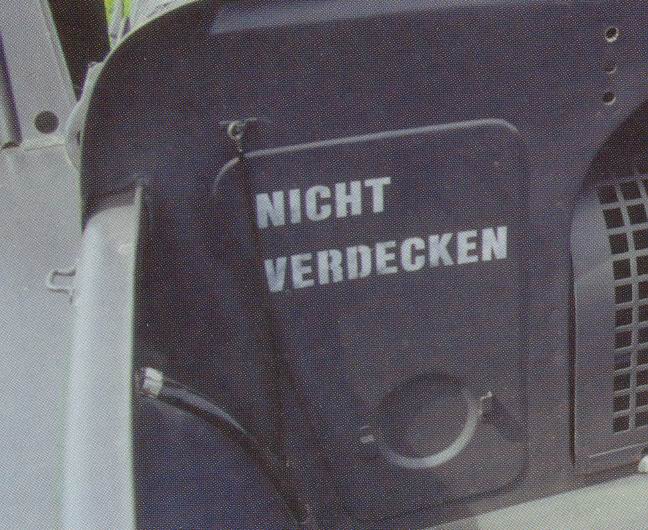

| item | stencil, top speed 70 km | stencil, do not obstruct [air intake for engine] | --- | --- | --- |
| Price | 160 CZK | 160 CZK | --- | --- | --- |
