KdF Osnice

Renovations, production of parts, accessories and replicas of KdF-82 and KdF-166

CATALOGUE KdF-82

Make order in accordance with our numbering - numbers in yellow and blue lines! The prices are excl. VAT 21% !

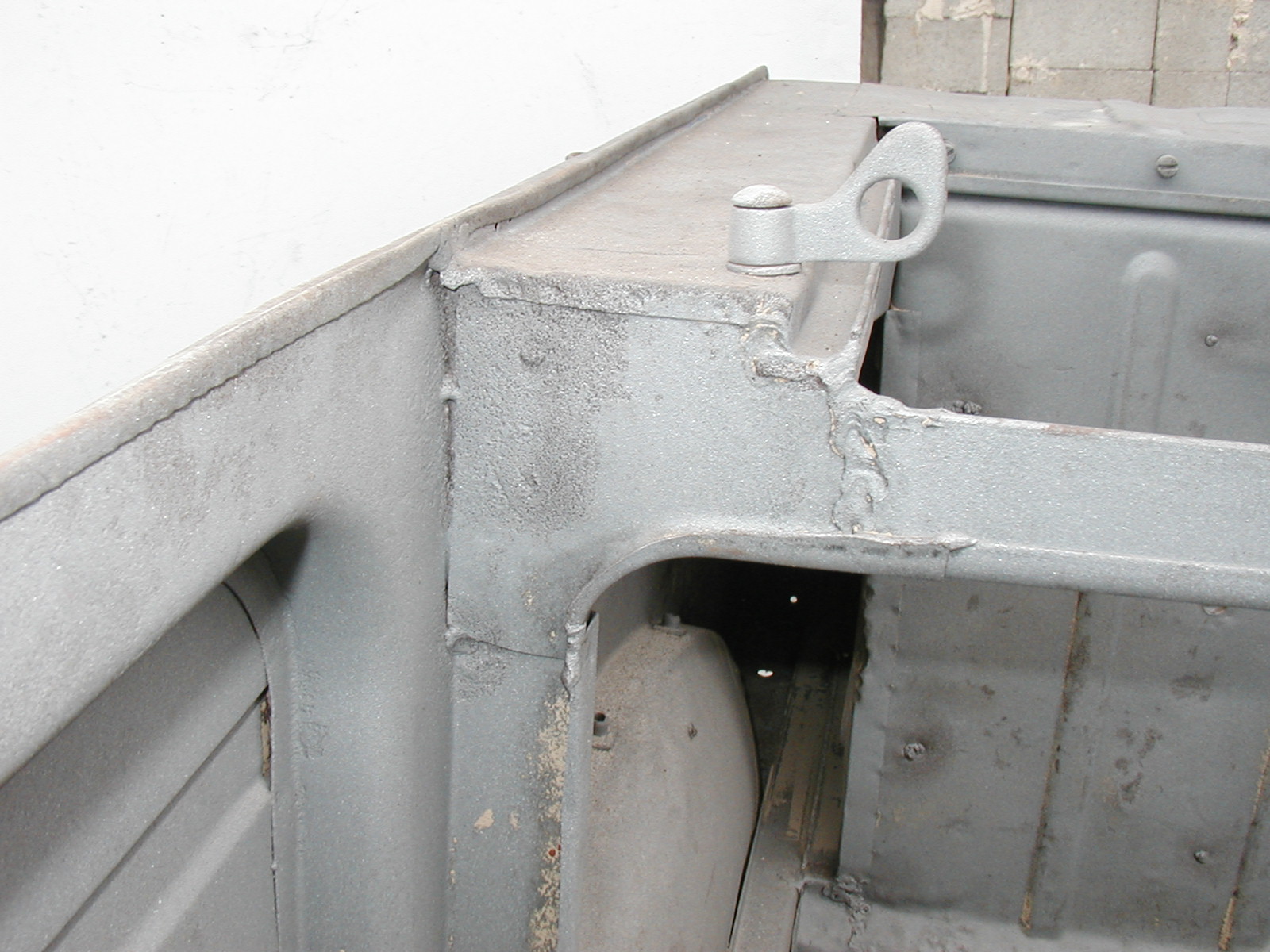

Cat. Nr. 101 102 103 104
item body, side of scuttle incl. wheel-arch (left or right) body, rear side panel incl. wheel-arch (left or right) drainage piece, to join the "J" cross-brace (left or right) DETAIL of PLACING plate for first aid box shelf partition (left or right)
Price 6 800 CZK 6 800 CZK 280 CZK / piece 340 CZK / piece

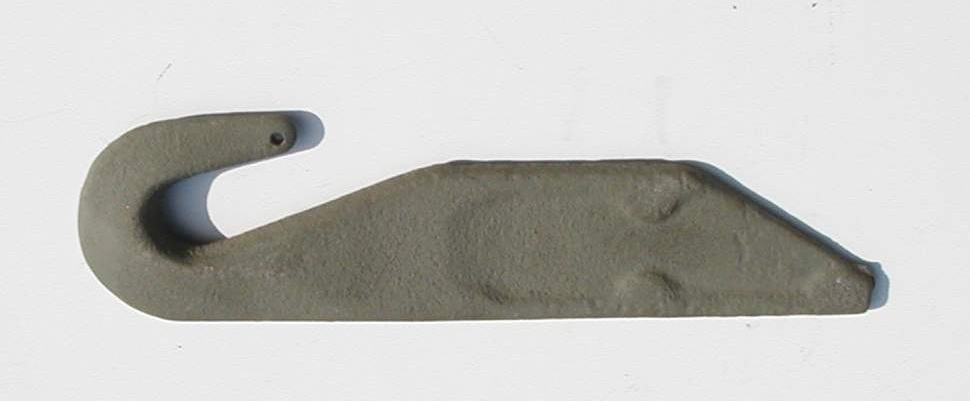

Cat. Nr. 105 106 107 108 109

item spare wheel holder spare wheel holder- early model K1  lower corner piece, to bolt on rear cross-member brace supporting steering wheel tow-hook, early, no pipe (fits front or rear)
Price 2 200 CZK 2 500 CZK 1 600 CZK 1 100 CZK 500 CZK
Cat. Nr. 110 111 112 113 114

item tow-hook, later model, for pipe, front tow-hook, later model, for pipe, rear filler neck, fuel tank narrow filler neck, fuel tank, (early model K1) heating channel, inner sill, 1 piece, for both sides

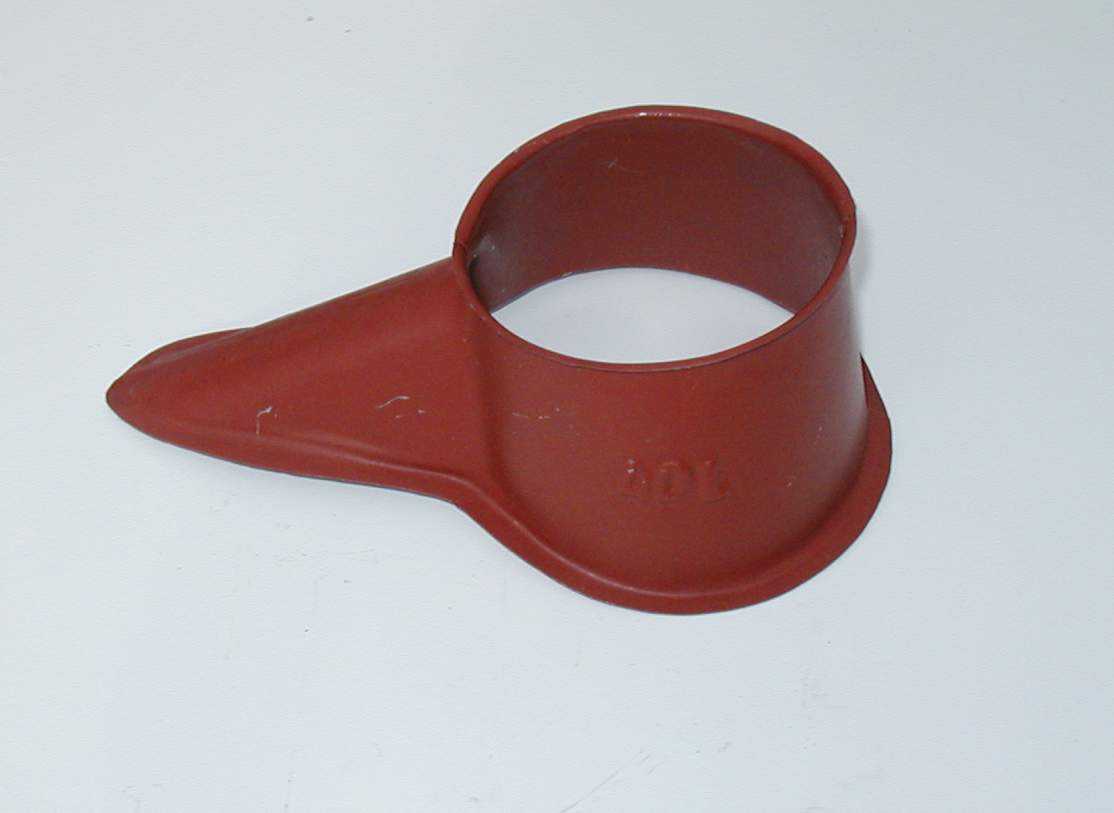

Price 500 CZK 500 CZK 1 300 CZK 1 500 CZK 400 CZK

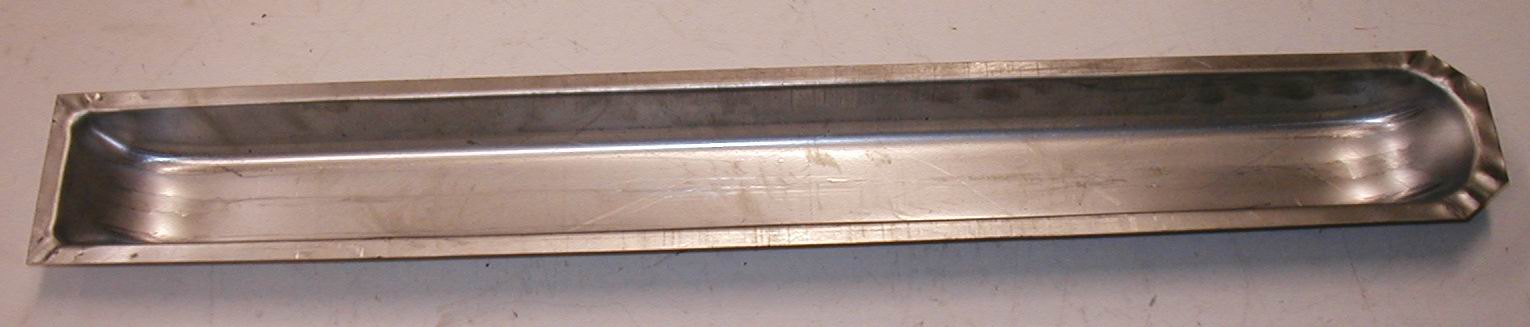

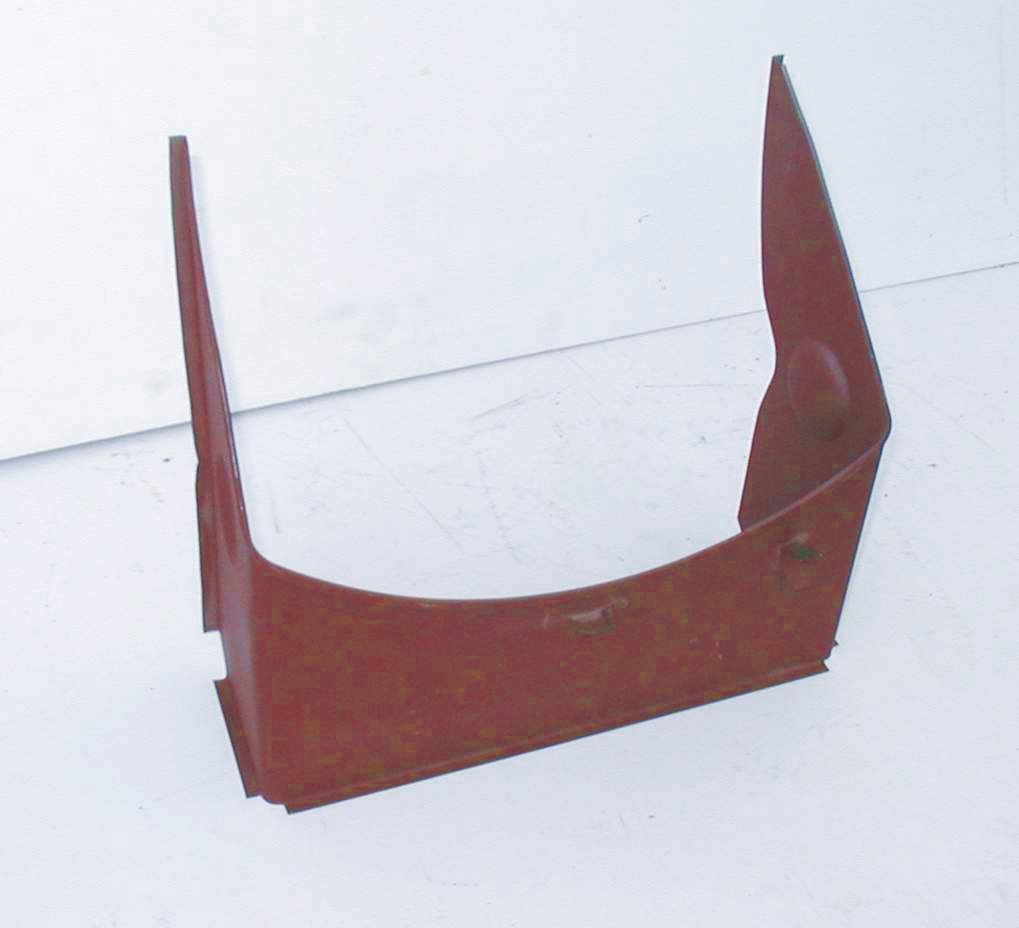

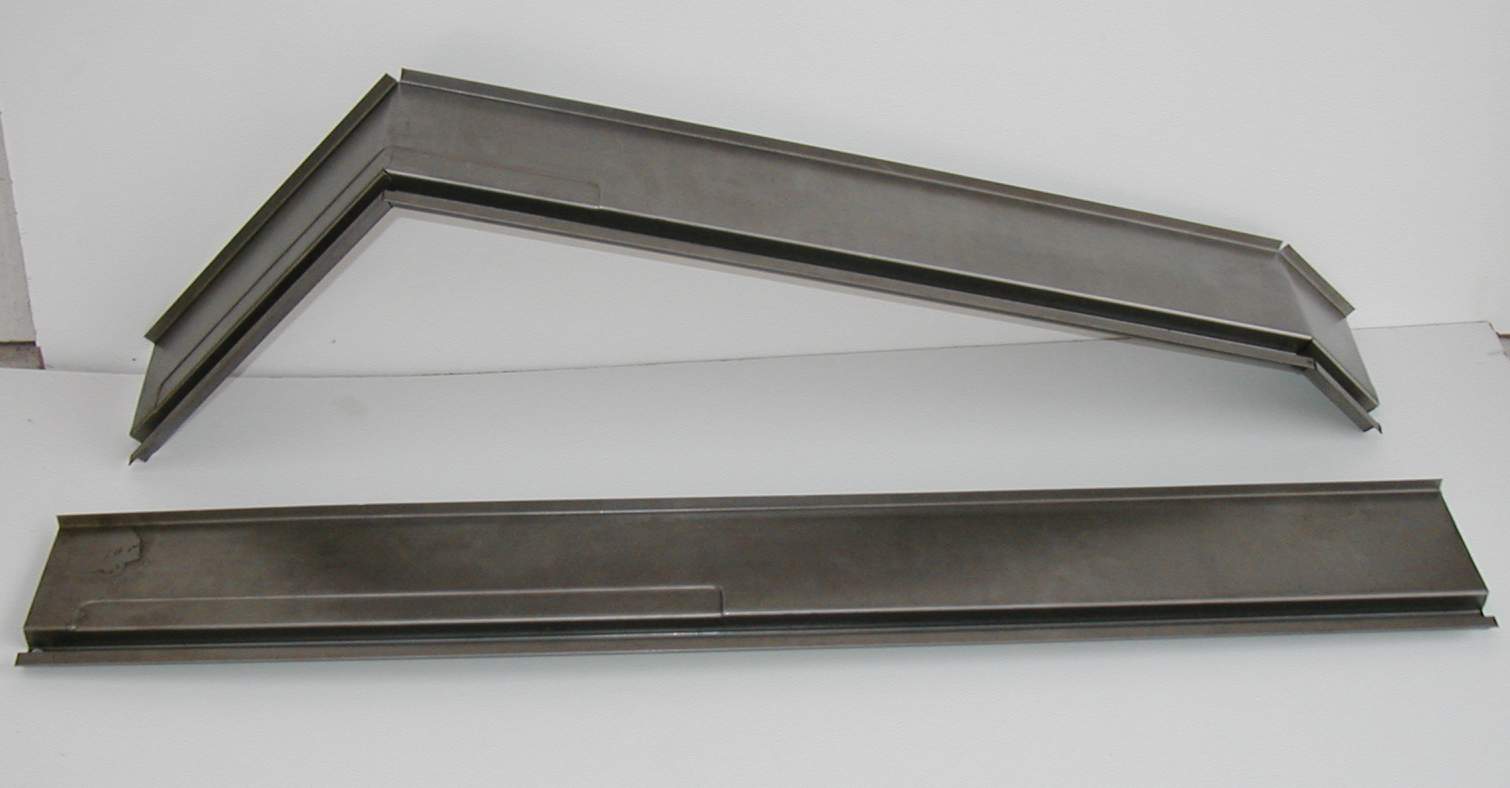

Cat. Nr. 115 116 117 118 119

item documents pocket jerrycan shelf first aid box shelf inner reinforcing panel at rear side (left or right) lining of rear end's side edge (left or right)
Price 450 CZK 2 200 CZK 1 400 CZK 1 400 CZK 900 CZK / piece

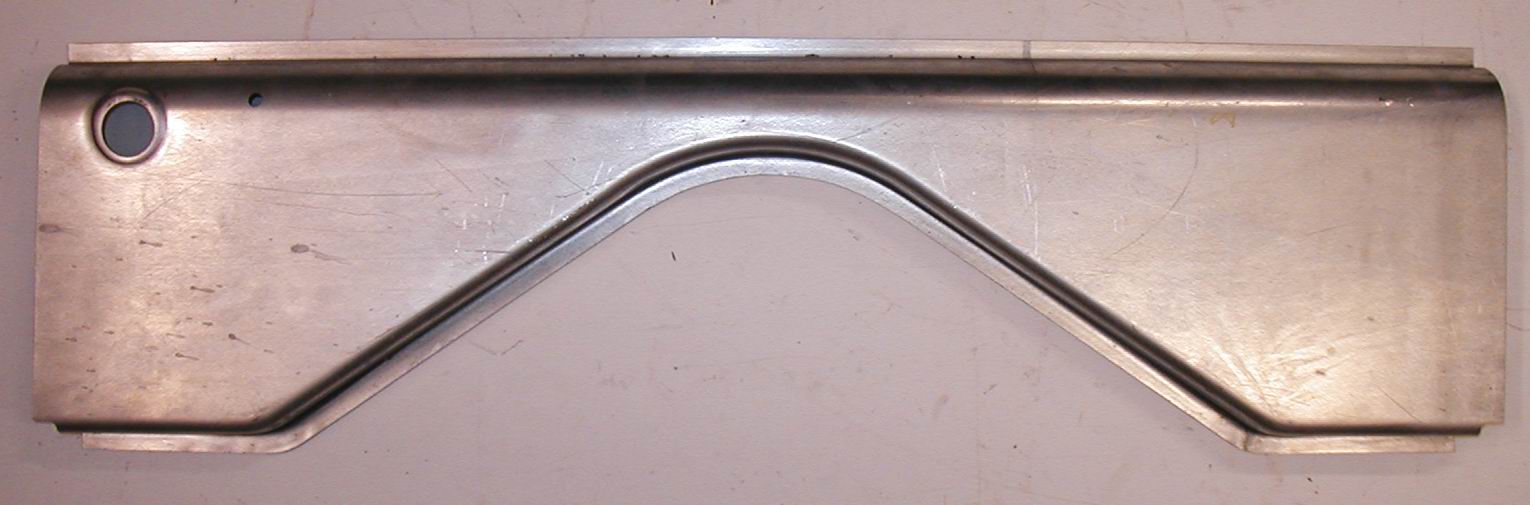

Cat. Nr. 120 121 121-A 121-B 122

item tray at side of engine room (left or right) firewall and front cross-member skin only for front x-member, with pressing for steer. shaft front cross-member, skin only rear cross-member -floor support
Price 1 000 CZK 3 800 CZK 1 300 CZK 1 500 CZK 4 600 CZK

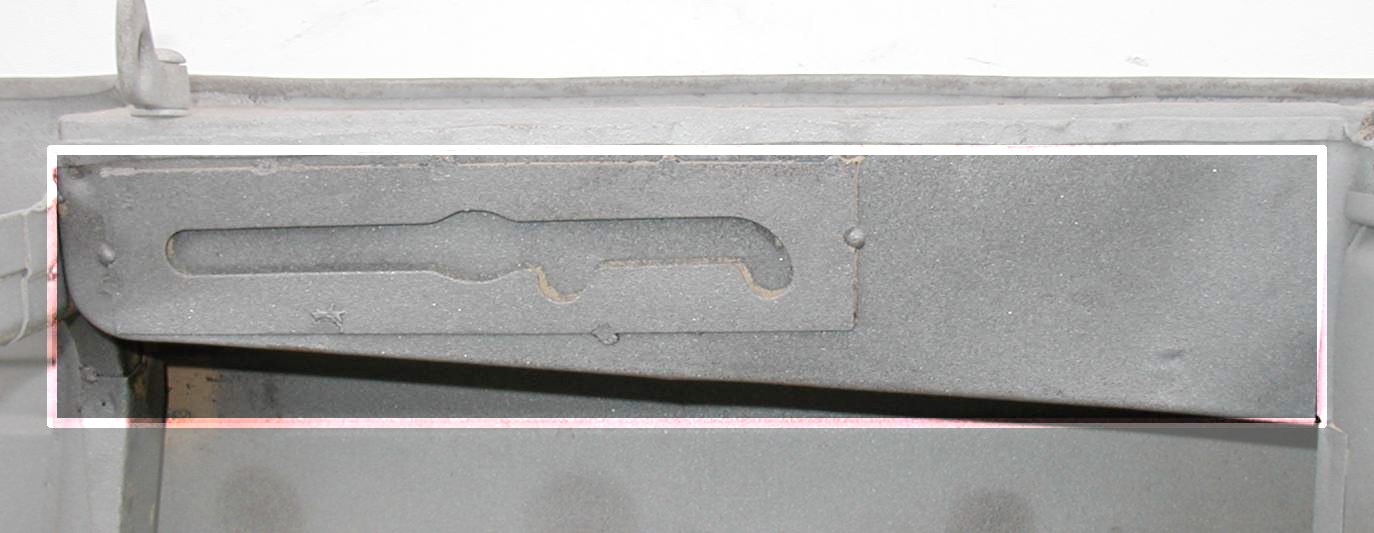

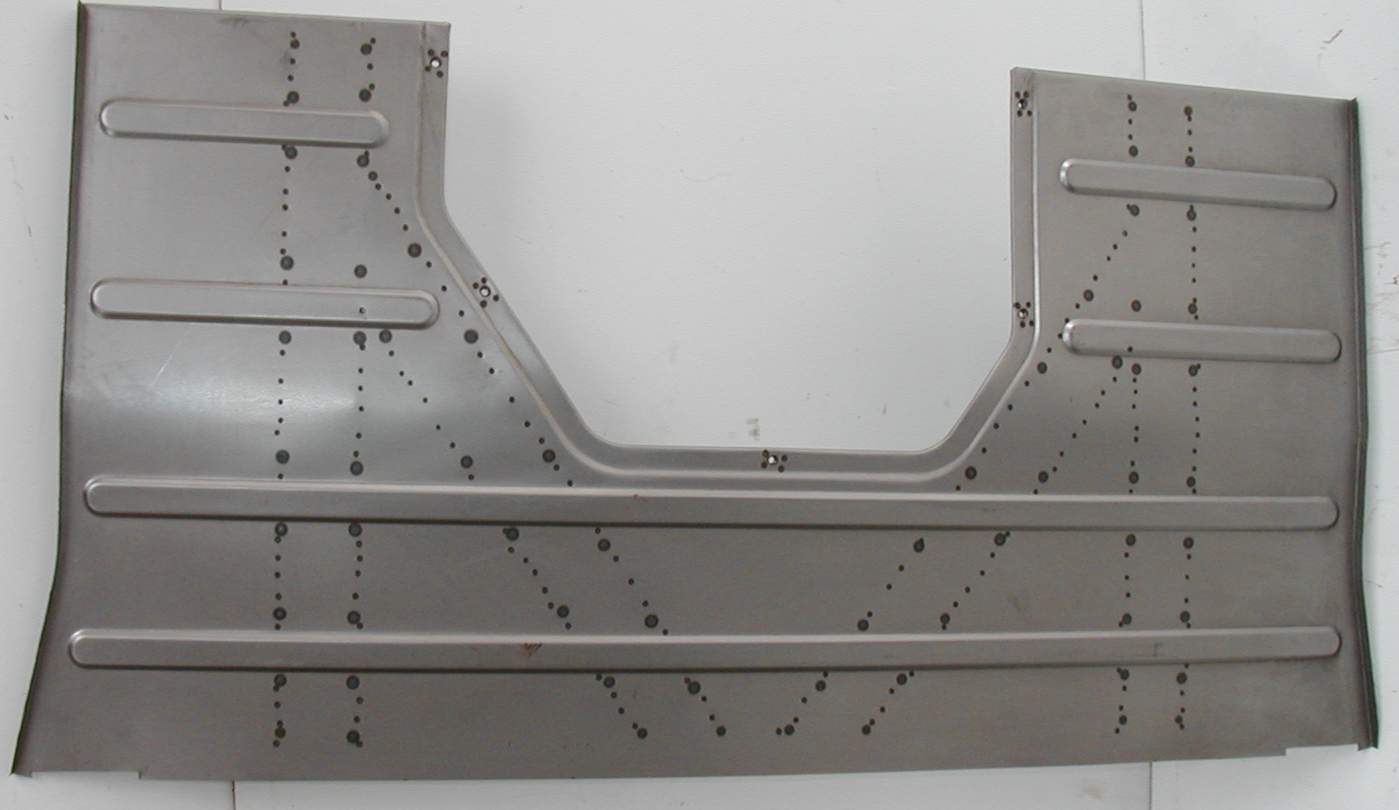

Cat. Nr. 123 124 125 126 127

item drainage channel under windscreen inner skin, luggage room, with no lid stops (left side) inner skin, luggage room, with lid stops (right side) floor of luggage room floor panel, basic pressing, left or right
Price 500 CZK 350 CZK 600 CZK 5 500 CZK 3 900 CZK / piece

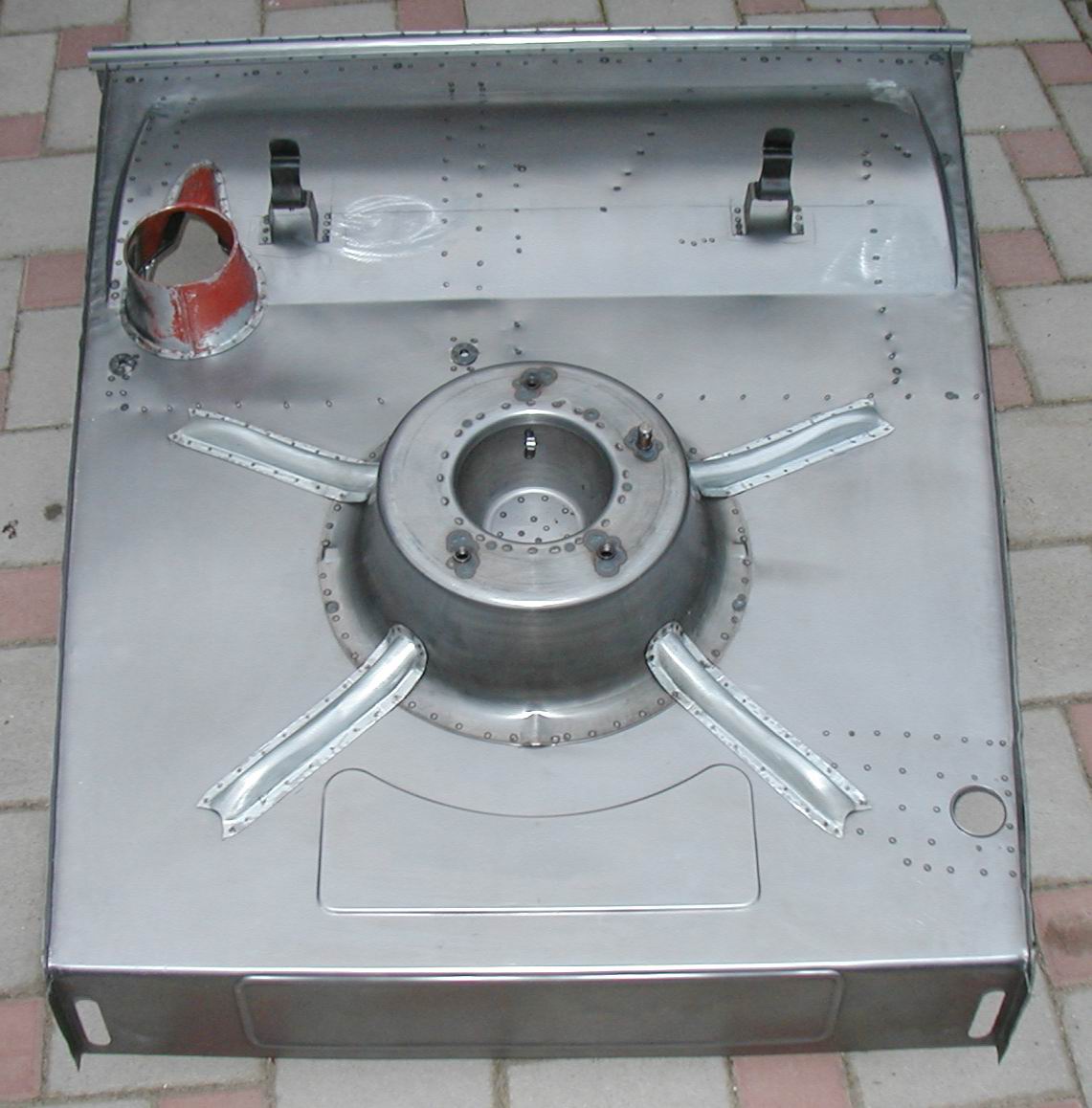

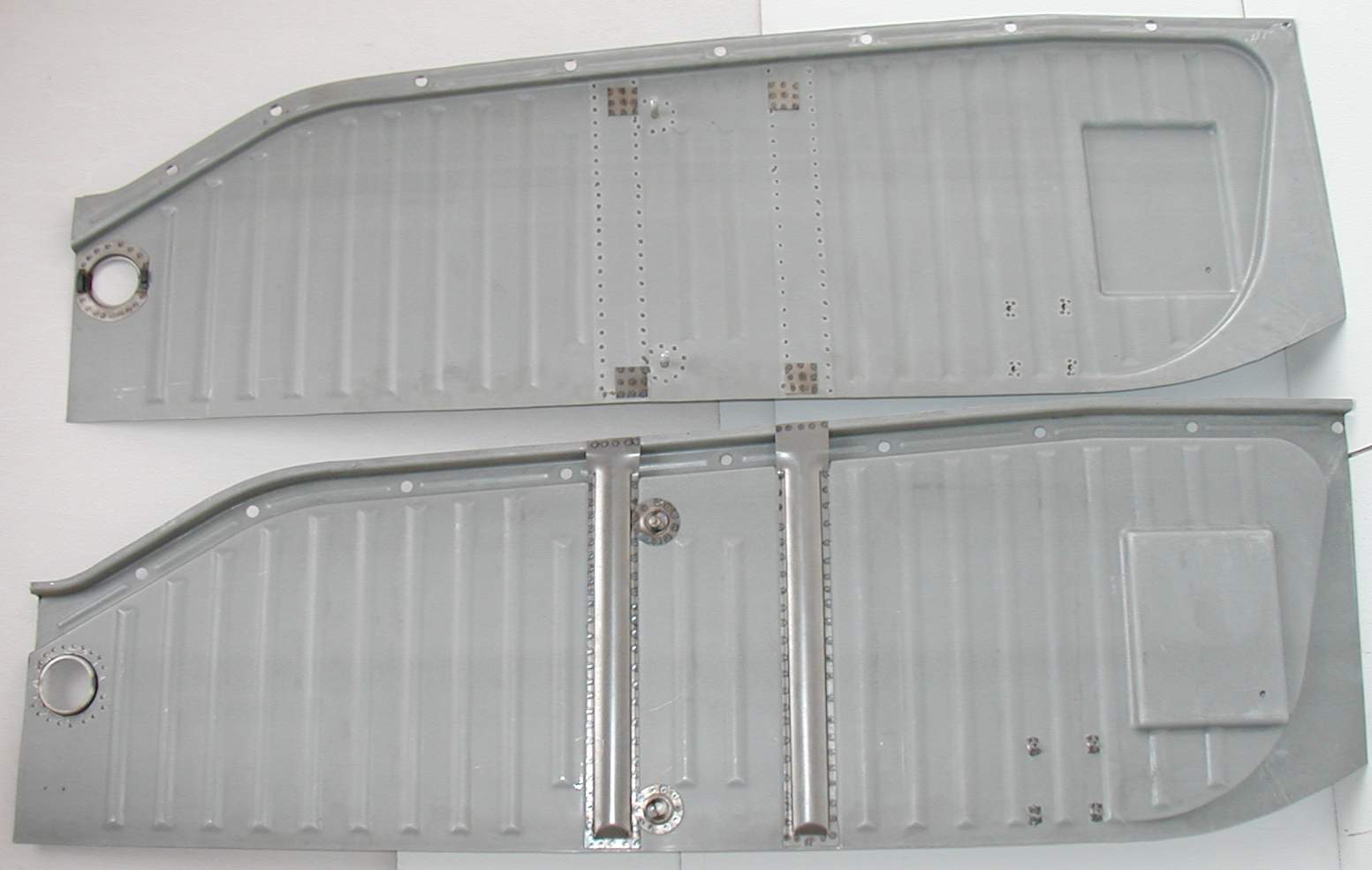

Cat. Nr. 128 129 130 131

item floor panel, fully outfitted, left or right half scuttle skin, short, basic scuttle skin, short, fully outfitted scuttle skin, whole, and outfitted
Price 6 450 CZK / piece 2 500 CZK 8 000 CZK price based on content

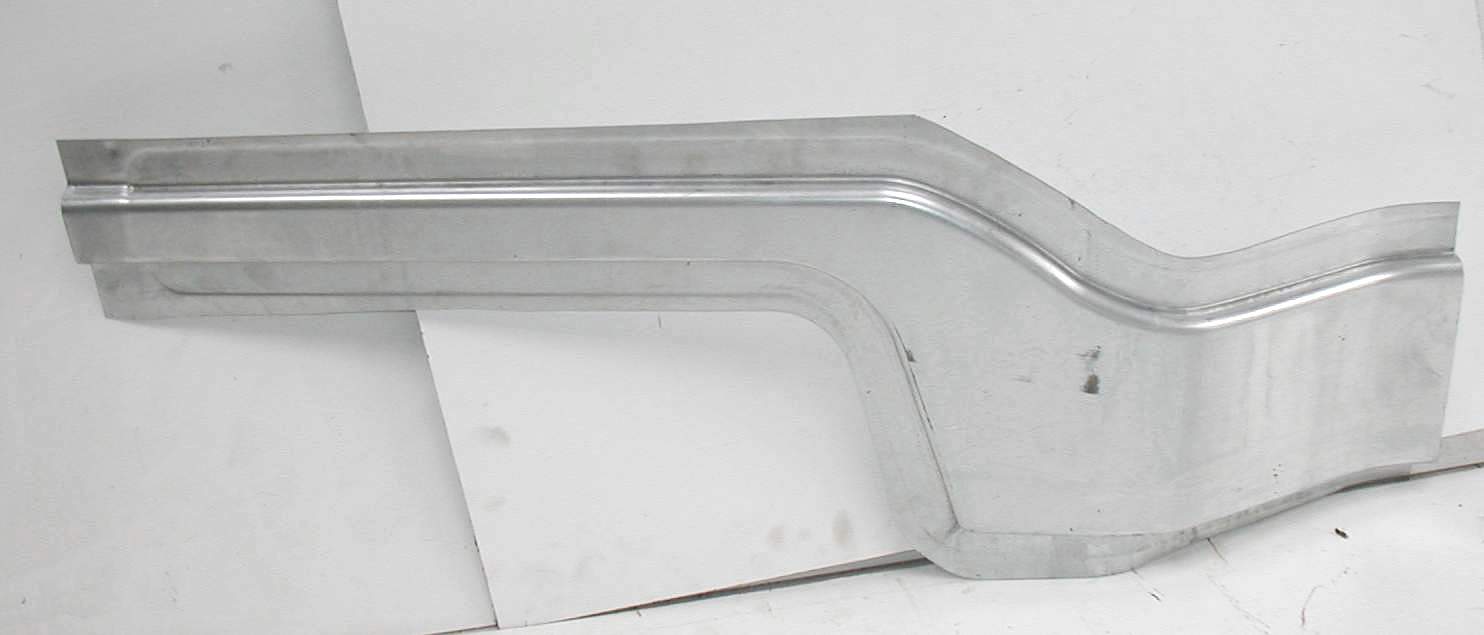

Cat. Nr. 132 133 134 135 136
item scuttle skin, whole, basic pressing only outer sill, left or right inner sill, front section, left or right inner sill, middle section, left or right inner sill, rear section, left or right
Preis 4 500 CZK 1 400 CZK / piece 2 800 CZK 2 800 CZK 2 800 CZK

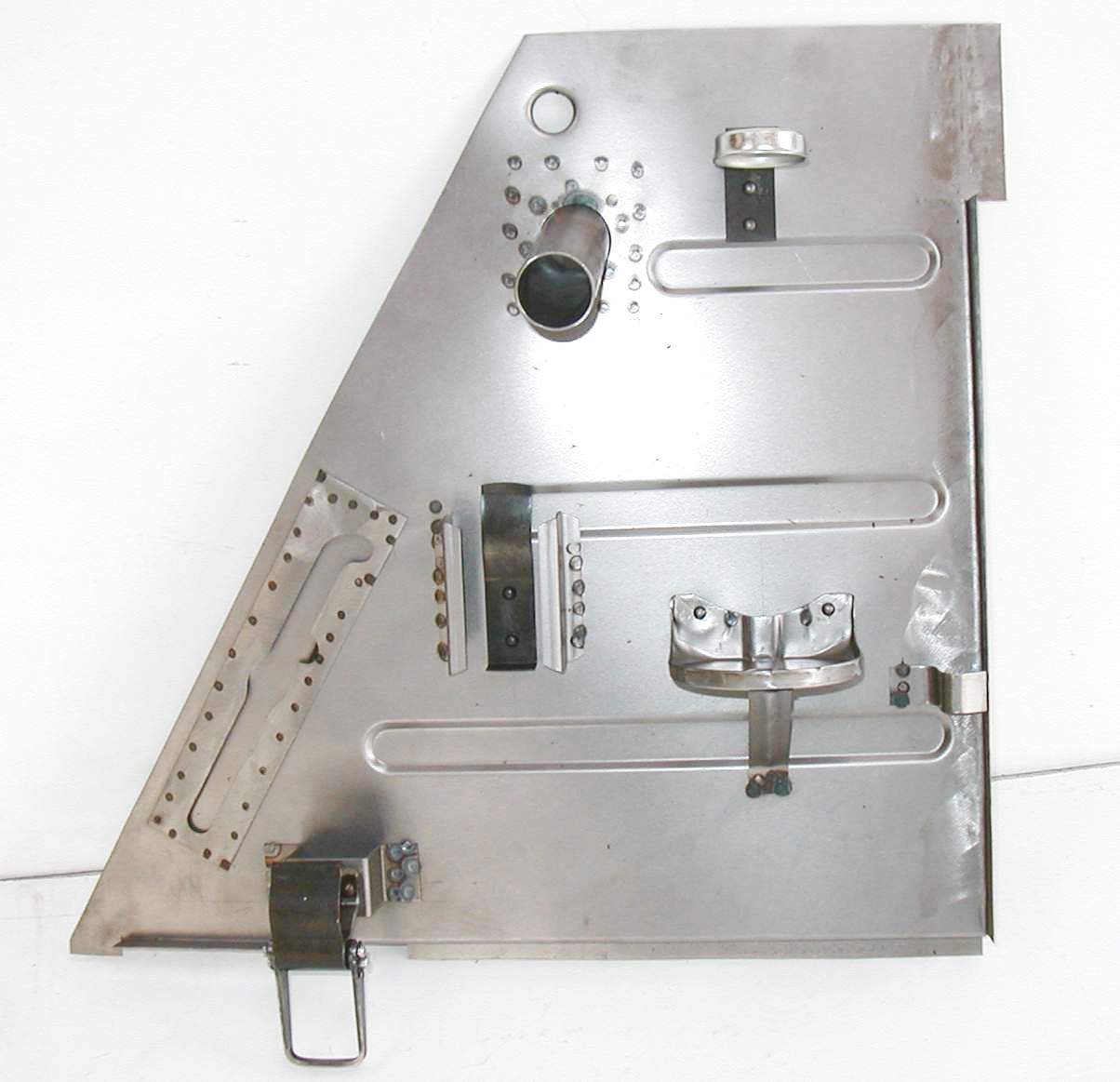

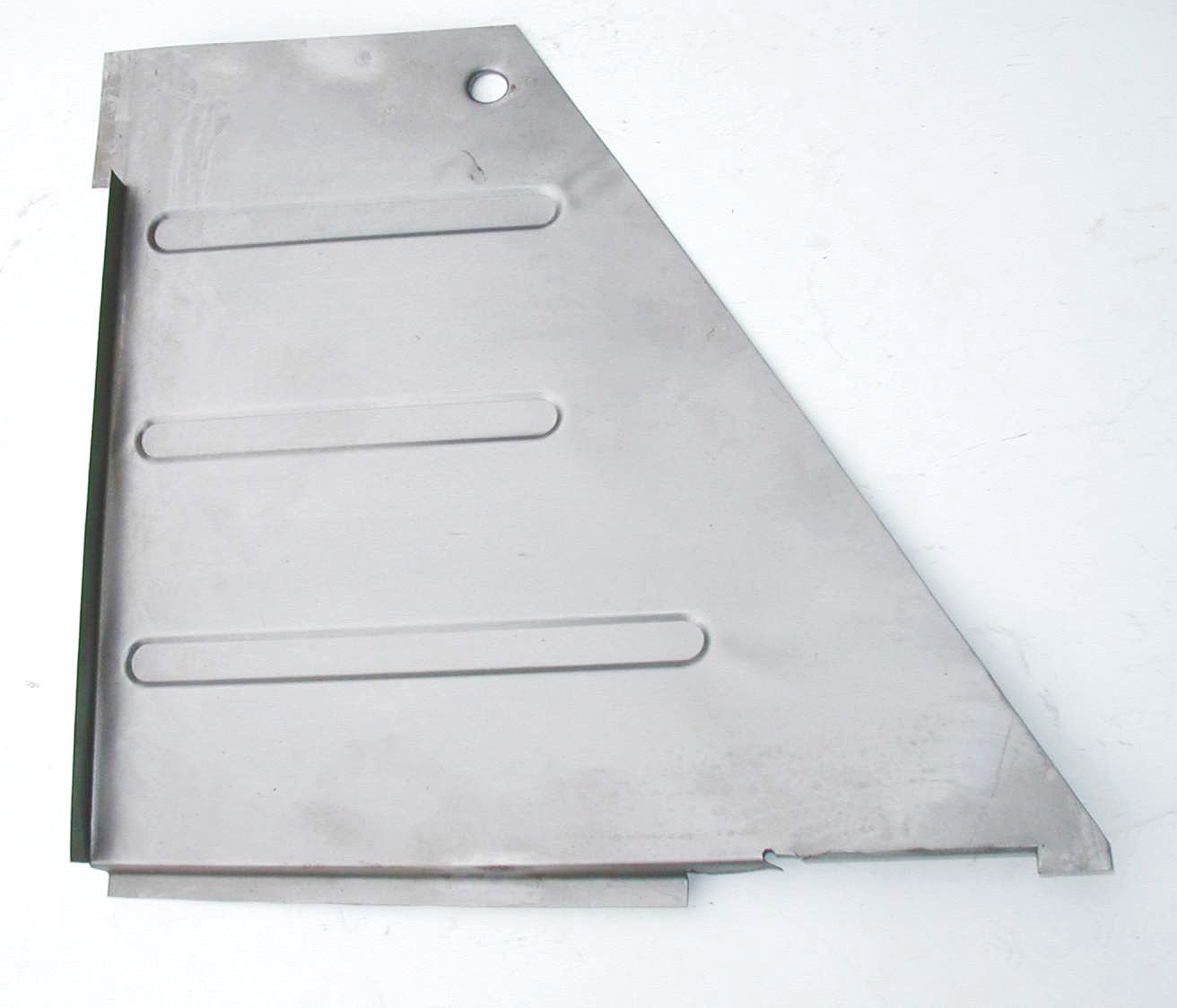

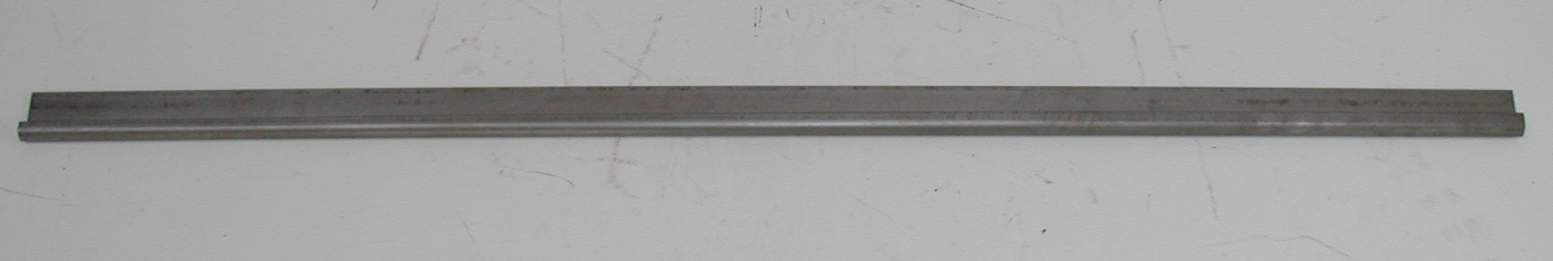

Cat. Nr. 137 138 139 140 141
item engine room partition wall drainage brace under luggage lid engine room side wall, basic, left engine room side wall, fully outfitted, left (confirm air intake diameter - 45mm for cyclon filter Cat.Nr.319, 34mm-oily air filter) engine room side wall, right
Price 5 000 CZK 480 CZK 1 400 CZK 4 800 CZK 1 100 CZK

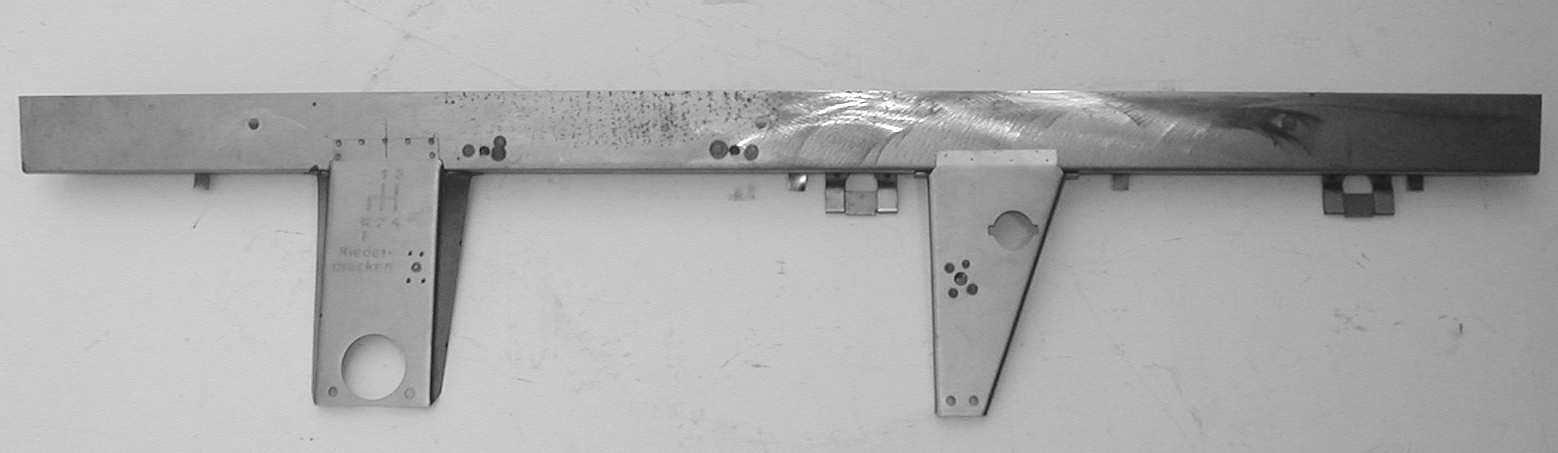

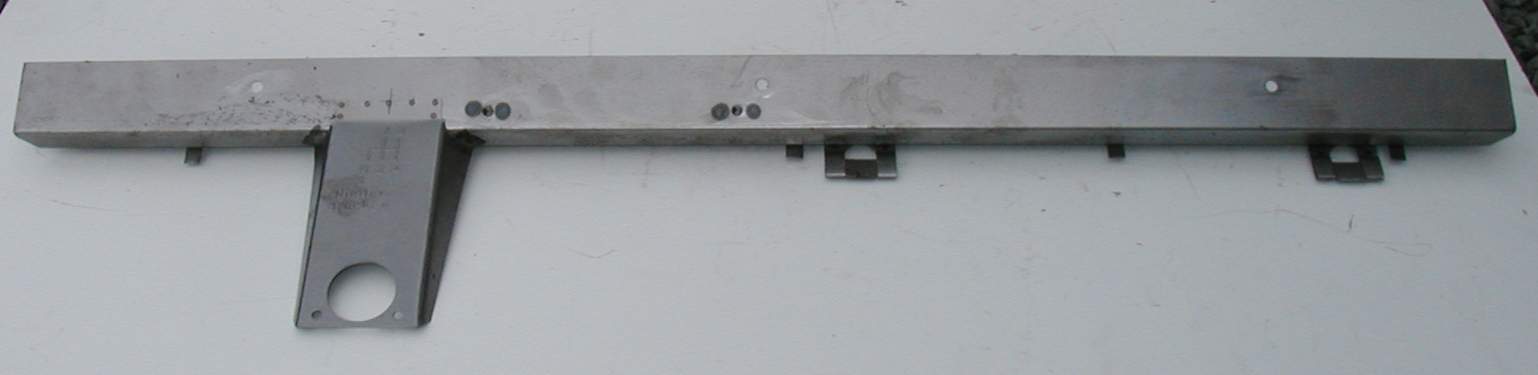

Cat. Nr. 142 142.1 143 144 145
item brace for rectangular dashboard dashboard brace, basic dashboard brace for oval dashboard front facing for first aid kit shelf front member with tow-hook anchorage
Price 2 300 CZK 850 CZK 2 900 CZK 850 CZK 1 200 CZK

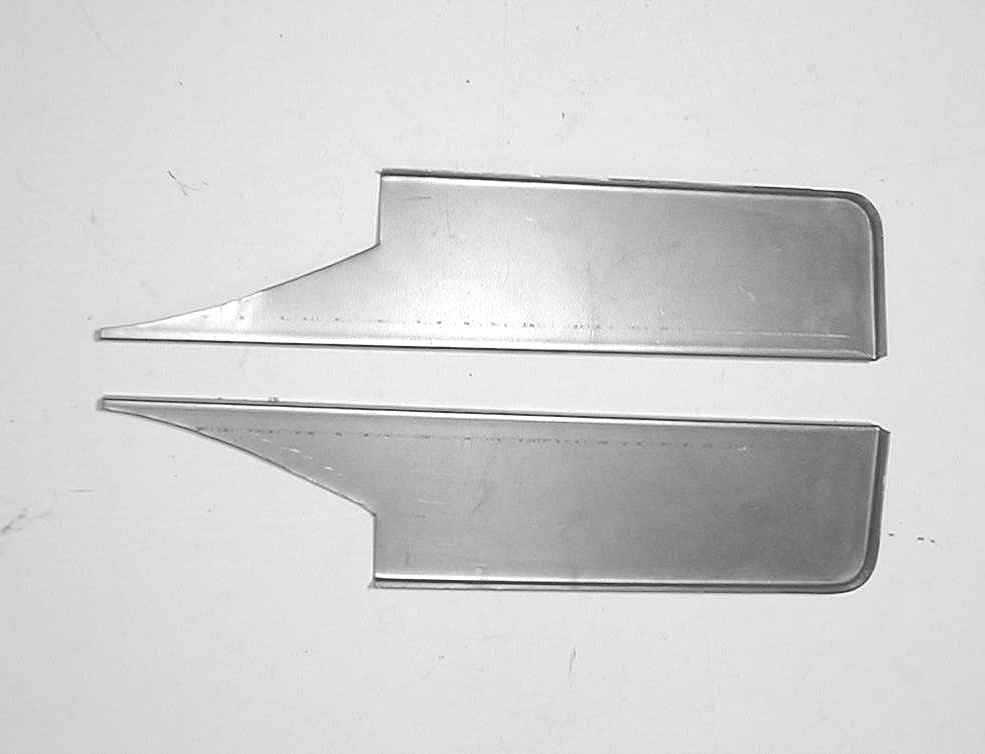

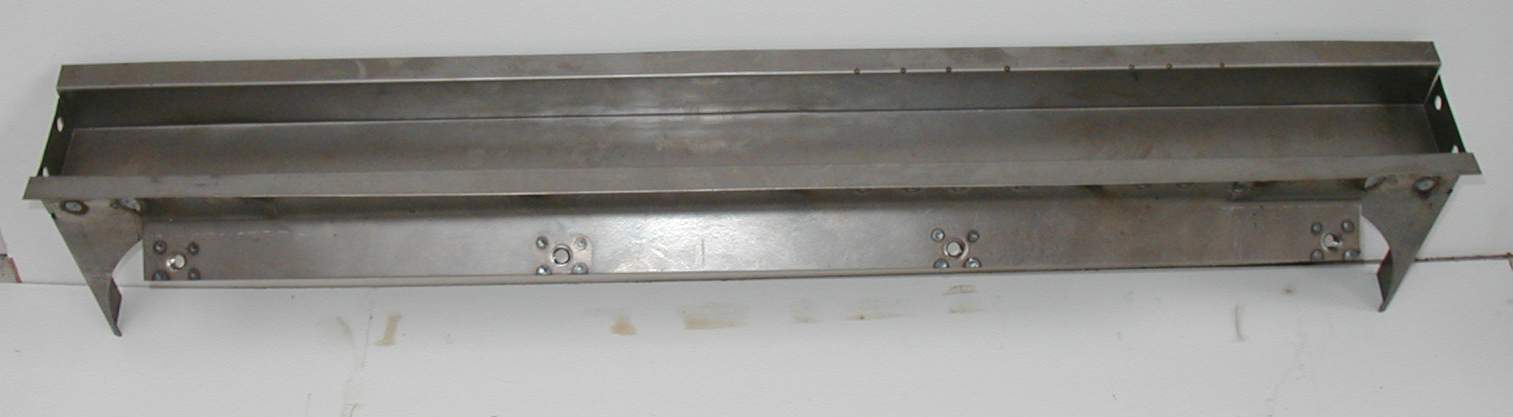

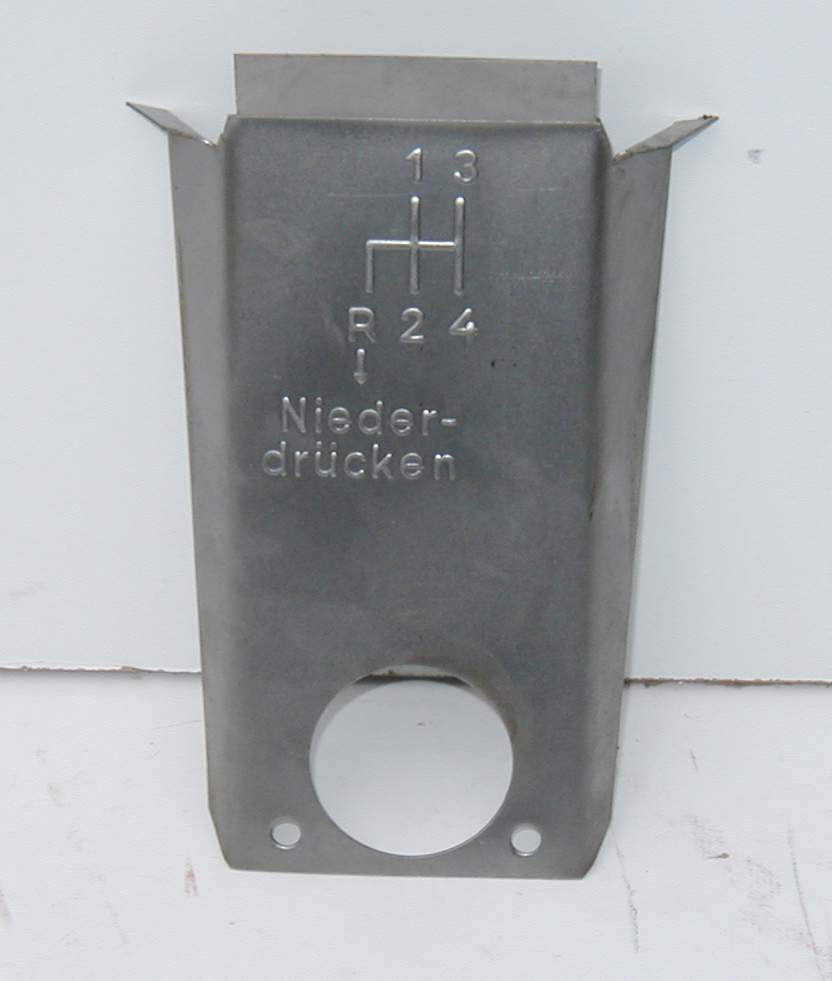

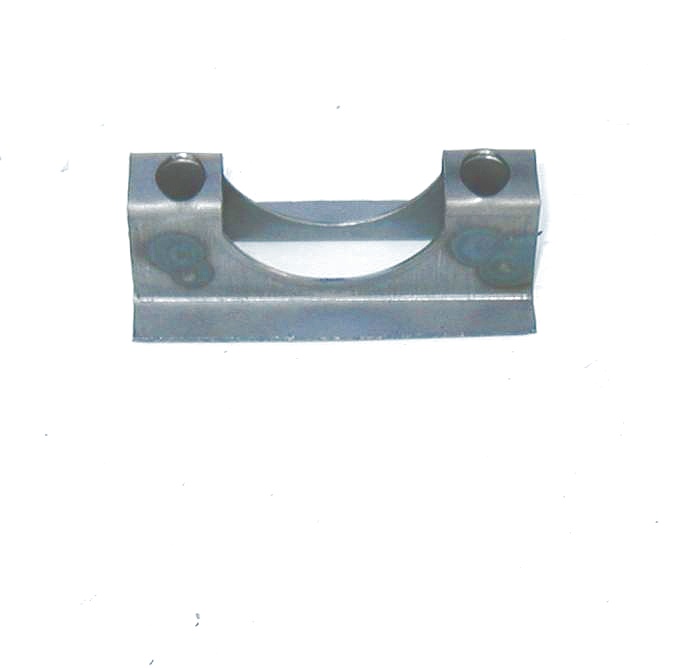

Cat. Nr. 146 147 148 149 150
item gearshift pattern panel inner bracing near front door-jamb, left or right bottom plate, rear side, left or right, price per piece reinforcement under fuel tank reinforcement at inner bracing 147 and windscreen
Price 1 400 CZK 850 CZK 260 CZK / piece 850 CZK / piece 500 CZK

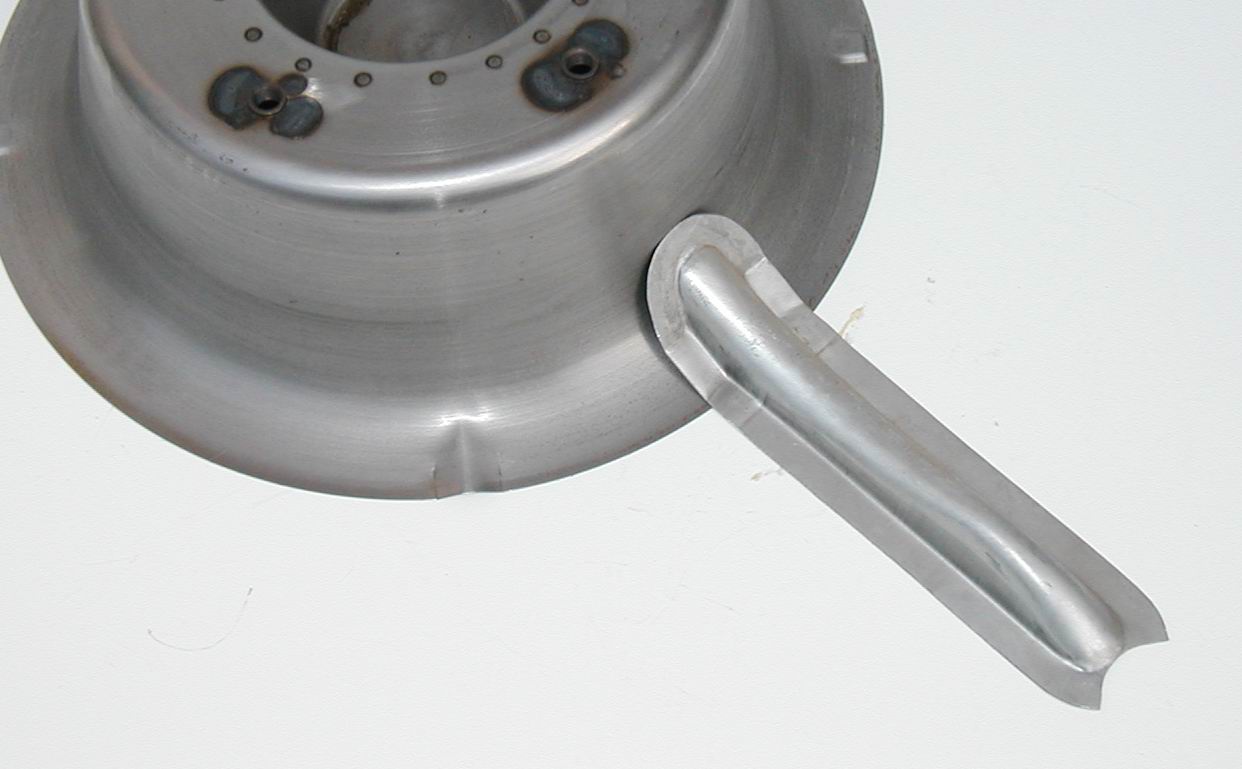

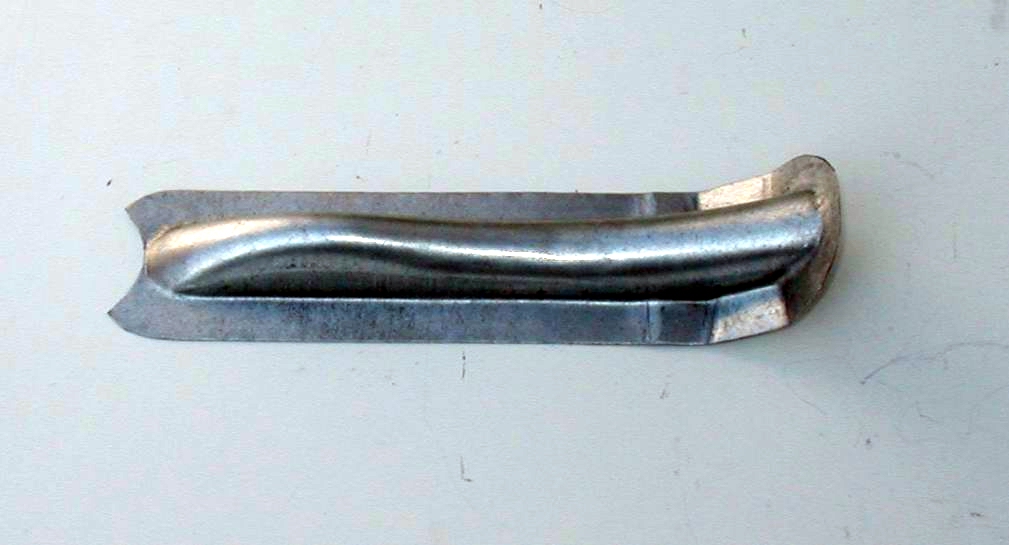

Cat. Nr. 151 152 153 154 155

item front Notek reinforcement, scuttle stiffening for spare wheel holder stiffening for spare wheel holder, early model K1 reinforcement for the jacking point, left or right panel between engine lid and top of luggage compartment
Price 450 CZK 250 CZK / piece 250 CZK / piece 1 700 CZK 3 200 CZK

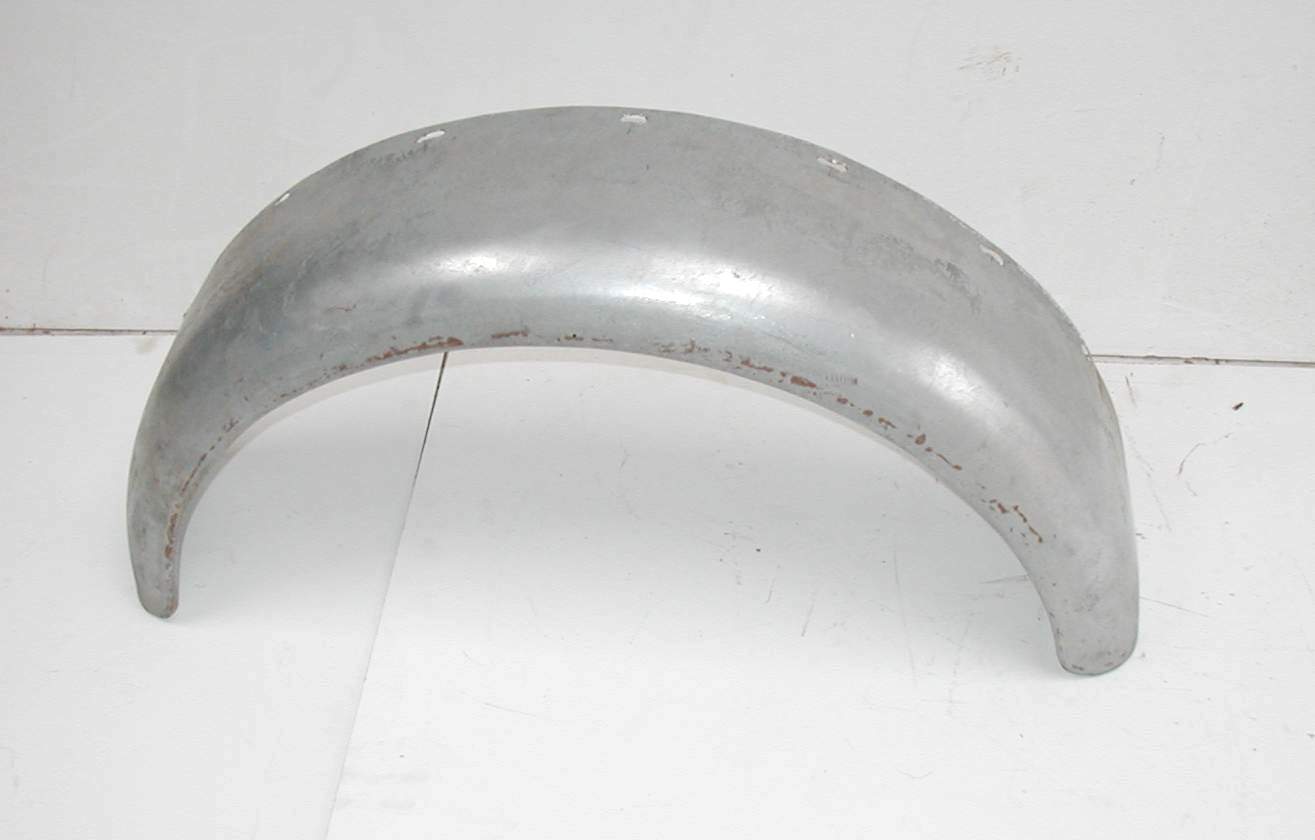

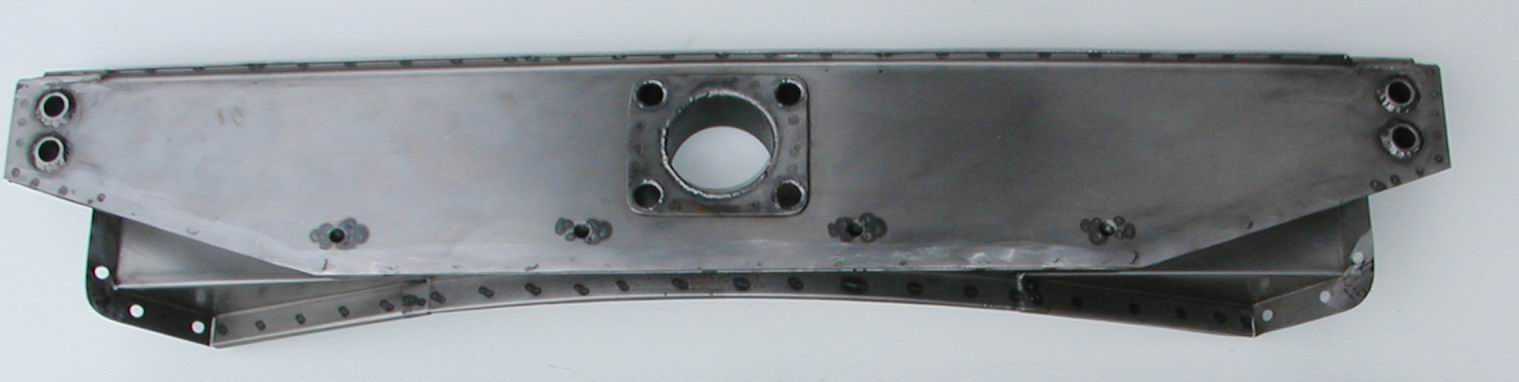

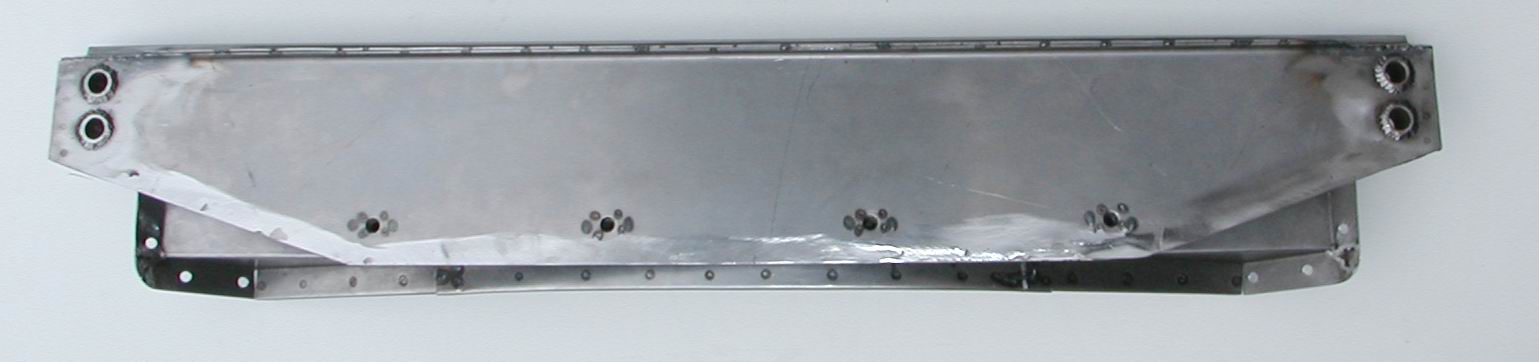

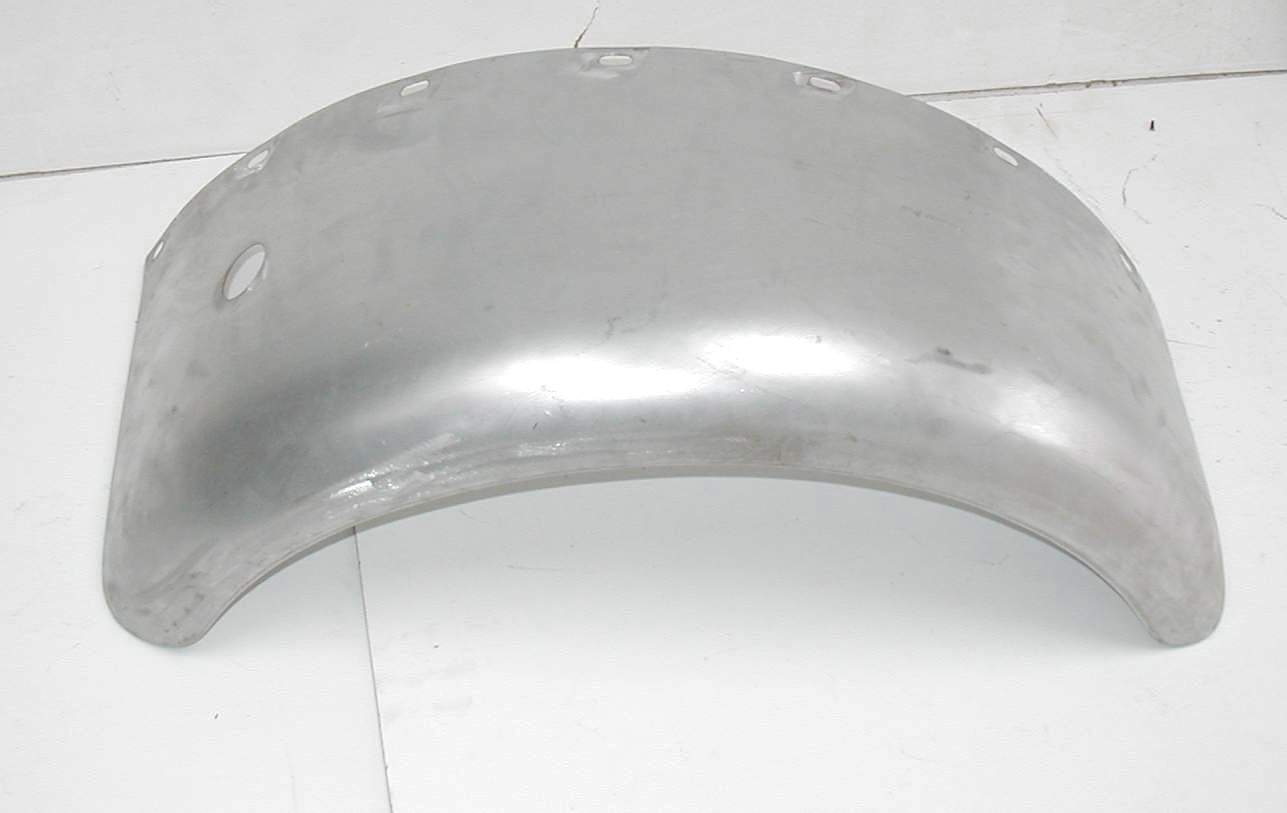

Cat. Nr. 201 202 203-A 203-B 204
item front guard, left or right rear guard, left = right rear crossmember, later model, for "rear step" - No.230 rear crossmember - with out opening for "rear step" windscreen pivot pin, short, no mirror
Price 3 200 CZK 3 000 CZK 3 500 CZK 3 000 CZK 160 CZK

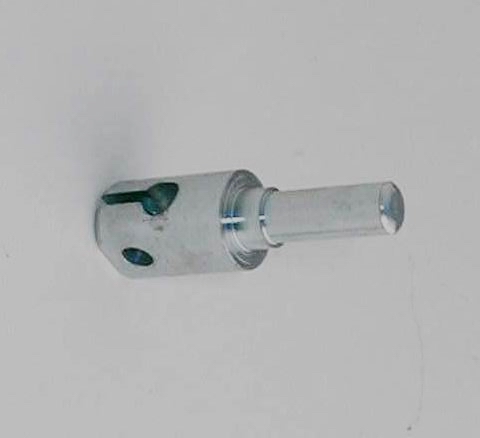

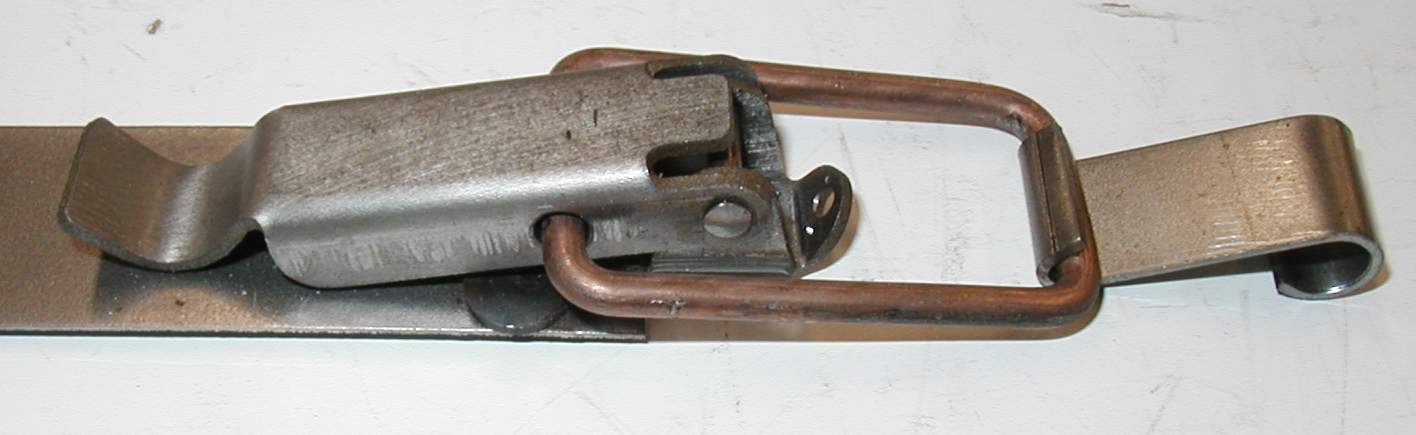

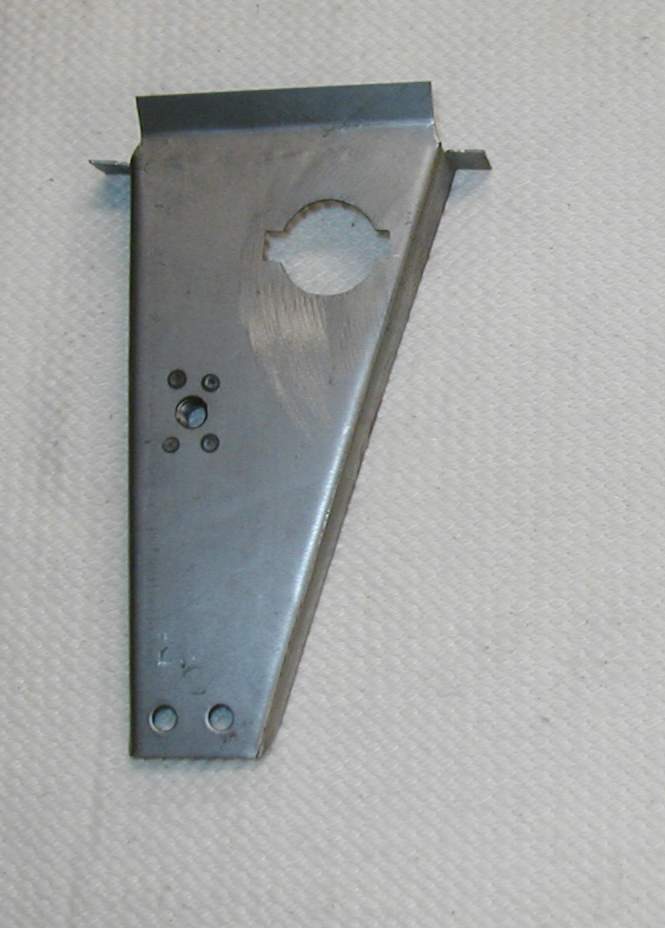

Cat. Nr. 205 206 207 208 209

item windscreen pivot pin, carries mirror panel for semaphore switch (oval dashboard) wooden toolbox strap and clamp holder for fuel drip can, set of 3 pieces jack base holder, left side engine compartment
Price 400 CZK 600 CZK 850 CZK 300 CZK / set 500 CZK

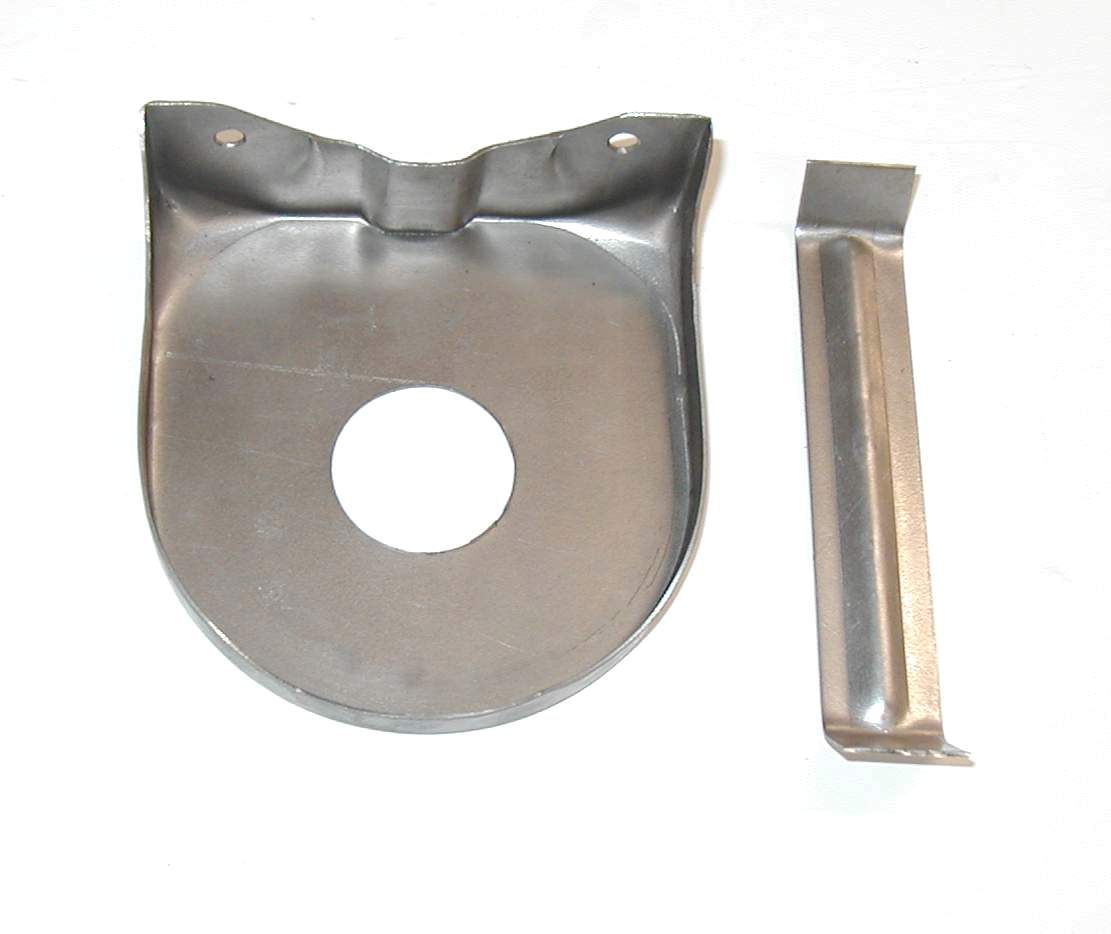

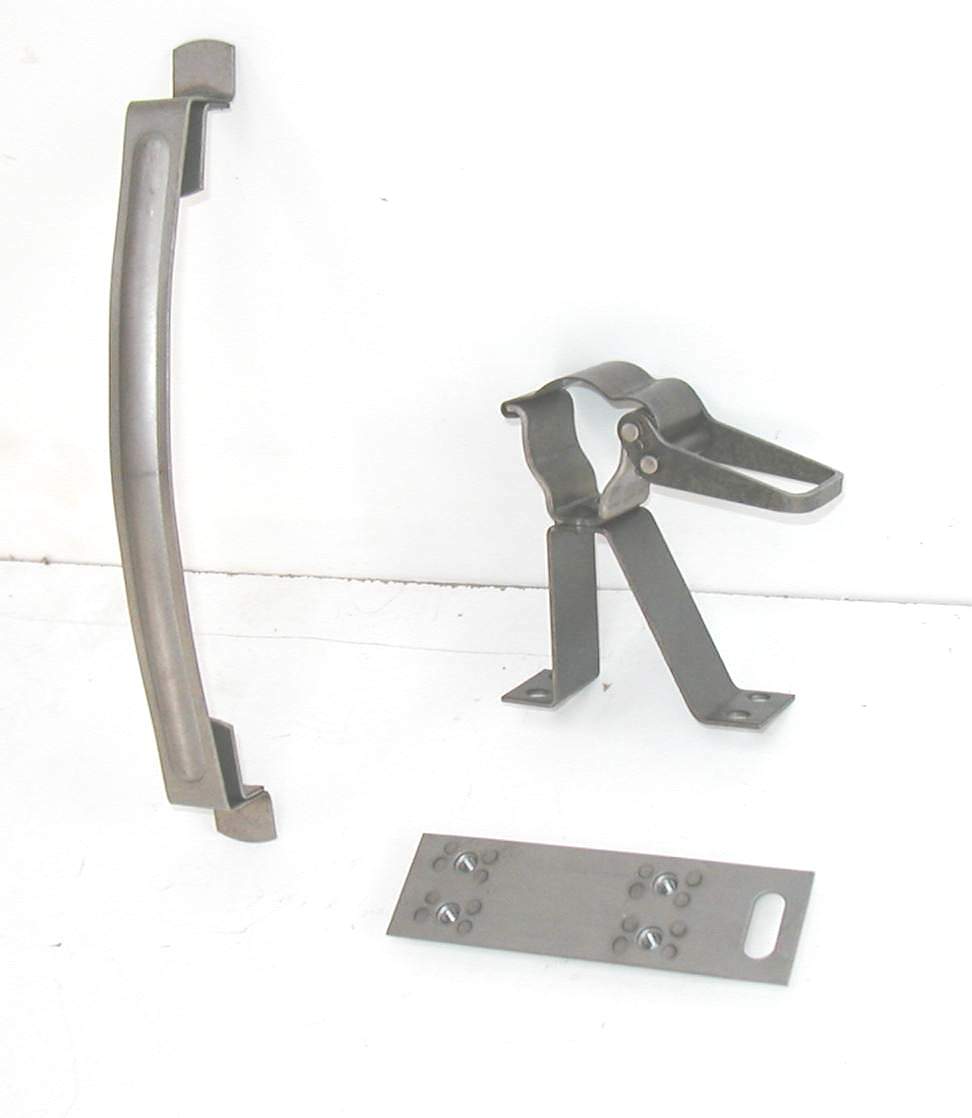

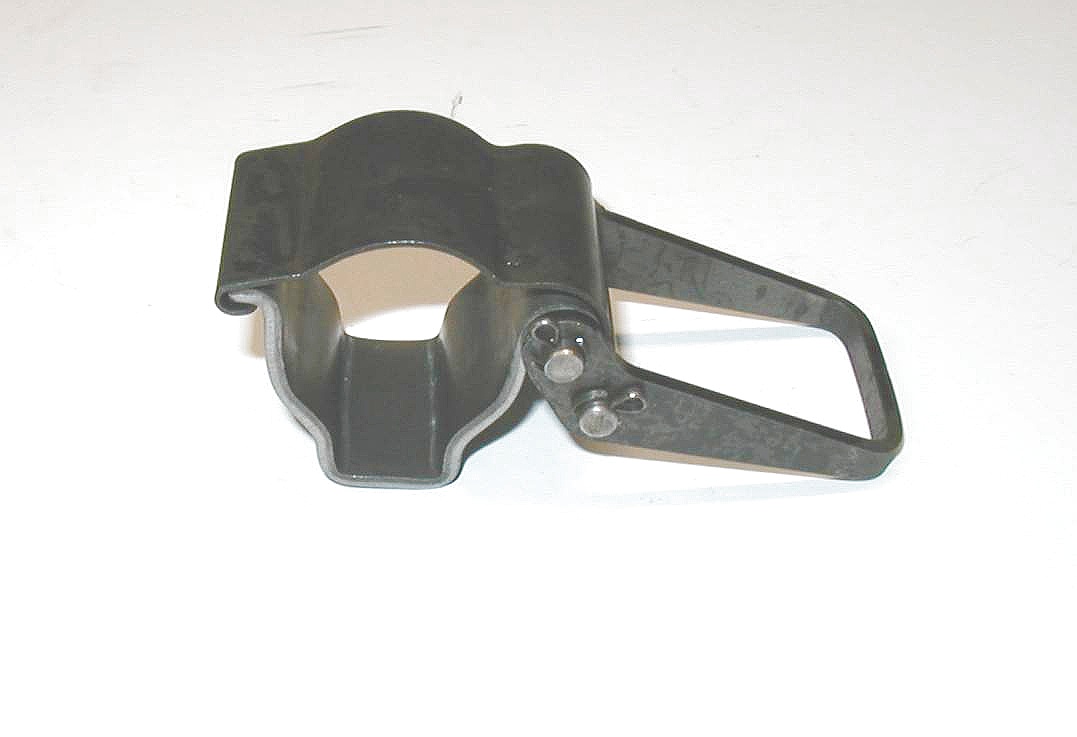

Cat. Nr. 210 211 212 213 214

item shovel blade holder, for front side shovel holder mount and guard reinforcement clamp for shovel holder or air-pump complete set for shovel holder oil bottle holder, lower parts
Price 400 CZK 450 CZK 750 CZK 1 500 CZK / set 700 CZK

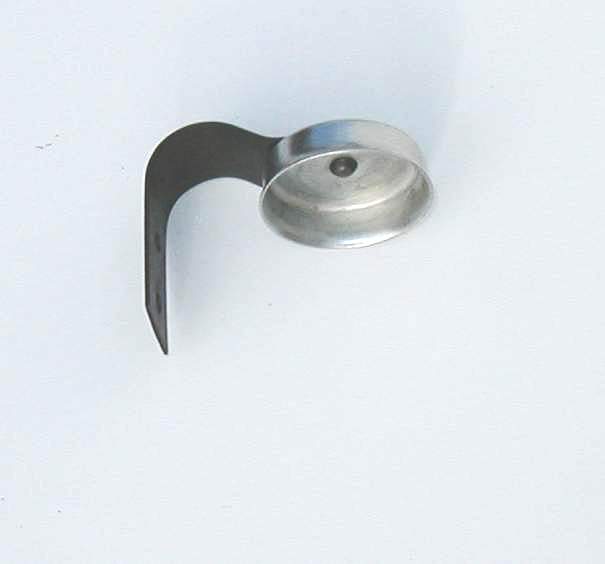

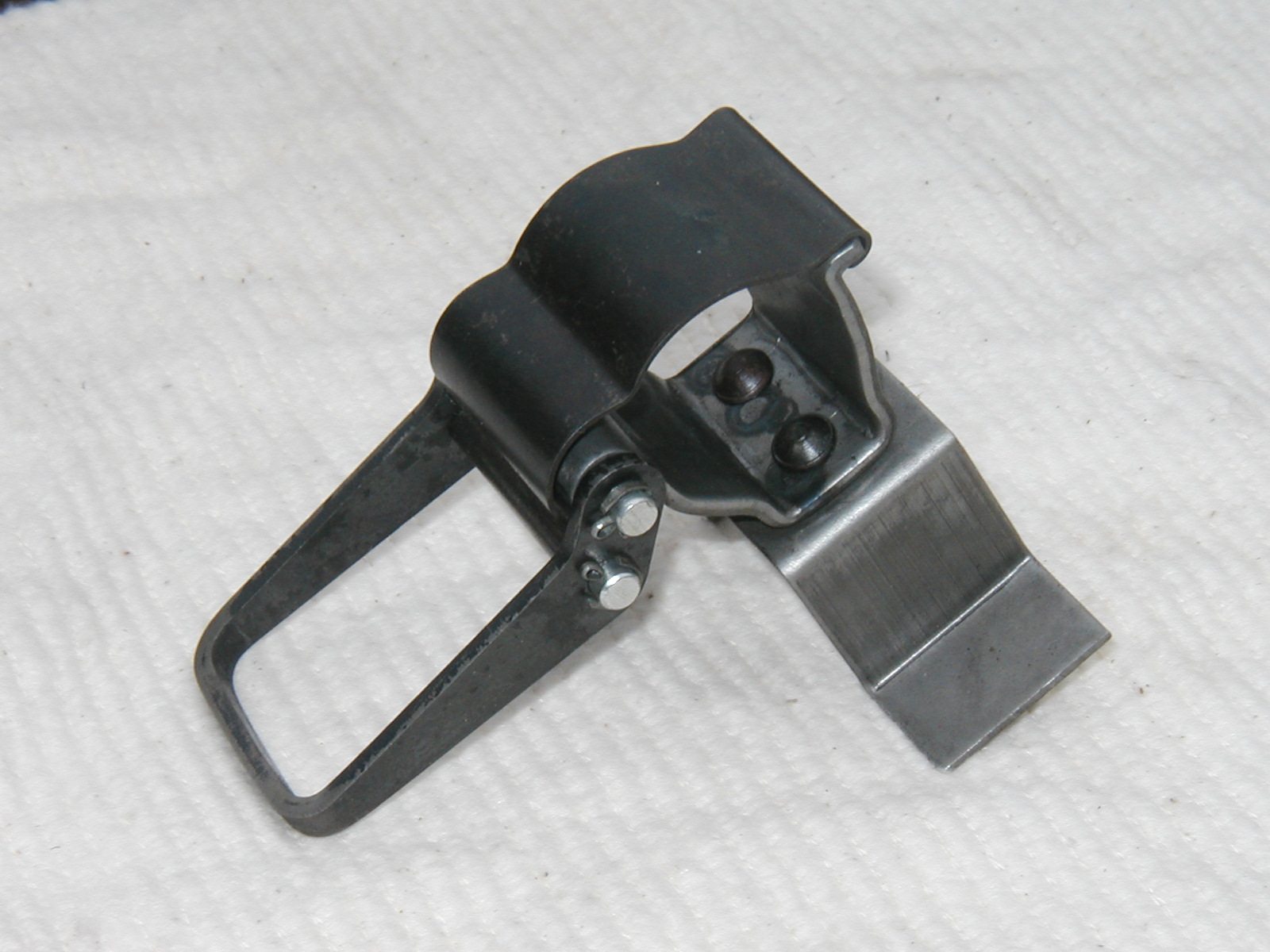

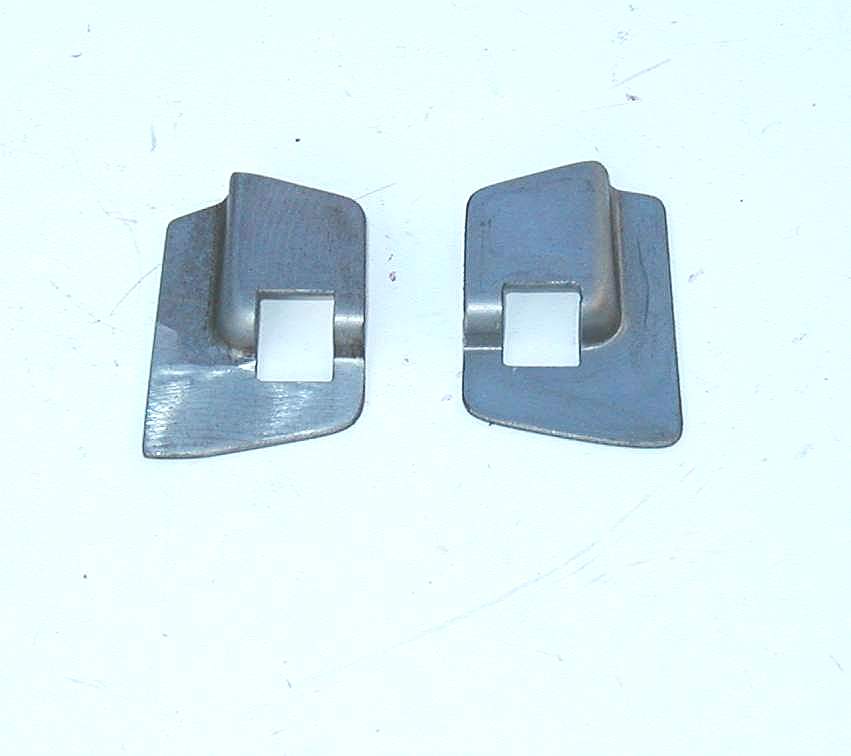

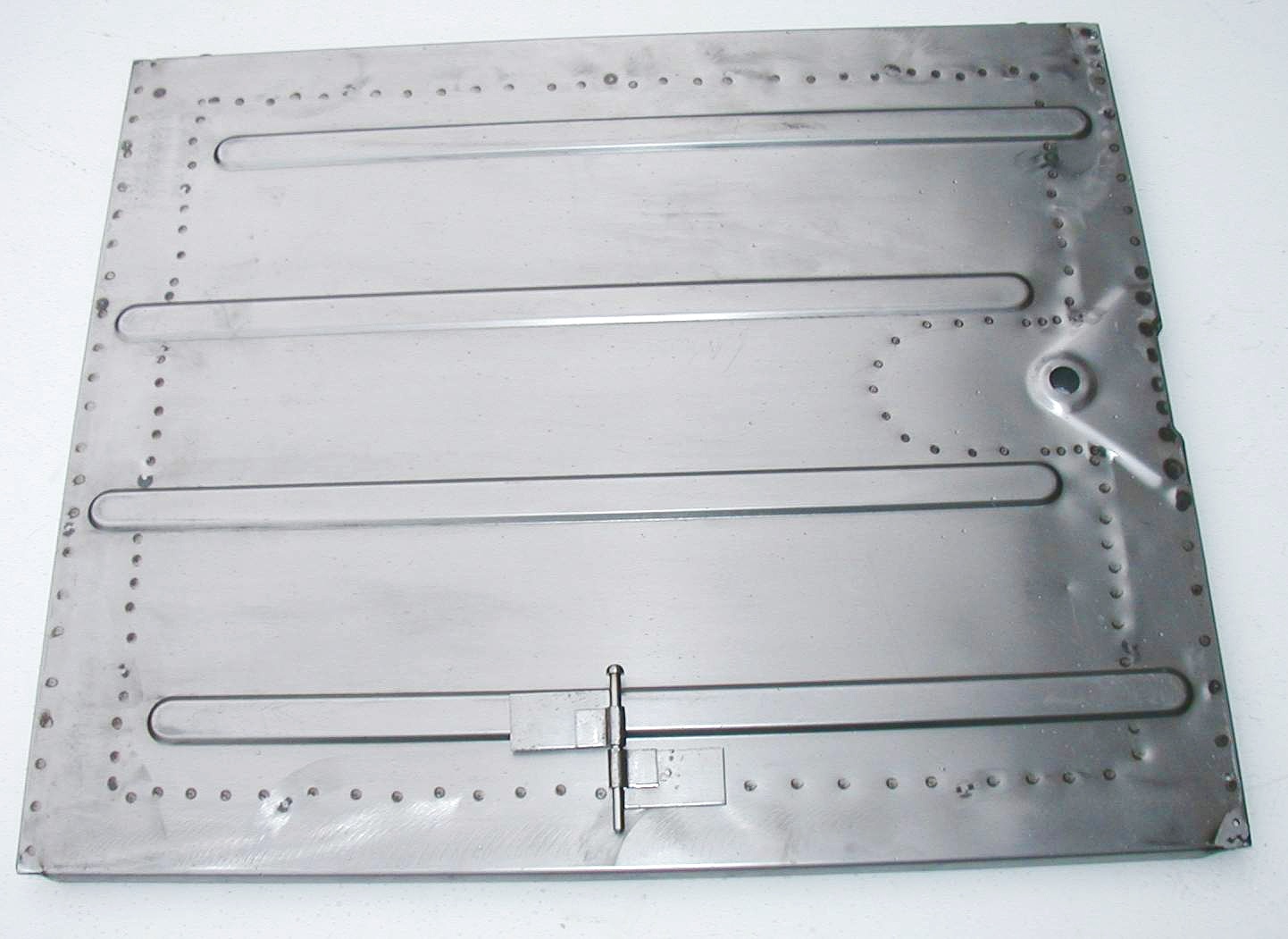

Cat. Nr. 215 216 217 218 219
item oil bottle holder, upper part plates to anchor folding rear seat-back, left or right doors incl. hinges and pins (not locks or handles) jack clamp with mounting jack clamp
Price 350 CZK 350 CZK / piece 3 000 CZK 850 CZK 800 CZK

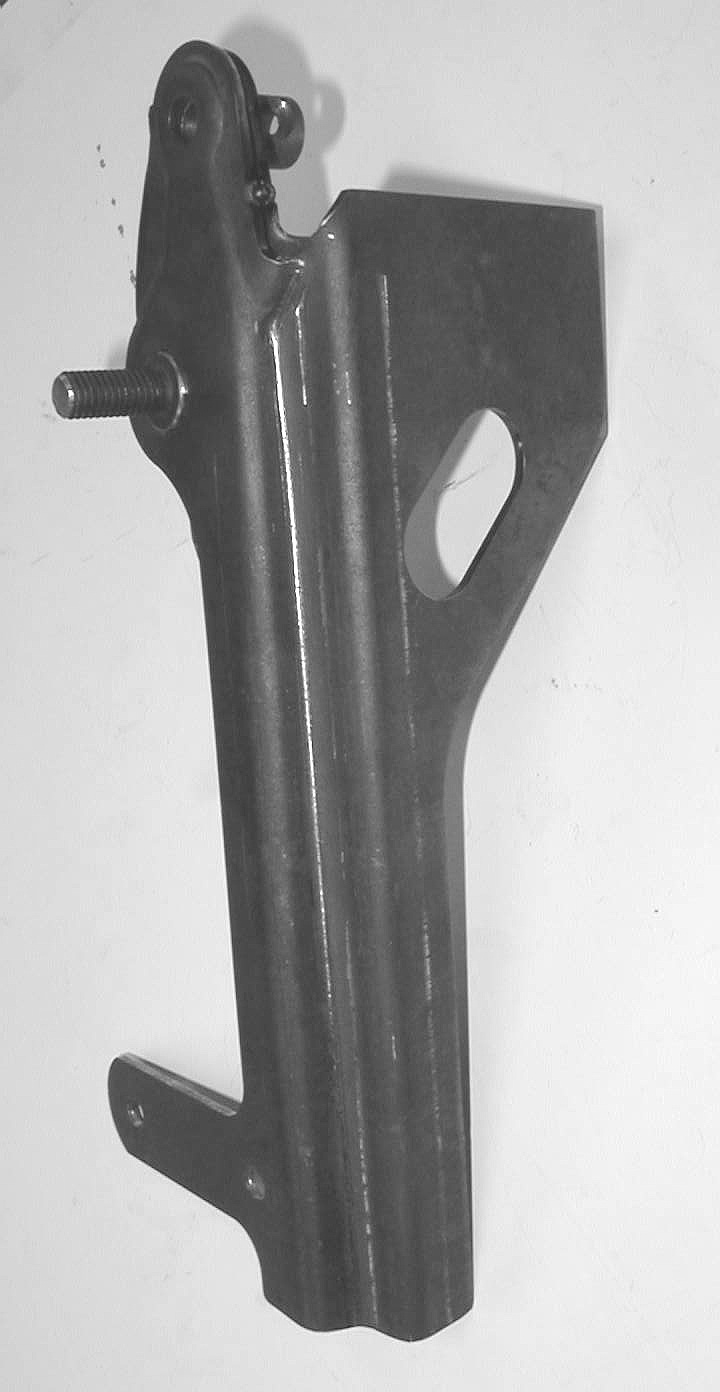

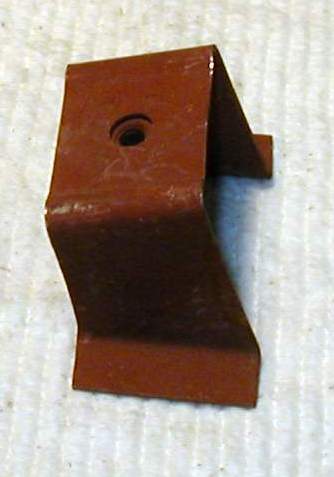

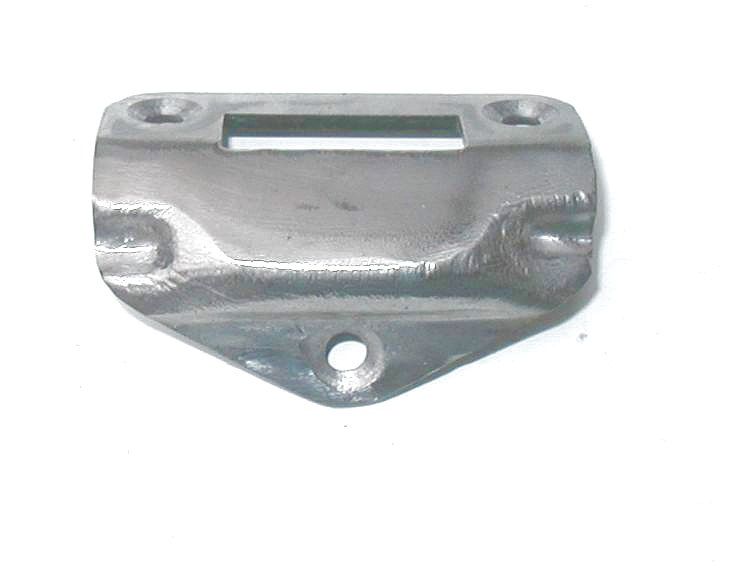

Cat. Nr. 220 221 222 223 224
item eyelet for canvas top, at rear door lock catch holder of windscreen pivot, left or right holder of hood-bow mechanism pivot holder for rubber stop, windscreen
Price 20 CZK 500 CZK 1 800 CZK 550 CZK / piece 400 CZK

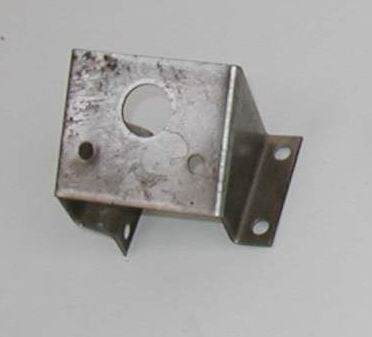

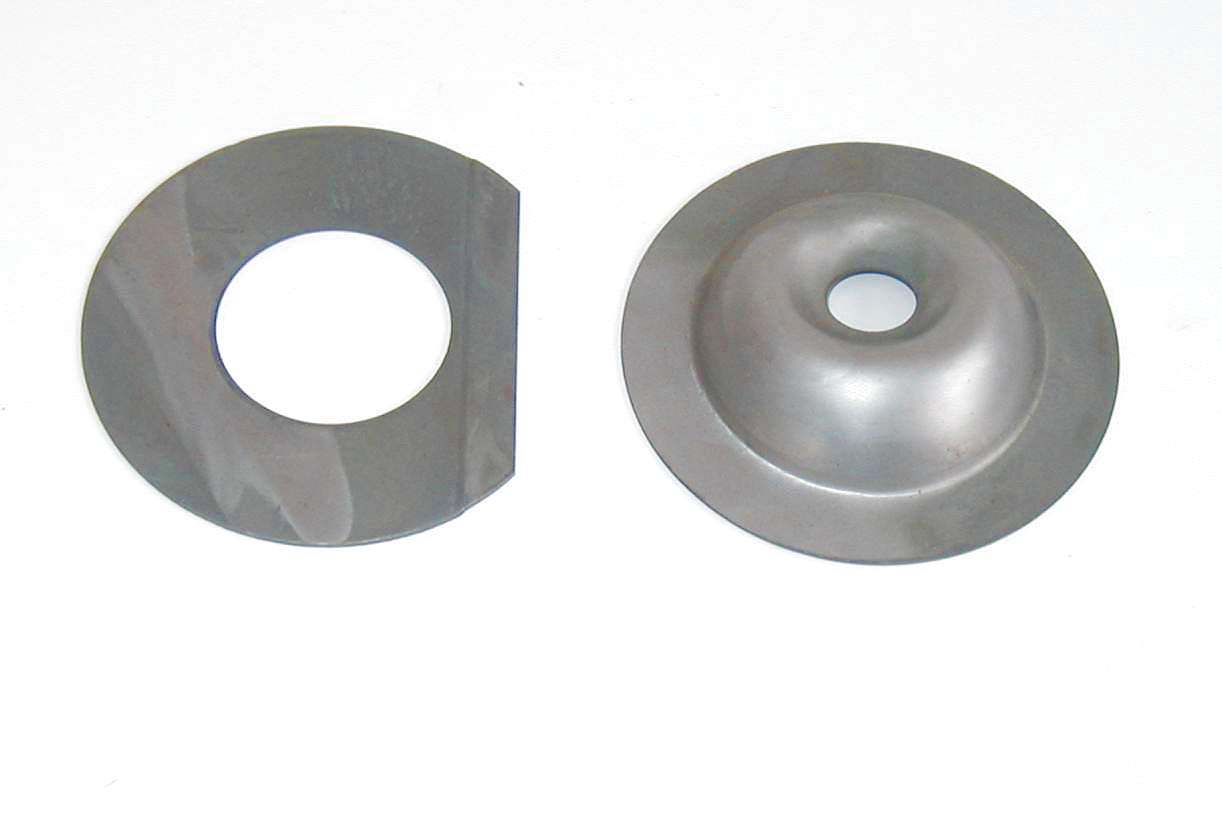

Cat. Nr. 225 226 227 228 229

item holder, rear Notek holder, rear lights, left or right drain hole, floor holder, with base, for headlight fuel tank, wide filler, without tap or lid
Price 400 CZK 400 CZK 400 CZK 550 CZK 5 800 CZK

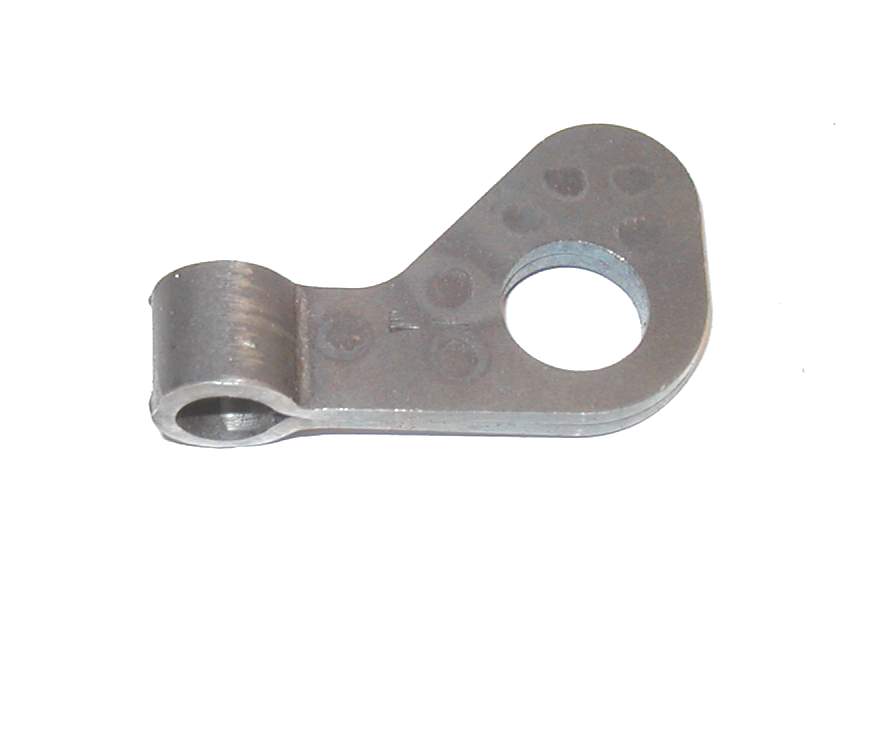

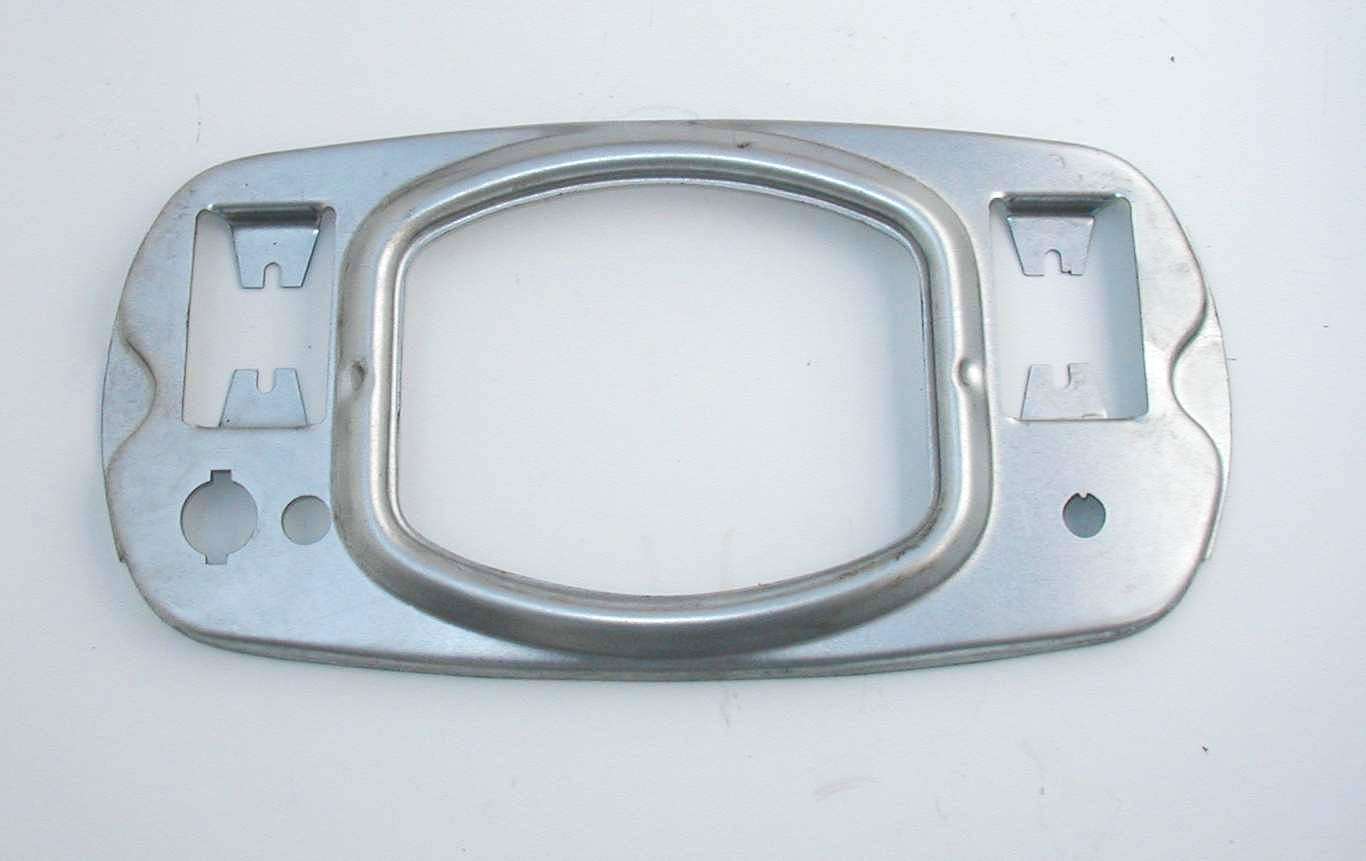

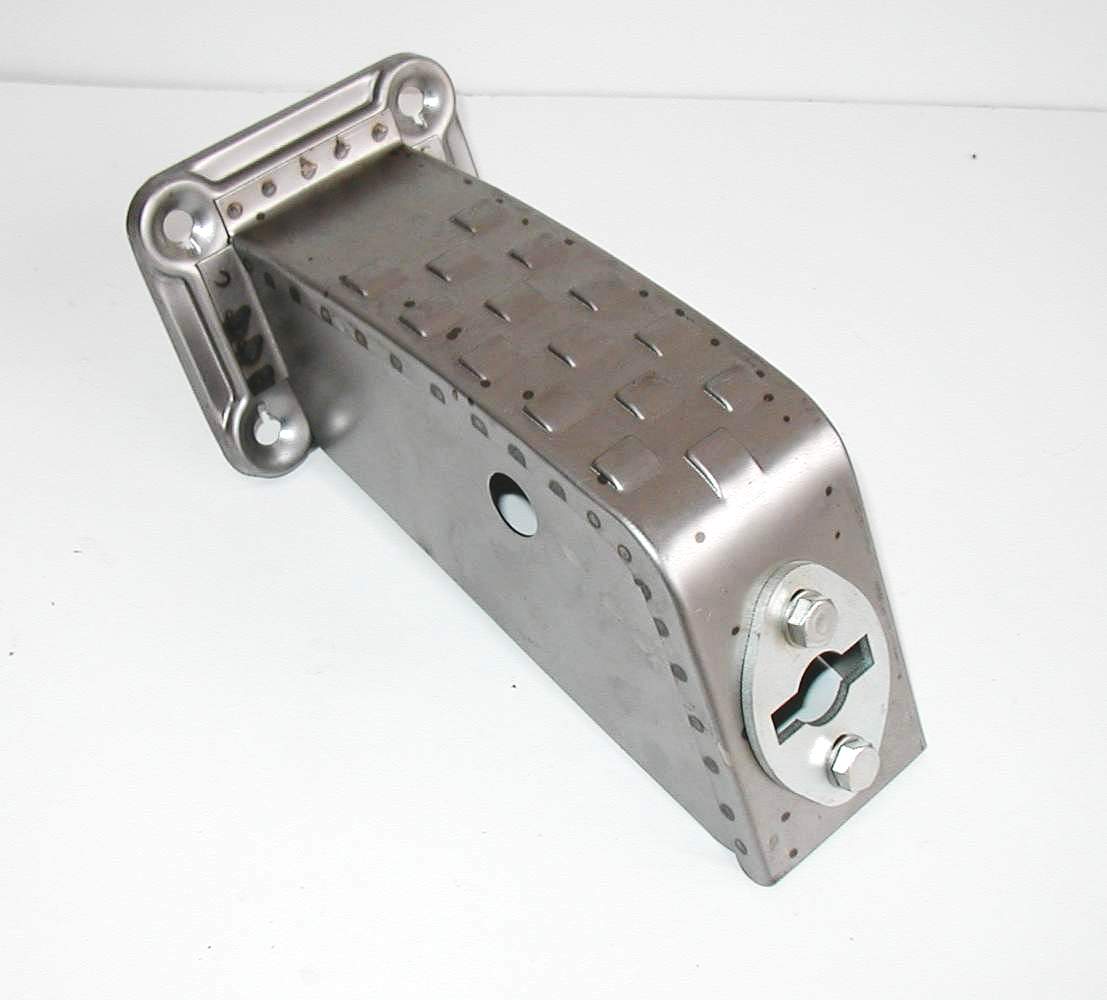

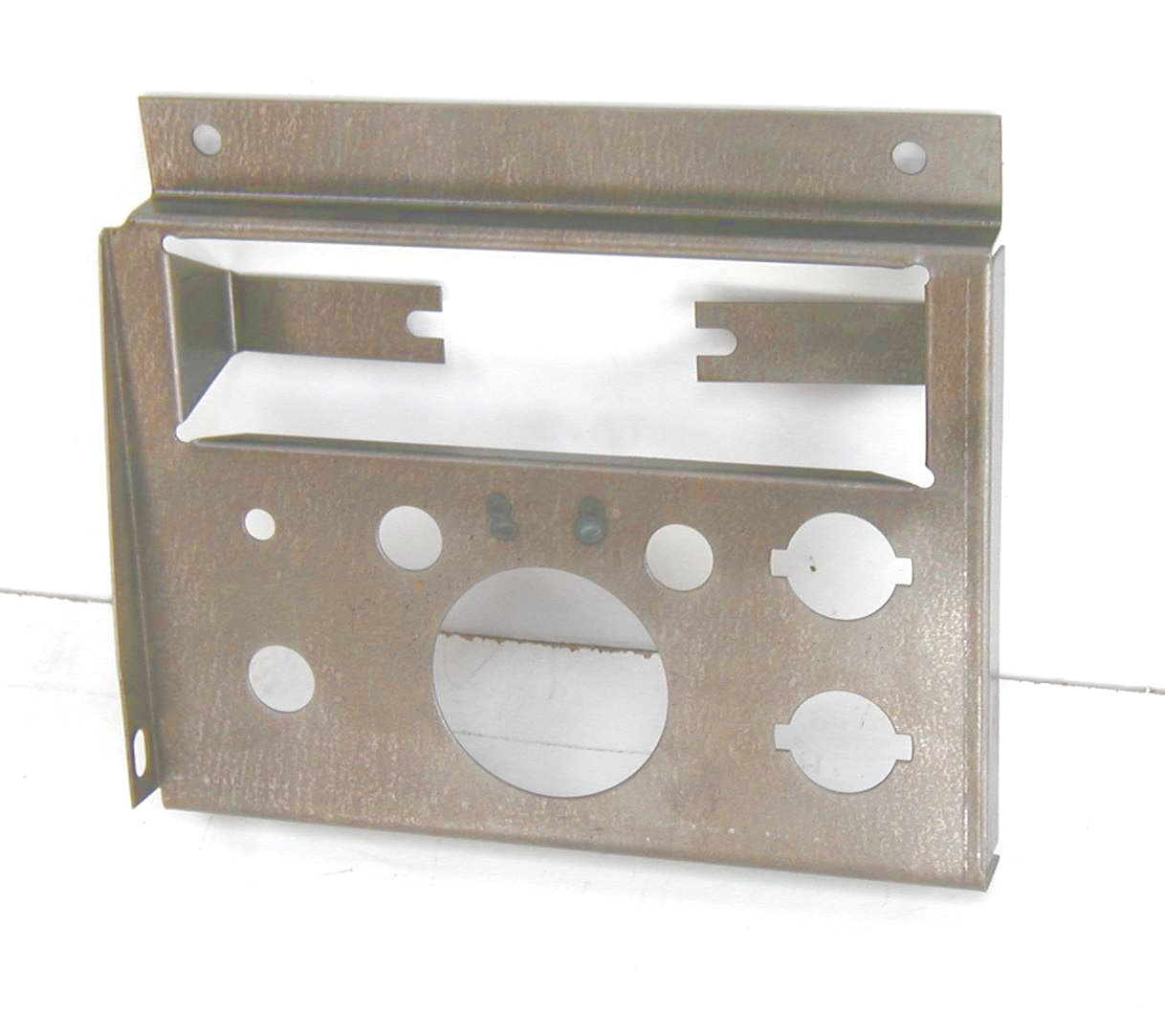

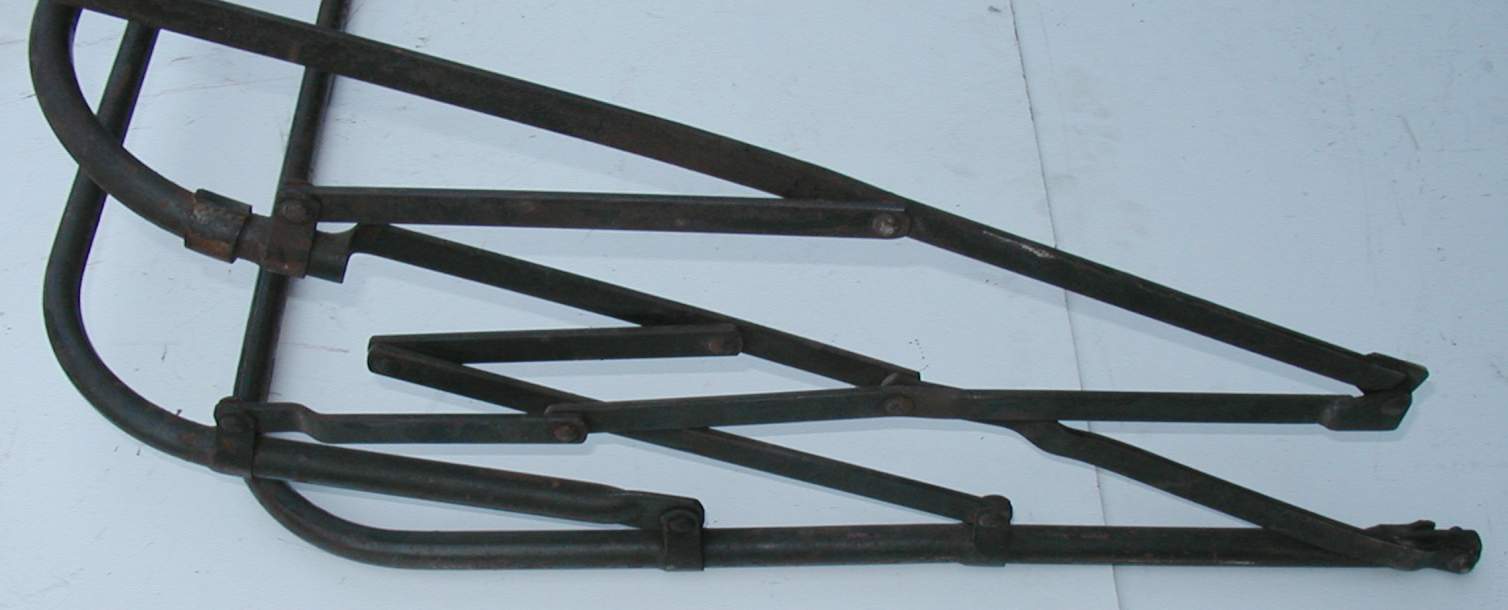

Cat. Nr. 230 231 232 233 234
item the 'step', at centre of rear bumper pipe catch, (folded from steel) for engine or luggage lid dashboard, oval, early model dashboard, rectangular hood mechanism (3 hood-bows version)
Price 2 000 CZK 320 CZK 2 500 CZK 1 600 CZK 8 000 CZK

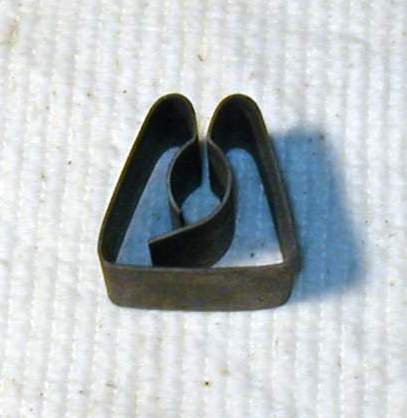

Cat. Nr. 235 236 237 238 239
item strap, fuel tank clip for folded windscreen clip for crank handle canvas top straps eye, sides of windscreen frame bottom of windscreen frame (fastened by screws)
Price 250 CZK / piece 200 CZK 200 CZK 250 CZK / piece 1 600 CZK

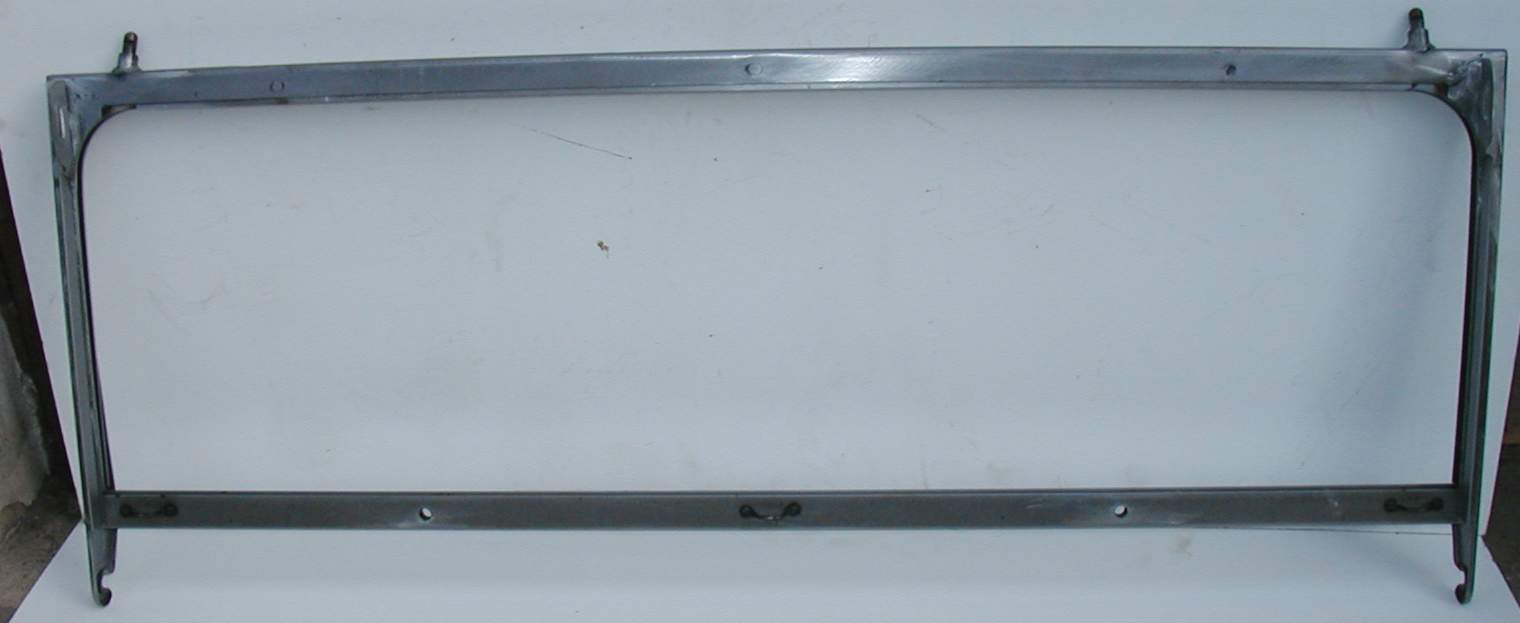

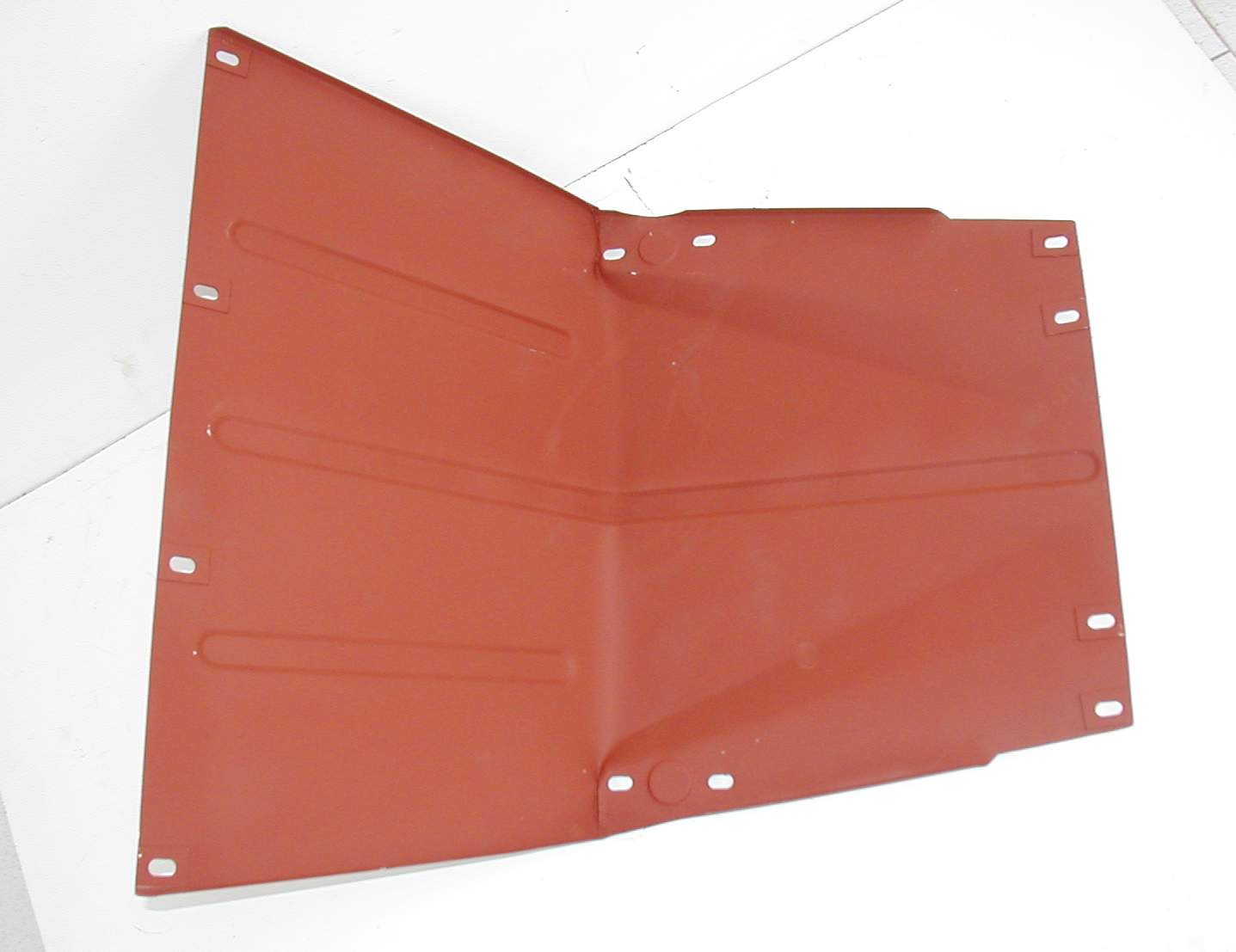

Cat. Nr. 240 241 242 243 244
item complete windscreen frame pillar to carry doors, left or right front skid plate rear skid plate, wide (later model) rear skid plate, early narrow model
Price 6 400 CZK 2 500 CZK 2 800 CZK 5 500 CZK 6 900 CZK

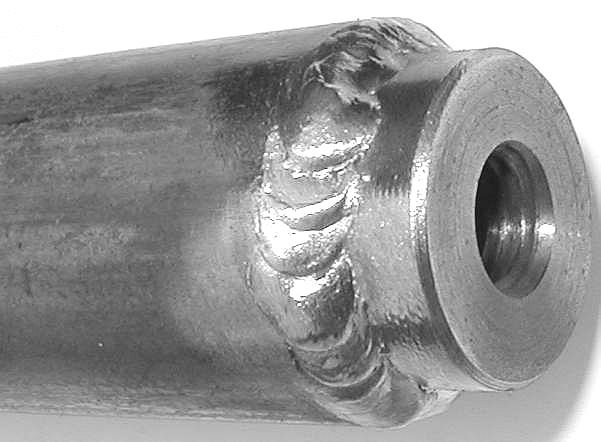

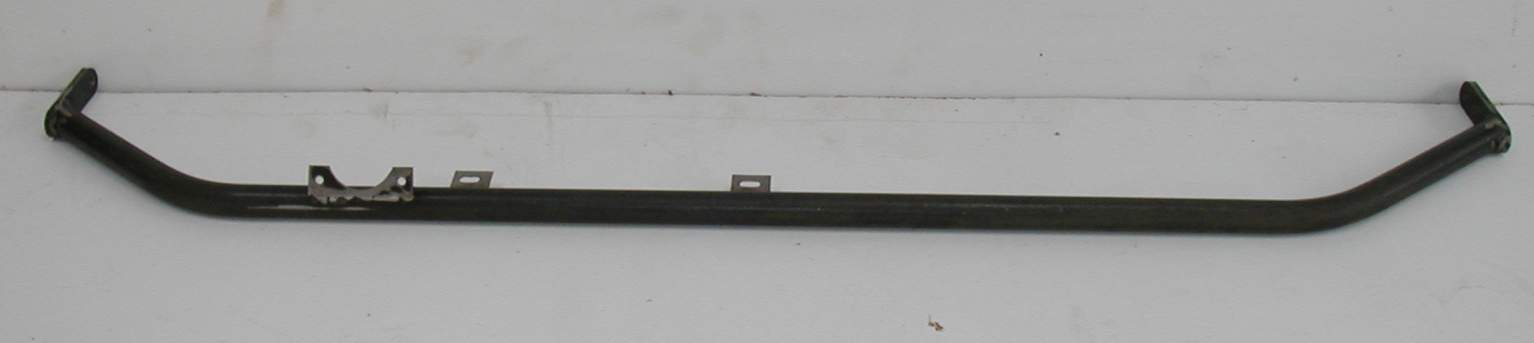

Cat. Nr. 245 246 247 248 249

item cross-bracing pipe, for doors pipe, between front tow-hooks pipe, between rear tow-hooks cross-bracing pipe, for steer. shaft and dash cross-bracing pipe, for doors, with top set of Mauser holders
Price 800 CZK 450 CZK 450 CZK 1 350 CZK 4 800 CZK

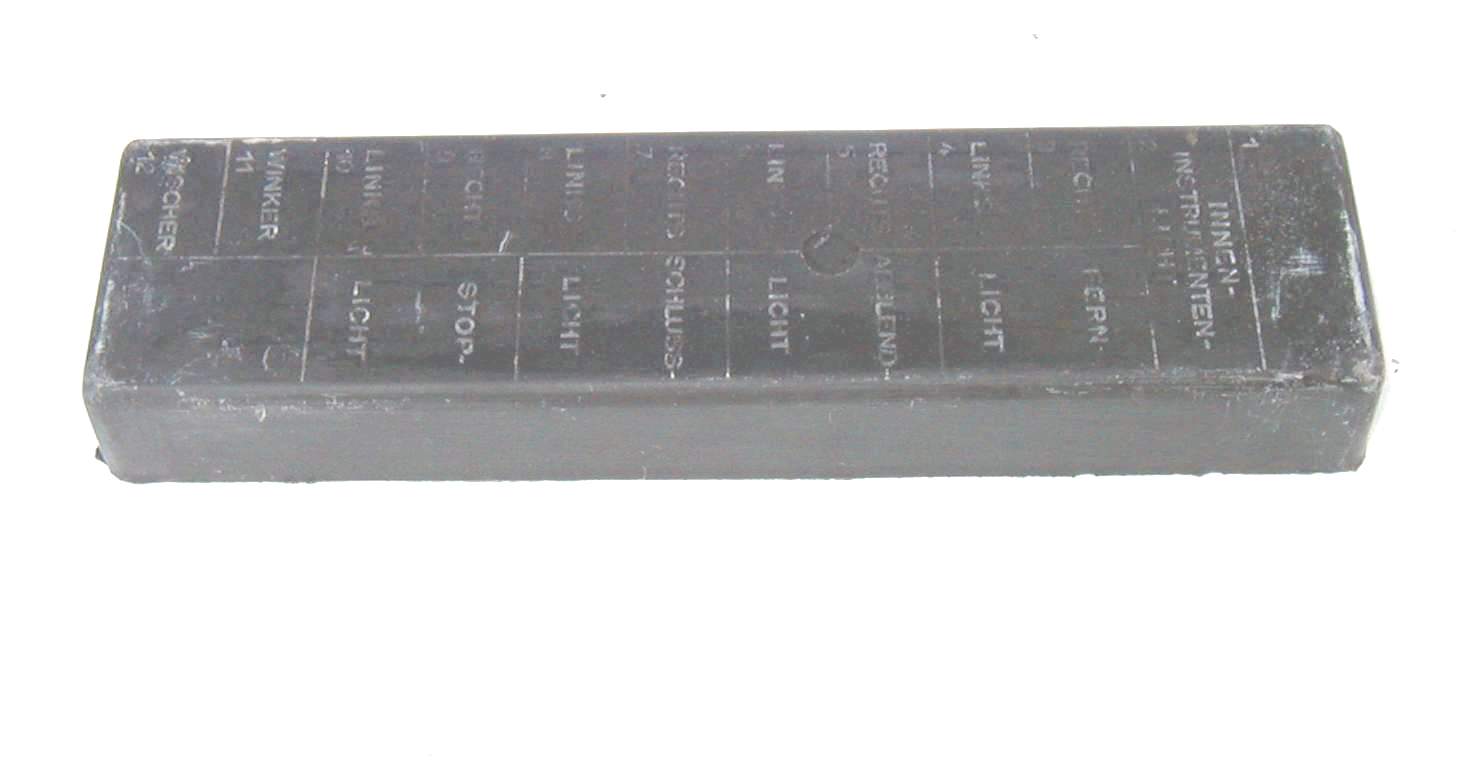

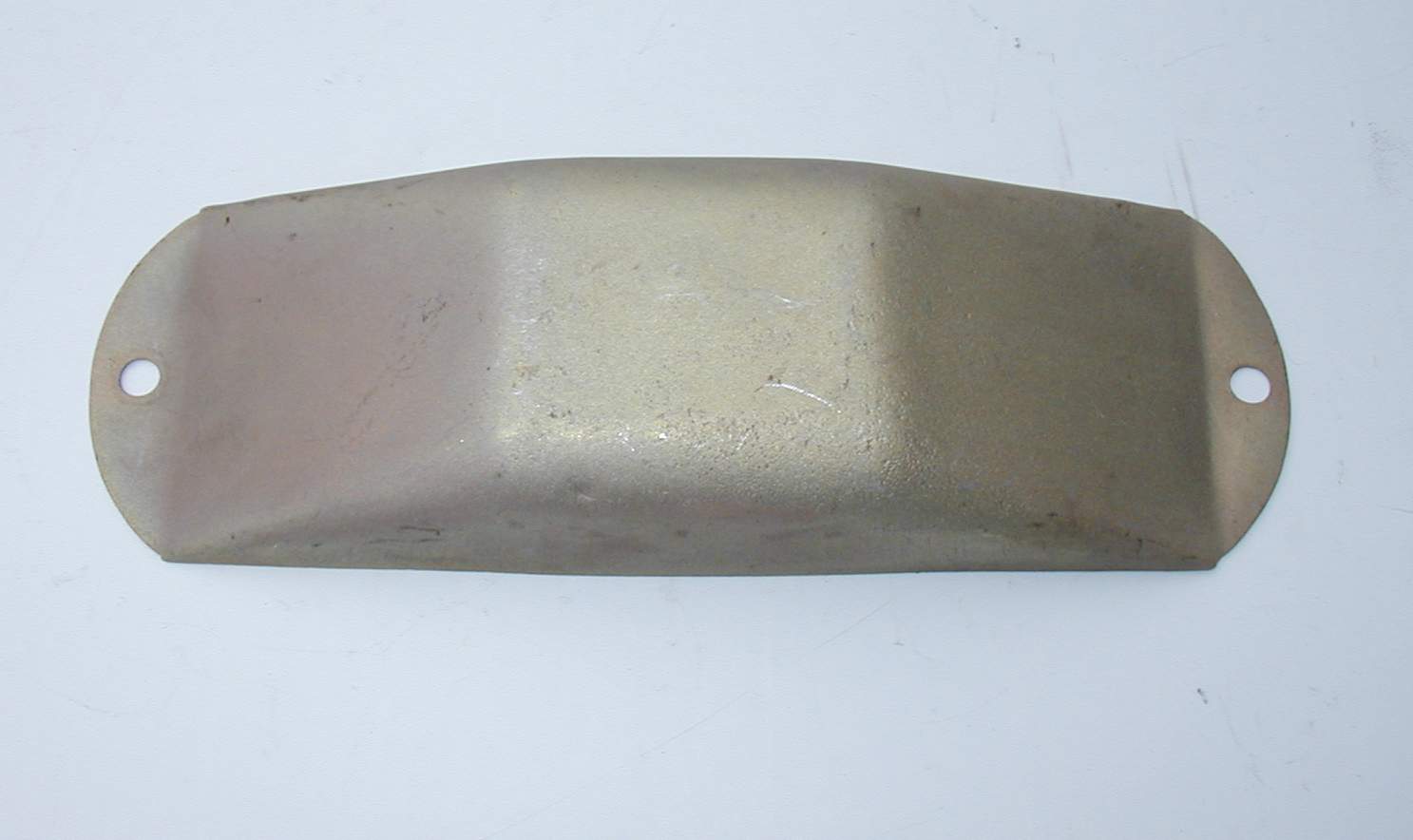

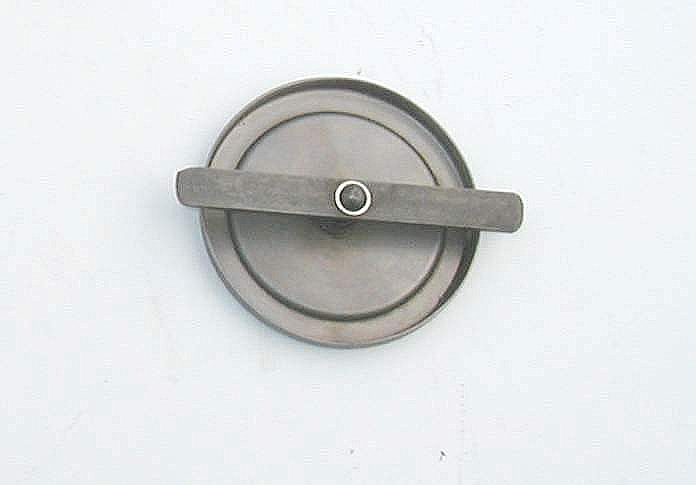

Cat. Nr. 250 251 252 253 254
item drain hole cover, floor cover for ign. coil access opening fuse block cover, rectangular dash cover for centre of rear cross-member cover for brake cables, front of frame
Price 320 CZK 450 CZK 1 100 CZK 500 CZK 500 CZK

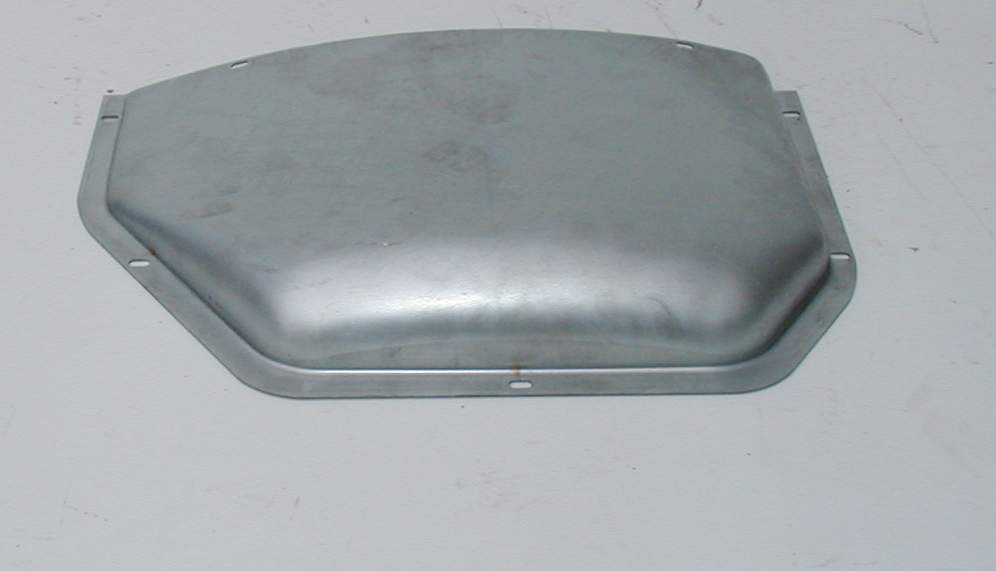

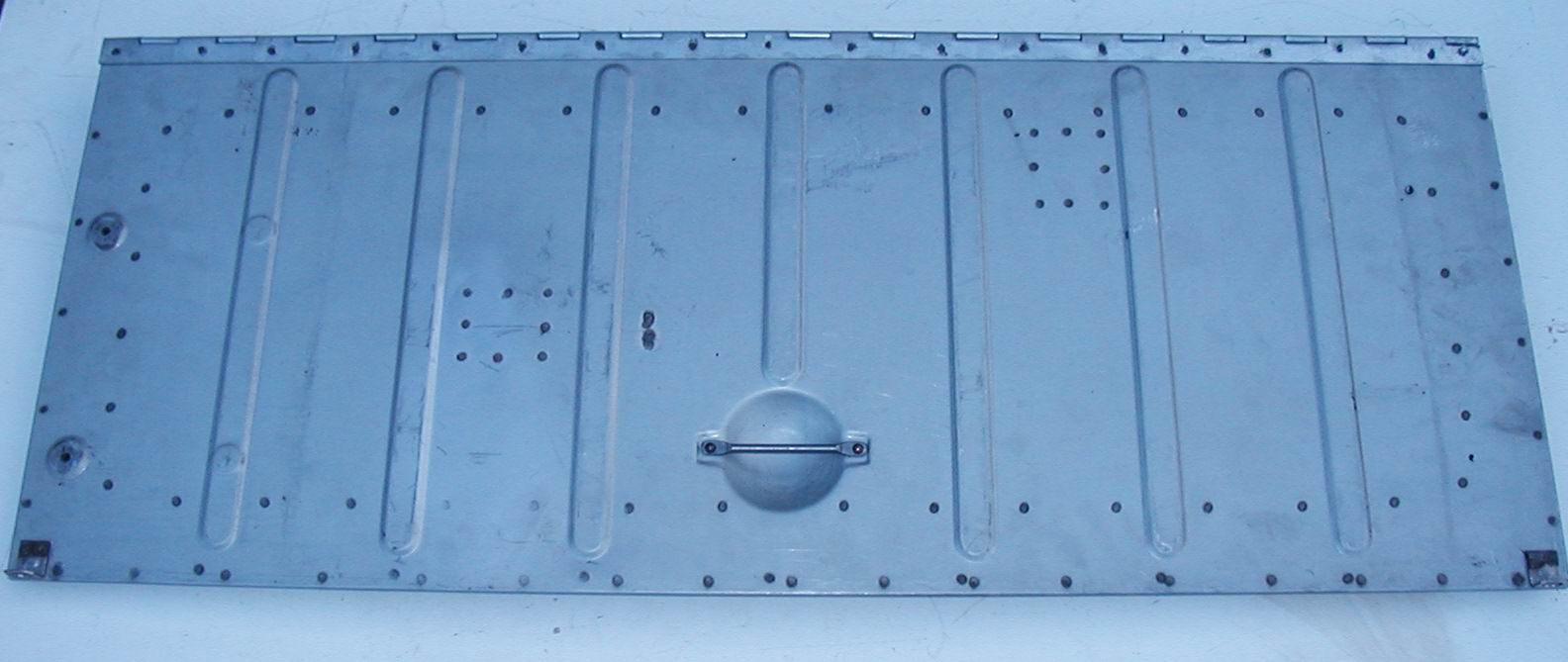

Cat. Nr. 255 256 256-A 257 258
item luggage lid engine lid, basic engine lid, basic, full length webbing cover, gearbox inspection opening running board, for front guard, left or right
Price 3 800 CZK 3 800 CZK 3 800 CZK 2 400 CZK 320 CZK

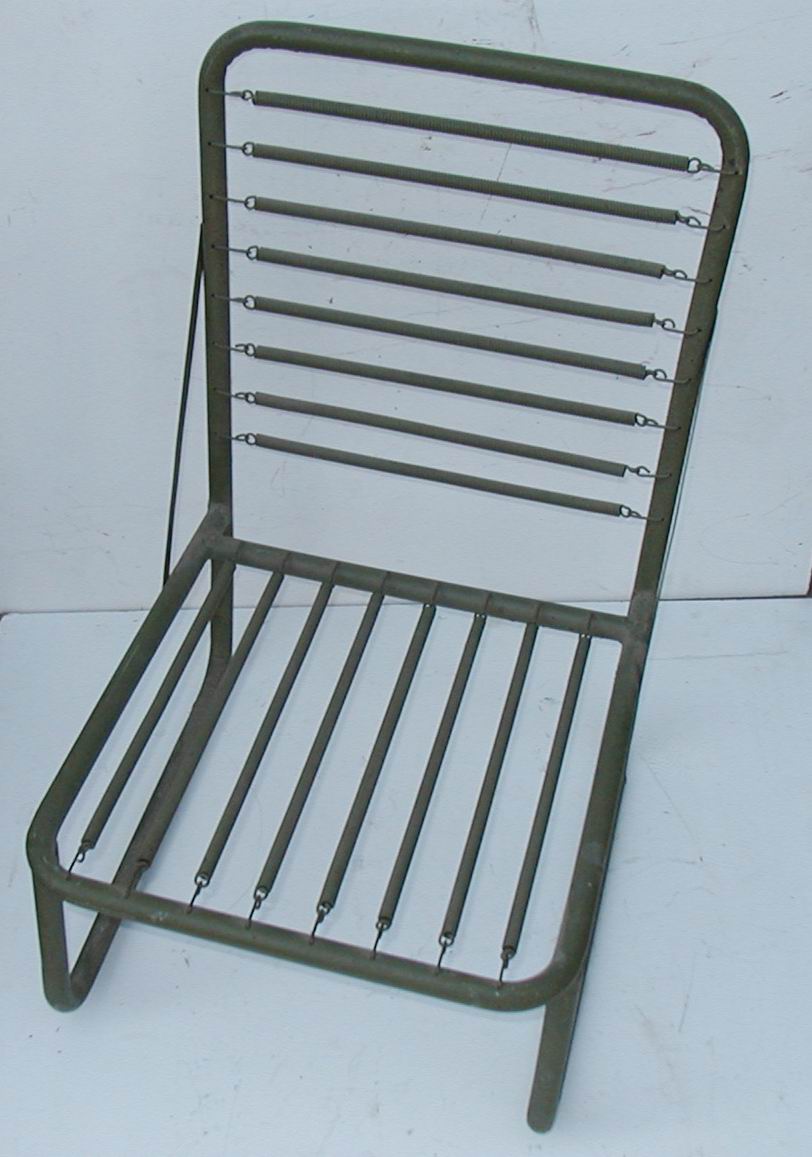

Cat. Nr. 259 260 261 262 263
item reinforcement for rear guard, left or right carrier, front guard, left or right front seat, incl. the springs back rest, rear seat rear seat, incl. the springs
Price 400 CZK 900 CZK 3 000 CZK 2 000 CZK 3 000 CZK

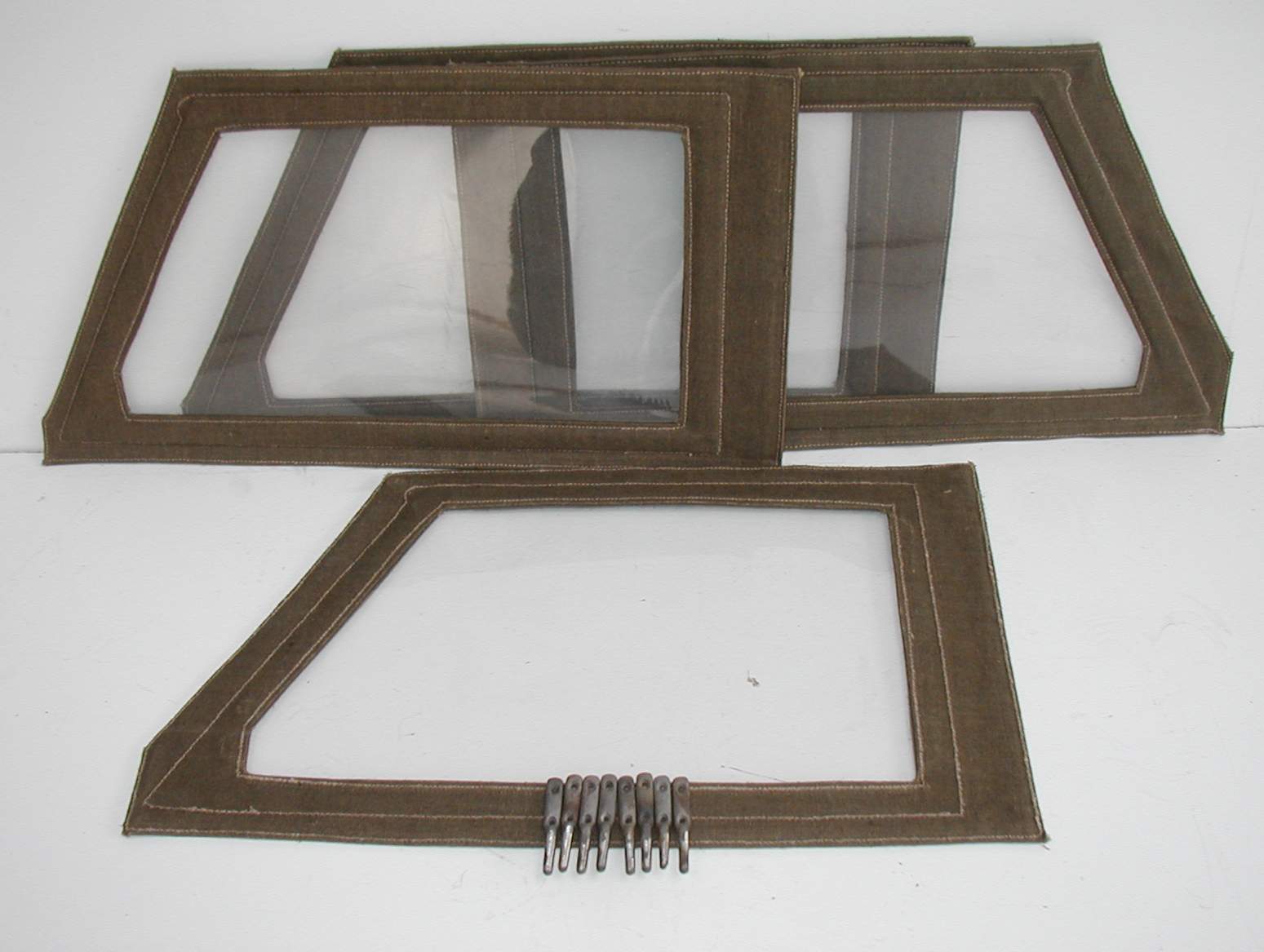

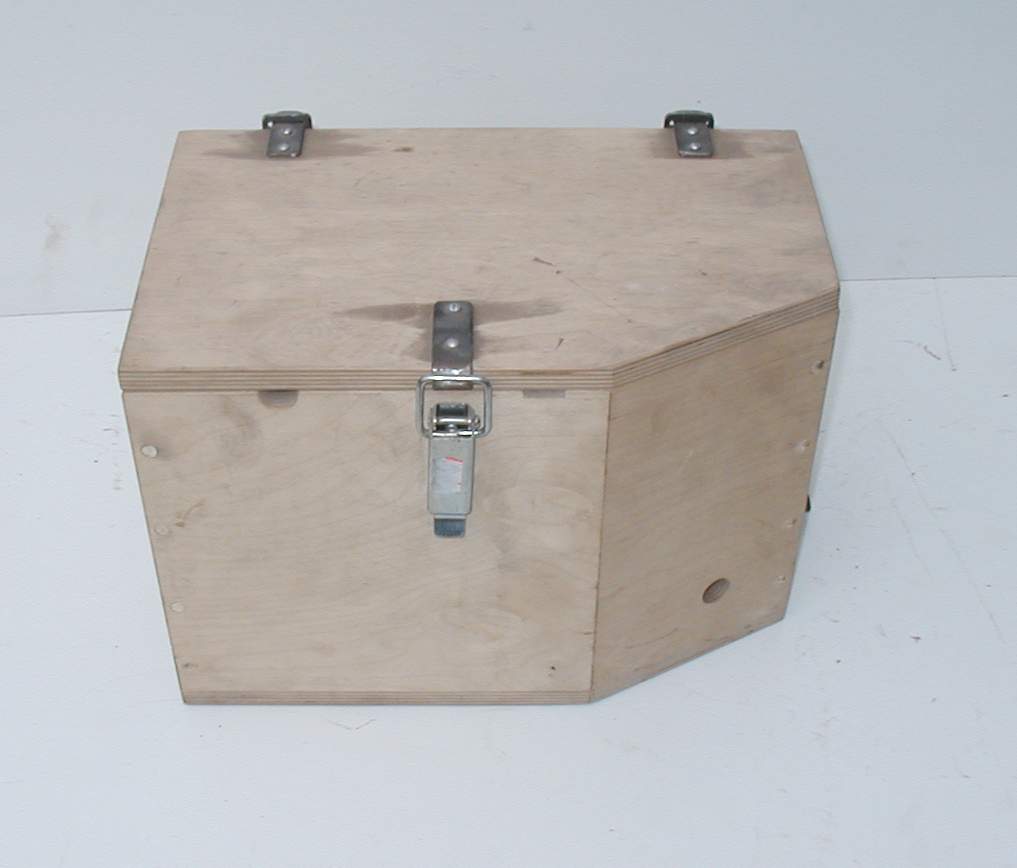

Cat. Nr. 263-A 301 302 303 304
item spring, for seats, per piece battery box, wood dust band for brake drums side windows, 'skeleton' frame only side windows, full set with rivets, pins etc.
Price 70 CZK / piece 2 500 CZK 400 CZK 500 CZK / piece 5 000 CZK / set

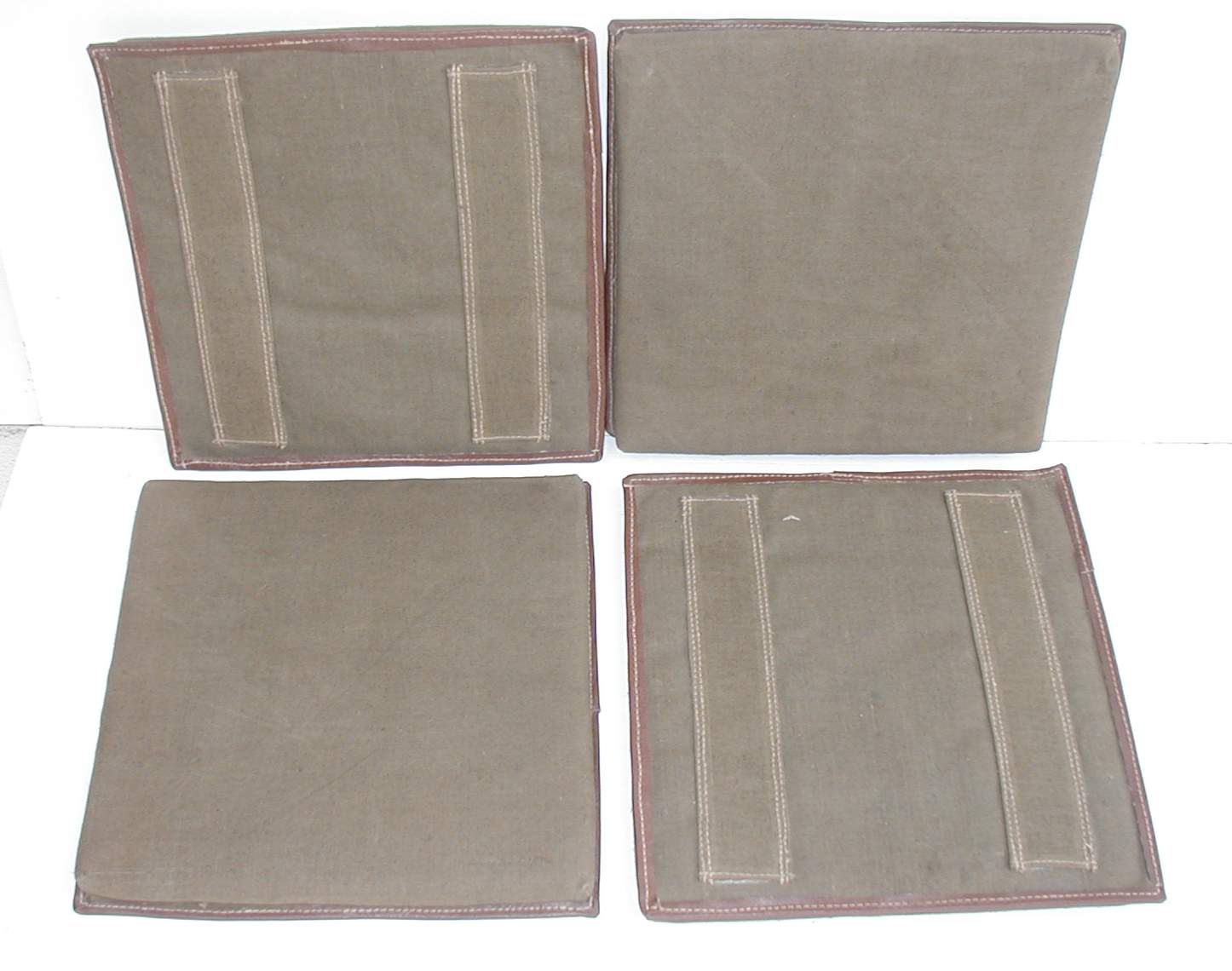

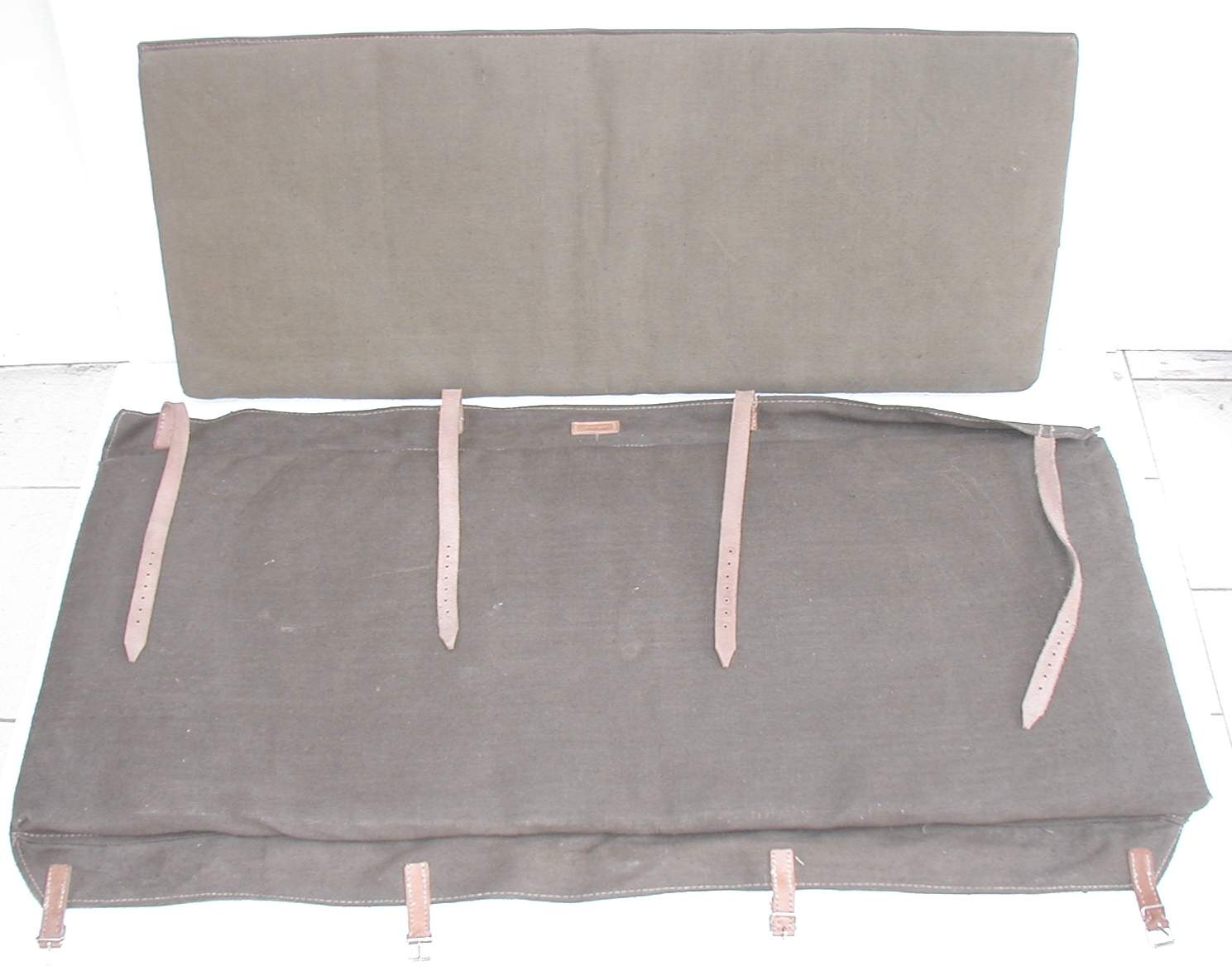

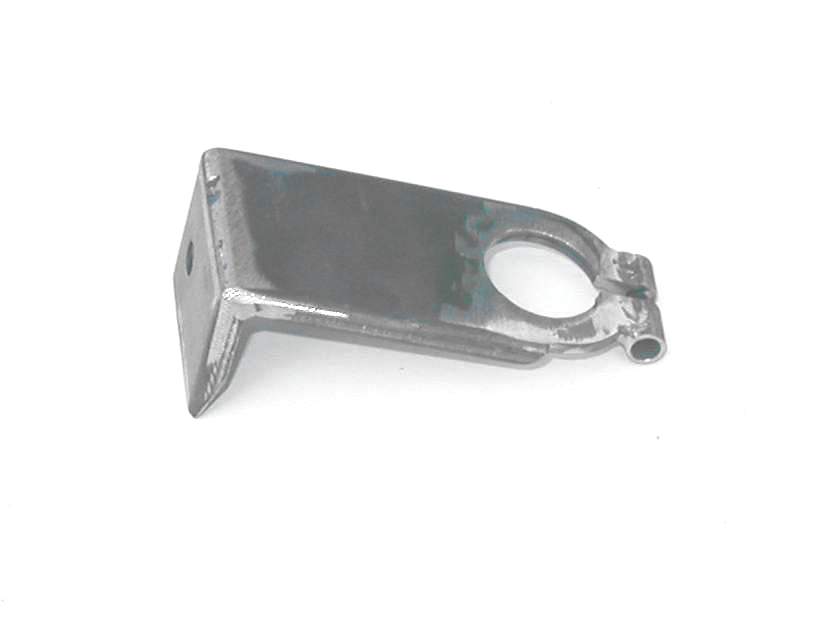

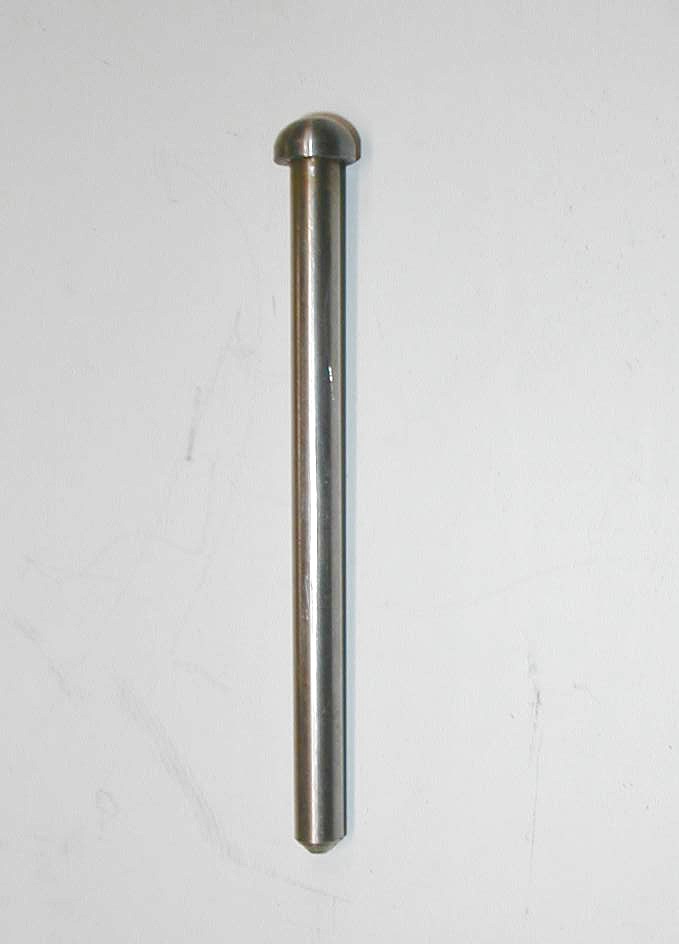

Cat. Nr. 305 306 307 308 309
item set of canvas seat upholstery pin, door hinges holder, cold start tank holder, oil-bath air-cleaner Mauser holder carrier, to weld on cross-bracing pipe
Price 7 500 CZK / set 50 CZK 1 700 CZK 550 CZK 600 CZK

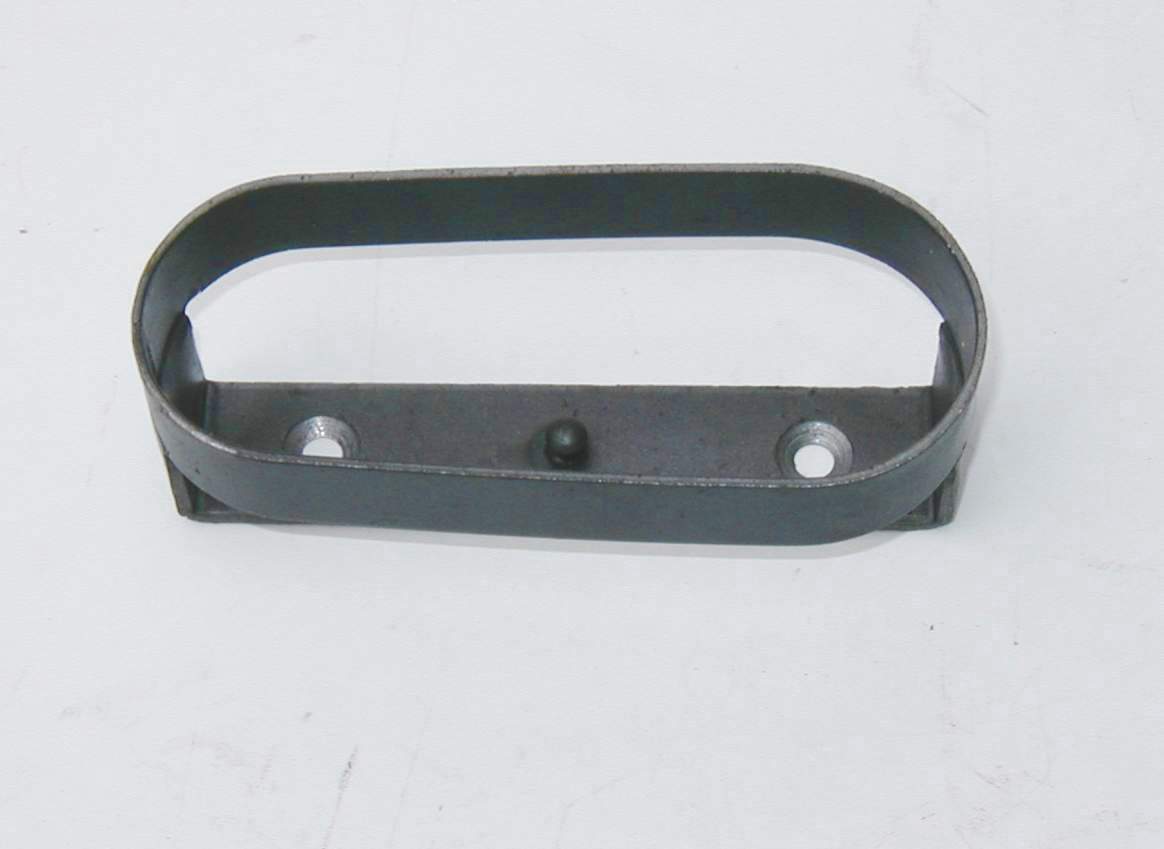

Cat. Nr. 310 311 312 313 314
item holder, Mauser rifle butt holder, for STOP hand signal wingnut, brass-cast, to hold down seats clamp, brass-cast, to hold down seats holder, front Notek, trimmed base

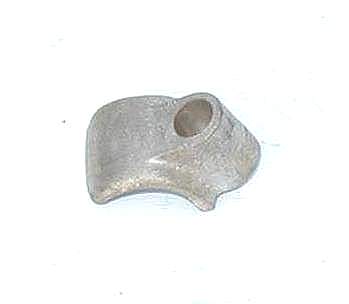

Price 300 CZK 460 CZK 200 CZK 200 CZK 1 600 CZK

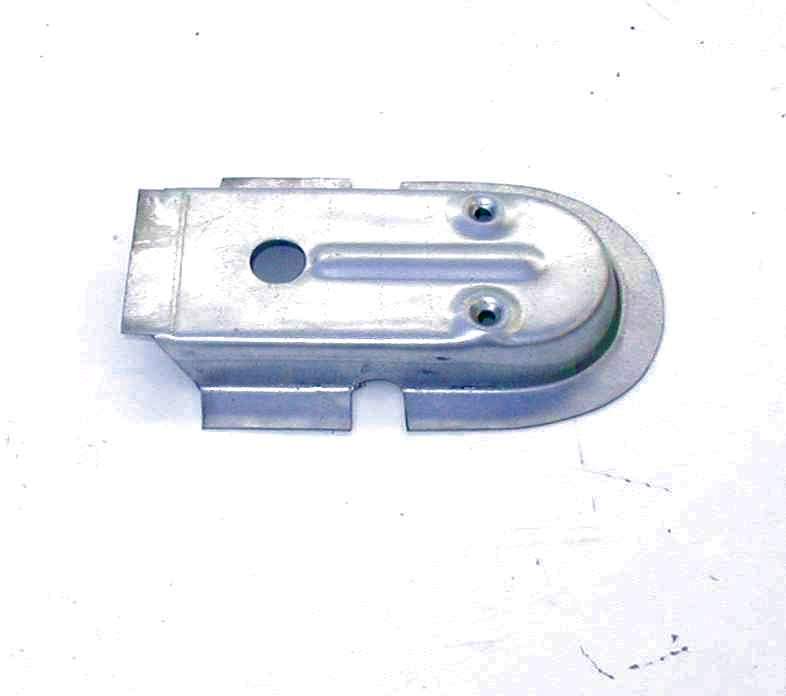

Cat. Nr. 315 316 317 318 319
item holder for MG, rear mounted cover for door lock venturi piece for 'Cyklon' air cleaner setup to exhaust air-filter, oil bath air filter, 'Cyklon' -Sahara application
Price 1 300 CZK 260 CZK 700 CZK 4 200 CZK 3 200 CZK

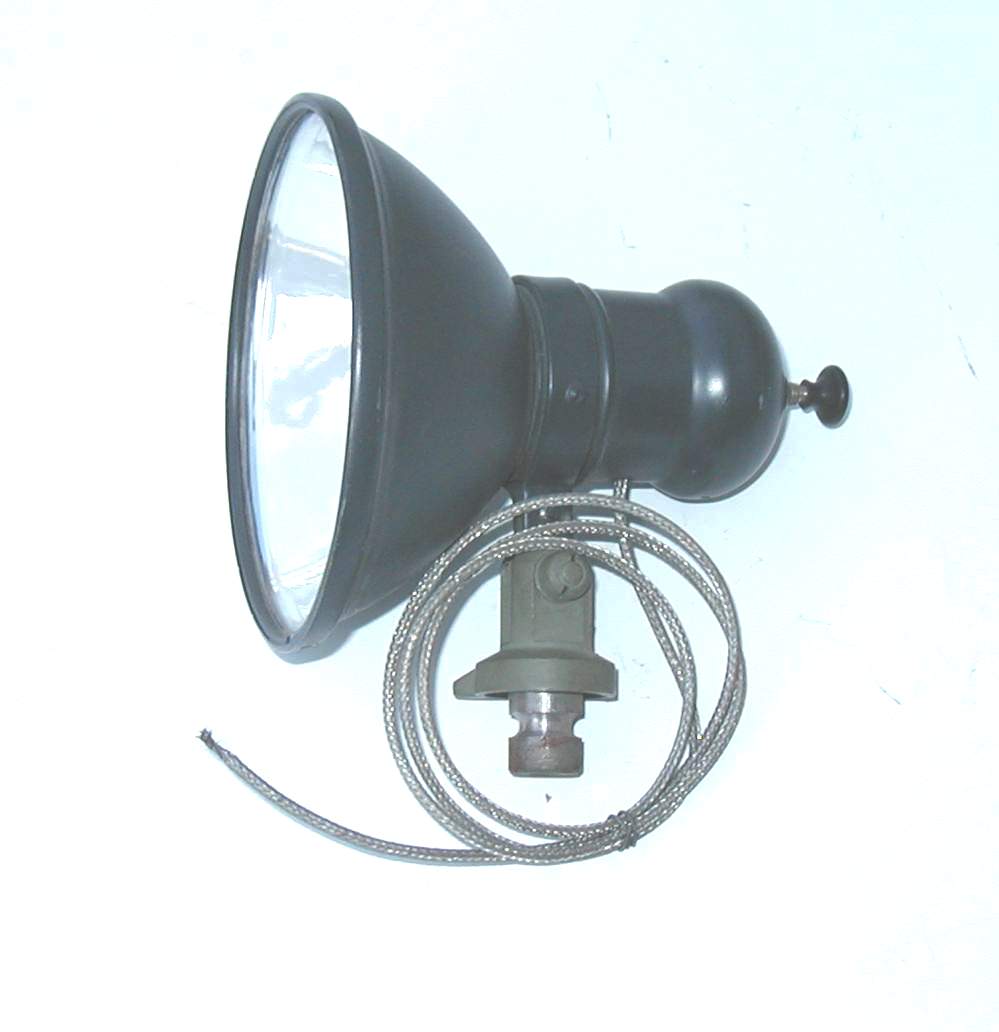

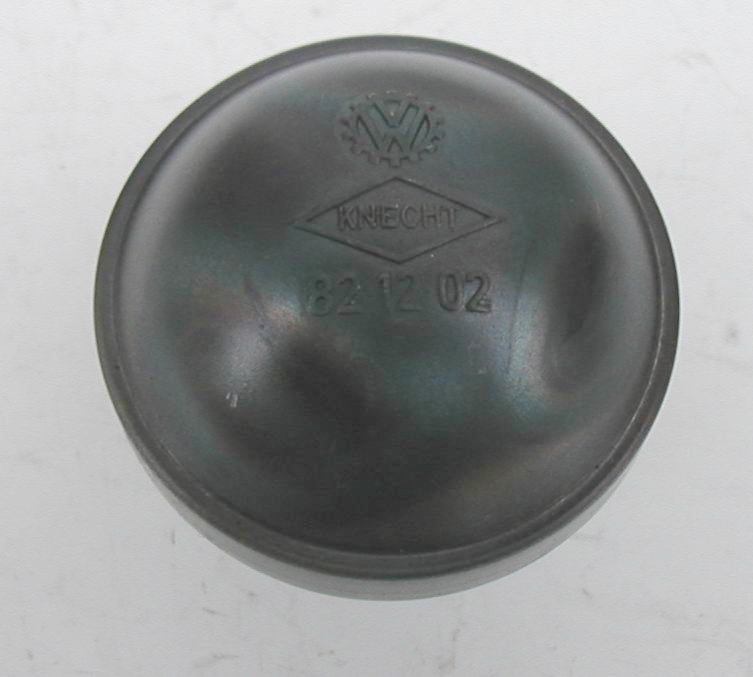

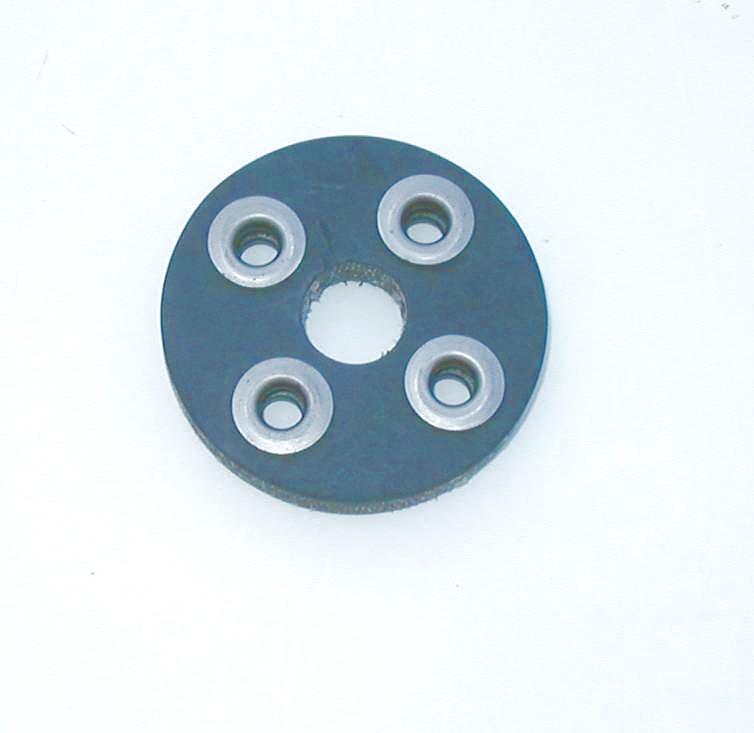

Cat. Nr. 320 321 322 323 324
item Mauser clamp, basic unit only flexible disc, steering shaft searchlight door handle, either inner or outer stopper, Knecht, (also is a crankcase breather)
Price 800 CZK 300 CZK 4 600 CZK 450 CZK / piece 1 300 CZK

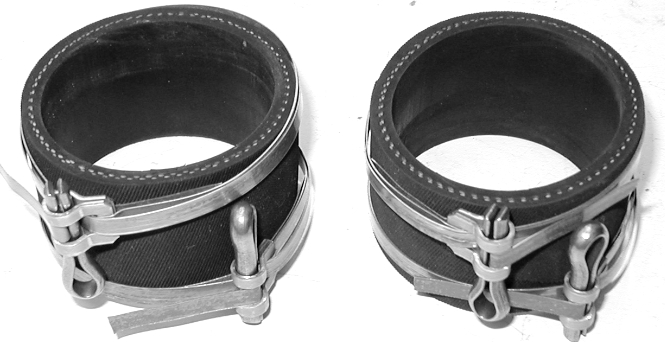

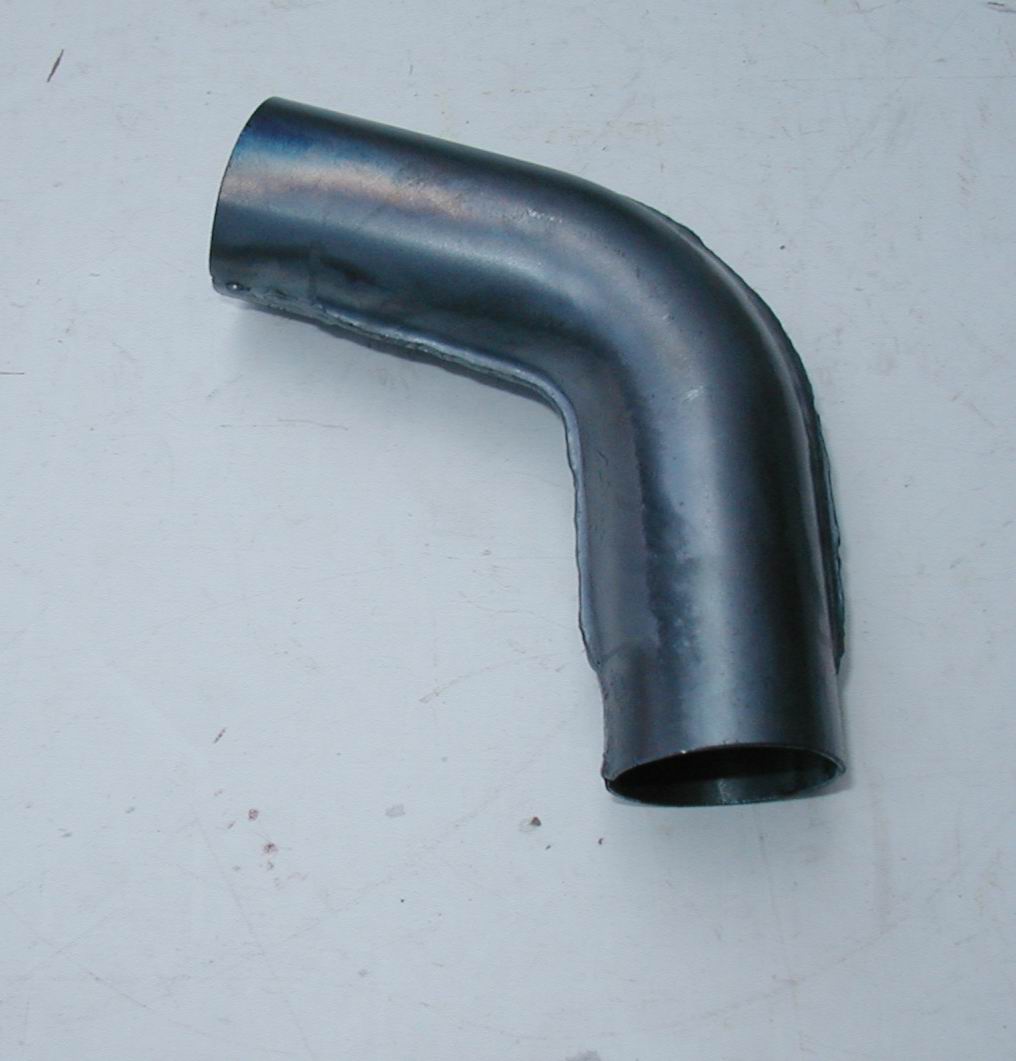

Cat. Nr. 325 326 326-A 326-B 326-C
item fuel tap, modified MZ inlet pipe, for oil bath air-cleaner inlet pipe, 34 mm diam. SET - 2 x hose + 4x clamp - for diameter 52 mm. SET - 2 x hose + 4x clamp - for diameter 34 mm.
Price 1 300 CZK 1 000 CZK 800 CZK 250 CZK 250 CZK

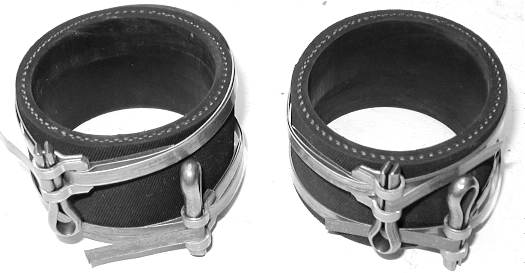

Cat. Nr. 327 327-A 327-B 327-C 327-D
item inlet bend, Sahara filter to carburetter, ill. 55 inlet bend, Sahara filter to body, ill. 59 bent pipe, Sahara filter to exhaust, ill. 62 SET - 2 x hose + 4x clamp - for diameter 45 mm. SET - 2 x hose + 4x clamp - for diameter 18 mm.
Price 1 000 CZK 800 CZK 180 CZK 250 CZK 250 CZK

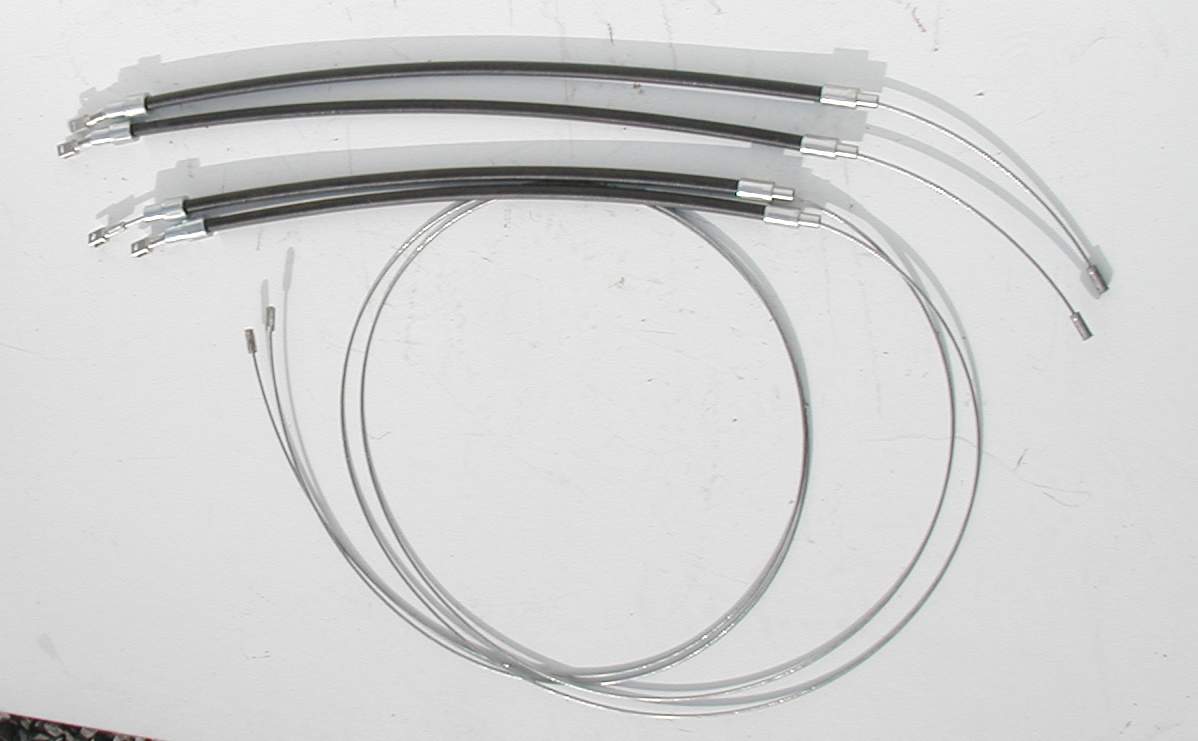

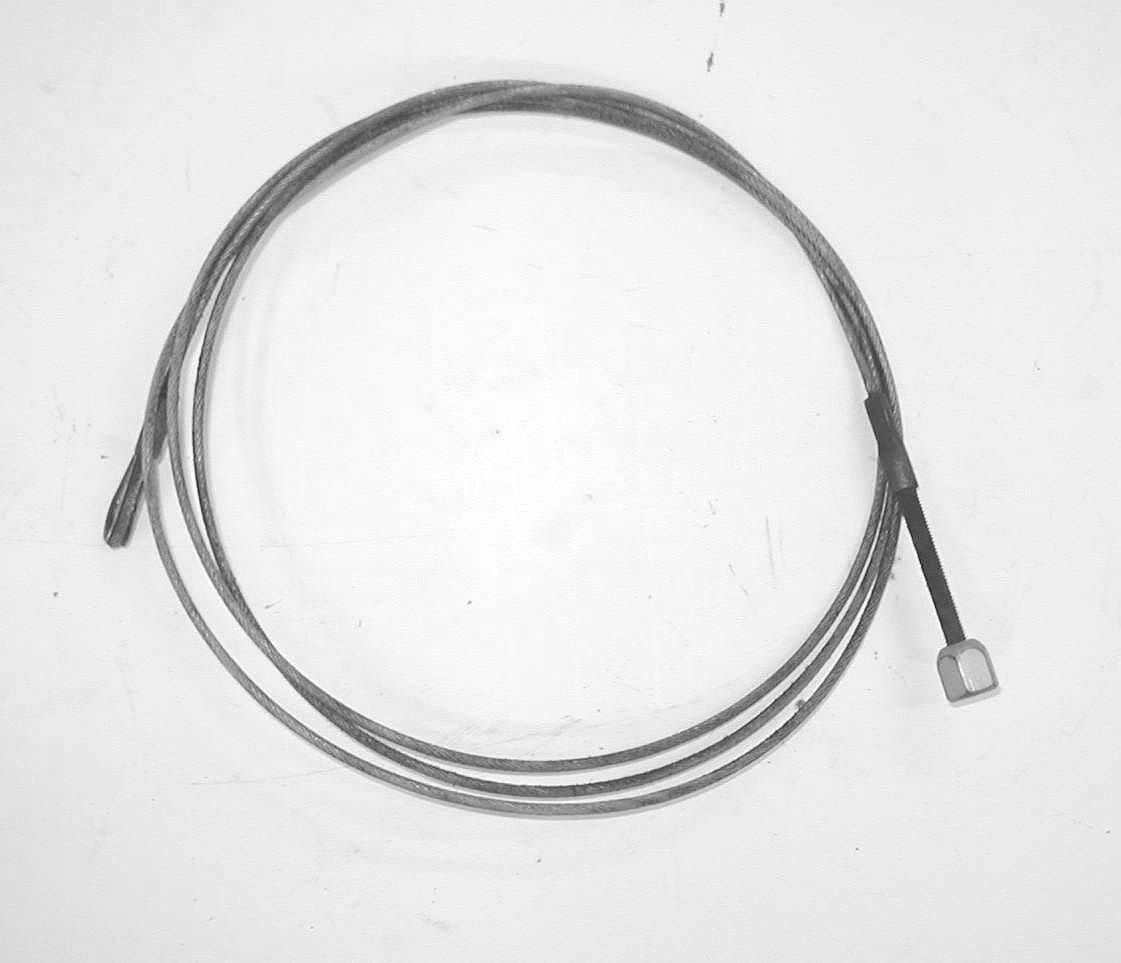

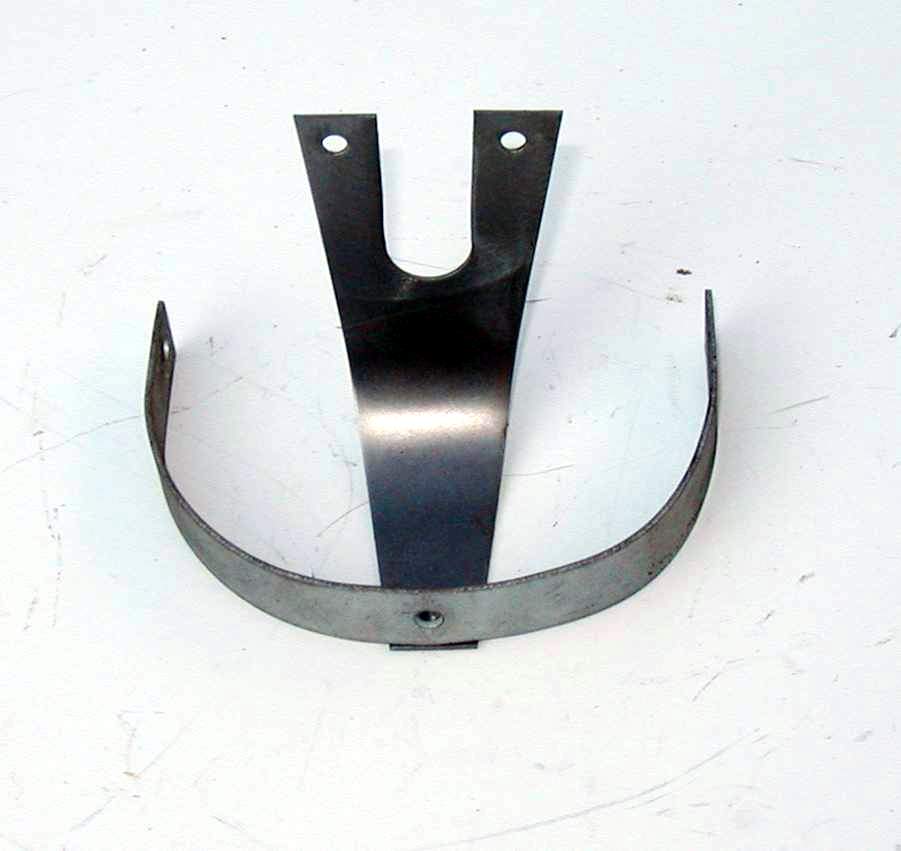

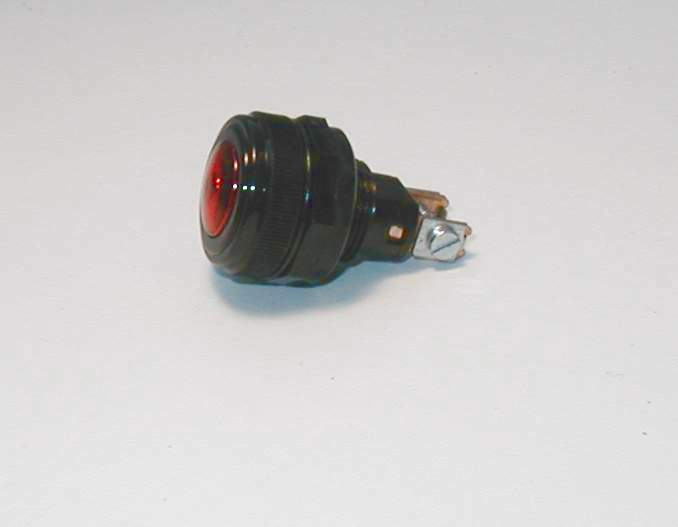

Cat. Nr. 328 329 330 331 332
item Hella tell-tale light for dash, (red or green) fitting for crank-handle insertion, rear of vehicle guard for fuel tap, two part set clutch cable brake cables, 4-piece set
Price 350 CZK 120 CZK 320 CZK 500 CZK 3 600 CZK / set

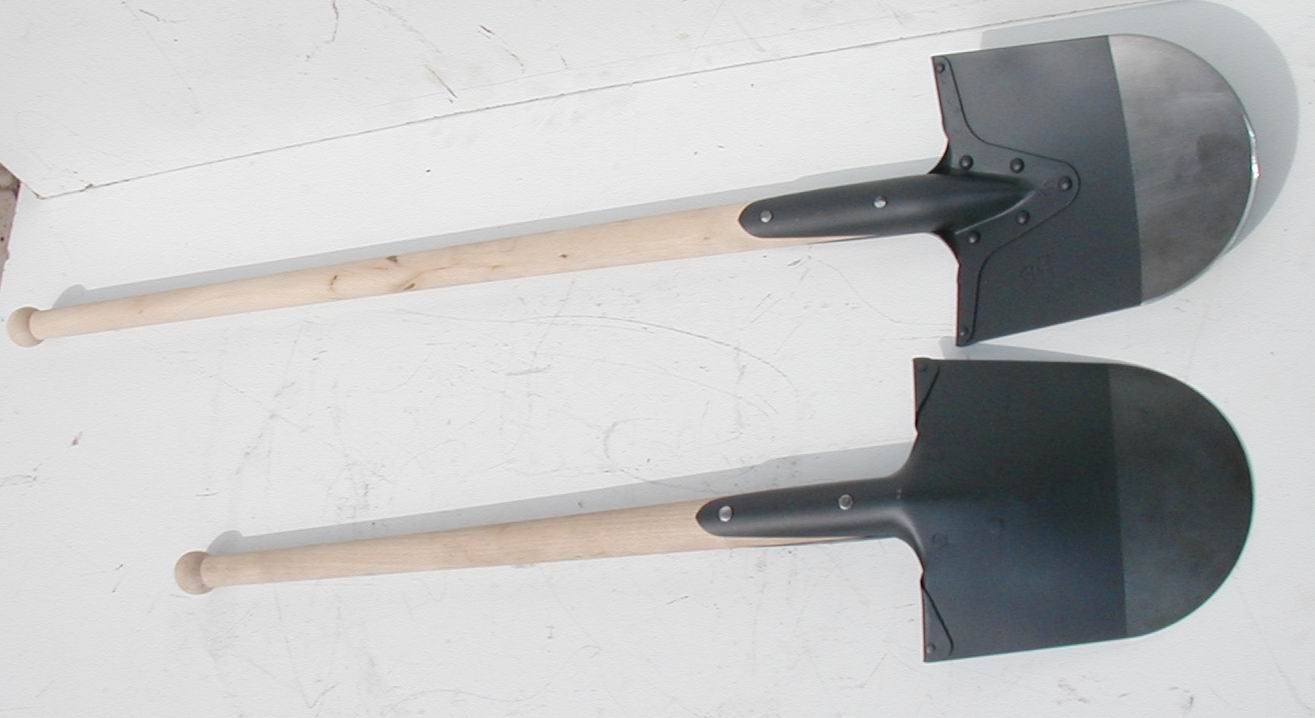

Cat. Nr. 333 334 335 336 337

item Wosnitz shovel with handle

(short handle - 850mm

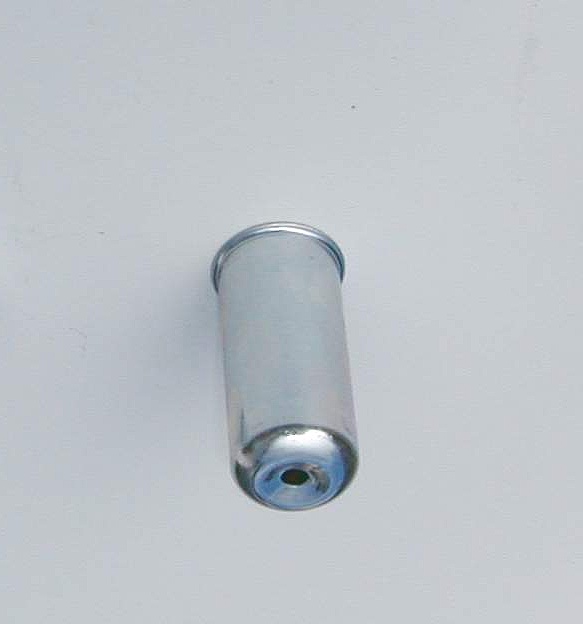

long handle - 1100mm)

 bowl, aux. fuel filter fuel tap filter bowl speedometer cable, through stub axle speedometer cable, for orig. setup
Price 1 600 CZK 480 CZK 480 CZK 450 CZK 650 CZK

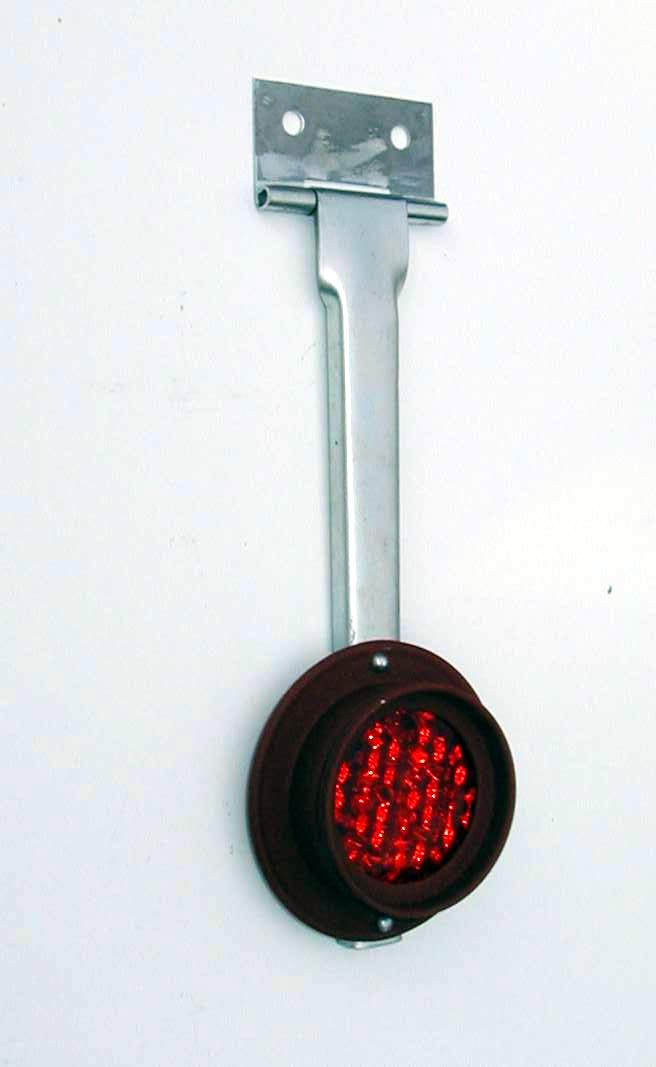

Cat. Nr. 338 339 340 341 342
item shovel handle, ball end, long - 1100mm or short - 850mm swinging cat-eye Panzerfaust, dummy long hinge for lids accellerator pedal and roller
Price 450 CZK 900 CZK 2 600 CZK 200 CZK 600 CZK

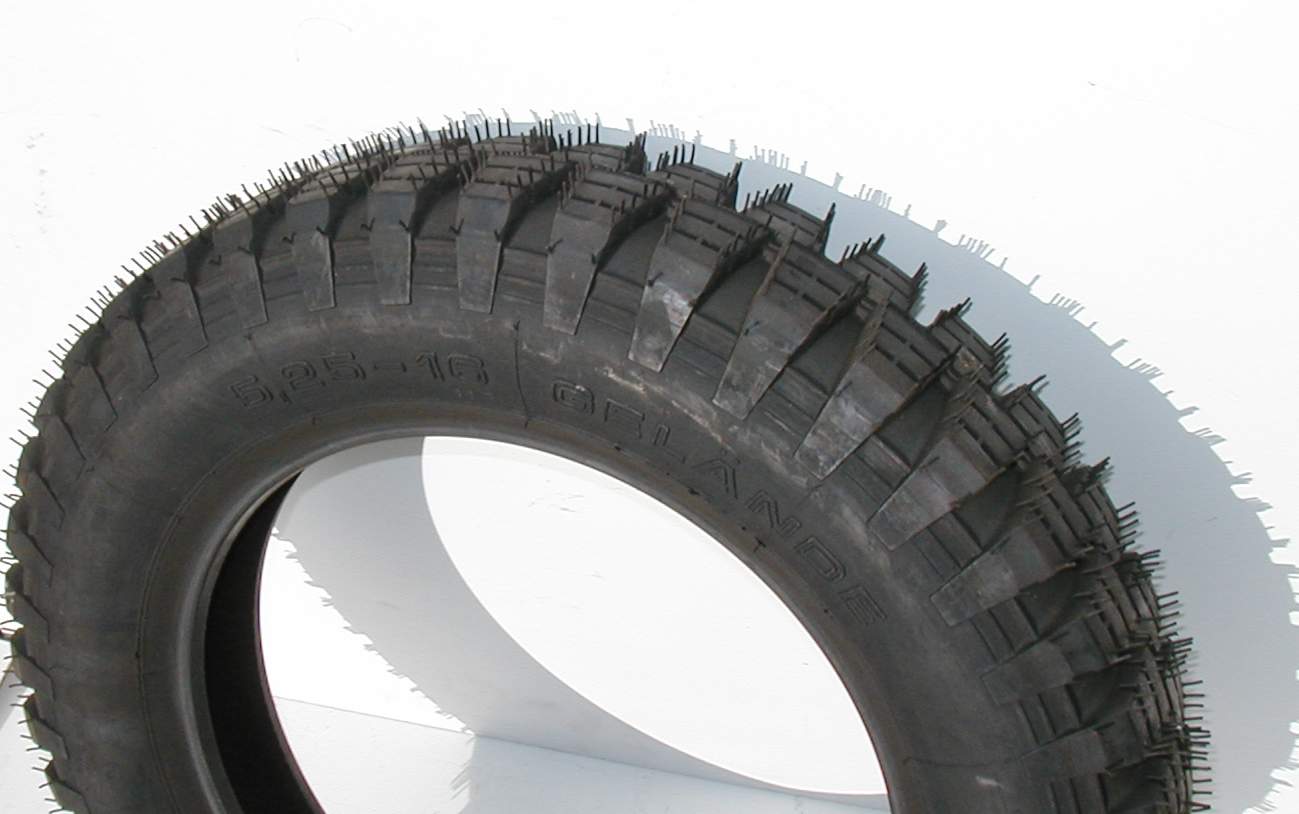

Cat. Nr. 343 344 345 346 347
item pneu Wesa - 5,25 x 16 floor mats, wood, 2-piece set washer for floor-to-body bolts KdF logo hubcap - welded from two parts crank handle, long, suit later model with 'step' in bumper

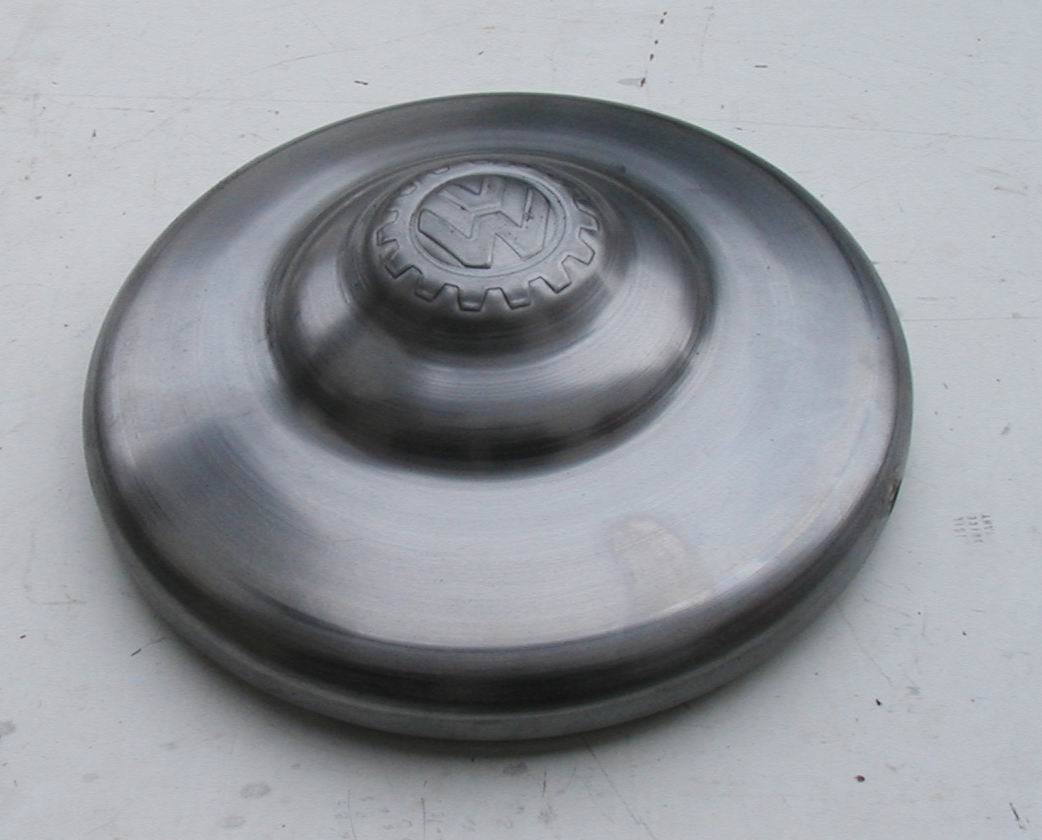

Price 2 200 CZK 3 600 CZK / set 50 CZK 1 000 CZK 900 CZK

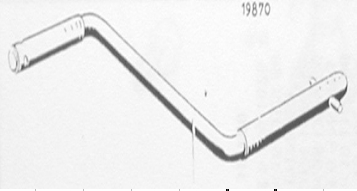

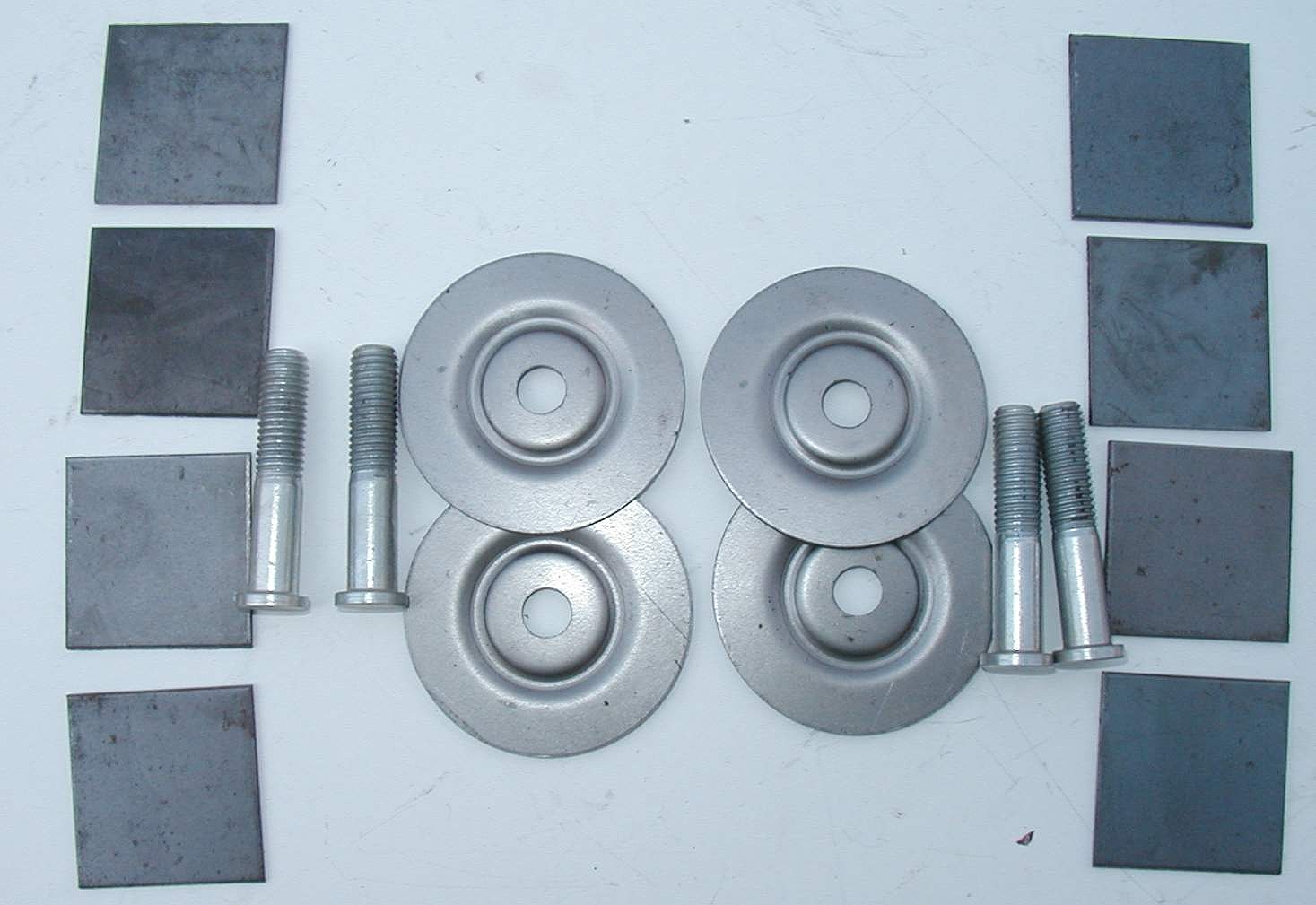

Cat. Nr. 348 349 350 351 352
item crank handle, short Mauser holder set, upper assembly, 5-piece Mauser holder set, whole, 9-piece tie rod end repair set, 3-part, see ill. 55, 56, 57 seat hold-down set, excluding clamps or wing-nuts
Price 900 CZK 3 600 CZK / set 4 800 CZK / set 450 CZK / set 450 CZK/ set

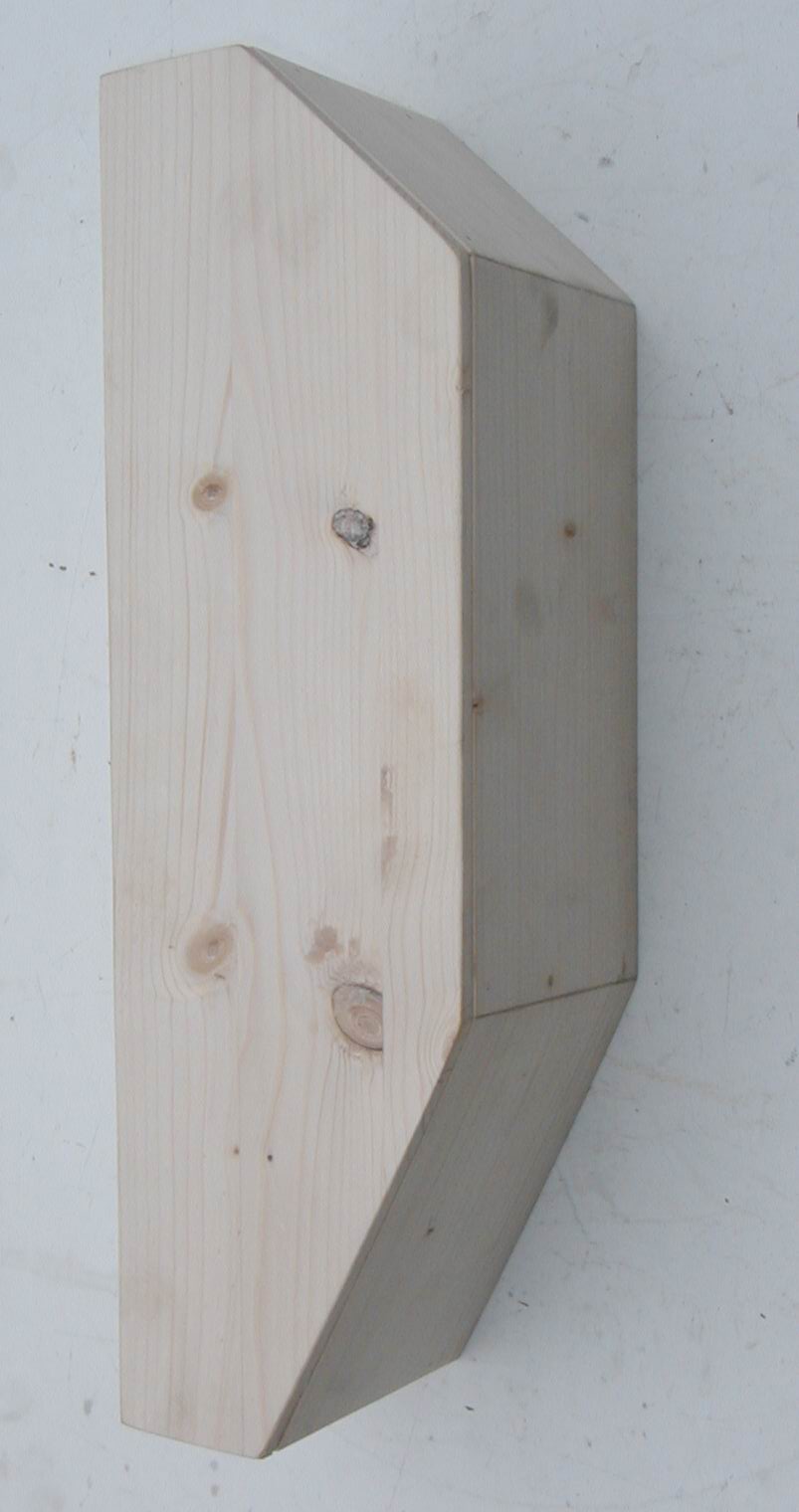

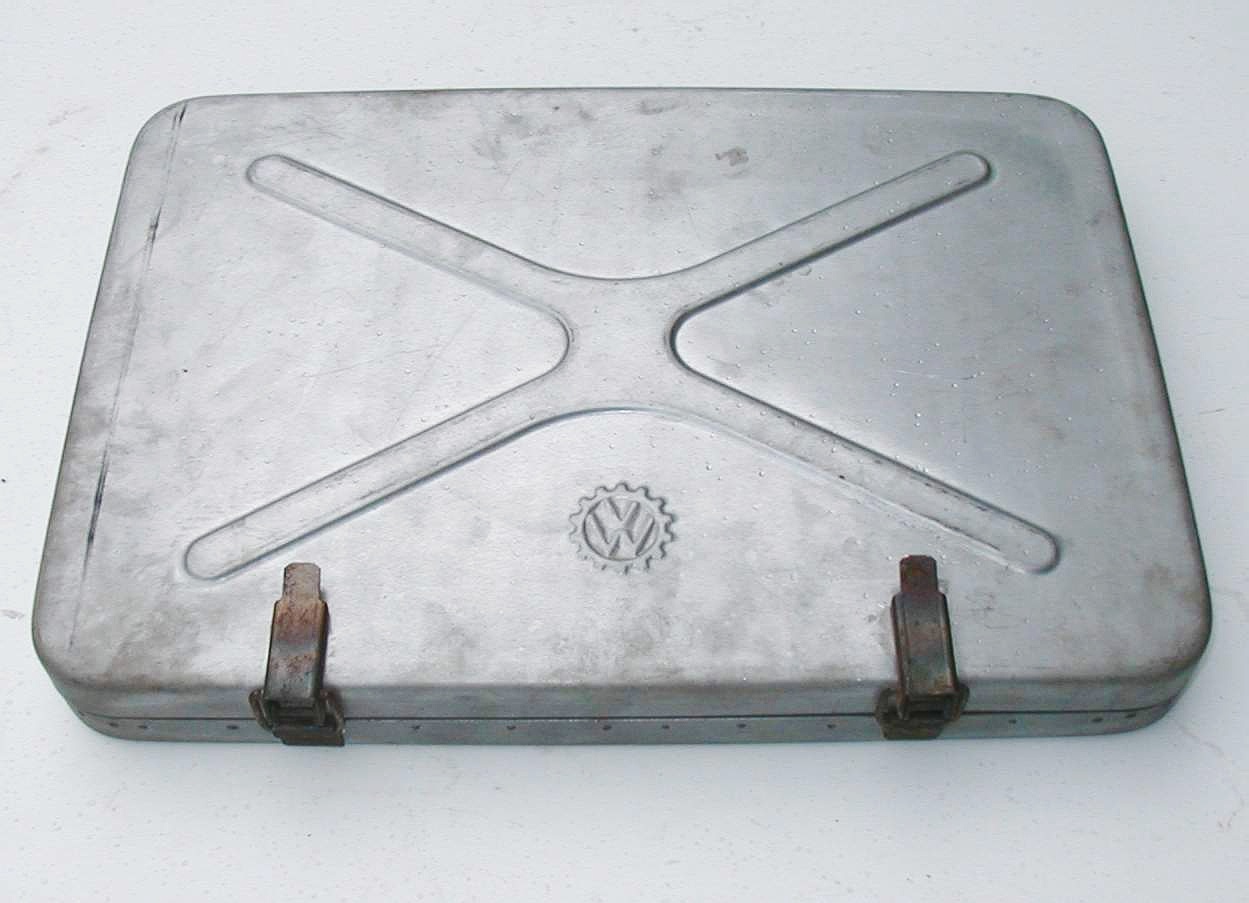

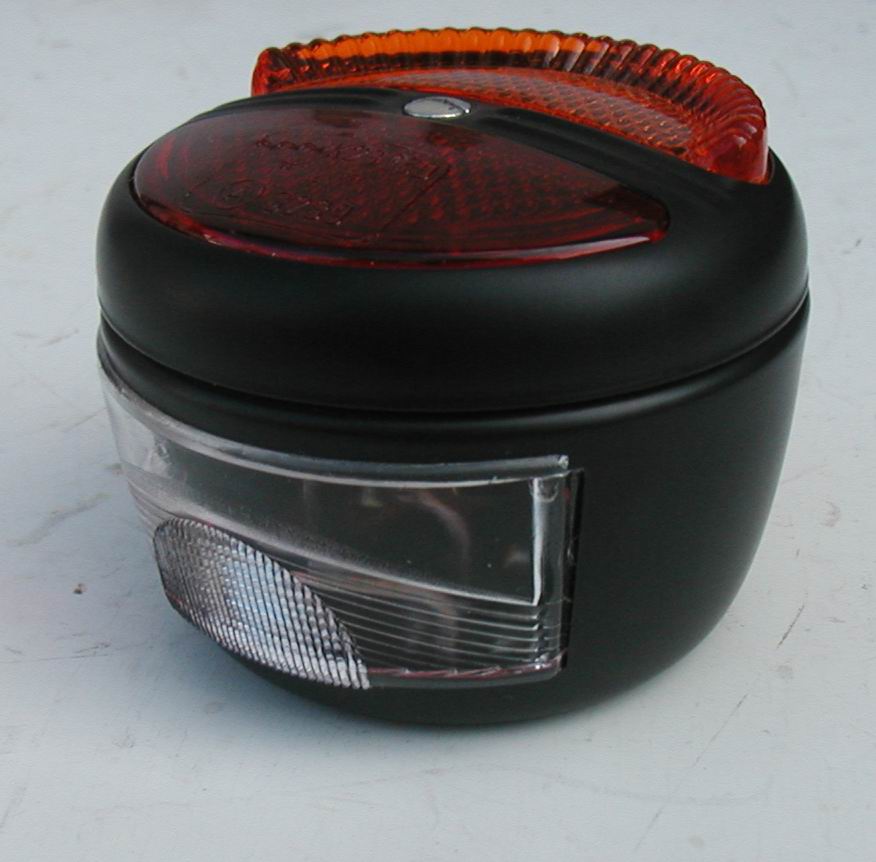

Cat. Nr. 353 354 355 356-A 356-B
photo BLANK


item - toolbox, wooden, later model toolbox, metal, early model tail light Hella tail light Hella, with numberplate bulb
Price - 2 500 CZK 3 800 CZK 1 100 CZK 1 100 CZK

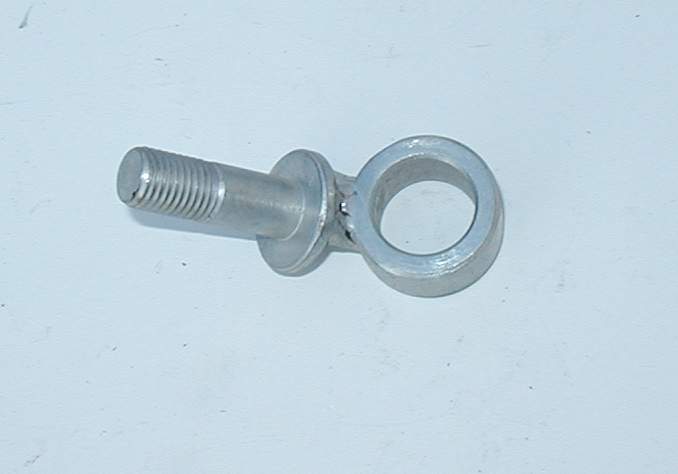

Cat. Nr. 357 358 359 360 361

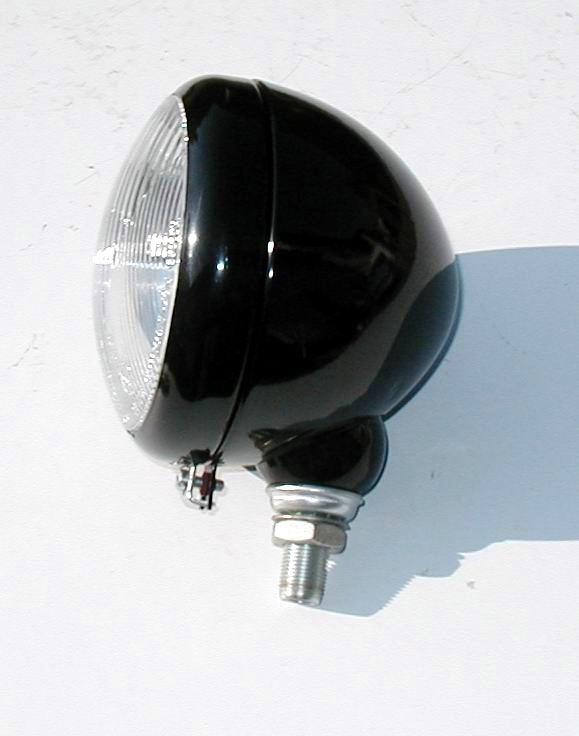

item front headlight Hella

(diameter 130 mm)

 angled bolt for rear shock-absorber bolt and stiffened washer, for seats speedometer, Veigel, 60 mm diam., suit rectangular dash heat exchanger, exhaust, left or right
Price not available 400 CZK 80 CZK 3 800 CZK 2 200 CZK

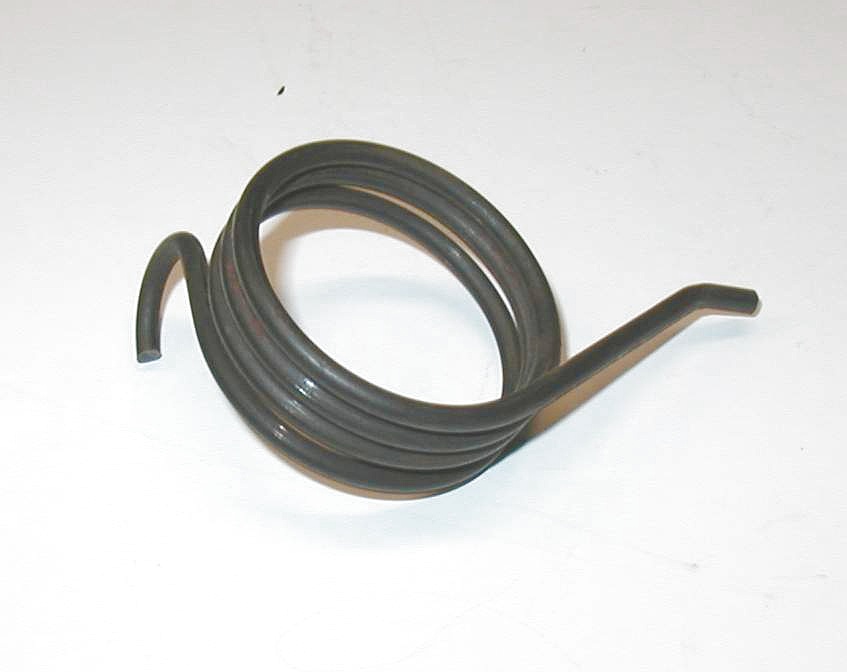

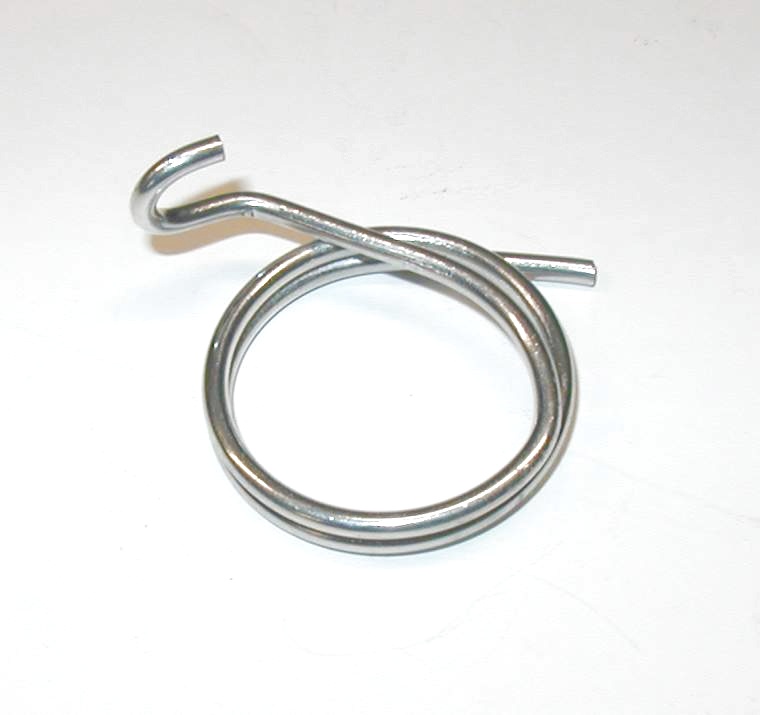

Cat. Nr. 362 363 364 365 366
item brake pedal return spring, see ill. 35 clutch lever return spring, see ill. 27 heating outlet to battery box exhaust set, no heating exhaust set, no heating, suit Cyklon cleaner
Price 250 CZK 250 CZK 250 CZK 8 000 CZK / set 8 500 CZK / set

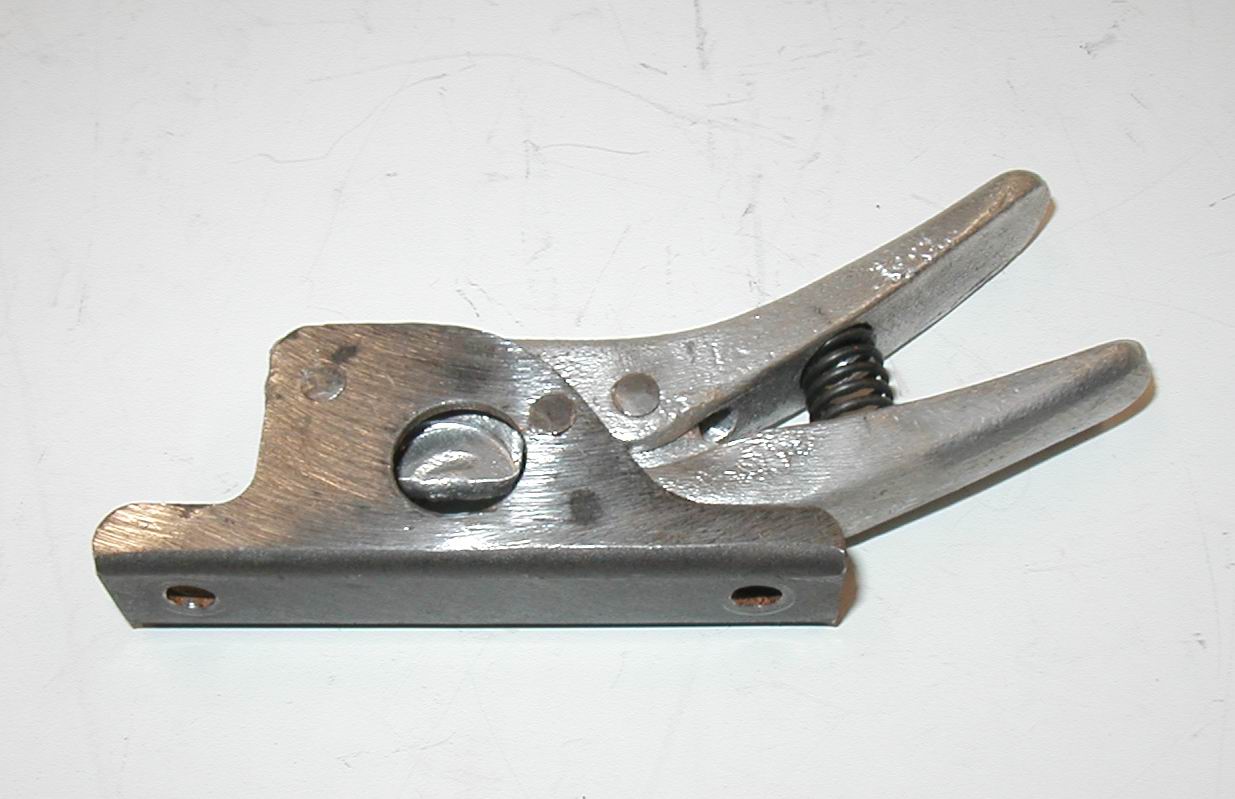

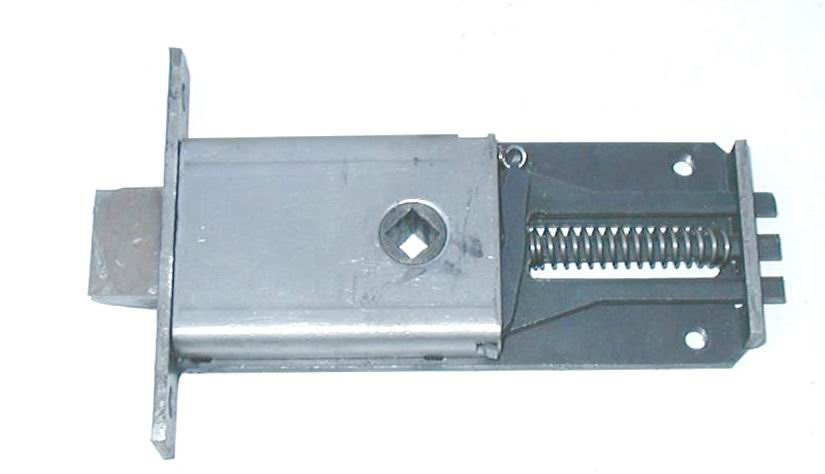

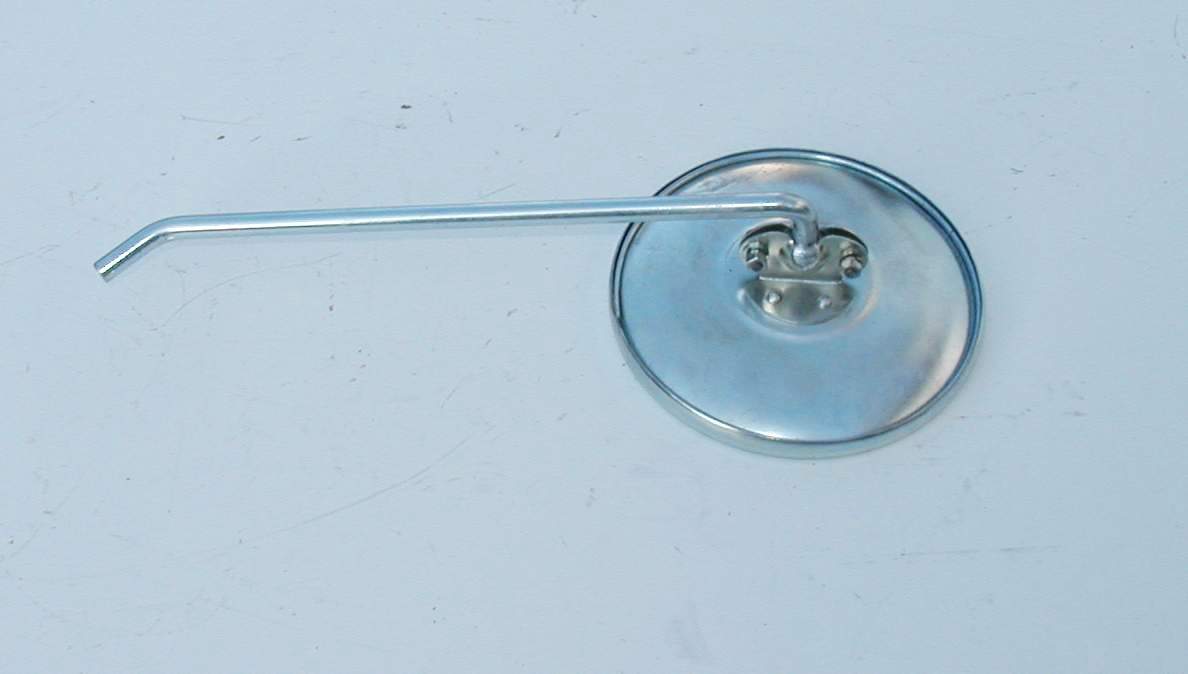

Cat. Nr. 367 368 369 370 371
item reinforcement, underside of floorpan lid prop door lock clip catch, hoodbows-to-windscreen mirror incl. mirror arm
Price 160 CZK 300 CZK 1 200 CZK 1 200 CZK 900 CZK

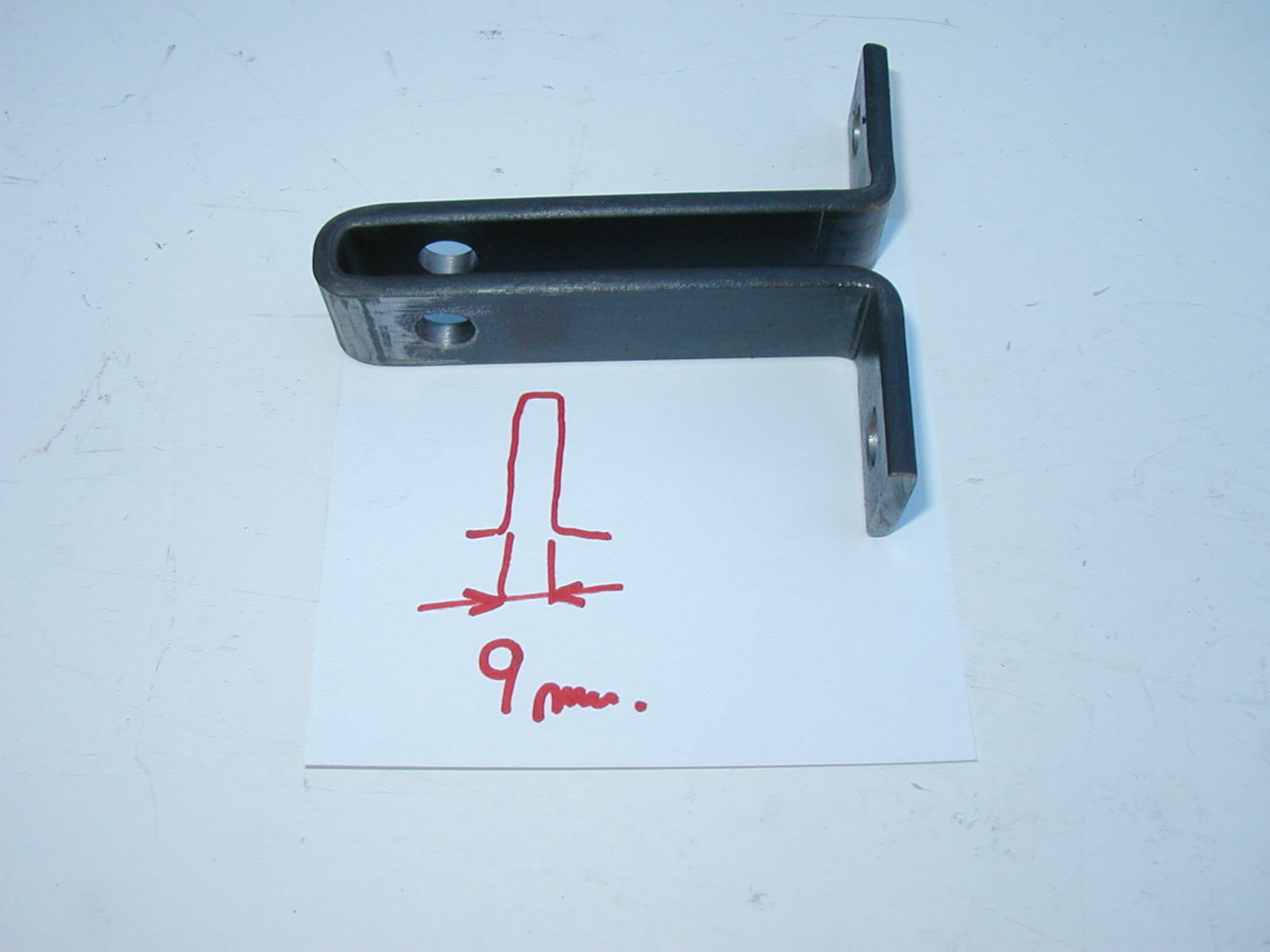

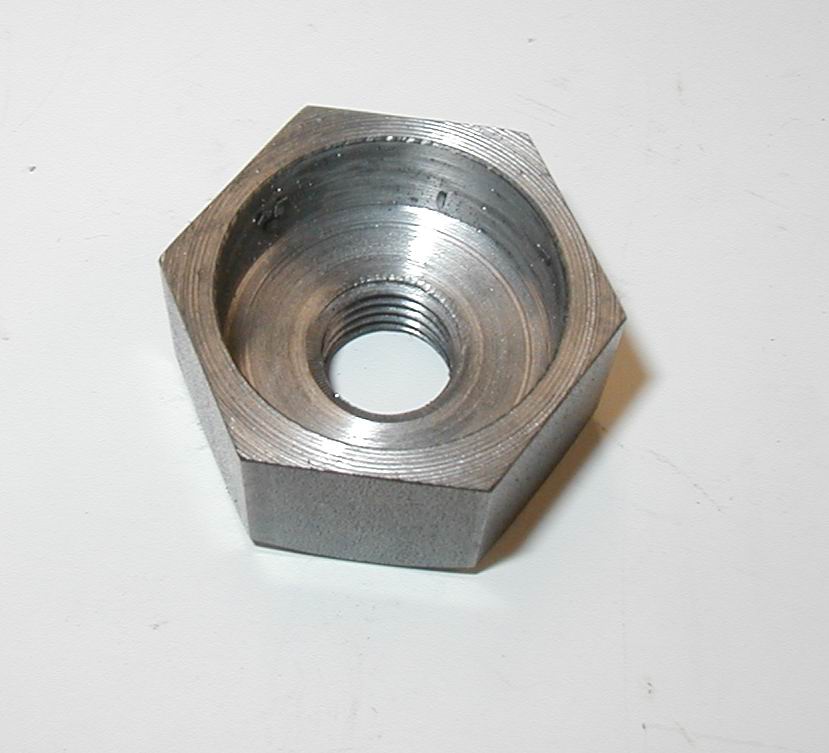

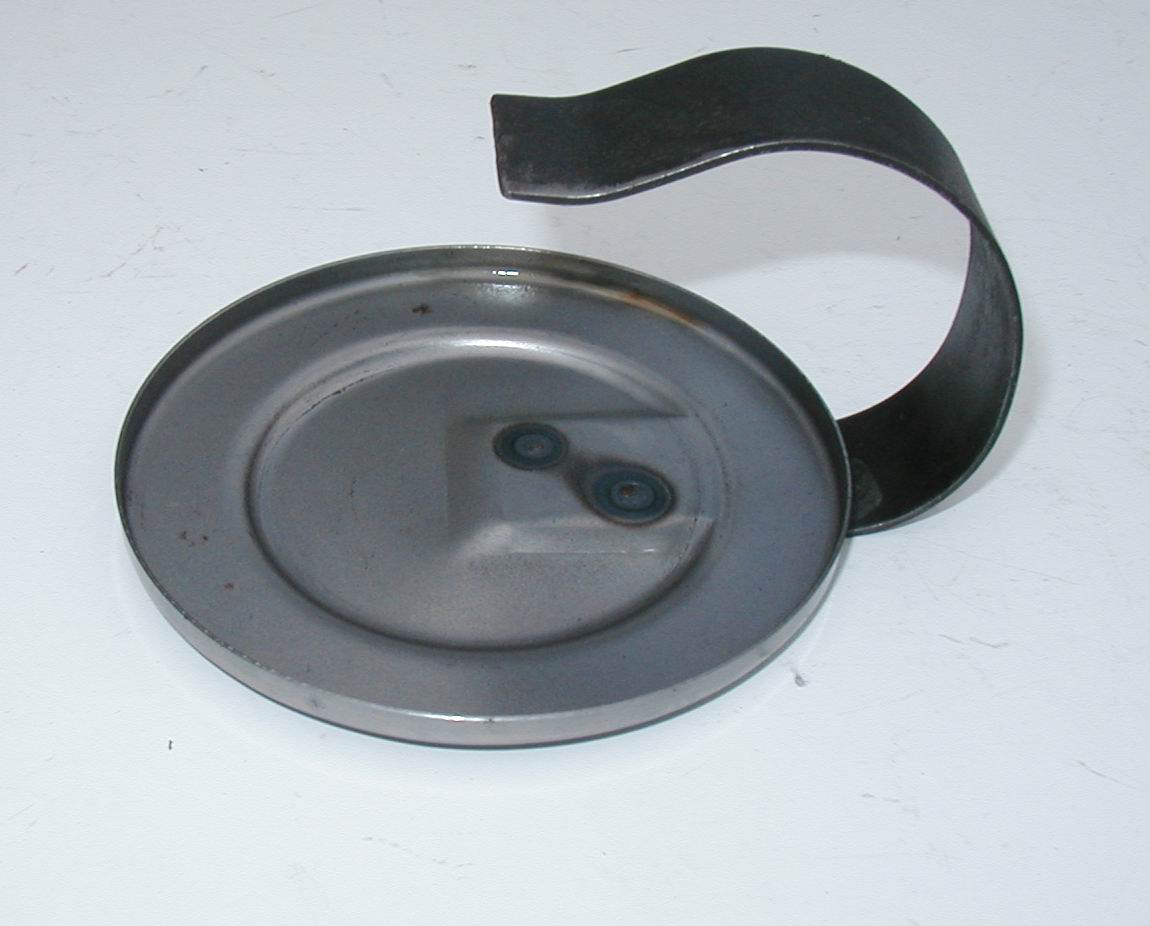

Cat. Nr. 372 373 374 375 376

item holder, horn, 6 mm wide fitting, see ill. 49 holder, horn, narrow holder for Osram bulbs fuel insertion 'pot', see ill. 57 generator nut
Price 200 CZK 200 CZK 600 CZK 1 200 CZK 250 CZK
Cat. Nr. 377 378 379 380 381
item fitting for cable from scuttle to windscreen functioning jack reinforcement, underside of floorpan backbone reinforcement, backbone, lower cross section upper section, cross member, left or right
Price 800 CZK 5 600 CZK 4 700 CZK 1 600 CZK 460 CZK

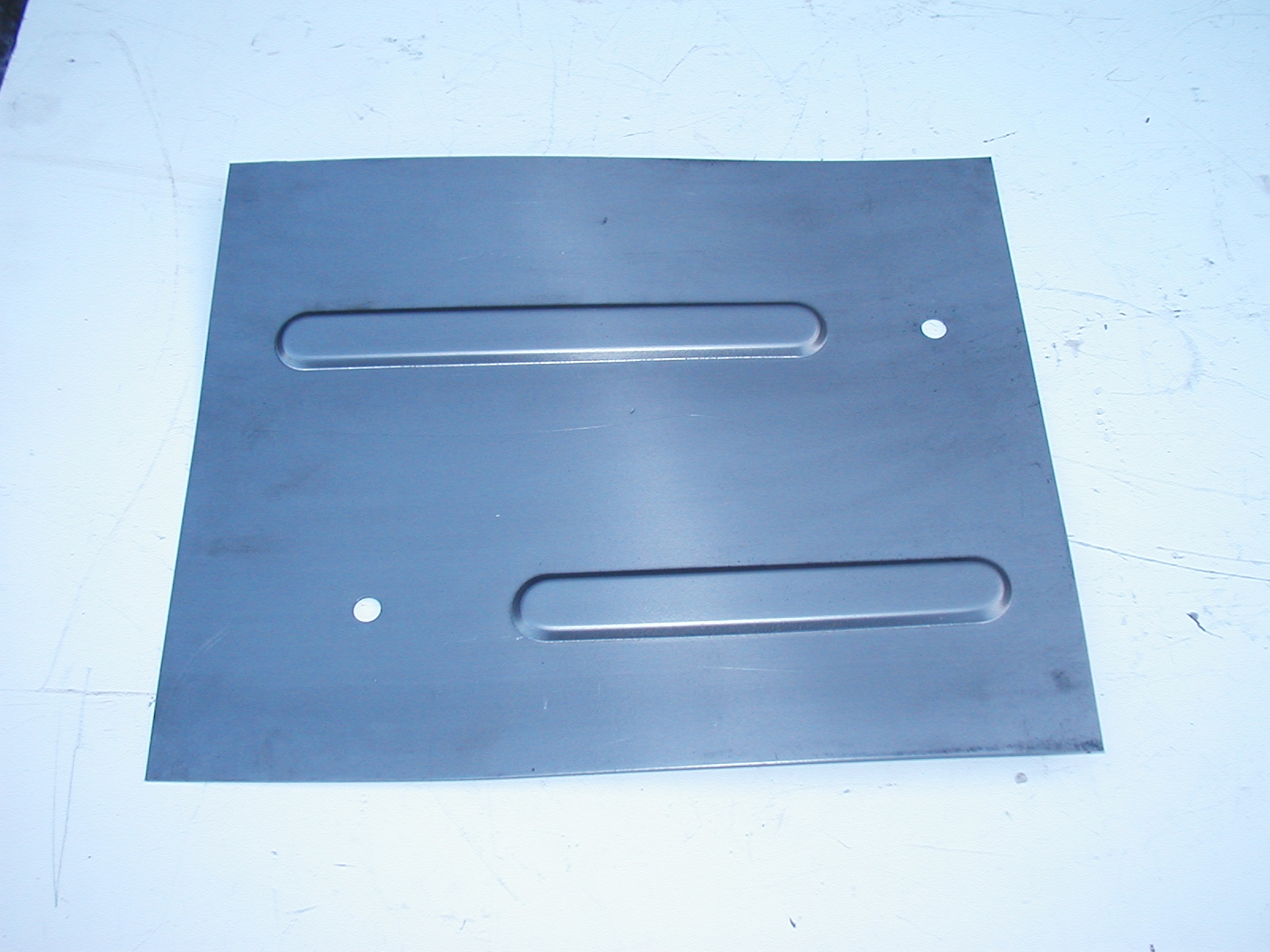

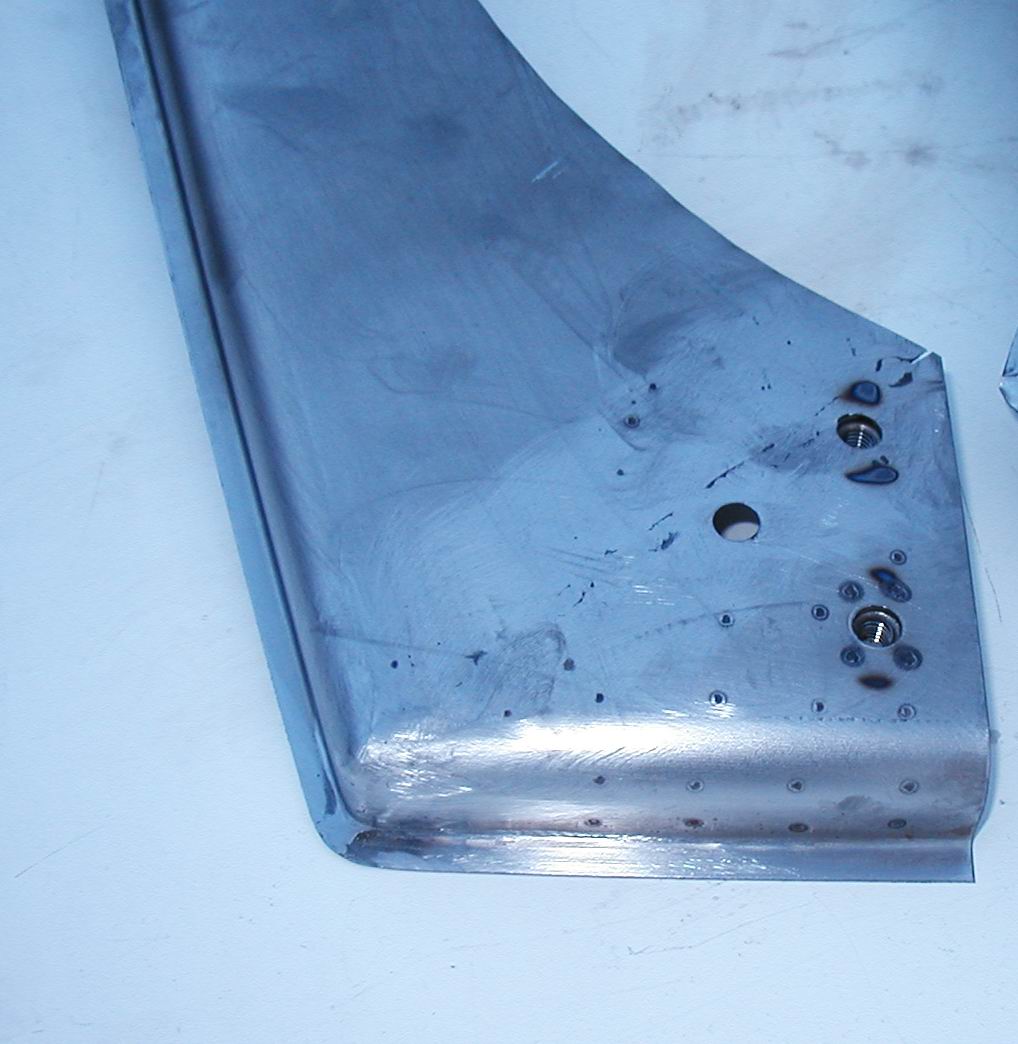

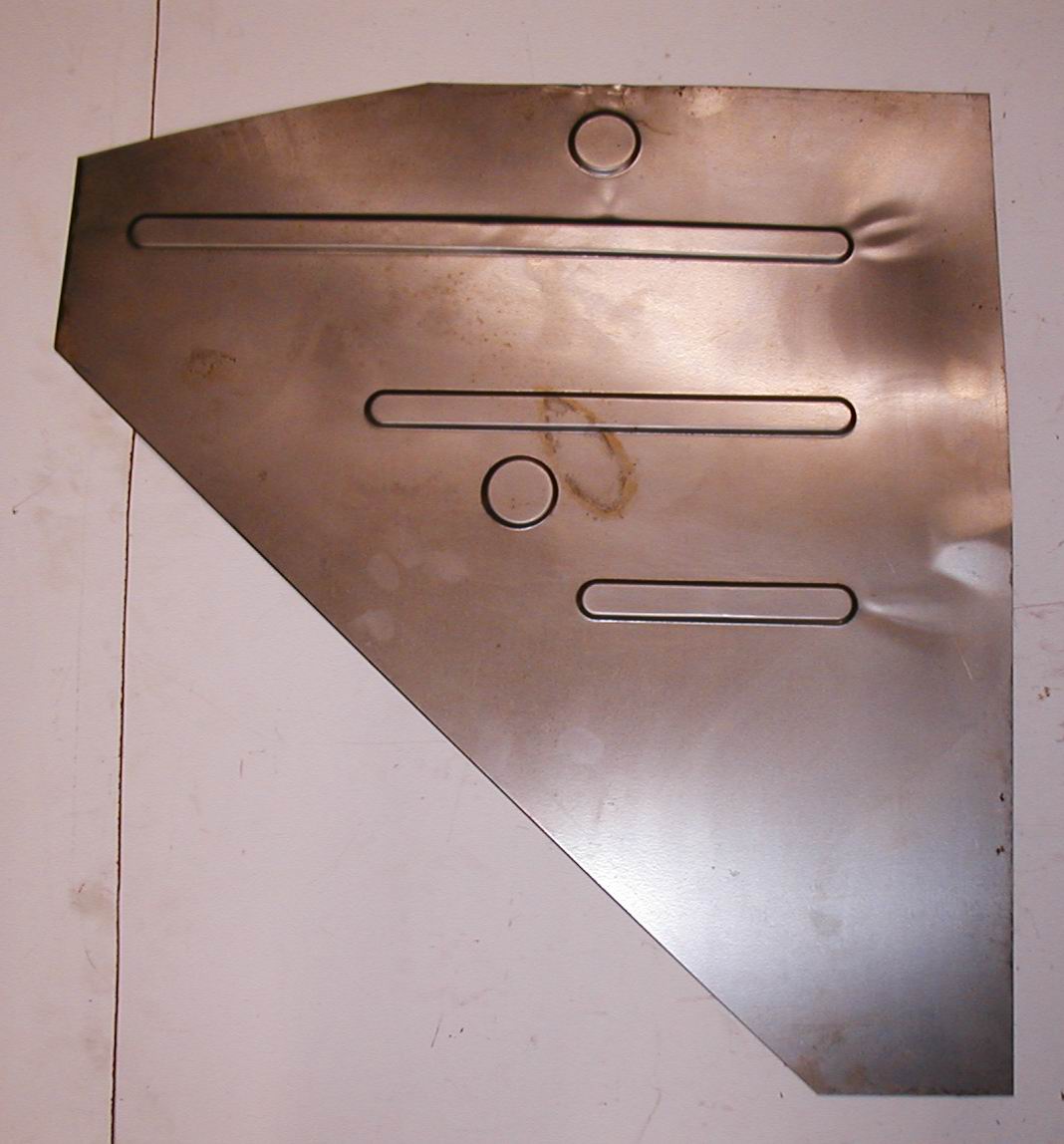

Cat. Nr. 382 383 384 385 386

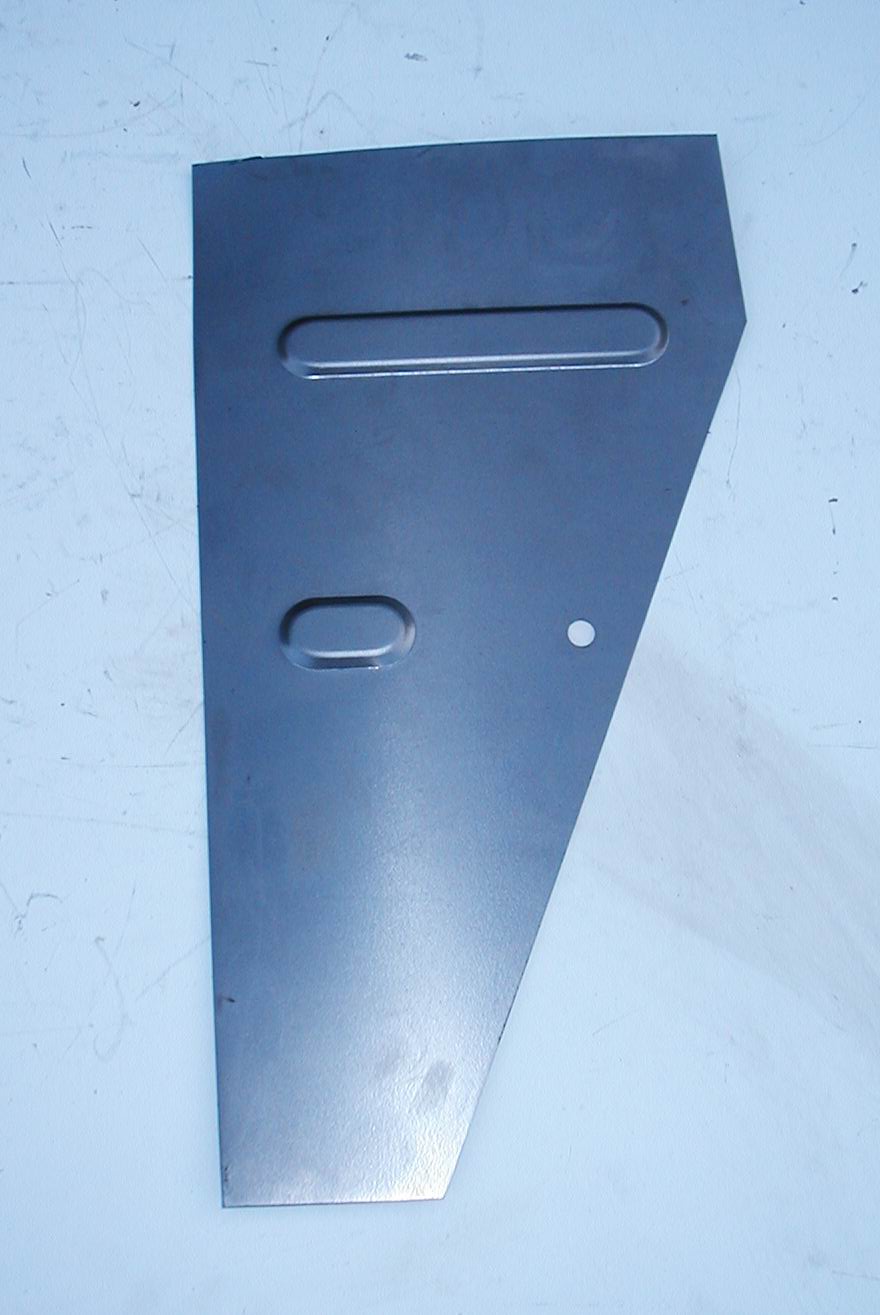

item side panel, front, left or right panel for side of body, rear A, left or right panel for side of body, rear B, left or right panel for side of body, rear C, left or right panel for front side, with pressing for attachments
Price 800 CZK 570 CZK 570 CZK 800 CZK 570 CZK

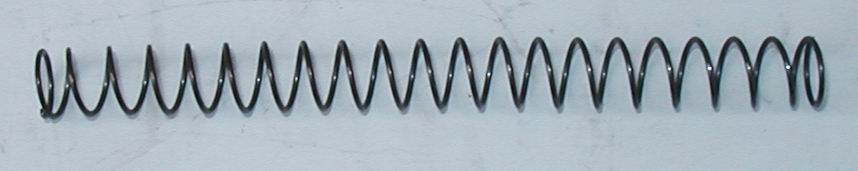

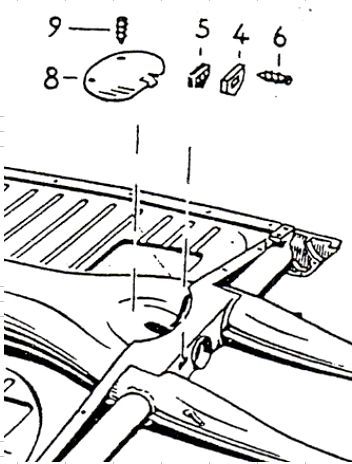

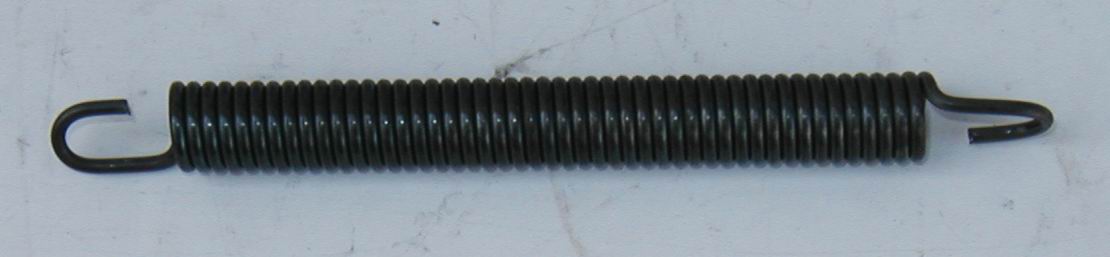

Cat. Nr. 387 388 389 390 391

item spring, for brakes push bar, see ill. 37 accellerator return spring, see ill. 56 cover, gearshift coupling brake light switch clamp, front skid plate
Price 80 CZK 80 CZK 180 CZK 950 CZK 200 CZK

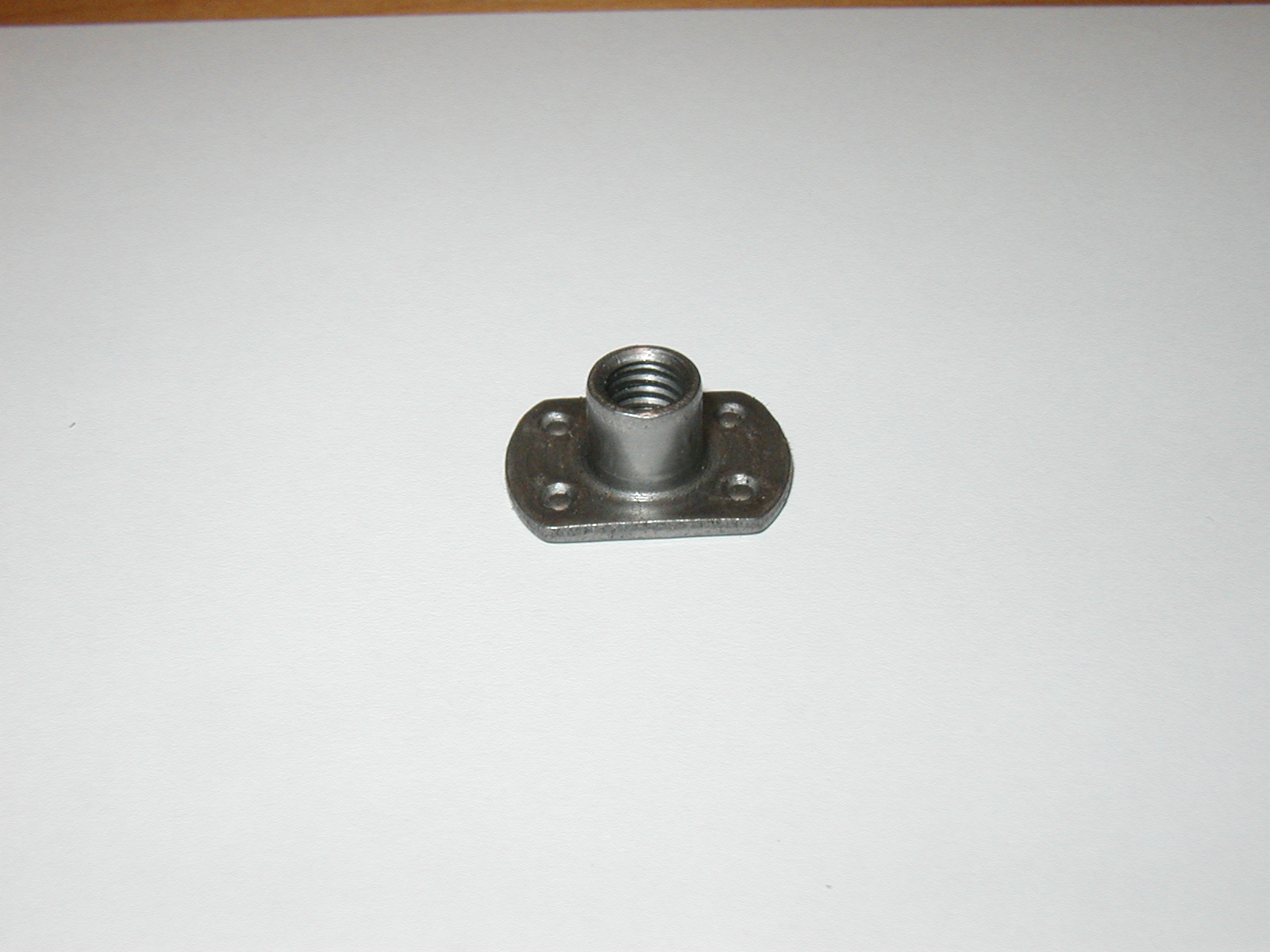

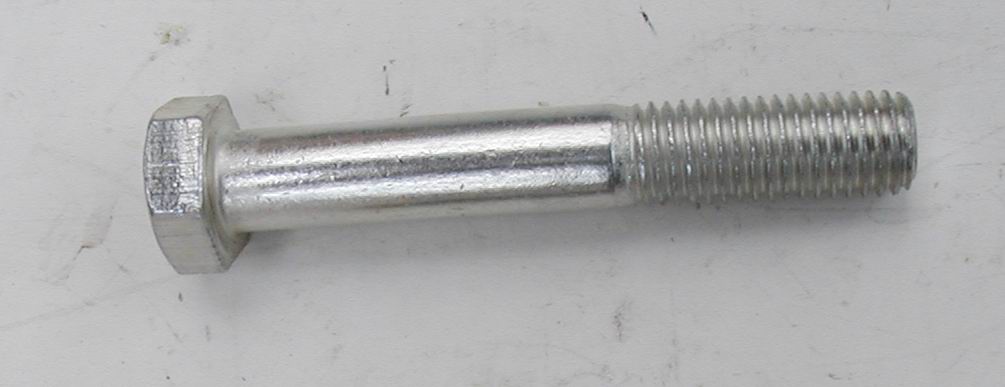

Cat. Nr. 392 393 394 395 396

item captive nut M6 captive nut M8 holder, for MG holder, searchlight bolt, M14, for rear cross-member
Price 15 CZK 17 CZK 2 000 CZK 1 800 CZK 40 CZK

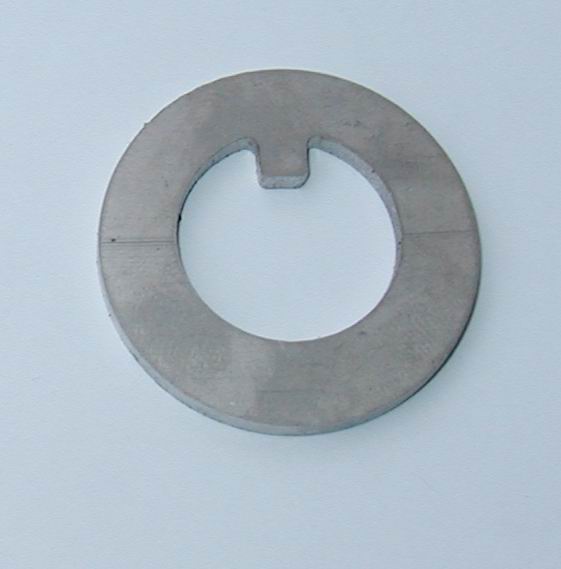

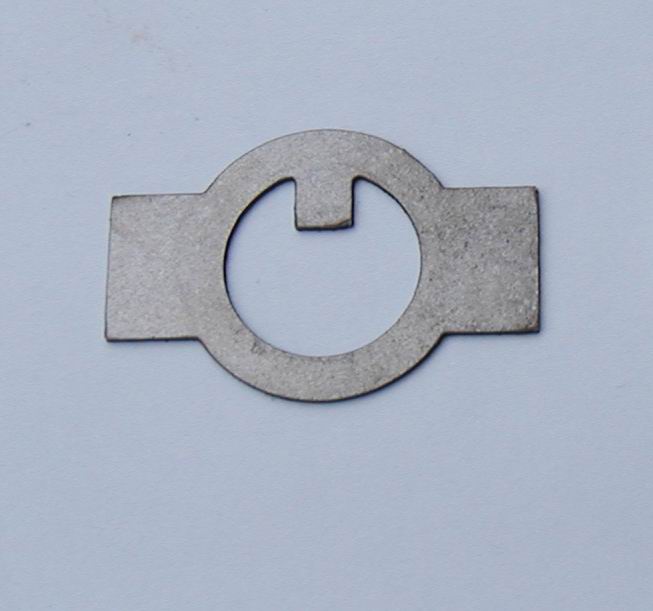

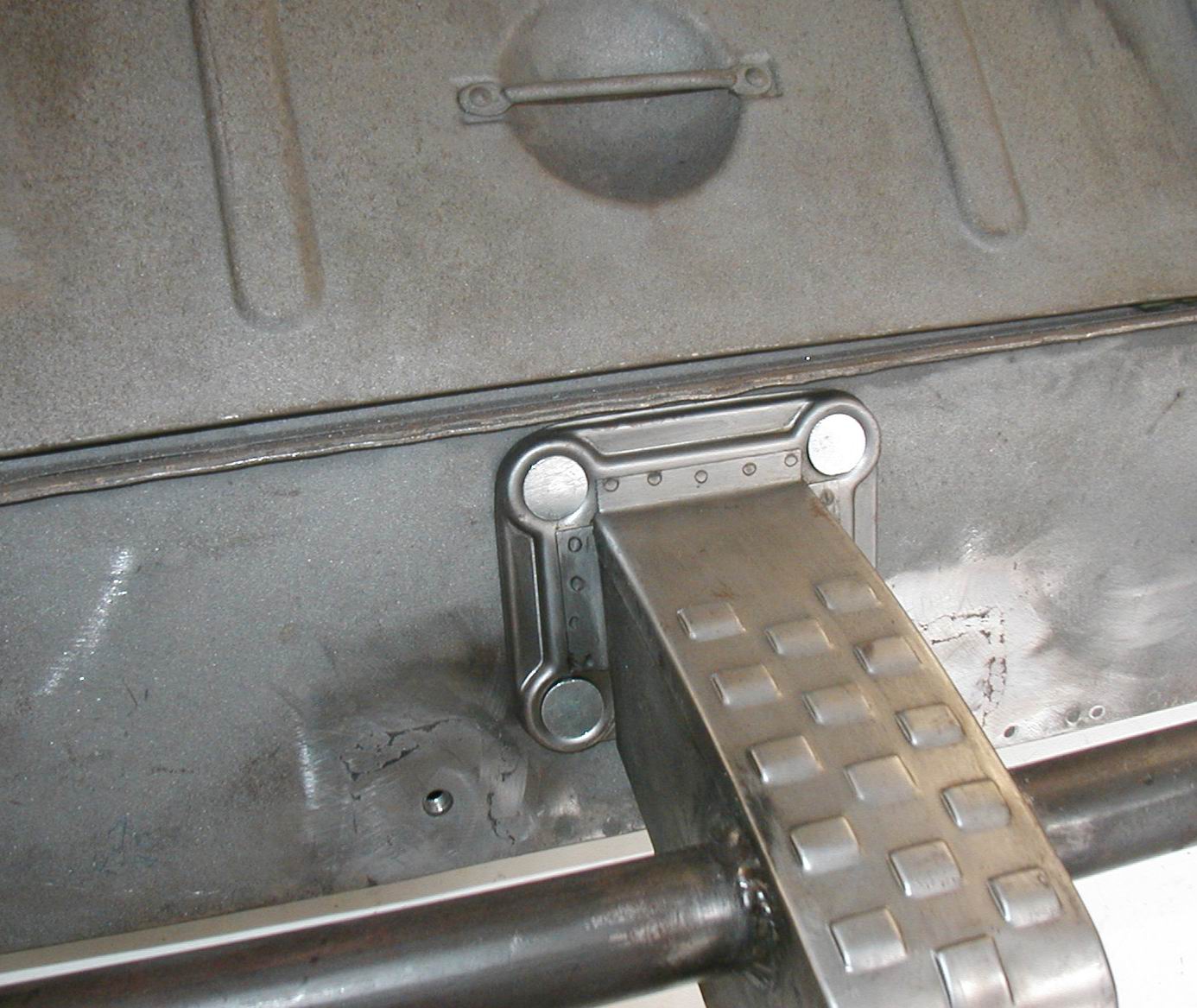

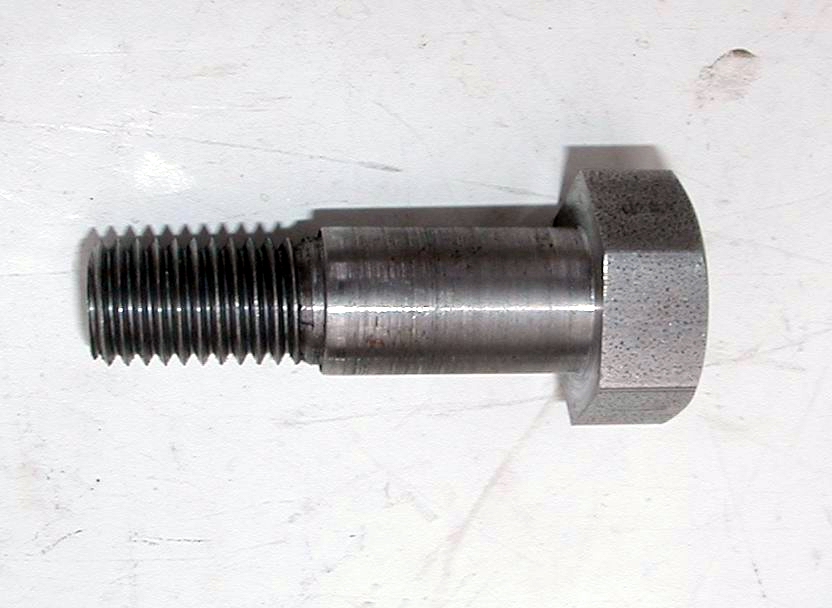

Cat. Nr. 397 398 399 400 401


item bolt, for bumper pipe bolt, countersunk, rear 'step' to cross-member cover (Nabendeckel), left or right fuse - Sicherungsscheibe washer - Druckscheibe
Price 120 CZK 75 CZK 700 CZK 50 CZK 70 CZK

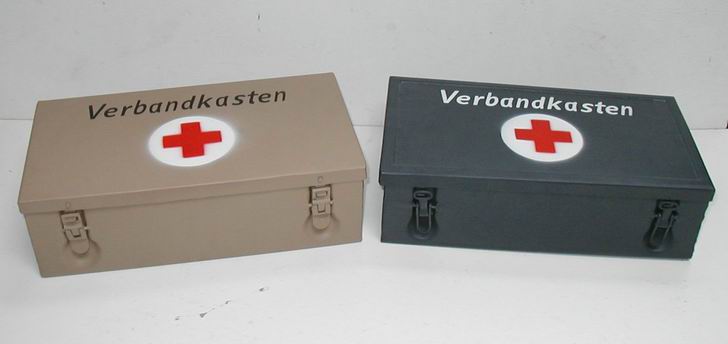

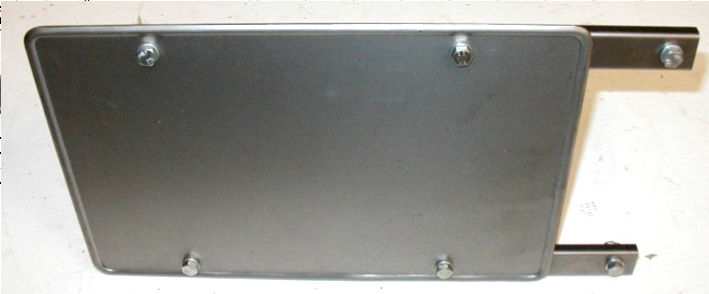

Cat. Nr. 402 403 404 405 406

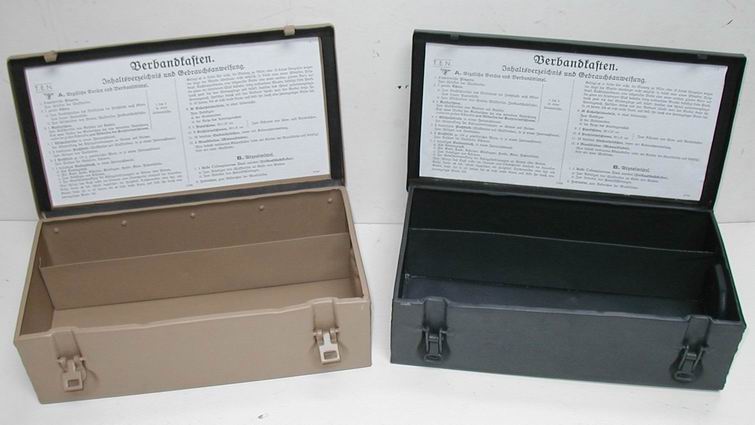

item rear numberplate and holders windshield wiper Verbandkasten - original steel first aid boxes, sandblasted and repainted, Dunkelgelb or Field Grey, with printed label inside, empty outriggers for floorpans speedometer diam. 100 mm. - for dashboard, oval, No.232
Price 600 CZK 950 CZK 2 600 CZK 900 CZK 6 000 CZK

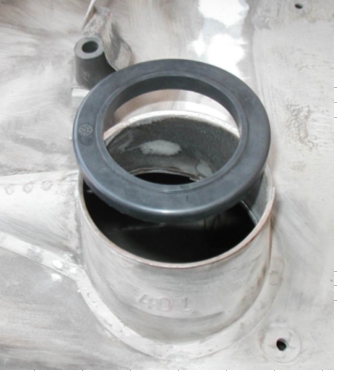

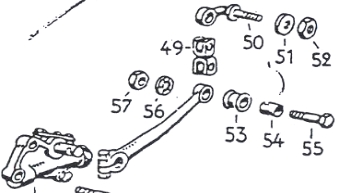

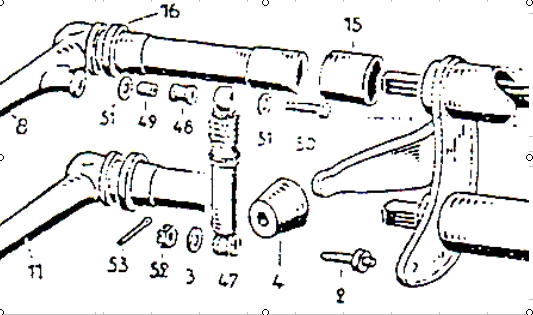

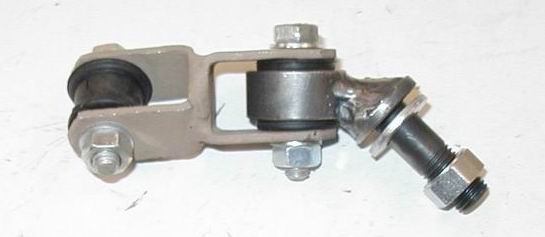

Cat. Nr. 407 408 409 410 411

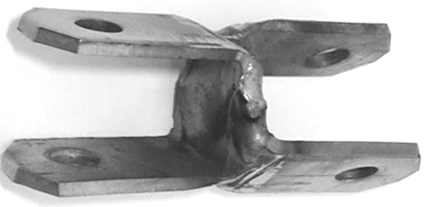

item Replacement set (one side) of linkage for rear shock absorber, incl. 2 rubber Stirrup linkage for rear shock absorber rubber bushings for REAR shock-absorber rubber bushings for FRONT shock-absorber rubber for fuel tank neck
Price 1 250 CZK 200 CZK 260 CZK 260 CZK 550 CZK

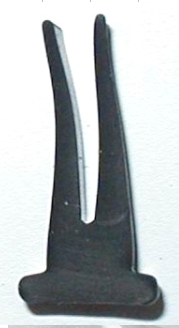

Cat. Nr. 412 413 414 415 416
item ruber for engine-compartment - to car 2,5 m. = price ruber for bottom of windscreen frame(No.239) - to car 1,1m. = price ruber for pillar to carry doors(No.241) - to car 0,75 m. = price ruber for windshield - glass to car 2,8 m. = price fuel cap
Price 450 CZK 180 CZK 120 CZK 340 CZK 1 200 CZK

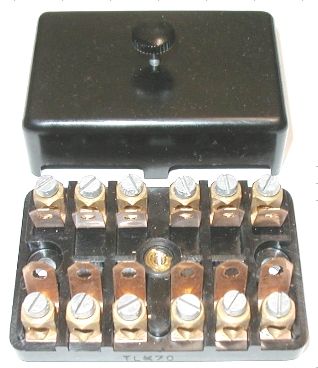

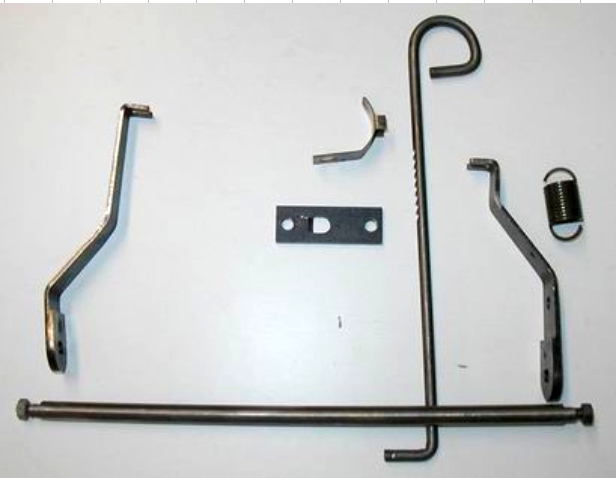

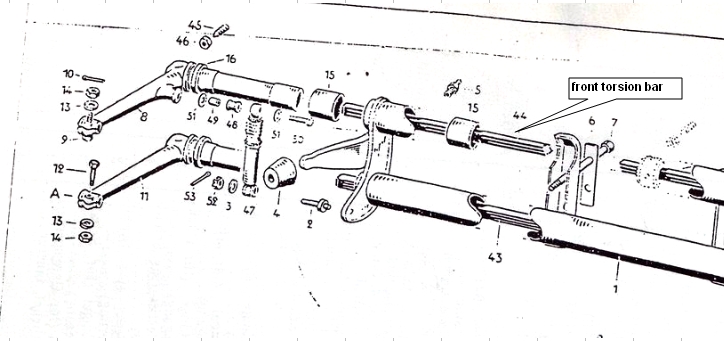

Cat. Nr. 417 418 419 420 421

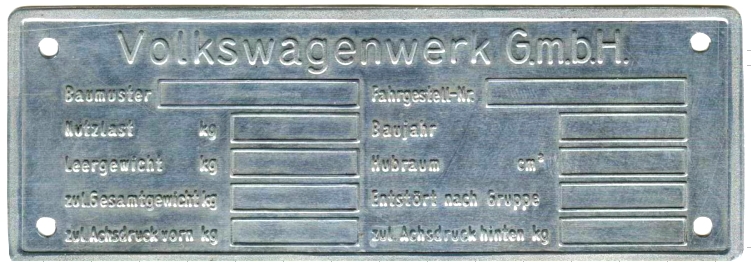

item ID-plate -pressed iron-plate ID-plate -pressed iron-plate - SHORT front torsion bar for Kubel - 18 x 18 mm. ( 3 x 6mm.) linkage governing the heat control flaps fuse box for dashboard oval -part No.232 - size 75 x 50 x 25 mm.
Price 1 150 CZK 1 150 CZK 3 800 CZK 2 800 CZK 650 CZK

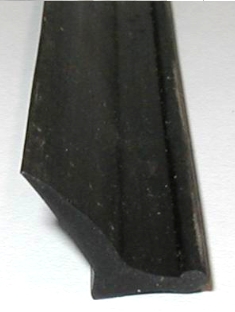

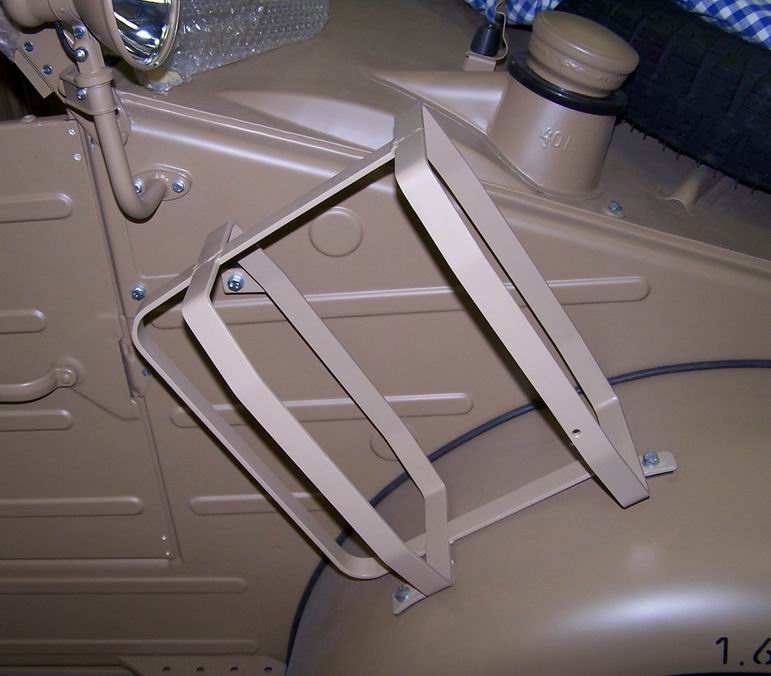

Cat. Nr. 422 423 424 425-A 425-B

item rubber for lids and doors - 1,2m - for one door or one lid = price ruber for steering tube - tafel 14 / 51 ruber for steering tube - tafel 14 / 48 outside jery-can holder - FRONT outside jery-can holder - REAR
Price 220 CZK 450 CZK 450 CZK 1 600 CZK 1 600 CZK

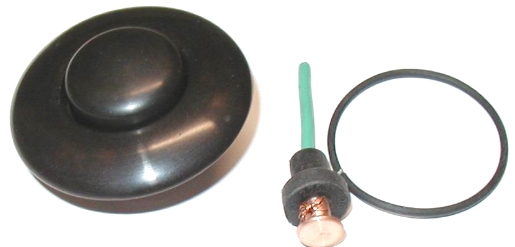

Cat. Nr. 426 427 428 429 430
item strarter switch horn button choke cable stop rubber ruber for arms - ROUND  (Tafel 13-part 16)
Price 1 500 CZK 1 500 CZK 850 CZK 120 CZK 160 CZK

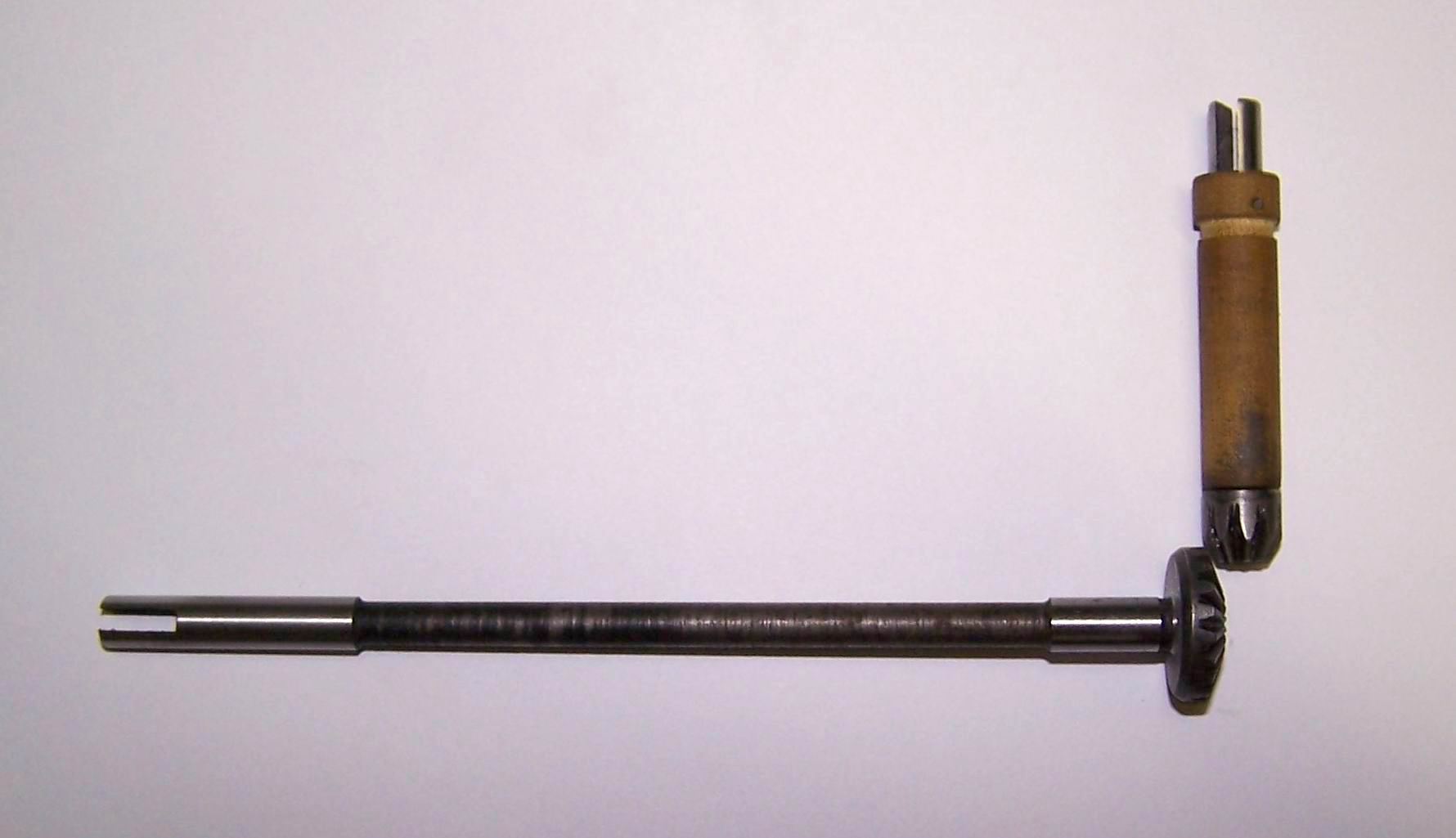

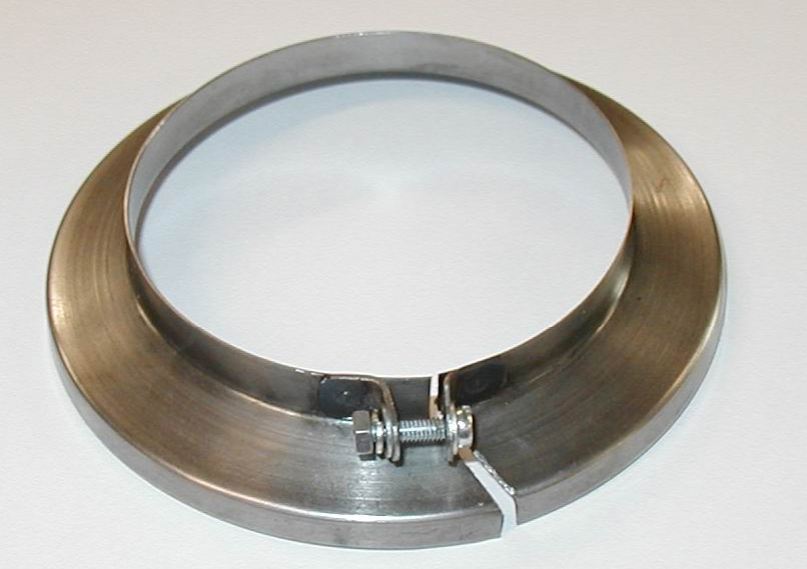

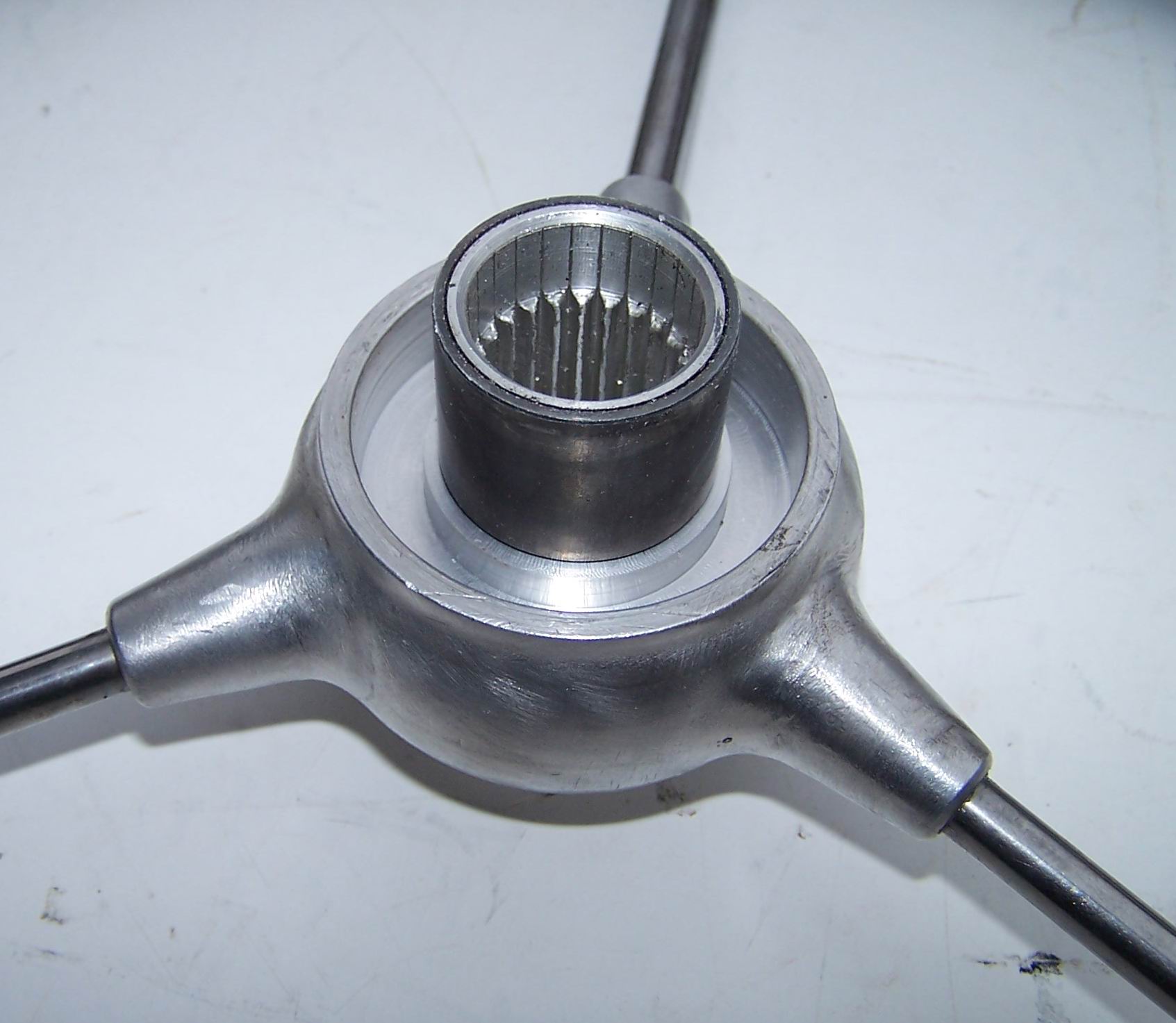

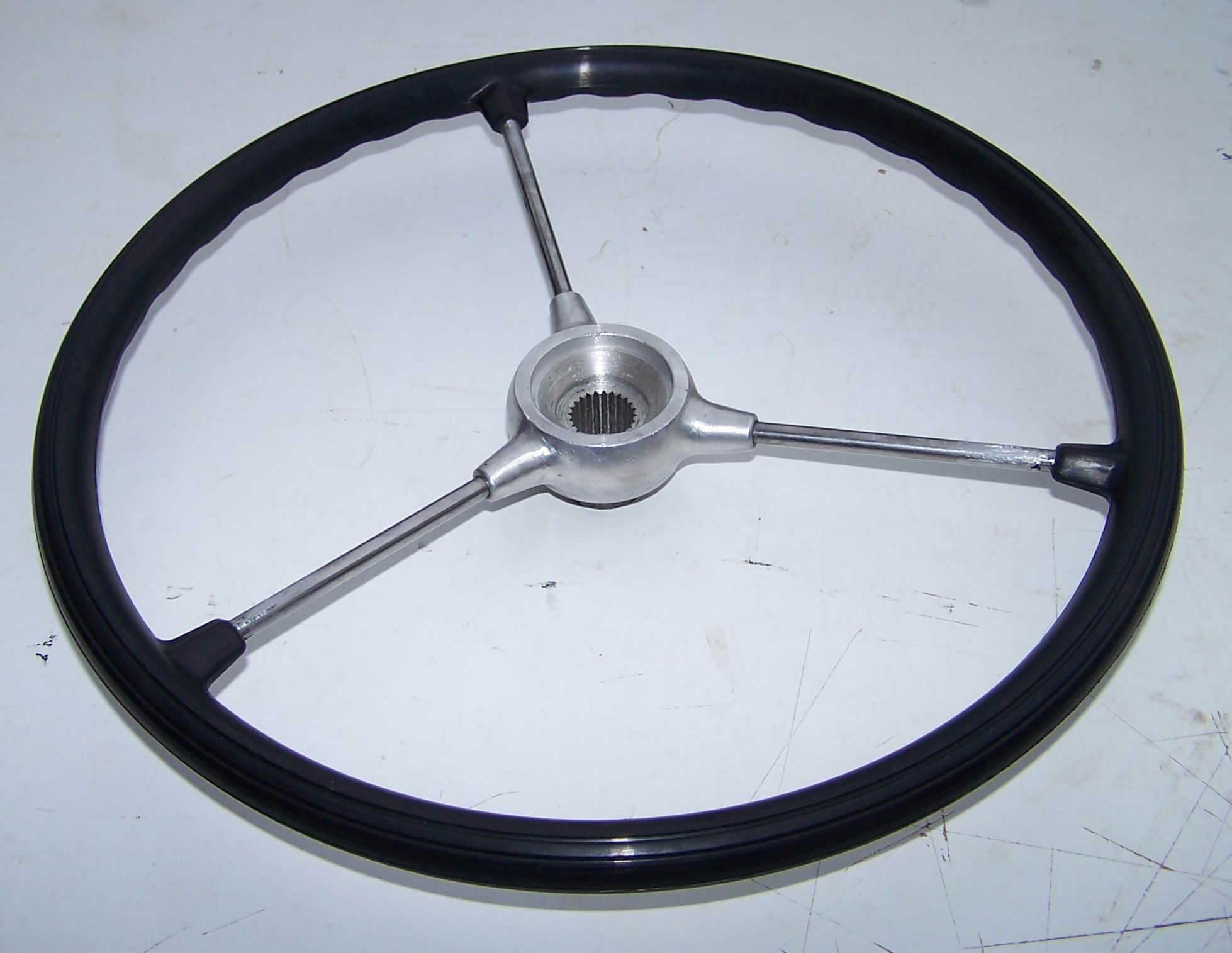

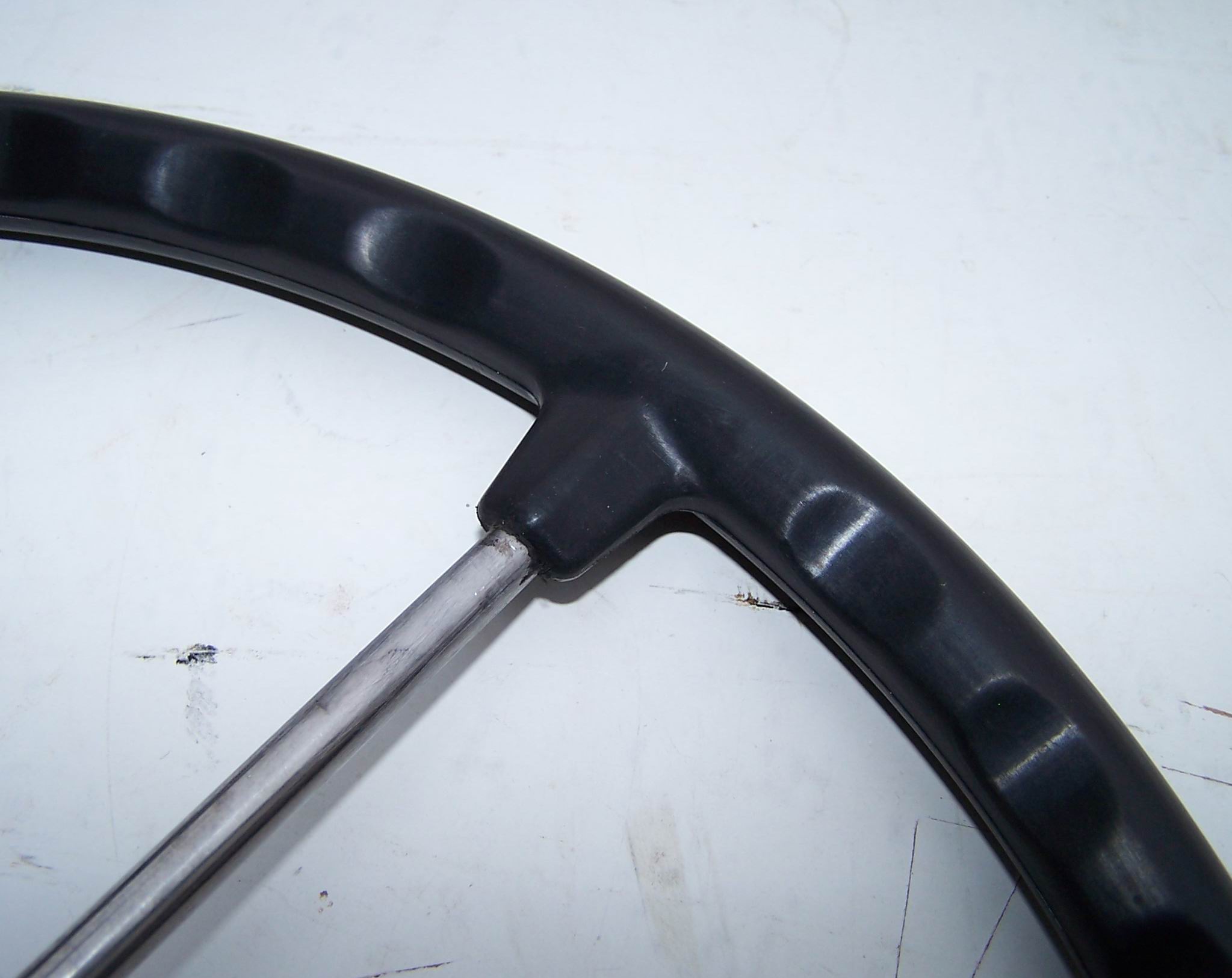

Cat. Nr. 431 432 433 434 435

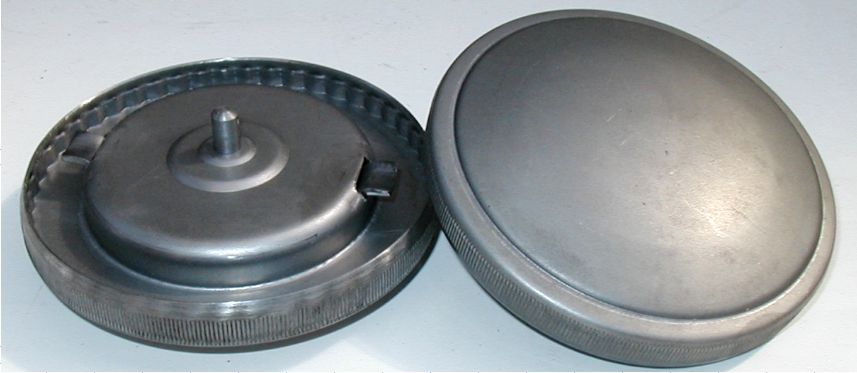

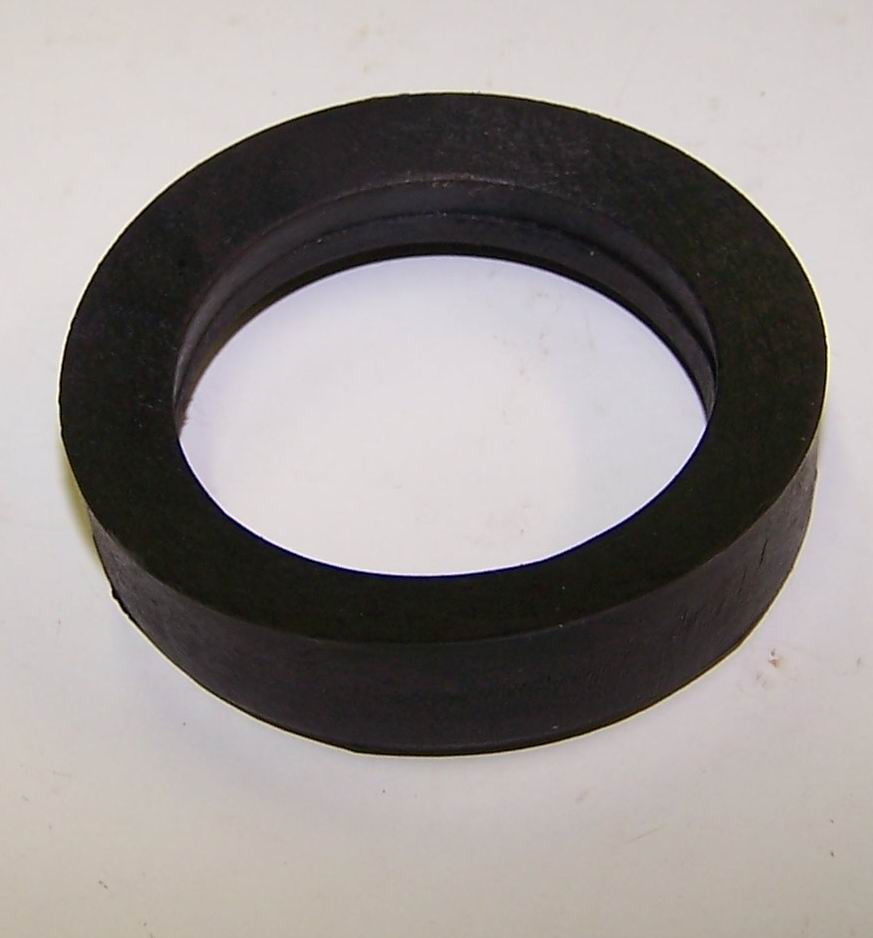

item ruber for arms - SQUARE metal tank neck collar steering wheel - diameter 400mm, identical to the original, hard rubber covering bolt for the front shock-absorber speedometer angle drive

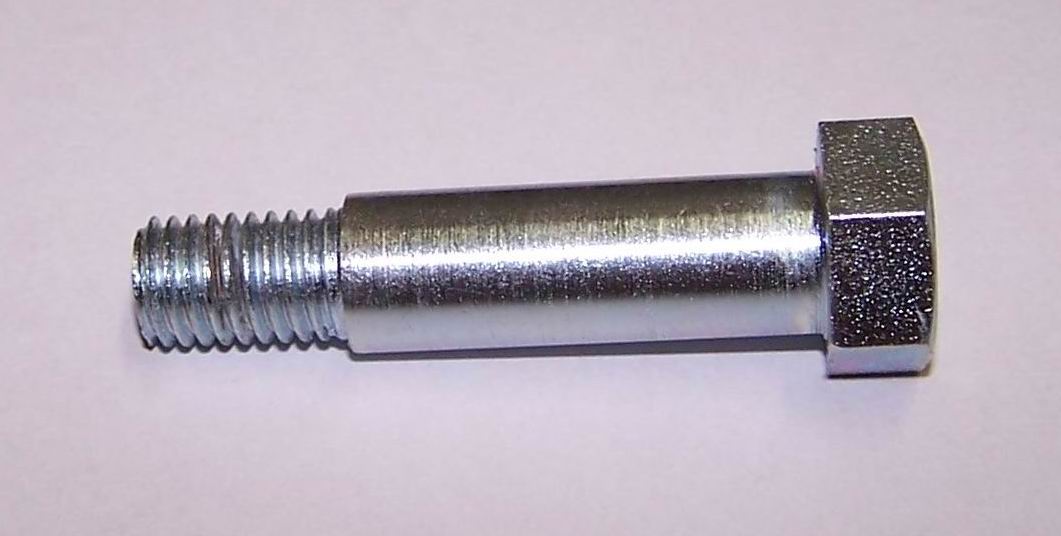

Price 160 CZK 550 CZK 5600 CZK 120 CZK UNAVAILABLE !

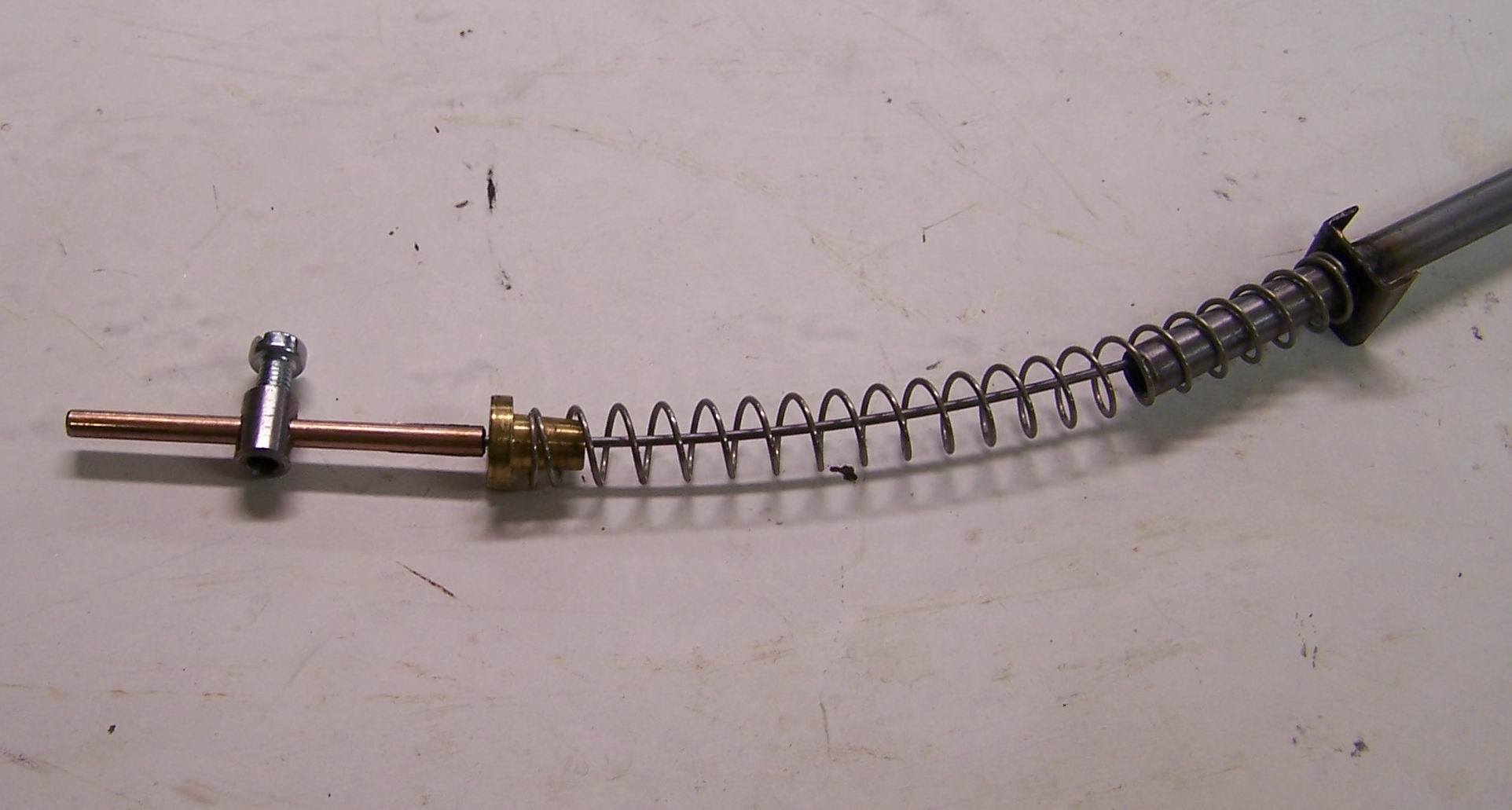

Cat. Nr. 436 437 438 439 440

item fuel tank NECK rubber boot for front shock absorber accelerator cable-string generator pulley gearbox gaiter
Price 800 CZK 680 CZK 520 CZK 1400 CZK 650 CZK

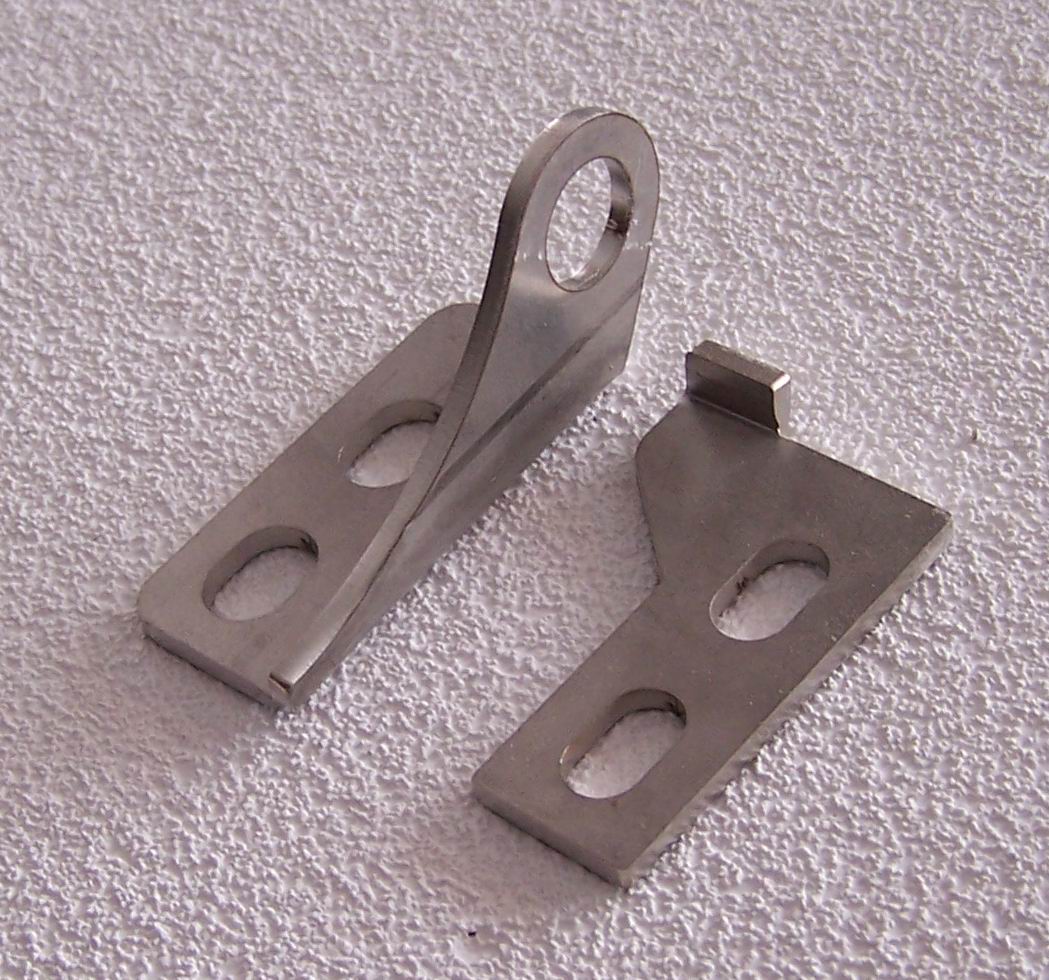

Cat. Nr. 441 442 443 444 -
photo BLANK
item weatherstrip between body and frame, 6m per a car weatherstrip between beading and fenders, 6m per a car pedals stops, 2 pieces rubber placement of rear axel arm -
Price 1250 CZK 960 CZK 250 CZK 450 CZK -

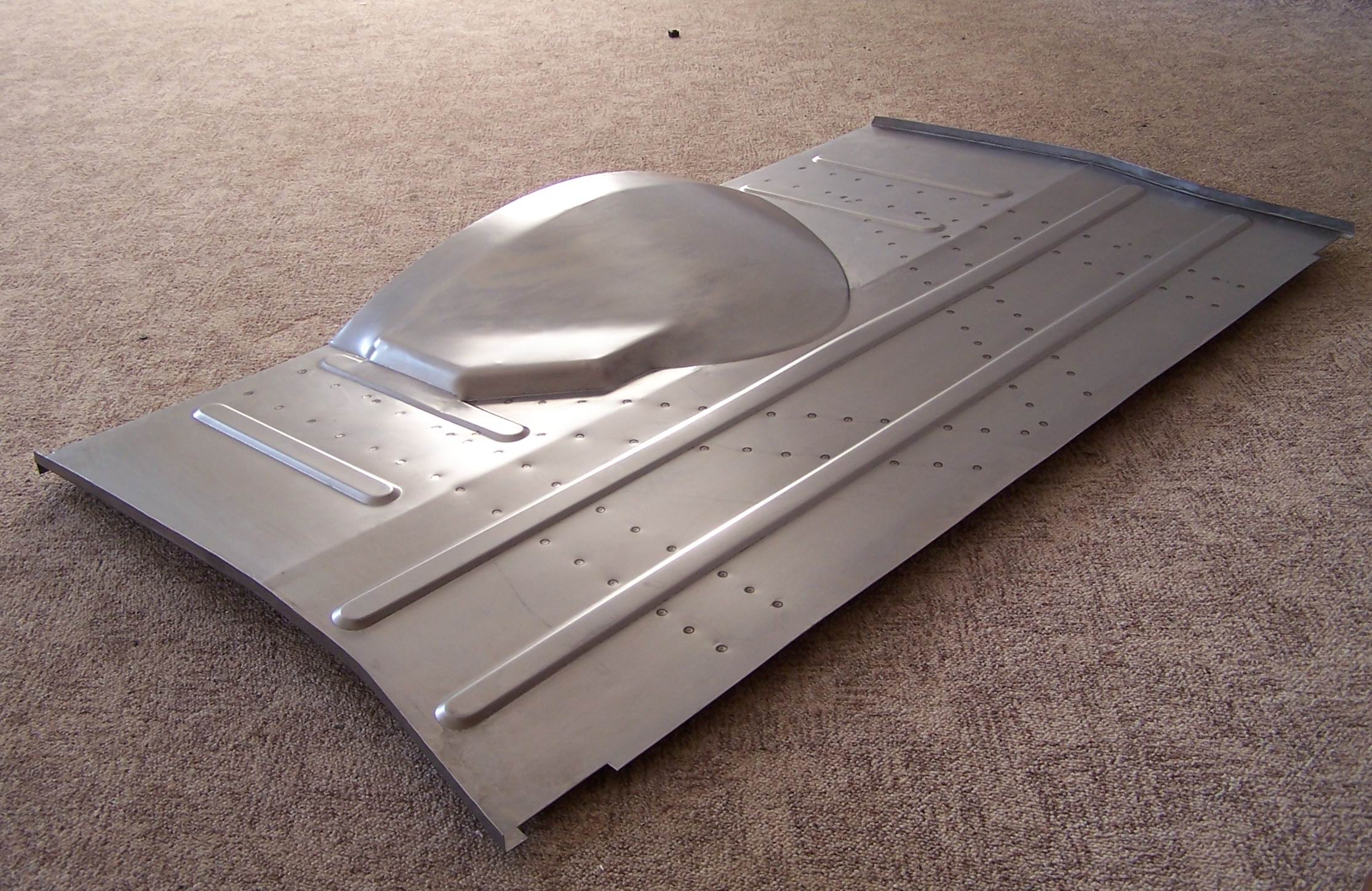

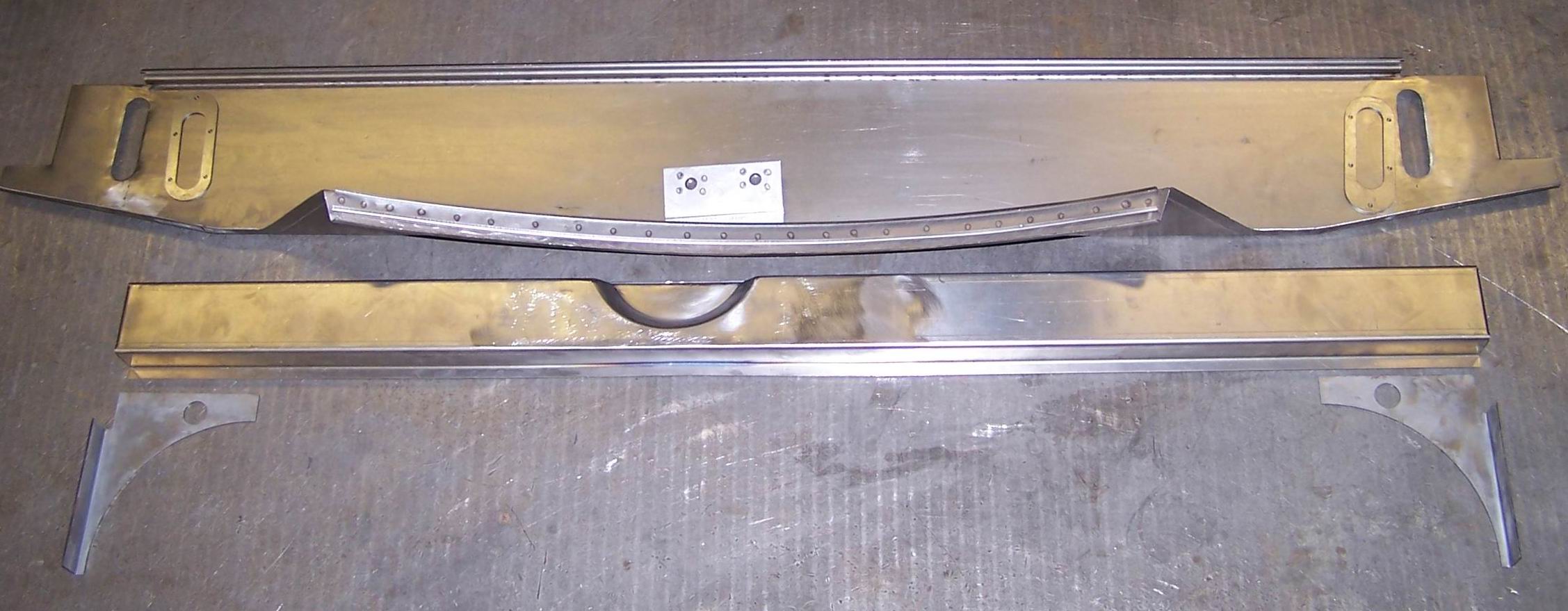

Cat. Nr. 450 451 452 501 502



item exhaust for K1 type-price for a couple ! rear headboard for K1 type-price for complete kit floor of trunk blackout cover, headlight blackout cover, searchlight
Price 8600 CZK 4300 CZK 7500 CZK 250 CZK 250 CZK

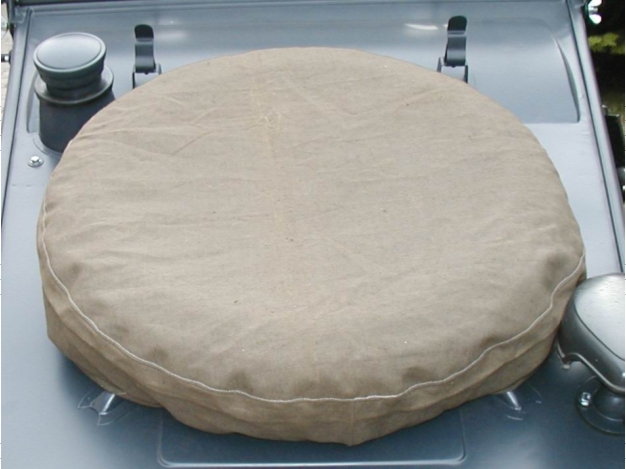

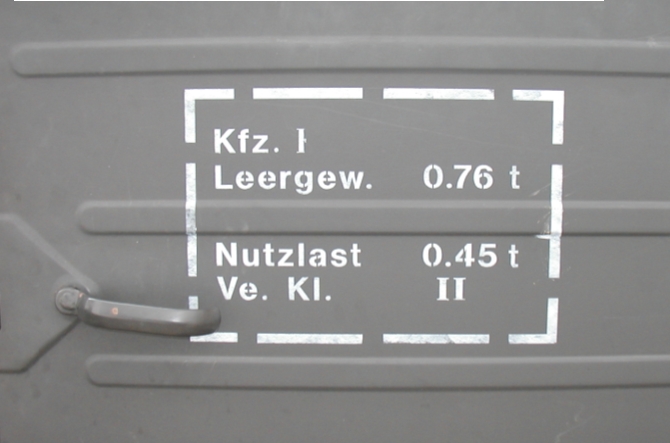

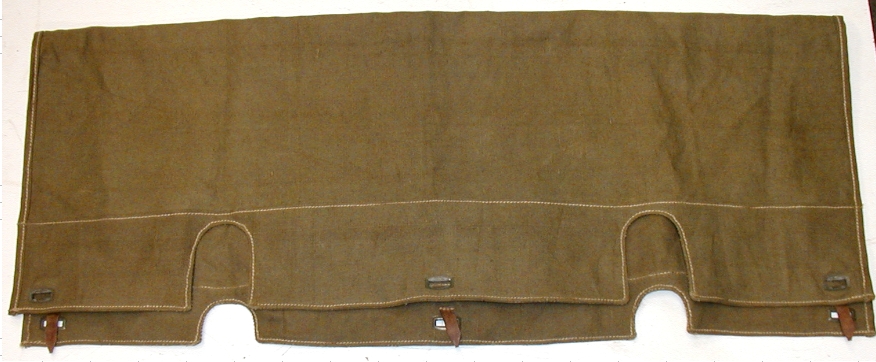

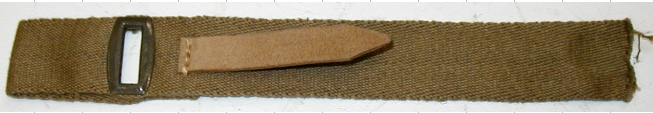

Cat. Nr. 503 504 505 506 N 82-1
item web strap, 320 mm, for jerrycan web strap, 270 mm, for first aid box cover windshield cover, spare tyre stencil, loading class data
Price 200 CZK 200 CZK 1 800 CZK 900 CZK 160 CZK

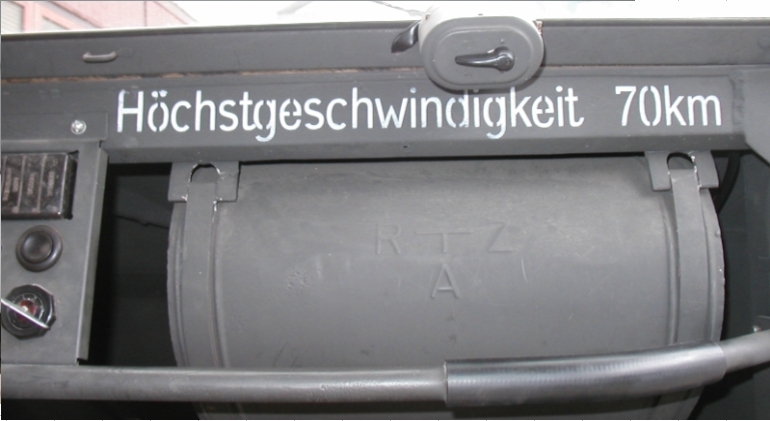

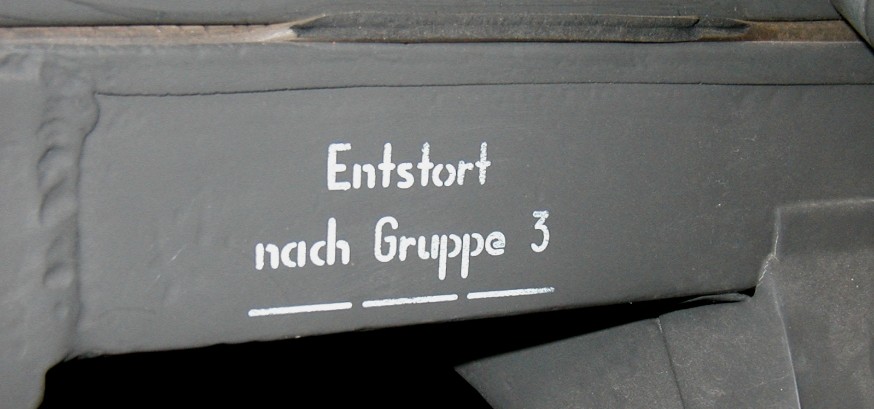

Cat. Nr. N 82-2 N 82-3 N 82-4 N 82-5 N 82-6
item stencil, lid of battery box stencil, front tyre pressure stencil, rear tyre pressure stencil, top speed 70 km stencil, radio interference screening class
Price 160 CZK 50 CZK 50 CZK 160 CZK 50 CZK

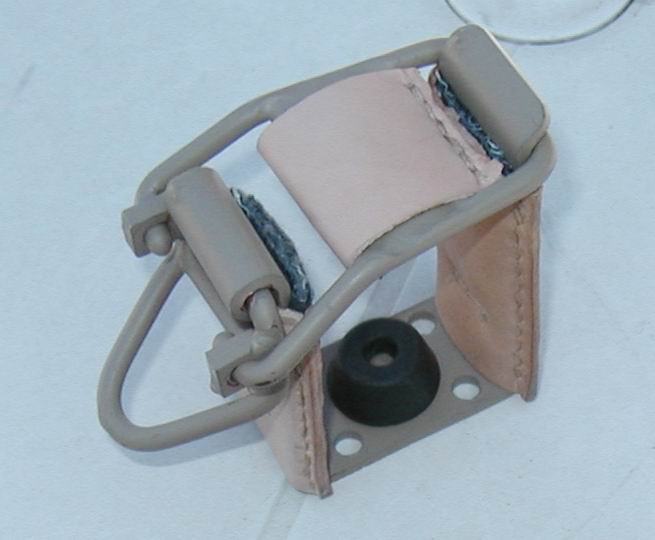

Cat. Nr. N 82-7 N 82-8 310-A 320-A -
photo BLANK
item stencil, 30 metre distance stencil, Vor Andrehen Mauser butt holder (painted tan, and stitched leather inserts) Mauser holder (painted tan, and with stitched leather inserts) -
Price 200 CZK 160 CZK 800 CZK 1 300 CZK -
